No more manual changeover switch or inconvenient extension leads, the Latronics High Speed AC Transfer Switch is a fool proof, hassle free solution for multiple power source systems. Fast input switching (transfer time of approx. 12ms) ensures a smooth transparent transition between power sources.
Eliminate the need to manually switch your power sources and spend more time enjoying life. The unit senses AC power from various sources, eg. inverter / generator / mains power, and automatically switches the output between the various sources accordingly. With prioritized inputs, the most appropriate power source is always selected.
Indicators clearly display when each of the AC power sources and AC output power are available. The generator input also comes with voltage sensing and time delays to ensure the generator has warmed up and the voltage is stable before switching to generator power. The generator voltage is continuously monitored and in the unlikely event the generator voltage becomes unstable the device switches to another power source until the generator voltage restabilises.
Allows flexibility and ease of installation.
High Quality Connectors
The Inputs and Outputs are connected via heavy duty high quality screw terminals to ensure a safe and secure connection.
Panel Mount or Surface Mount
The surface mount model (ACTS40) has dust and low pressure water jet protection (from all directions) allows it to be installed almost anywhere around the system, without affecting its long term reliability.
The panel mount model (ACTS40-PM) has a depth of only 65mm and can be mounted into switch board giving a more professional and tidy installation.
The ACTS40 can recognise a loss of power from your primary source and transfer to your back-up source of power in approximately 12ms. This giving you transparent and un-interrupted power transfer.
Double Pole Transfer
Double pole relays switch both active and neutral to eliminate any earth or grounding problems and completely isolate each source.
Minimises and simplifies your systems wiring, while providing a fully automatic system manager.
On Delay Timer
Ensures the generator has warmed up and the output voltage has stablized before transfering power to the output.
Monitors the generators output voltage and if it is too high or too low will transfer the output power back to inverter power until the generators output restabilises.
Over 25 years of experience and continuous adherence to stringent quality standards ensures optium reliability backed with a full 2 year parts and labour warranty.

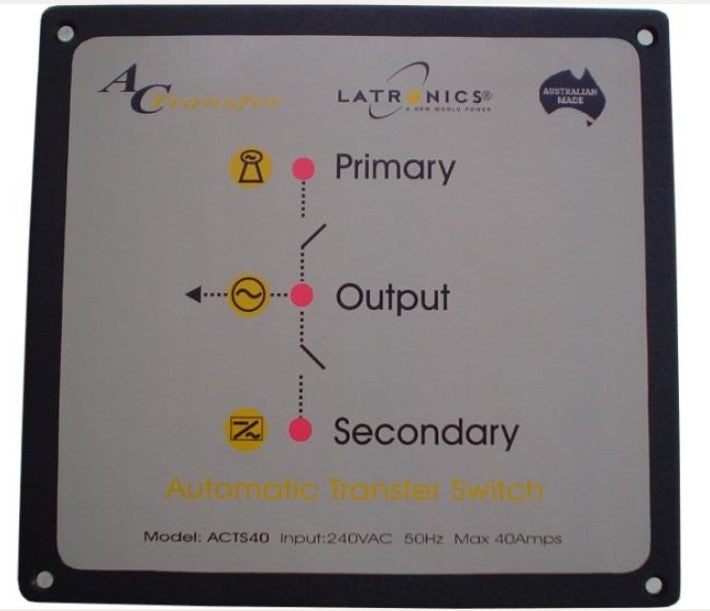

LED Status Indicators
A full set of LED's keeps the user informed of its operation at all times.
- Primary Power Stable
- Primary Power Not Stable
- Secondary Power Available
- Output Power Available
A complete Australian made product, proudly designed and manufactured in Australia by a 100% Australian owned company.
|Maximum AC Current||40A|
|Number of AC Inputs||2|
|Input Voltage||180 - 280Vac|
|Operating Temperature||10°C to +50°C|
|AC Connections||Screw terminal block|
|Transfer Time||Approximately 12ms|
|Enclosure||Flame retardant PVC||No Enclosure (Panel mount)|
|Dimensions||170 x 135 x 95 mm||134 x 122 x 70 mm|
Latronics LS Series Stand-alone inverters are backed by our manufacturer’s warranty: two years for 500W-1800W models and three years for 2000W-7000W models.
