Description
If you are looking for:
- A rugged, simple and easy to use sine wave inverter
- No mucking about with computers or smartphones to program it
- Aussie made
- Highly efficient (no load draw is .49A and a low 60mA on standby)
Then Latronics is your choice!
FEATURES

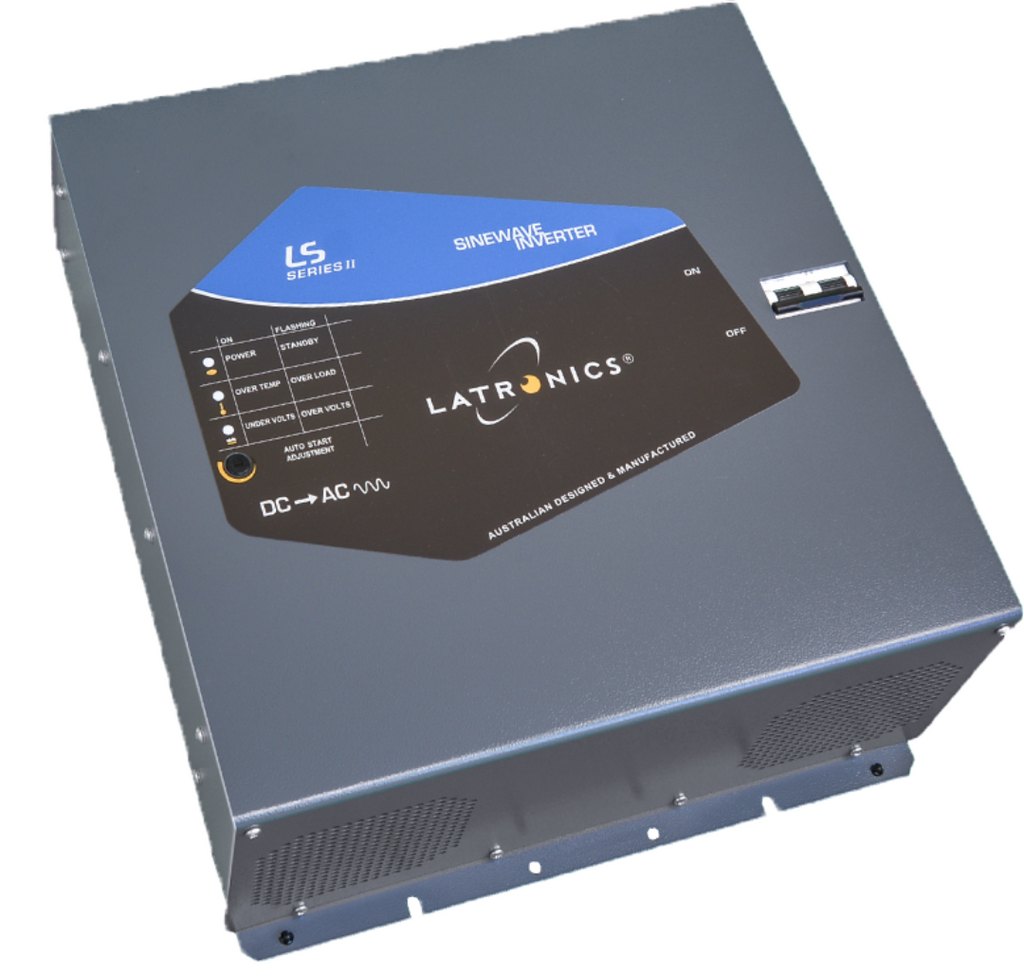

The Latronics LS Series Stand-alone inverters are simple, powerful, reliable and utilise advanced microprocessor algorithms to ensure your power conversion is pure and stable.
Pure Sinewave Waveform: Pure sinewave output provides the ideal power source for modern electronics. A true sinewave output with excellent surge power capacity enables the operation of demanding appliances, such as fridges, microwaves, washing machines and pumps.
Robust design: Protects itself against AC shorts. Sophisticated circuitry provides protection against overload, short circuit, over temperature and battery low voltage shutdowns. Latronics LS Series inverters are a quality industrial product customisable to withstand vibration and constant movement in mobile or marine installations, as well as the diverse range of home or commercial applications. Latronics LS Series inverters are built for extreme environments using a recyclable powder coated aluminum casing.
Auto-start circuitry: Automatically switches the inverter ON and OFF with applied appliances. The auto-start is an important feature as it maximizes valuable battery capacity. Sensitivity of the auto-start can be easily adjusted to either start small appliances or run continuously. Frequency is fully selectable between 50/60Hz via a set of internal dip switches for international use.
Easy to Use: Simple at-a-glance LED lights keep the user informed of status at all times.
High Efficiency Toroidal Transformer: Toroidal transformers provide outstanding efficiency and durability. When sized correctly, our high surge rating allows easy starting of motors and high inrush current devices.
Built In DC Circuit Breaker / Battery Isolator Switch: DC Circuit Breaker protects the inverter and cables from becoming a potential fire hazard under fault conditions, as well as providing isolation from your batteries while switched OFF. The circuit breaker is designed for ease of operation and safety. If the Inverter shuts down due to Overload, Undervolts or Overvolts it can be reset. Full 3500V AC/DC isolation.
Battery Leads Included: High quality, high current, heavy duty DC leads for low loss power delivery are included.
Options: A large range of options from custom voltages and alarm contacts to vibration proofing and conformal coatings are available.
SPECIFICATIONS
| INVERTER MODEL | LS4024 | LS-5048 | LS7048 | LS8048 |
| Nominal DC Voltage | 24V | 48V | 48V | 48V |
| Continuous Power | 4000W | 5000W | 7000W | 8000W |
| 1/2 Hour Rating | 4500W | 6000W | 8500W | 9000W |
| Surge Rating (5secs) | 12000W | 15000W | 20000W | 22000W |
| Imput Voltage Range | 21-34V | 42-68V | 42-68V | 42-68V |
| Standby Current | 60mA | 55mA | 60mA | 60mA |
| Inverter ON-no Load | 1.1A | 0.47A | 0.49A | 0.50A |
| Peak Efficiency | 94% | 95% | 95% | 95% |
| Weight | 37Kg | 35Kg | 38Kg | 42Kg |
| Dimensions | 370mm(L) x 386mm (W) x 180mm (H) 475mm x 458mm x 187mm | |||
| Output Voltage | 230Vac +/-4% | |||
| Output Frequency | 50Hz +/-0.1% | |||
| Output Waveform | True Sinewave | |||
| THD | <4% | |||
| Power Factor | All Conditions | |||
| Autostart Sensitivity | 0 - 20W Adjustable | |||
| Operating Temperature | -20° C to +40° | |||
| DC to AC Isolation | 3500 V | |||
| Protection Circuitry | Overtemperature, Overload/Short Circuit, Battery Undervoltage/Overvoltage | |||
| Battery Leads | 1.5M Long with 10mm Mounting Lugs | |||
| AC Output Wiring | 3 Terminal Hardwired Junction Box, Labelled 'AC Output' | |||
| AC Input Wiring | Only with KX Option - 3 Terminal Hardwired Junction Box, labelled 'AC Input' | |||
| AC Transfer Switch | Only with KX opton - 240Vac, 40 Amps, 50Hz, (Surge 80A 0.5Seconds) | |||
| Chassis | Powder Coated 3mm Aluminium P.C 4mm Aluminium | |||
| Warranty | 3 Years Parts and Labour | |||
| Standards | IEC62109-1, IEC62109-2, AS3100, EN55014 & RCM | |||
| Ratings | Specifications @ 25° C ambient nominal battery voltage & unity power factor | |||
WARRANTY
Latronics LS Series Stand-alone inverters are backed by our manufacturer’s warranty: two years for 500W-1800W models and three years for 2000W-7000W models.
