Description
FEATURES

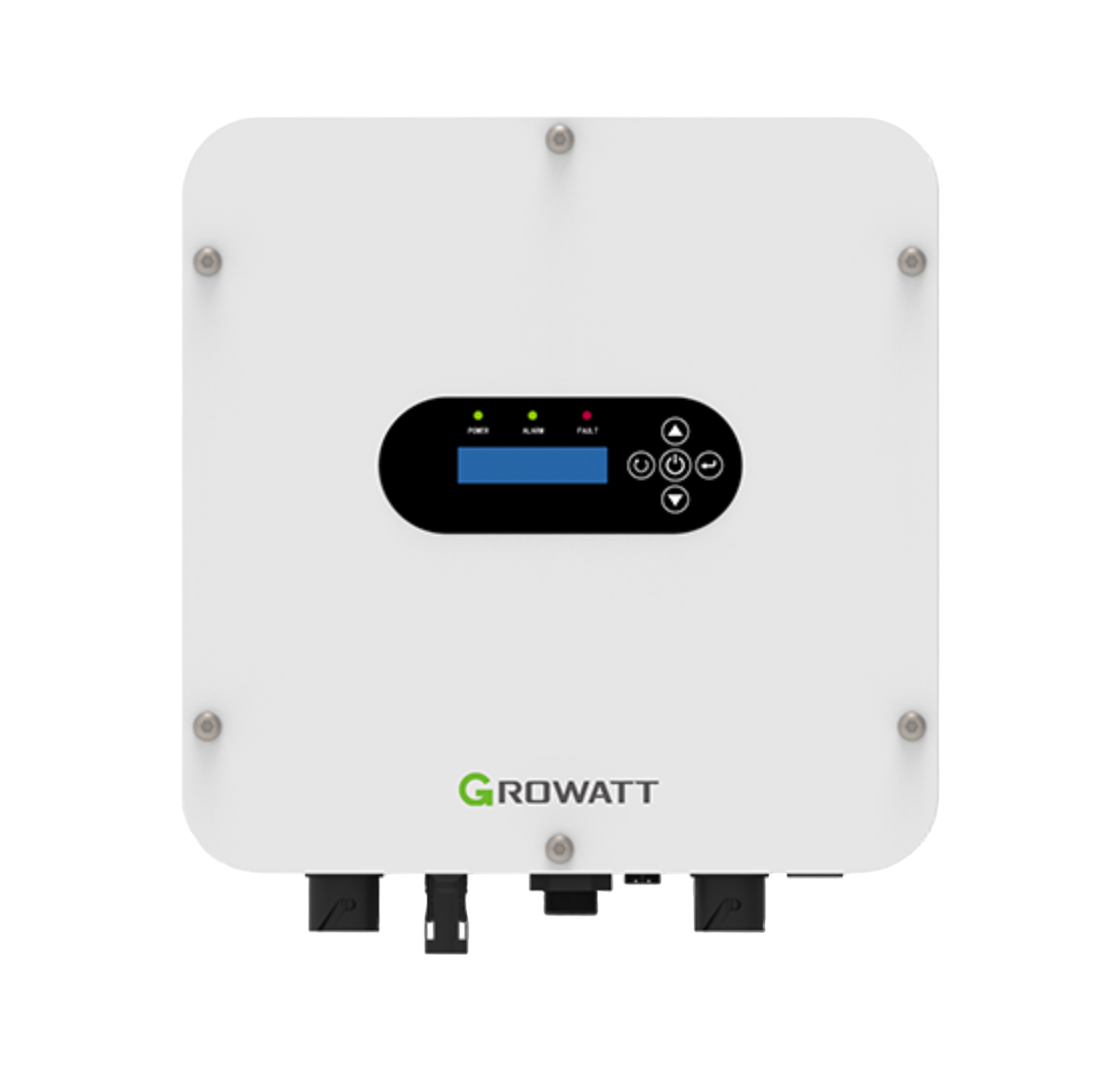

Solar Pump Inverters allows power to be switched from the DC power obtained from solar panels and grid to the AC power needed to control various AC motor water pumps. Growatt's pump inverter is built-in with a boost circuit for MPPT control system to maintain solar power, and able to set the priority of PV and utility grid input.
- PV Power & Grid Assist. Not enough Solar? Grid-assist to keep pump running.
- MPPT efficiency up to 99%
- IP65 protection level suitable for harsh outdoor environments
- Wide PV input voltage up to 450V to reduce balance of system (BOS) cost
- Built-in booster module, flexible solar panel configuration
- Support PV and AC double input
- Water level control functions
- Dry-running protection
- Self cooling and maintenance-free design
- Remote monitor and smart control system (optional)
SPECIFICATIONS
| Model | SPI2200TL2-HV |
| INPUT DATA (DC) | |
| Max. PV Power | 3100W |
| Max. DC Voltage | 450V |
| Start Voltage | 80V |
| MPP Voltage Range | 100-400V |
| No. of MPP Trackers | 1 |
| No. of Pv Strings Per Mpp Tracker 1 | 1 |
| Max. Input Current Per Mpp Tracker | 12A |
| INPUT DATA (AC) | |
| Nominal AC Voltage | 220~240V(-15%~+10%) |
| Rated Input Current | 24A |
| AC Grid Frequency | 47~63Hz |
| AC Connection | L,N,PE |
| OUTPUT DATA (AC) | |
| AC Nominal Power | 2200W |
| Rated Output Current | 14A(1PH)/10A(3PH) |
| Nominal AC Voltage Range | 0~220Vac |
| AC Frequency | 0-50/60 Hz |
| AC Connection | 1P2L(1PH)/3P3L(3PH) |
| PERFORMANCE | |
| Control Mode | V/F |
| Type of Motor | Asynchronous machine |
| Pump capacity | 1500W |
| GENERAL DATA | |
| Dimensions (W / H / D) | 335/370/135mm |
| Weight | 9.5kg |
| Operating Temperature Range | -25°C ... +60°C |
| Cooling | Natural convection |
| Protection Degree | IP65 |
| Relative Humidity | 0-100% |
| Altitude | 2000m without derating |
| DC Connection | H4/MC4(Optional) |
| AC Connection | Connector |
| Display | LCD |
| Interfaces: Wi-Fi/ GPRS | Optional |
