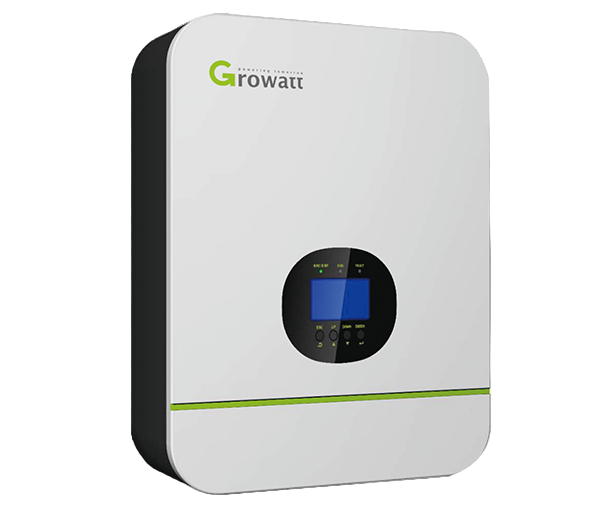

Growatt SPF 3000TL HVM-48 PV Off Grid Solar Inverter Support 48V Battery MPPT

Sale price$735.00



This is a multifunctional off grid solar inverter, integrated with a MPPT solar charge controller, a high frequency pure sine wave inverter and a UPS function module in one machine, which is perfect for off grid backup power and self-consumption applications. The transformerless design provides reliable power conversion in compact size.

The whole system also need other devices to achieve complete running such as PV modules, generator, or utility grid. Please consult with your system integrator for other possible system architectures depending on your requirements, The WiFi  module is a plug-and-play monitoring device to be installed on the inverter. With this device, users can monitor the status of the PV system from the mobile phone or from the website anytime anywhere.
Note: The battery capacity of the correct matching system is determined according to the specific usage requirements of the load and application scenarios, otherwise it will easily lead to insufficient battery capacity or excessive waste of power generation. For details, please refer to the manual recommendation or consult online customer service.
-48V battery system, choice of using Lead Acid battery or Lithium battery
-Pure sine wave output 3KW
-Inbuilt MPPT 30A
-High frequency inverter with small size and light weight
-Overload, short circuit and deep discharge protection
-Compatible to mains voltage or generator power
-WIFI remote monitoring (optional)


Model Growatt SPF 3000 TL HVM-48
Battery Voltage 48VDC
Battery Type Lithium/Lead-acid
Rated Power 3000VA/3000W
Parallel Capability No
AC Voltage Regulation (Battery Mode) 230VAC ± 5% @ 50/60Hz
Surge Power 6000VA
Efficiency 93%
Waveform Pure sine wave
Maximum PV Array Power 1800W
MPPT Range @ Operating Voltage 60VDC ~ 115VDC
Number of Independent MPP Trackers/Strings Per MPP Tracker 1/1
Maximum PV Array Open Circuit Voltage 145VDC
Maximum Solar Charge Current 30A
AC Charge Current 15A
AC Input Voltage 230 VAC
Dimensions 315x400x130mm | 8.5kg
Operating Temperature 0°C - 55°C
Storage Temperature -15°C - 60°C
