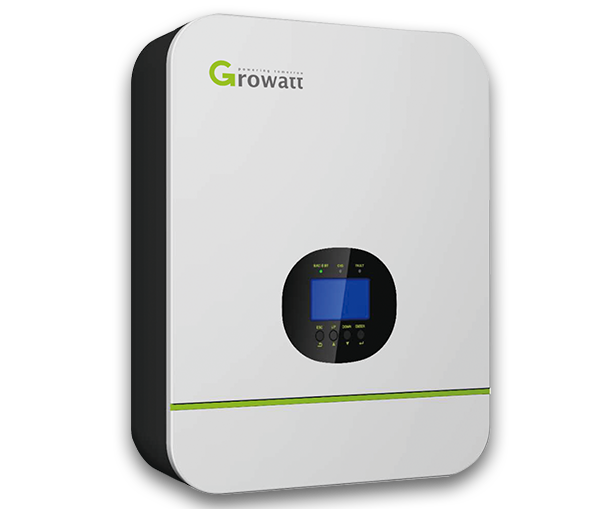

The Growatt SFP 2000TL (HVM) 24V OFF GRID hybrid inverter combines 2kW Pure sine wave inverter, a high efficiency (50A) MPPT charge controller, and an UPS function module in one machine. It is packed with unique features and it is one of the most advanced hybrid inverters on the market today.
- Support 4 Charging Modes & 3 Output Modes: Solar-first mode, Utility-first mode, Charging by Utility and solar, Only solar. Three output modes: Solar-first; Utility-first(Default); SBU Priority. Integrated Smart battery charger: compatible with the grid, mains and diesel generator.
- Mobile Phone Remote Monitoring: The GPRS WiFi 1 module is a plug-and-play monitoring device. Using this device, users can monitor the status of their off-grid solar system via mobile phones or websites anytime and anywhere.
- Solar Inverter Built in 50A Controller Offers Multiple Protection: AC input over voltage protection/AC input low voltage protection/Over temperature protection/Over load protection/ Short circuit protection/Reverse protection/Deep discharge protection.
|Model||Growatt SPF 2000 TL HVM-24|
|AC Voltage Regulation (Battery Mode)||230VAC ± 5% @ 50/60Hz|
|Waveform||Pure sine wave|
|Maximum PV Array Power||1500W|
|MPPT Range @ Operating Voltage||30VDC ~ 80VDC|
|Number of Independent MPP Trackers/Strings Per MPP Tracker||1/1|
|Maximum PV Array Open Circuit Voltage||102VDC|
|Maximum Solar Charge Current||50A|
|AC Charge Current||15A|
|AC Input Voltage||230 VAC|
|Dimensions||315x400x130mm | 8kg|
|Operating Temperature||0°C – 55°C|
|Storage Temperature||-15°C – 60°C|
