Description
FEATURES

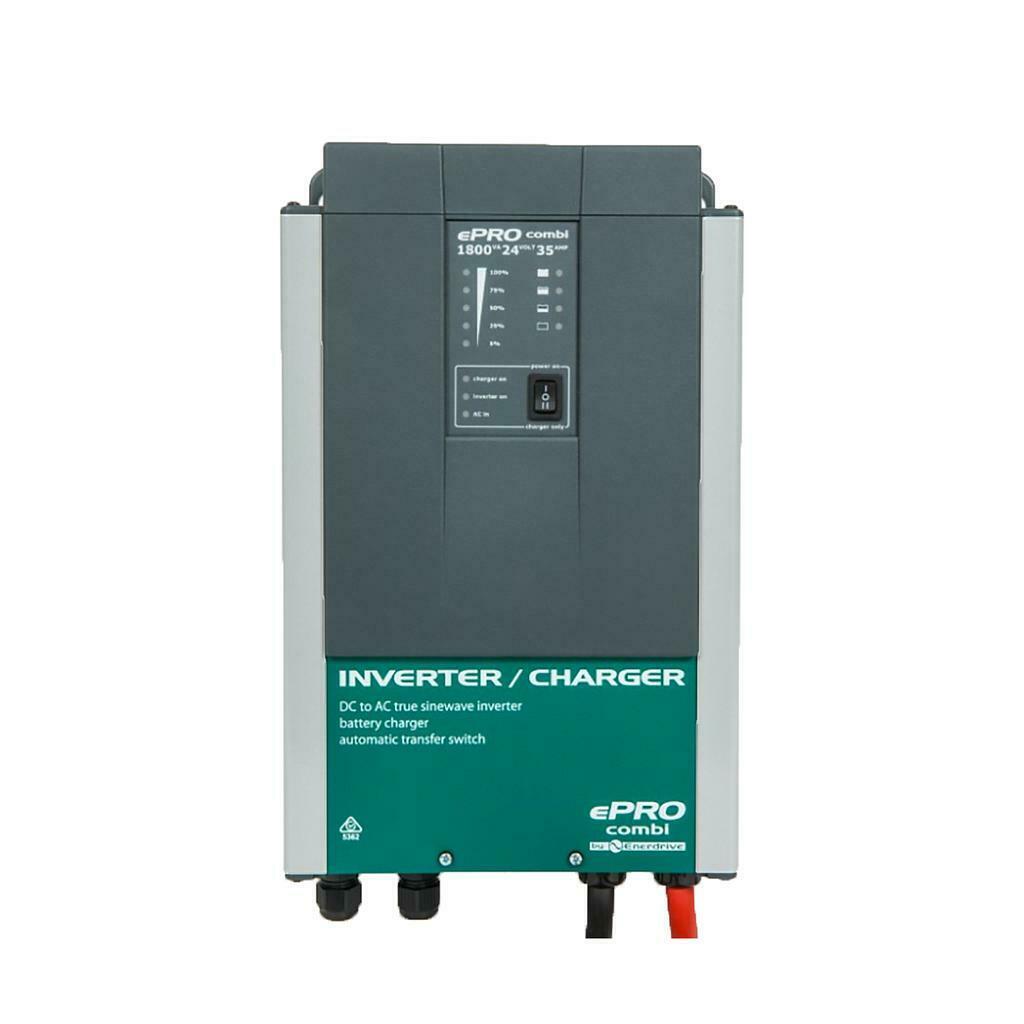

The main task of the ePRO Combi Inverter Charger is to act as an uninterruptible AC power supply (UPS). In case of a grid/generator failure or disconnection, the ePRO Combi immediately stops charging the battery, releases the AC transfer switch and activates the inverter which takes over the supply to the connected loads. All this is achieved so fast, that even very critical loads like computers will continue to operate without any problems. In case the grid/generator is reconnected again and the voltage and frequency are within acceptable limits, the ePRO Combi activates the AC transfer switch and battery charger again, while deactivating the inverter. The connected loads are now supplied again by the grid/generator without any interruption. Available in 12v, 24v or 48v models and ranging in sizes from 1600-3500w inverter output and 35-120A charger output, the ePRO Combi has a unit to suit nearly any application.
Applications:
Recreational vehicles
– With a very small size footprint for power output, the ePRO Combi is the perfect solution for tight installations.
Solar Power Systems
– Suitable for small back up sites that require variable control capabilities with the innovative Trigger Switches.
Industrial Systems
– Any small commercial application can be configured to use the ePRO Combi as a smart UPS system again using the Trigger Switches.
Commercial work vehicles
– Provide ultra clean AC power for sensitive equipment.
Marine Systems
– Great charging capabilities from a small unit.
PACKAGE INCLUDED:
- 1 x ePRO Combi Inverter Charger
- 1 x Manual
SPECIFICATIONS
| Model | EPC-1800-24 |
| Output power Pnom | 1400W |
| P10minutes | 1800W |
| Psurge | 3000W |
| Output voltage / frequency | 230 Vac ± 2% / 50 Hz ± 0.05% |
| Output waveform | True sinewave (THD < 5% 1 @ Pnom) |
| Input voltage (± 3% tolerance): Nominal | 24V |
| Range | 21 (2) – 32 Vdc |
| Maximum efficiency | 0.94 |
| No load power consumption [ASB] | <12 W [2.0 W] |
| Charger stage | |
| AC input voltage | 185 – 270 Vac / 45 – 65 Hz / PF > 0.95 |
| Maximum continuous charging current | 35A |
| Standard charge voltage (bulk / float @ 25°C) | 28.6V / 26.6V (programmable) |
| Charge algorithm | IUoUoP, intelligent 4-stage, temperature compensated (programmable) |
| AC Transfer Switch | |
| Maximum continuous current | 16 Ams |
| Transfer time (typical) | 0 ms (inverter to mains) / <5 ms (mains to inverter) |
| General | |
| ePROLink enabled | Yes |
| Protections | high/low battery voltage, high temperature, overload, short circuit, high ripple voltage and low AC input voltage |
| DC connections | Two wires, length 1.5 meters, 50 mm (2) |
| AC connections | Screw terminals |
| Enclosure body size | 351 x 210 x 114mm |
| Total weight | 10.7 Kg |
| Protection class / operating temp. / storage temp. | IP21 / -20°C.. +50°C / -40°C.. +80°C (humidity max. 95% non-condensing) |
| Standards | Complies with IEC 60335-2-29 including Australian deviations. |
WARRANTY
2-year limited warranty - Enerdrive warrants that its Products will be free from defects in materials and workmanship (subject to limits, and in normal conditions) for up to 2 years from the date of purchase.
