Enerdrive EPro Combi Inverter Charger 12V/3000W-120A EPC-3000-12

Sale price$4,130.00

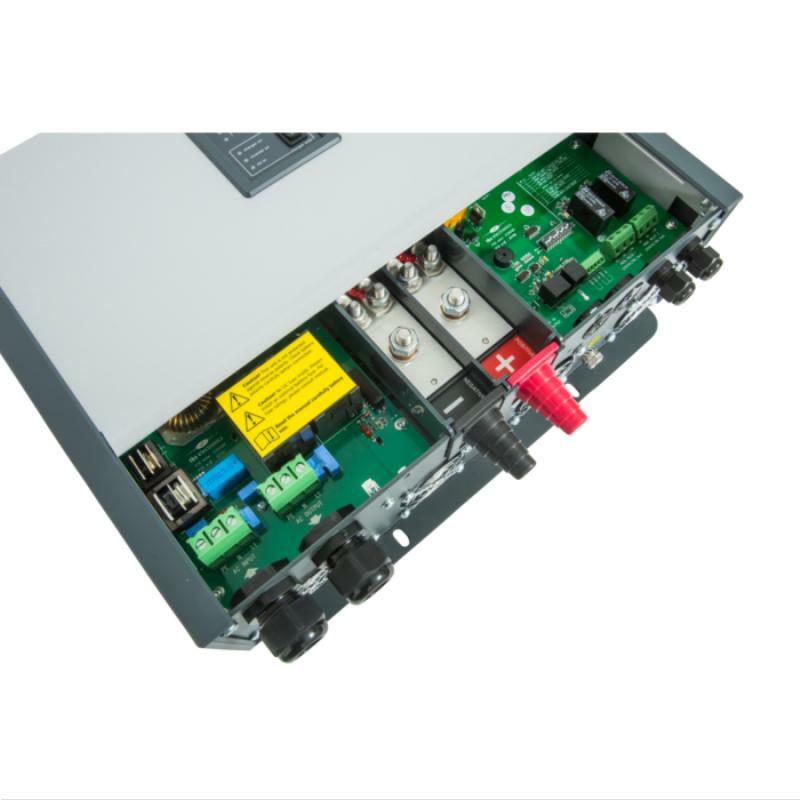

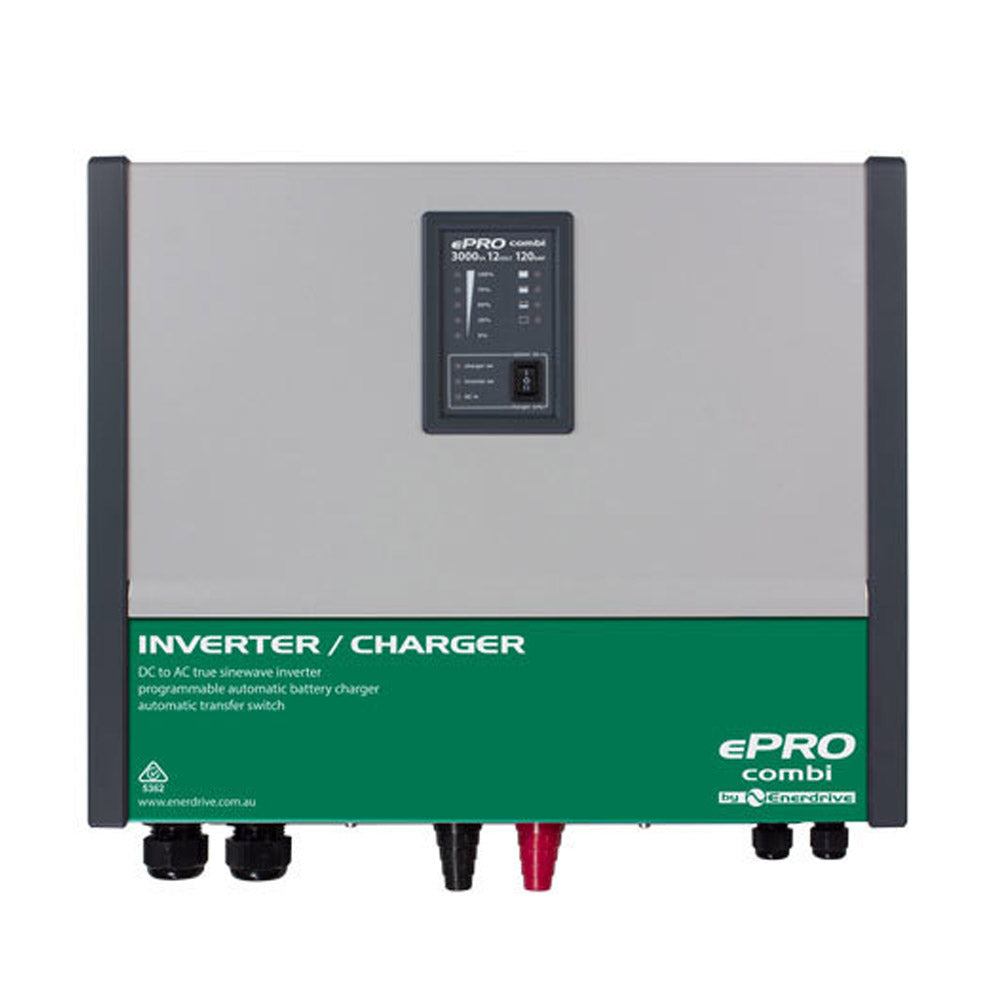

All-in-one combination of a DC to AC true sinewave inverter, an advanced multi-stage battery charger with a high speed AC transfer switch. The ePRO Inverter Charger has all this built into one compact, yet installer friendly enclosure. Besides these three main functions, there are several unique features offered as well. Some of which benefit from the strong interaction between the three main functions.


The main task of the ePRO Combi Inverter Charger is to act as an uninterruptible AC power supply (UPS). In case of a grid/generator failure or disconnection, the ePRO Combi immediately stops charging the battery, releases the AC transfer switch and activates the inverter which takes over the supply to the connected loads. All this is achieved so fast, that even very critical loads like computers will continue to operate without any problems. In case the grid/generator is reconnected again and the voltage and frequency are within acceptable limits, the ePRO Combi activates the AC transfer switch and battery charger again, while deactivating the inverter. The connected loads are now supplied again by the grid/generator without any interruption. Available in 12v, 24v or 48v models and ranging in sizes from 1600-3500w inverter output and 35-120A charger output, the ePRO Combi has a unit to suit nearly any application.


Recreational vehicles
 – With a very small size footprint for power output, the ePRO Combi is the perfect solution for tight installations.

Solar Power Systems
 – Suitable for small back up sites that require variable control capabilities with the innovative Trigger Switches.

Industrial Systems
 – Any small commercial application can be configured to use the ePRO Combi as a smart UPS system again using the Trigger Switches.

Commercial work vehicles
 – Provide ultra clean AC power for sensitive equipment.

Marine Systems
 – Great charging capabilities from a small unit.


    Model EPC-3000-12
    Output power Pnom 2600W
    P10minutes 3200W
    Psurge 5000W
    Output voltage / frequency 230 Vac ± 2% / 50 Hz ± 0.05%
    Output waveform 230 Vac ± 2% / 50 Hz ± 0.05%
    Input voltage (± 3% tolerance): Nominal 12V
    Range 10.5 (2) – 16 Vdc
    Maximum efficiency 0.92
    No load power consumption [ASB] <20 W [3.5 W]
    Charger stage
    AC input voltage 185 – 270 Vac / 45 – 65 Hz / PF > 0.95
    Maximum continuous charging current  120A
    Standard charge voltage (bulk / float @ 25°C) 14.3V / 13.3V (programmable)
    Charge algorithm IUoUoP, intelligent 4-stage, temperature compensated (programmable)
    AC Transfer Switch
    Maximum continuous current 30 Ams
    Transfer time (typical) 0 ms (inverter to mains) / <5 ms (mains to inverter)
    ePROLink enabled Yes
    Protections high/low battery voltage, high temperature, overload, short circuit, high ripple voltage and low AC input voltage
    DC connections M10 bolt terminals
    AC connections Screw terminals
    Enclosure body size 370 x 431 x 132mm
    Total weight 18.5 Kg
    Protection class / operating temp. / storage temp. IP21 / -20°C.. +50°C / -40°C.. +80°C (humidity max. 95% non-condensing)
    Standards Complies with IEC 60335-2-29 including Australian deviations.


    5-year warranty - Enerdrive warrants that its Products will be free from defects in materials and workmanship (subject to limits, and in normal conditions) for up to 5 years from the date of purchase.
