Description
FEATURES
ENERDRIVE EPOWER B-TEC 125AH G2 LITHIUM BATTERY
The ePOWER B-TEC G2 is designed and intended for use in deep cycle applications where a single battery is required that meets the amp hour capacity.
The Battery now includes a battery strap!
Smart Phone Monitoring System
The Enerdrive ePOWER B-TEC G2 battery incorporates wireless Battery Monitoring Technology. You can monitor the following information by downloading the app on your Android™ or Apple® smartphone or tablet device;
- Battery Capacity
- Battery Voltage
- Battery Current (Amps)
- Battery State of Charge (SOC)
- Battery State of Health (SOH)
- Battery Status
- Individual Cell Voltage
- Battery Temperature
- Battery Cycles
- Battery Alarms
- Battery Event Information
Battery Management System
The battery is also equipped with an internal LiFePO4 Battery Management System (BMS) that can monitor and optimize each Prismatic cell within the battery during normal operation. It will protect the battery pack from over charge, over discharge, over temperature & short circuit. The BMS helps to ensure safe and accurate operation of the battery.
Lithium v AGM Capacities (Based on standard depth of discharge for both Lithium (80%) and AGM (50%);
- 125Ah Lithium = 200Ah AGM
The ePOWER B-TEC battery provides 60% more usable power than its equivalent lead acid cousin and being nearly 50% lighter and 30% smaller makes for a superior alternative.
The ePOWER B-TEC battery is perfect for camper trailers, 4WD’s (AUX battery), caravans, small water craft, low power communication sites or any other application that requires the use of a single deep cycle battery that meets the amp hour capacity.
Please Note: This ePOWER B-TEC lithium battery is capable to be paralleled to a second ePOWER B-TEC lithium battery. For maximum performance and lifespan of your lithium battery, no more than 2 batteries should be connected together to increase your overall capacity. Overall loads when paralleled should not exceed the current limits of a single batteries BMS.

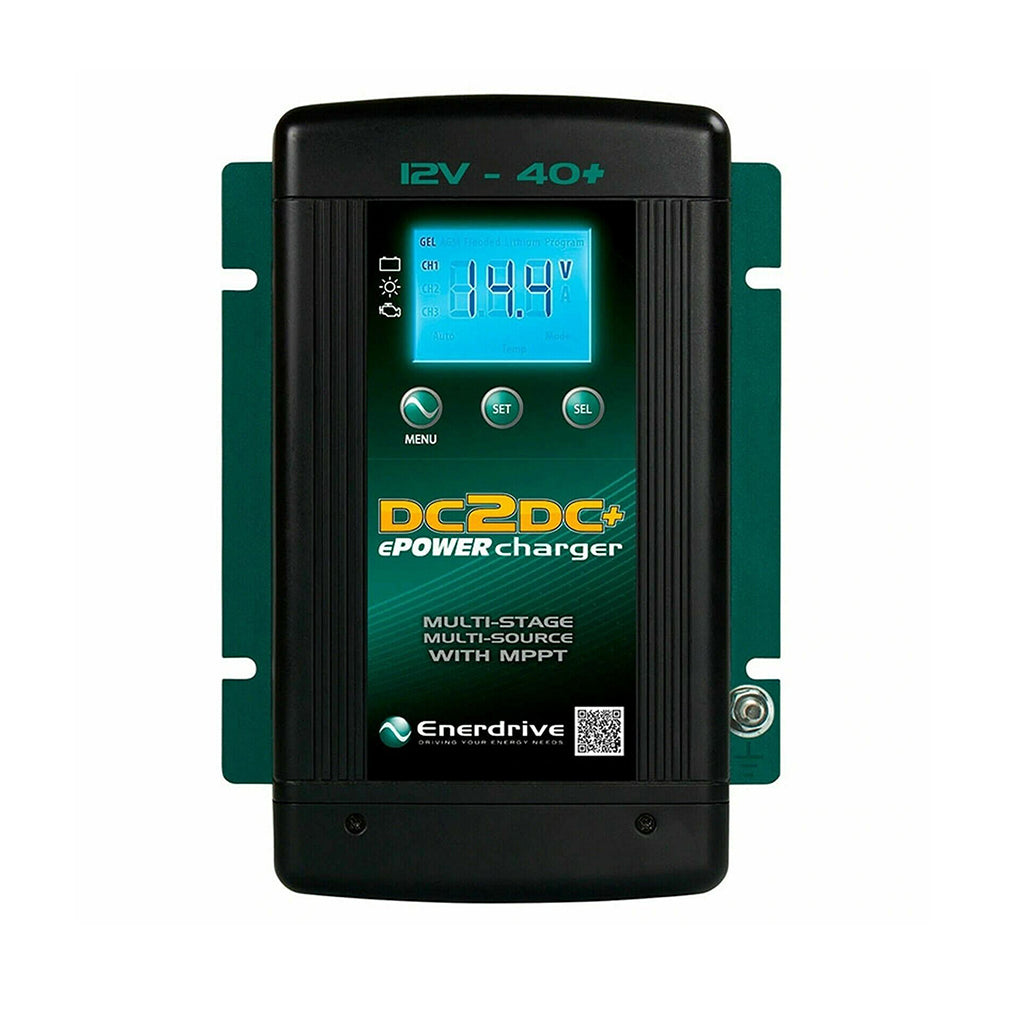

ENERDRIVE EPOWER 12V 40A DC TO DC BATTERY CHARGER
The Enerdrive ePOWER DC2DC Battery Charger is a fully automatic multistage, multi input battery charger with the ability to charge from either an alternator linked to a battery; or via solar power with the in built Maximum Power Point Tracking (MPPT) Solar Controller.
EXPERT TIP: The Enerdrive 50Amp, 60Amp & 70Amp breakers are common accessories suitable for the Enerdrive EN3DC40+ 40A DC to DC charger. Additionally, the 3 pre-wired & fused charging cables are also a great extra accessories, see manuals & drawings for further information. All the accessories are available in the Accessory List above as optional extras.
- Two totally independent DC Inputs for both engine and solar regulation charging one house battery bank output
- DC M6 screw terminals that will allow for large battery cable connection between all sources
- A dedicated Maximum Power Point (MPPT) solar regulator
- The same battery algorithms as included in our AC mains ePOWER battery charger including a specific lithium charging profile
- 40A output up to 40+°C with thermo controlled fan cooling
- Fully programmable LCD display to show which source is charging the battery along with charger status, voltage and amperage
- Temperature sensor included in charger for more accurate battery charging
Enerdrive ePOWER 12V 40A Battery Charger
- Multistage Charging
- Separate Battery Banks
- Programmable
- Current Control
- Smart Charging
- Wide AC Input Range
- LED Display
- Silent Mode
- Temperature Sensor
- 2 Year Warranty from an Australian company renowned for customer support.
Enerdrive ePRO PLUS Battery Monitor
The ePRO PLUS is the latest generation, highly advanced battery monitor. It consists of an intelligent shunt and a remote control display unit. The shunt has a Grid Optimized footprint for perfect integration with our DC Modular products. The ePRO PLUS can monitor up to three battery banks. The inputs for battery bank 2 and 3 can also be configured for other purposes, like mid-point voltage measurement, keyswitch input, setup lock or backlight control.
- Complete battery status information at a glance
- Supports up to three battery banks (12V, 24V and 48V)
- ‘Plug and Play’ installation
- Perfect integration with Enerdrive DC Modular products
PACKAGE INCLUDED
- Enerdrive ePOWER B-TEC 125Ah G2 Lithium Battery EPL-125BT-12V
- Enerdrive ePOWER 12V 40A DC to DC Battery Charger EN3DC40+
- Enerdrive ePOWER 12V 40A Battery Charger EN31240
- Enerdrive ePRO PLUS Battery Monitor EN55050
SPECIFICATIONS
| Model | EPL-125BT-12V |
| GTIN (Global Trade Item Number) | 9342616019689 |
| Warehouse | Enerdrive |
| Brands | Enerdrive |
| Product Category | Batteries |
| Amp Hours (Ah) | 125.0 Ah |
| Battery Voltage | 12V |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 125Ah |
| Cycle Life (DOD – 80% under controlled conditions) | ≥ 2000 Cycles |
| Battery Charge Temperature | 0 ̴ 45°C |
| Normal Charge Voltage CV/CC* | 14.40 ̴ 14.60V |
| Standby (Float) Voltage | 13.50 ̴ 13.80V |
| Maximum Charge Current | 60A @ 25°C for 30mins |
| Recommended Charge Current for Maximum Life | ≤ 40A |
| Battery Discharge Temperature | -20 ̴ 60°C |
| Battery Output Voltage Range | 11.00 ̴ 14.60V |
| Maximum Discharge Current | 100A @ 25°C ± 5°C for 30mins |
| Pulse Discharge Current | 450A for 1.0s |
| Discharge Cut-off Voltage | ≤11.20V |
| Dimensions | 318 x 165 x 215 mm (L x W x H) |
| Net Weight (kg) | 15.0 Kg |
| Manufacturers Warranty | 5 Years |
| Model | EN3DC40+ |
| GTIN (Global Trade Item Number) | 9342616000526 |
| Warehouse | Enerdrive |
| Brands | Enerdrive |
| Product Category | Battery Chargers |
| Product Type | 12v 40Amp DC2DC Battery Charger |
| Output Current Rating (Amps) | 40.0 Amps |
| Charger Mode Output Voltage | 13.8V - 15.5V |
| Float | 13.0V - 13.8V |
| Equalize | 15.5V |
| Charging Control | Three Stages |
| DC Output | Single |
| Selectable Battery Type | Gel, AGM, Flooded, Lithium, Program |
| Charger Efficiency | 95% |
| Temperature Setting |
Low/ Normal/ High (Battery Temperature Sensor Standard)
|
| Output System Voltage | 12V |
| Dimensions | 242 x 172 x 74mm (L x W x H) |
| Net Weight (kg) | 1.9 Kg |
| Manufacturers Warranty | 5 Years |
| Model | EN31240 |
| Brand | Enerdrive |
| GTIN | 9342616000250 |
| Product Category | Battery Chargers |
| Voltage | 12V |
| Output Current Rating (Amps) | 40 Ah |
| Weight | 2.6 Kg |
| Dimensions (L x W x H) | 295 x 206x 86 mm |
WARRANTY
5-year warranty - Enerdrive warrants that its Products will be free from defects in materials and workmanship (subject to limits, and in normal conditions) for up to 5 years from the date of purchase.NOTE:* Where allowed by applicable law and regulations, batteries must be shipped via Ground shipments only.
