Description
FEATURES

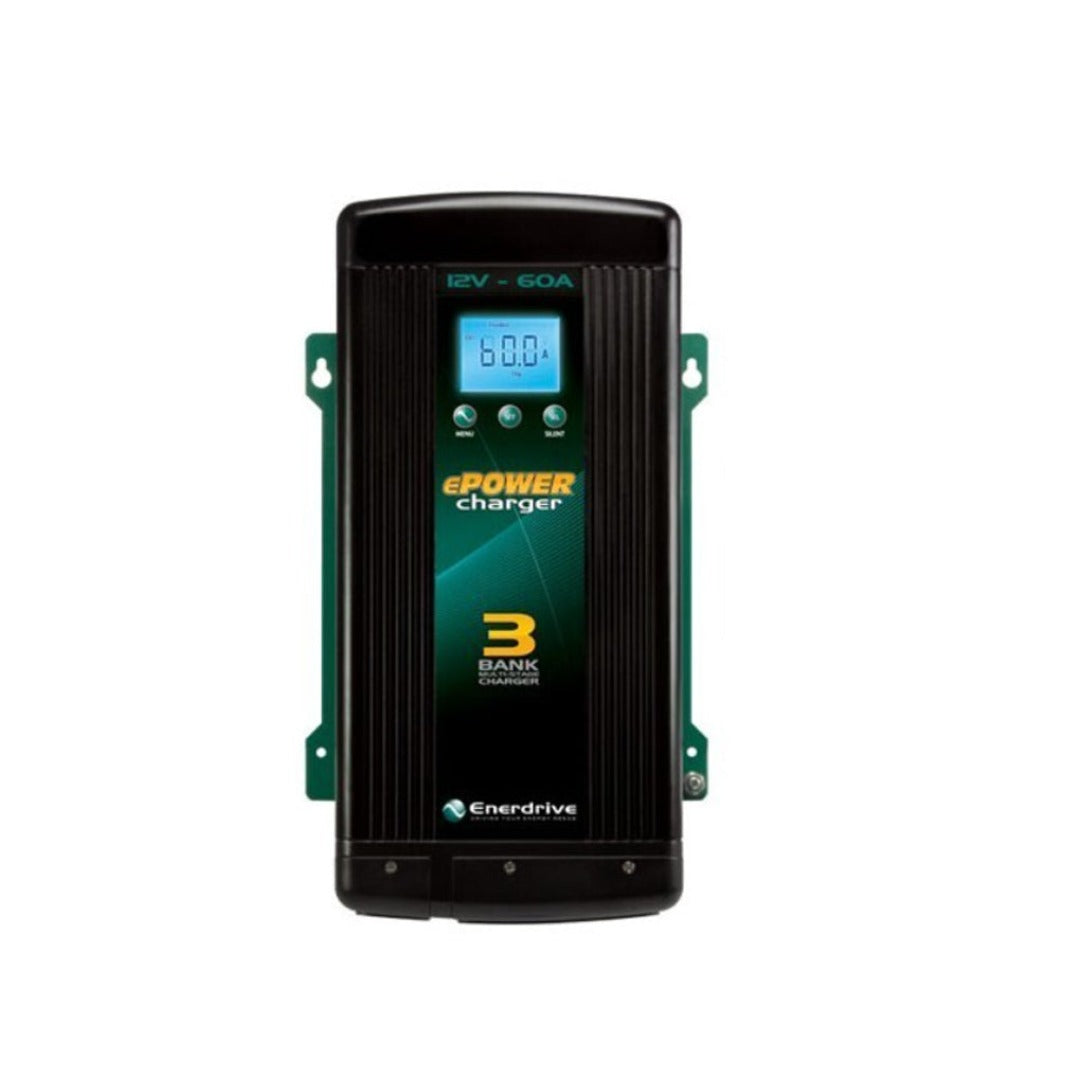

ENERDRIVE EPOWER 60AMP / 12V SMART CHARGER - THREE OUTPUT
The Enerdrive ePOWER 60A Battery Charger is a fully automatic, “set and forget” charger. It is designed to quickly and accurately recharge your batteries using algorithms that help maximise service life. Multistage smart charging technology enables the charger to be connected to your battery banks permanently.
- Multistage Charging: Fully automatic multistage battery charger with the ability to charge 3 separate battery banks.
- Separate Battery Banks: Isolated charging design where battery bank one is separate from battery bank two and three.
- Programmable: Battery bank 1 can be programmed with a different charge algorithm over banks 2 and 3.
- Current Control: User adjustable current output (e.g. Dial the 60amp unit back to run off a 1kVA generator).
- Smart Charging: The ePOWER 60A battery charger will regulate its output based on the loads connected to your battery banks.
- Wide AC Input Range: Operates on both 110V / 60Hz and 240V / 50Hz.
- LED Display: Easy to use “set and select” menu along with scrolling charger status.
- Silent Mode: Disables the cooling fan for total silent operation at night or whenever required. Activation reduces charge output by half and locks out fan for 12 hours.
- Temperature Sensor: Battery temperature sensor included with 3 meter cable.
- 5 Year Warranty from an Australian company renowned for customer support.

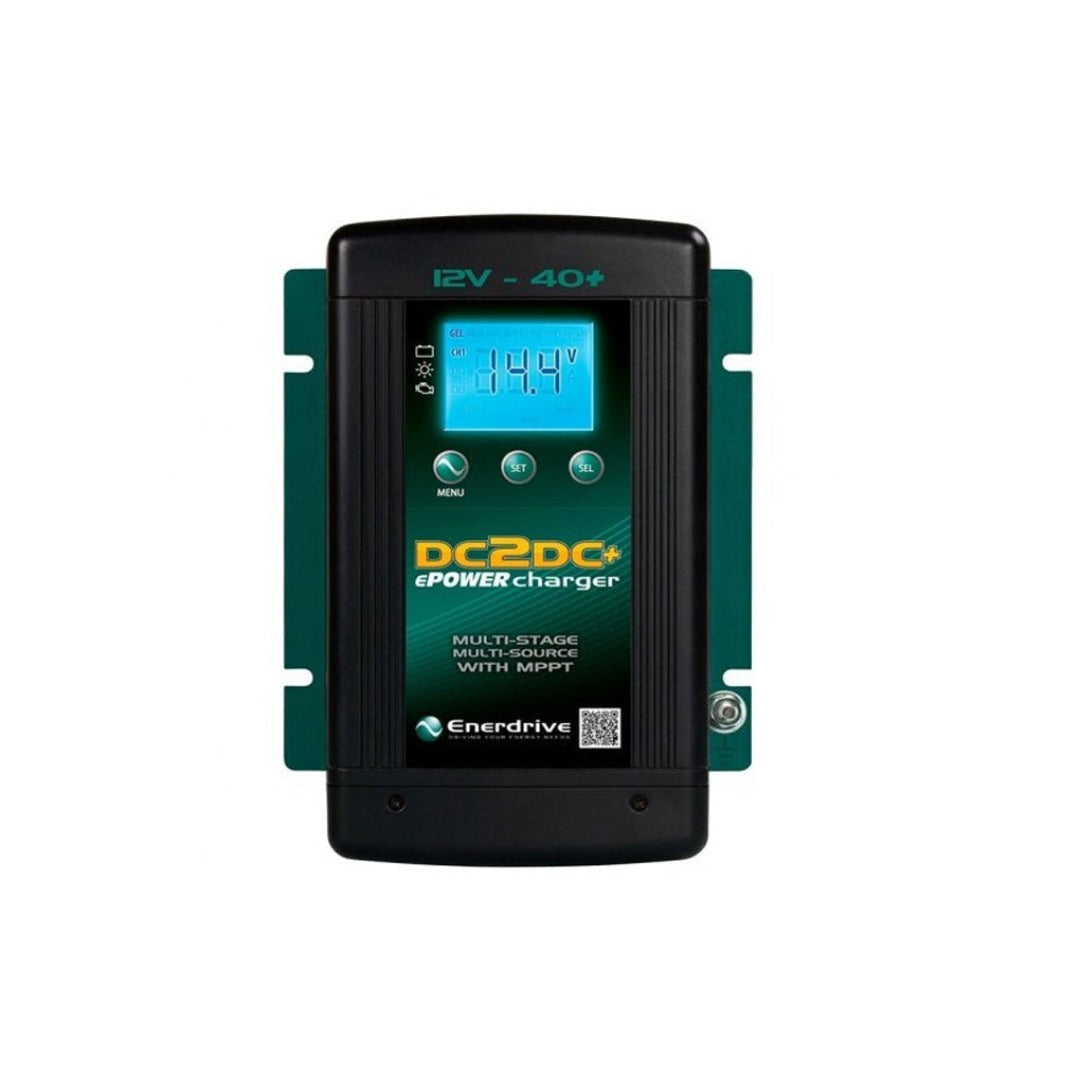

ENERDRIVE DC2DC BATTERY CHARGER - 12V 40A
The Enerdrive 40amp DC2DC Battery Charger with combined Solar Regulator is designed to accept multiple voltage inputs allowing you to charge your batteries through your vehicles alternator or your caravans solar panels. This means you can take advantage of the vehicles alternator whilst moving and your solar panels while you are stationary. The unit will automatically detect and select the best available input source for you. Most other DC2DC chargers do not have this capability and a separate solar controller is needed.
- Multiple charging inputs allow you accept voltage from your engine and solar panels and convert to 1 output to your battery bank.
- Large battery cable connections - DC M6 screw terminals
- Includes inbuilt (MPPT) solar regulator
- Ability to charge Lithium, Lead Crystal, GEL, AGM, Wet Cell and also create custom profiles.
- Accepts 12 or 24v from your vehicle and a maximum solar input of 45V/800W
- Thermo controlled fan cooling allows 40A output up to 40+°C
- Fully programmable LCD display to show which source is charging the battery along with charger status, voltage and amperage
- Temperature sensor included in charger for more accurate battery charging
SPECIFICATIONS
- Model: EN3DC40+
- Output Current: 40A
- Charger Mode Output Voltage: 13.8V - 15.5V
- Float: 13.0V - 13.8V
- Equalize: 15V
- Charging Control: 3 Stages
- DC Output: Single
- Battery Compatablity: Gel, AGM, Flooded, Program
- Charger Efficiency: 95%
- Temperature Setting: Low/Normal/High (Battery Temperature Standard)
- Dimensions: 242mm(L) x 172mm(W) x 74(H)mm
- Weight: 1.9Kg

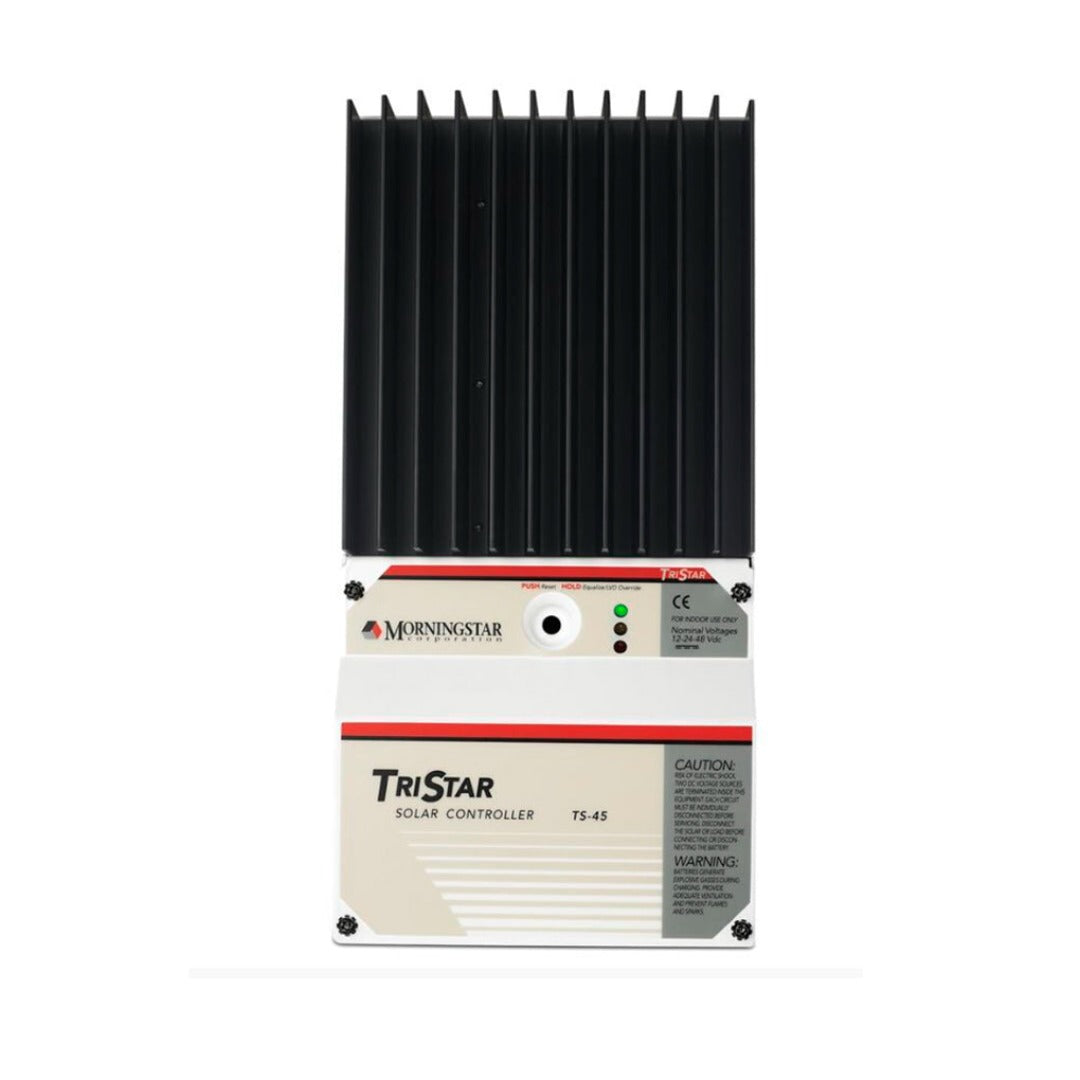

Morningstar TriStar 45 Amp Solar Controller
The Morningstar TriStar is a three-function controller that provides reliable solar battery charging, load control or diversion regulation.
- Large heat sink and conservative design enables operating at full ratings to 45°C
- Optional meter displays extensive system and controller information, automatic self-test and reset. Displays in 5 languages
- RS-232 connects to a personal computer for custom settings, data logging and remote monitoring and control
- DIP switch provides user with choice of 7 digital presets. Additional custom settings via RS-232
- Fully protected against reverse polarity, short circuit, over current, high temperature and over voltage
SPECIFICATIONS
- Amps: 45.0 Amps
- Operating Temperature Range: –40°C to +60°C
- Dimensions (LxWxH mm): 260 x 127 x 71
- Output System Voltage: 12-48V
- Load Current Rating: 45A
- Rated Solar Input: 45A
- Weight (kg): 1.6
- Manufacturers Warranty: 5 Years

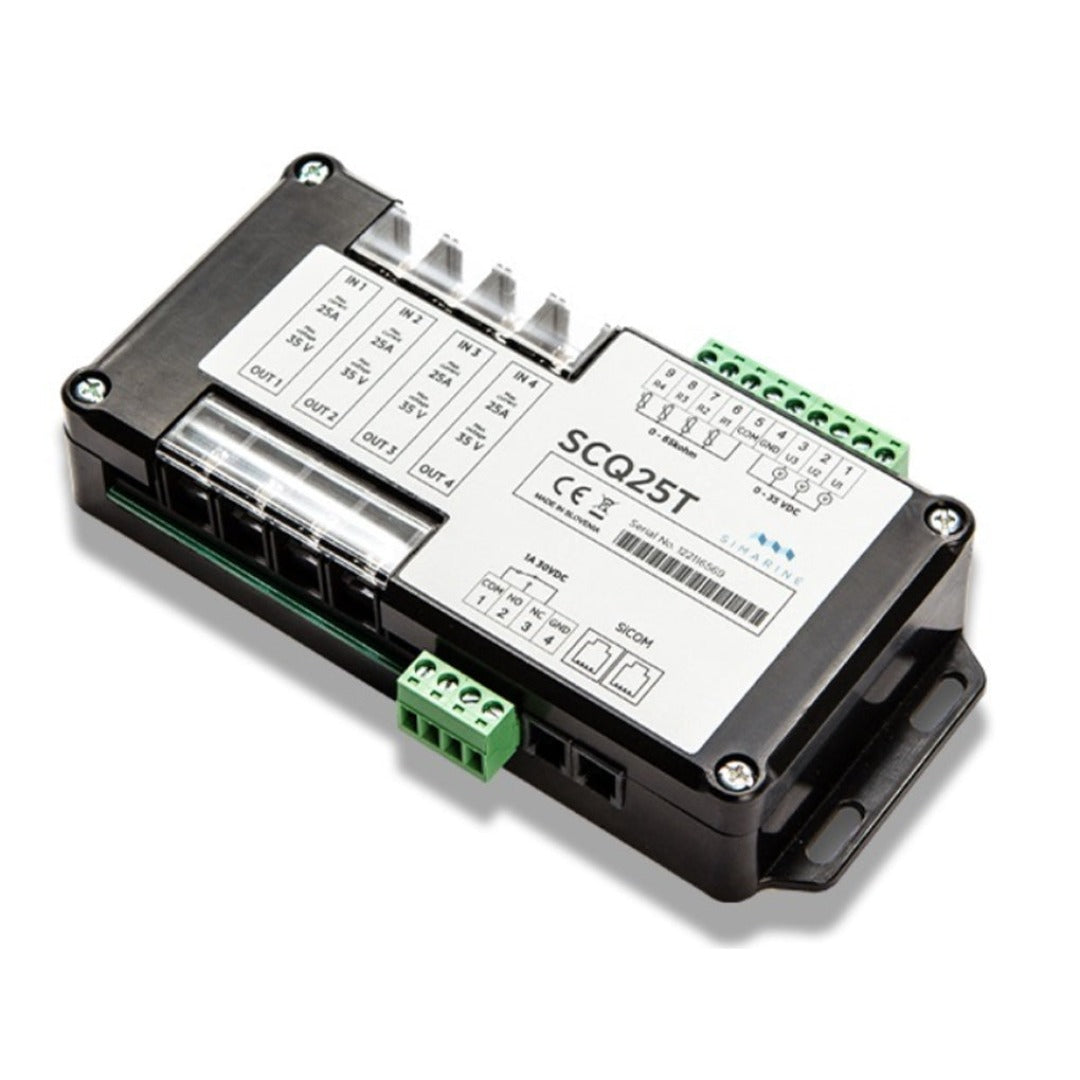

Simarine by Enerdrive Quad Shunt 4 x 25A & 4 x Tank Module
The SCQ25T is a highly verstaile and innovative combination of shunt, tank interface and voltage module. Its higly innovative shunt module with four inputs for monitoring individual consumer and generator continuous currents up to 25A (35A peak) per input on 12V and 24V systems. Additionally, equipped with four resistance inputs for resistance-type tank level or temperature sensors and three voltage inputs for voltage-type tanks sensors and battery voltages allows wide connection possibilities.

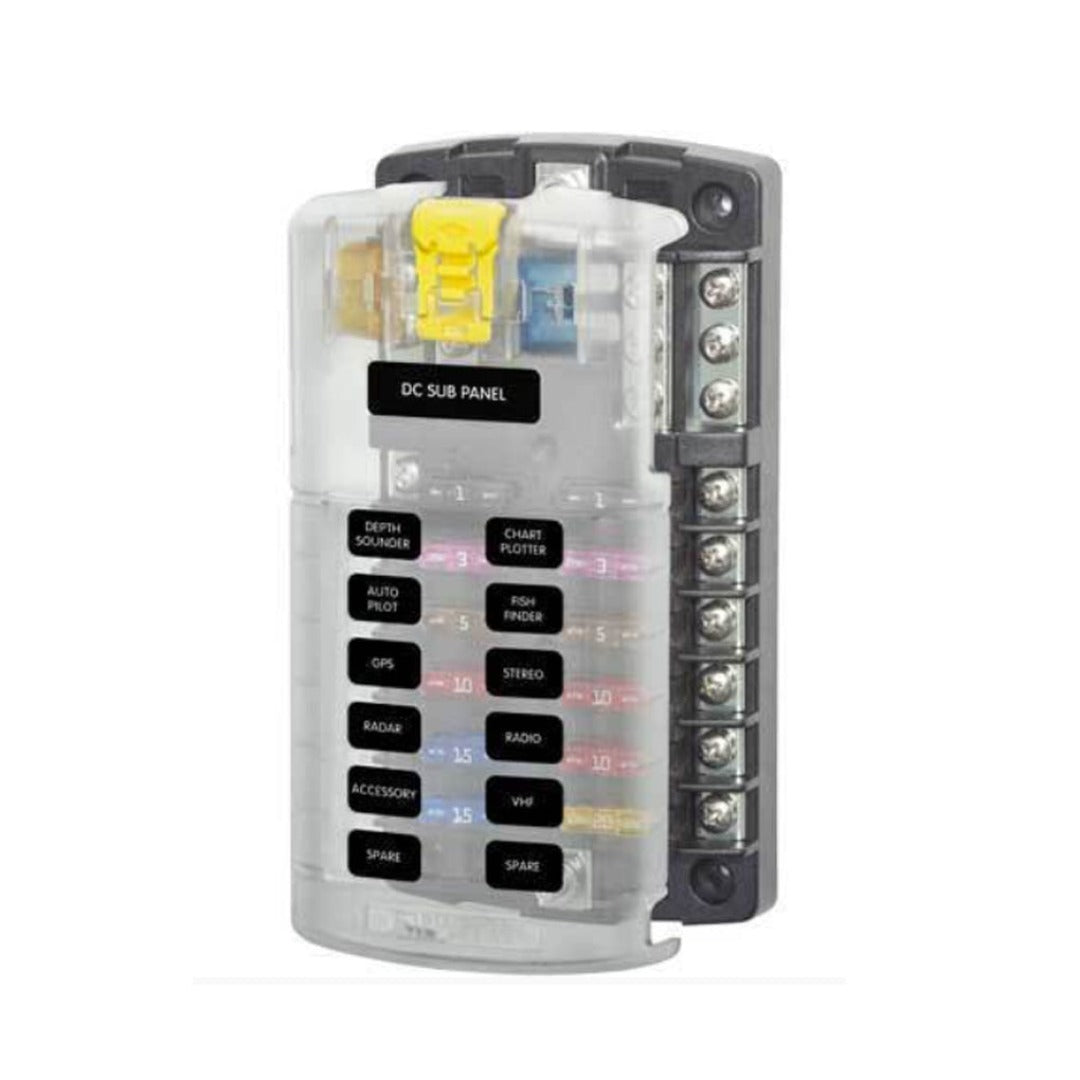

Blue Sea ST Blade Fuse Block – 12 Circuits with Negative Bus and Cover
- Positive distribution bus with #10-32 stud
- Can be used for 24-hour circuits
- Models available with or without a cover
- Cover satisfies ABYC/USCG requirements for insulation, incorporates an easy to open push button latch providing easy access to fuses, storage for two spare fuses, and label recesses that accept Blue Sea Systems” Small Format Labels for circuit identification
- Fuse blocks with covers include 20 write-on circuit labels
- Tin-plated copper buses and fuse clips
- Accepts ring or spade type terminals
- Accepts ATO® and ATC® fast acting blade fuses
- Fuses sold separately
SPECIFICATIONS
- Circuits: 12
- Maximum Amperage: 30A per circuit | 100A per block
- Maximum Voltage: 32V DC
- Mounting: 8″ Screw [M4]
- Negative Bus: #10-32 Stud
- Positive Bus: #10-32 Stud
- Recommended Torque: 24 in-lb (2.71 N.m)
- Screw Terminal Type: #8-32 with captive start lock washer
- Weight: 0.34 kg
Enerdrive ePOWER 12/24V 40A IP66 Smart Battery Guard
- Overvoltage Protection
- Ignition proof (no relay, no spark)
- Delayed alarm output
- Delayed load disconnect
APPLICATIONS
- Recreational vehicles
- Service vehicles
- Maritime applications

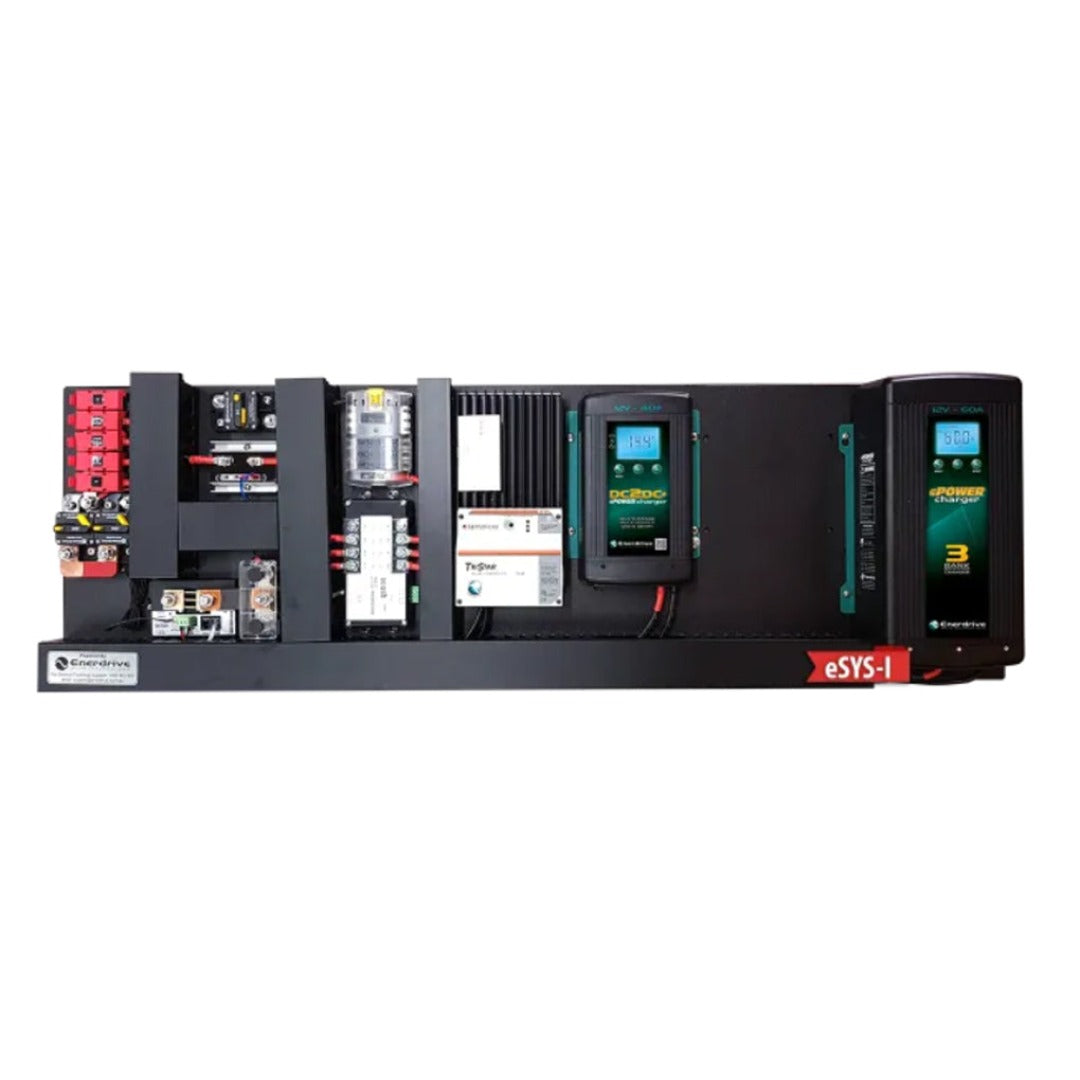

PACKAGE INCLUDED:
- Enerdrive ePOWER 60amp / 12v Smart Charger - Three Output - EN31260
- Enerdrive DC2DC Battery Charger - 12V 40A - EN3DC40
- Morningstar TriStar 45 Amp Solar Controller - SR-TS-45
- Simarine by Enerdrive Quad Shunt 4 x 25A & 4 x Tank Module - SI-SCQ25T

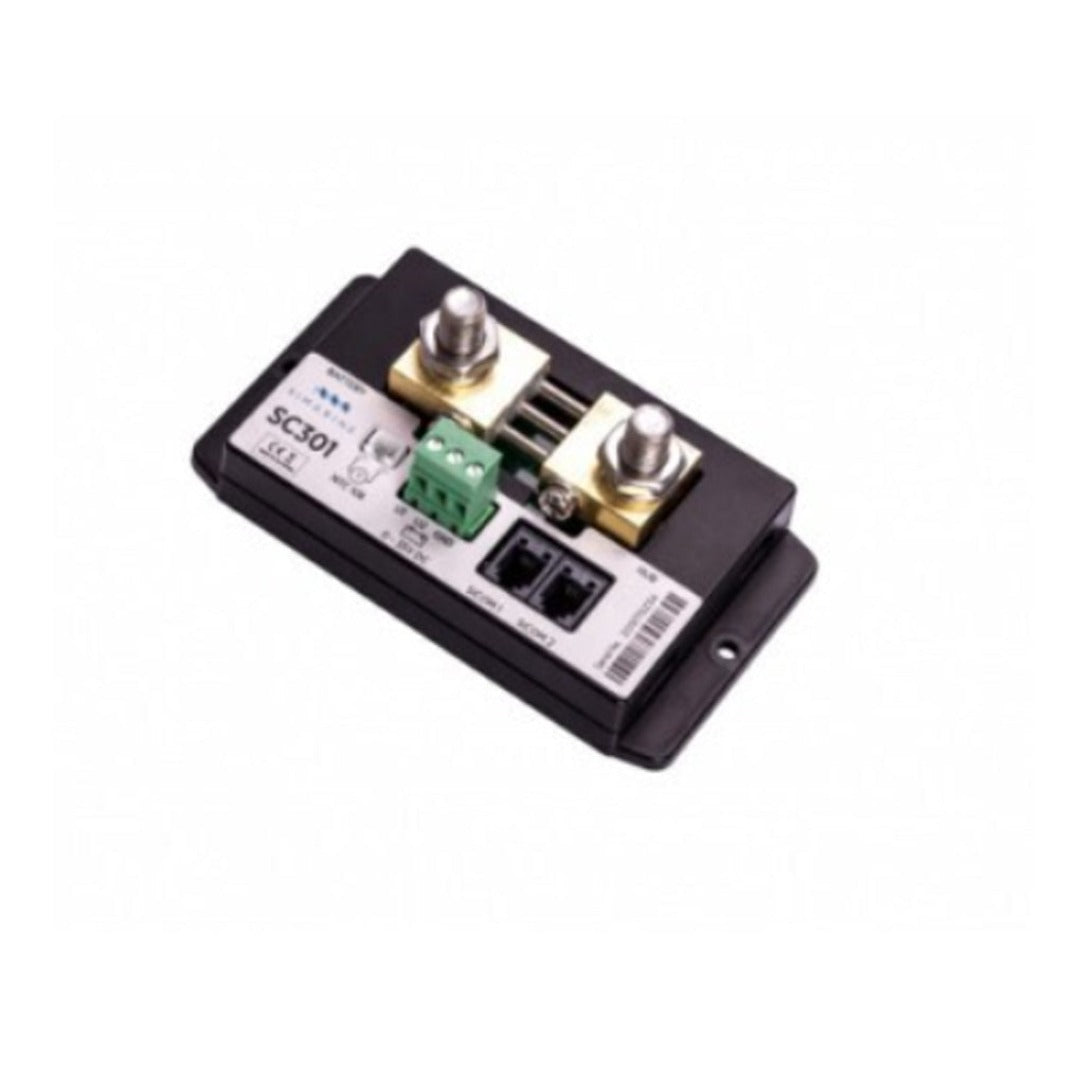

- Simarine by Enerdrive Battery Shunt 300A 2 x Volt 1 Resist - SI-SC301
- Blue Sea ST Blade Fuse Block – 12 Circuits with Negative Bus and Cover - BS-5026B
- Enerdrive ePOWER 12/24V 40A IP66 Smart Battery Guard - EN-LBC1224-40
- Fuse holders
- Circuit Breakers
