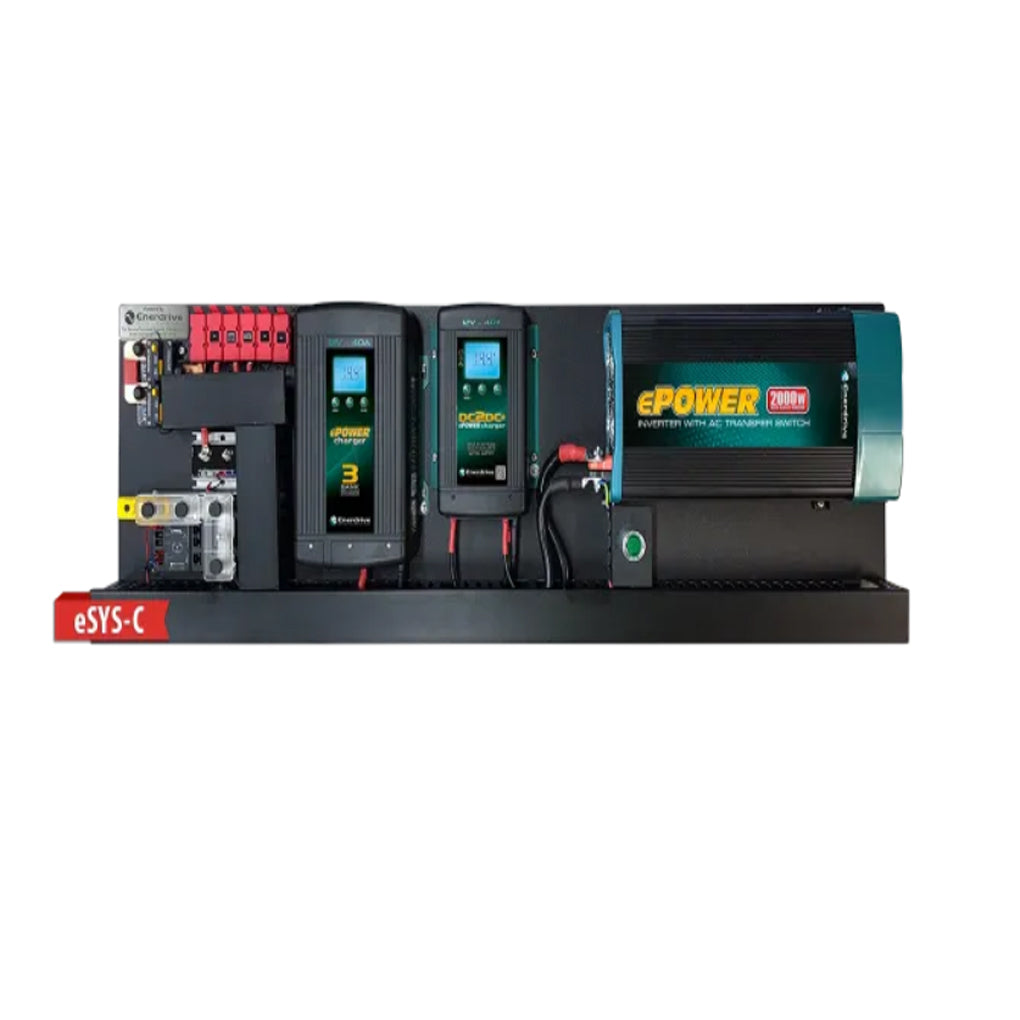

Enerdrive 40A AC & DC Charger w/ ePRO Plus Battery Monitor & 2000W Inverter (ESYS-C)

Sale price$3,998.00



Introducing Enerdrives eSYSTEM DIY Installation Kits for 4WD Canopies, Caravans, Camper Trailers, Commercial Work Vehicles and more. Enerdrive have created many different layouts and dimensional sizes to fit nearly every possible application. Designed for the DIY handyman with basic electrical knowledge through to the professional looking to save installation time. From small kits with AC & DC charging and battery monitoring up to kits with 2000w inverters and individual charge/load monitoring.


  • Enerdrive ePOWER 12V 40A DC to DC Battery Charger EN3DC40+
  • Enerdrive ePOWER 12V 40A Battery Charger EN31240
  • Enerdrive ePRO PLUS Battery Monitor EN55050
  • 3 Stud Main Negative Bus Bar
  • 40A Low Battery Cutout
  • Main System Circuit Breaker 120A
  • Inverter Circuit Breaker 200A
  • ePOWER DC2DC 60A Output Fuse Connection
  • ePOWER AC Charger 50A Output Fuse Connection
  • 50A Load Output Fuse Connection
  • ePOWER 2000W AC Transfer Inverter
  • Battery Restart Switch (Lithium Batteries)
  • 12mm Black Plastic Mounting Board. Water & Rot Resistance

EXPERT TIP: One or two AGM Board Cable Kits are common accessories suitable for the Enerdrive eSYS-C (K-AGM-Board-C). Thickness, length and quantity will depend on installation type. Please check cable description for details.

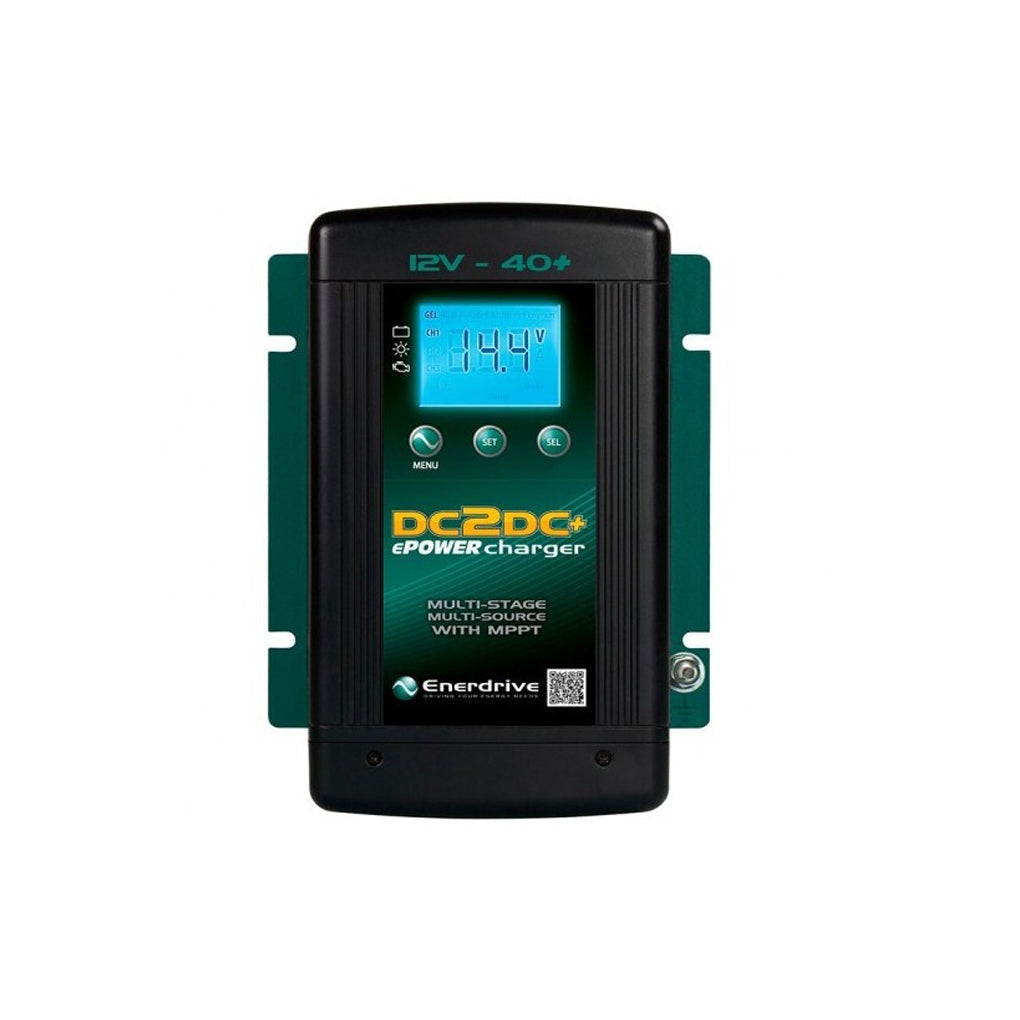

    Enerdrive ePOWER 12V 40A DC to DC Battery Charger

    • Independent DC Inputs for both engine and solar regulation charging one house battery bank output
    • DC M6 screw terminals
    • A dedicated Maximum Power Point (MPPT) solar regulator
    • The same battery algorithms as included in our AC mains ePOWER battery charger including a specific lithium charging profile
    • 40A output up to 40+°C with thermo-controlled fan cooling
    • Fully programmable LCD display
    • Temperature sensor

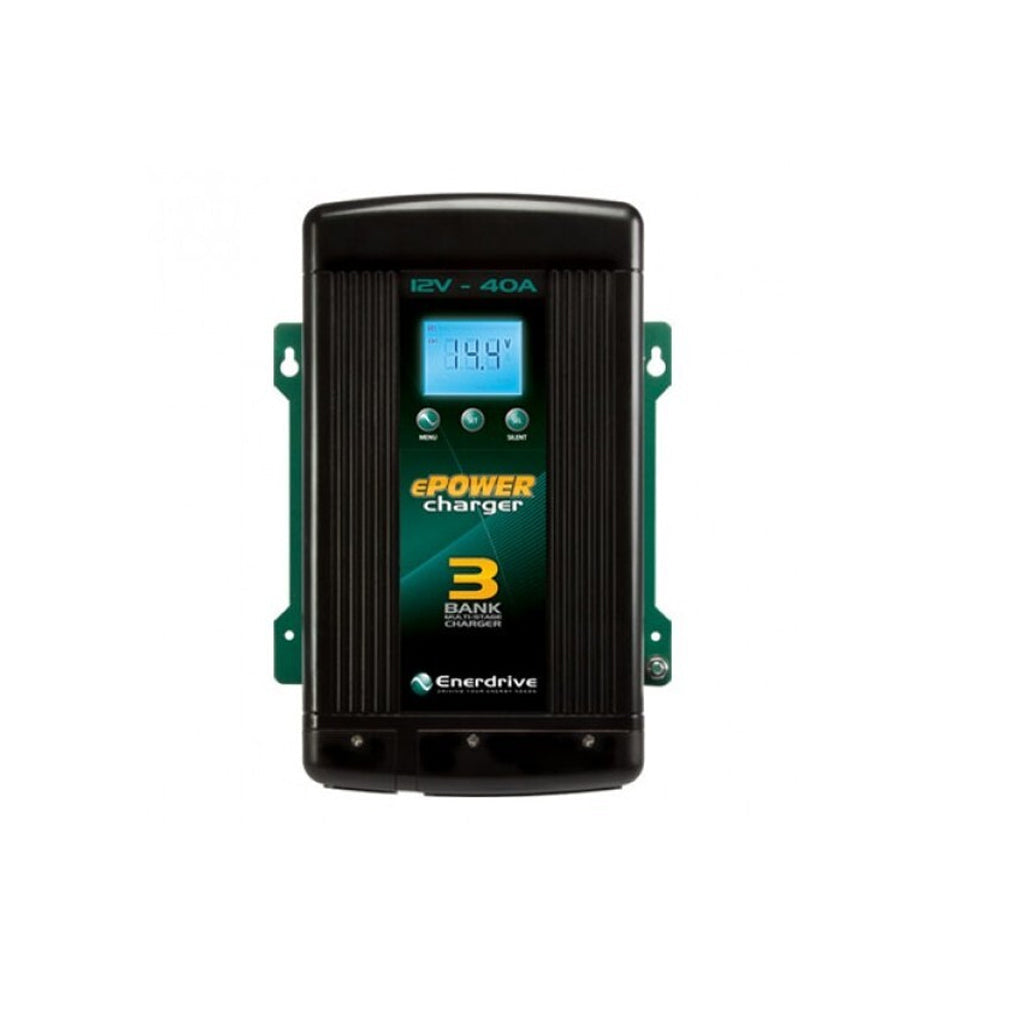

    Enerdrive ePOWER 40A Battery Charger

    • Fully automatic multistage battery charger with the ability to charge 3 separate battery banks
    • Isolated charging design where battery bank one is separate from battery bank two and three
    • Battery bank 1 can be programmed with a different charge algorithm over banks 2 and 3
    • Current Control
    • Smart Charging
    • Operates on both 110V / 60Hz and 240V / 50Hz
    • LED Display
    • Silent Mode
    • Battery temperature sensor included with 3 meter cable
    • 5 Year Warranty

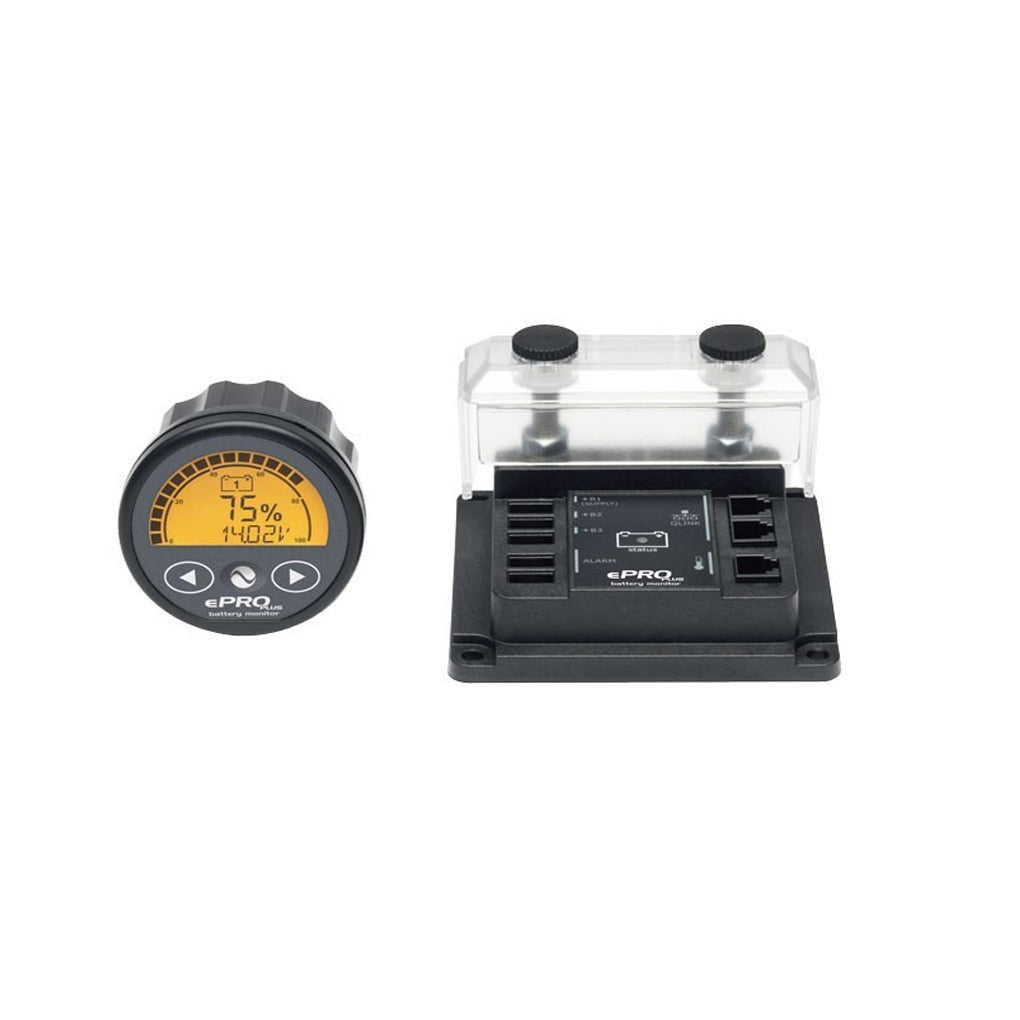

    Enerdrive ePRO PLUS Battery Monitor

    • Complete battery status information at a glance
    • Supports up to three battery banks (12V, 24V and 48V)
    • ‘Plug and Play’ installation
    • Perfect integration with Enerdrive DC Modular products

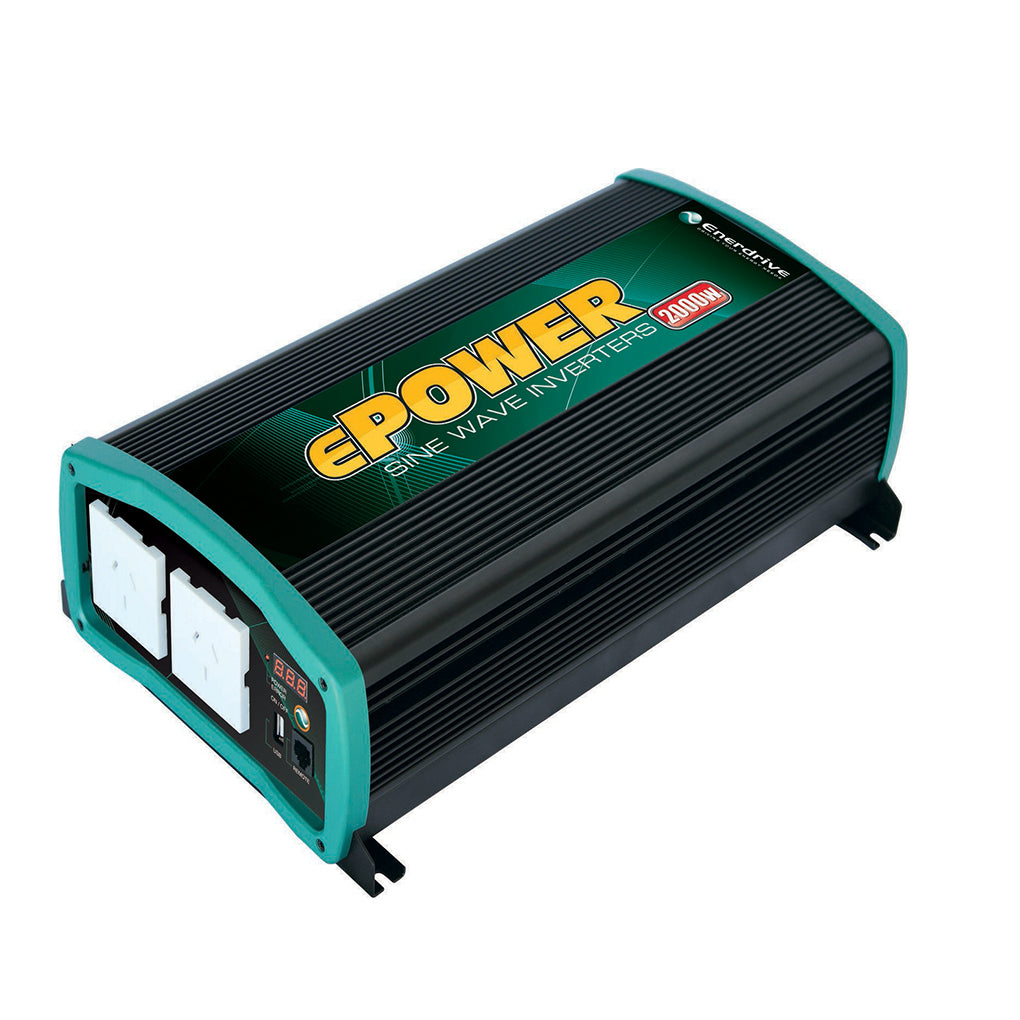

    Enerdrive ePOWER 2000W 12V Pure Sine Wave Inverter with RCD & AC Transfer Switch

    • Seamless 16A AC Internal Transfer Switch
    • AC RCD/Safety Switch with test button
    • Removable LED Remote Control Display Panel
    • Regulated Pure Sine Wave Output
    • Silent Operation
    • Compact Size for Easy Installation
    • USB Port for charging USB devices
    • PS6 Mode
    • AC Transfer Cable
    • 5 Year warranty
    • ePOWER Enerdrive Inverters with AC Transfer Switch now include the new PS6 mode


    Model ESYS-C
    Charger Mode Output Voltage
    13.8V - 15.5V (DC Battery Charger) | 14.2 – 15.5 V (AC Battery Charger)
    13.0V - 13.8V (DC Battery Charger) | 13.4 – 13.8 V (AC Battery Charger)
    Equalize 15.5V (DC Battery Charger) | 16.0 V (AC Battery Charger)
    Amps 40A (DC & AC Battery Charger)
    Charging Control Four stages (Bulk/Absorption/Float/Maintenance), Two stages (Bulk/Absorption)Constant Power Supply (Program setting), Priority Battery Bank Charging (AC Battery Charger)
    DC Output Single (DC Battery Charger) | Three (1 fully independent, 2 common with diode isolation) (AC Battery Charger)
    Operating Voltage 6 - 35V (Battery Monitor)
    Selectable Battery Type
    Gel, AGM, Flooded, Lithium, Program (DC and AC Battery Charger)
    Standby Current < 2 mA (AC Battery Charger)
    AC Input Voltage 90 to 265 VAC (AC Battery Charger)
    AC Input Operating Range
    207-265 Vac (3.8 A Max) 90 – 125 Vac (7.7 A Max) (AC Battery Charger)
    AC Input Frequency Range 47 – 63 Hz (AC Battery Charger)
    Power consumption (DC 12V) 700W (Full Load) (AC Battery Charger)
    Power Factor Correction Yes (AC Battery Charger)
    Charger Efficiency 95% (DC Battery Charger) | > 82% (AC Battery Charger)
    Reverse Polarity Yes, (with user replaceable fuse/s) (AC Battery Charger)
    Over Charge Yes, unit shutdown (AC Battery Charger)
    Over Temperature Protection Yes, unit de-rated and shutdown (AC Battery Charger)
    Forced air ventilation (thermo controlled fan) (AC Battery Charger)
    Output Short Circuit Yes, (with user replaceable fuse/s) (AC Battery Charger)
    Temperature Setting
    Low/ Normal/ High (Battery Temperature Sensor Standard) (DC Battery Charger) | Hot, Normal, Cold (no sensor connected) (AC Battery Charger)
    Battery Temp Sensor Port
    RJ12 (standard battery temp. sensor supplied) (AC Battery Charger)
    LCD Display
    Charging status, Battery Voltage, Output Current & Fault Codes (AC Battery Charger)
    AC Input Connection IEC with Supplied 1.2M Power Lead (AC Battery Charger)
    DC Output Connection
    Heavy Duty Terminal (3 banks) – Pan Heads 6mm Thread (AC Battery Charger)
    DC Output Ground Single Heavy Duty Common Ground Stud (AC Battery Charger)
    Storage Range (temp) -40° to 70° C (AC Battery Charger)
    Operating Range (temp) -20° to 60° C (AC Battery Charger)
    Humidity 5-95%, relative humidity non-condensing (AC to DC Battery Charger)
    Ingress Protection
    IP32 (Basic drip proof in vertical orientation) (AC Battery Charger)
    Regulatory Compliance
    Complies with AS/NZS 60335.2.29 Including Australian deviations.
    Dimensions 600 x 490 x 100 mm (L x W x D)
    23 Kg

    This bundle is made to order. Please give us at least 3 weeks to prepare.
