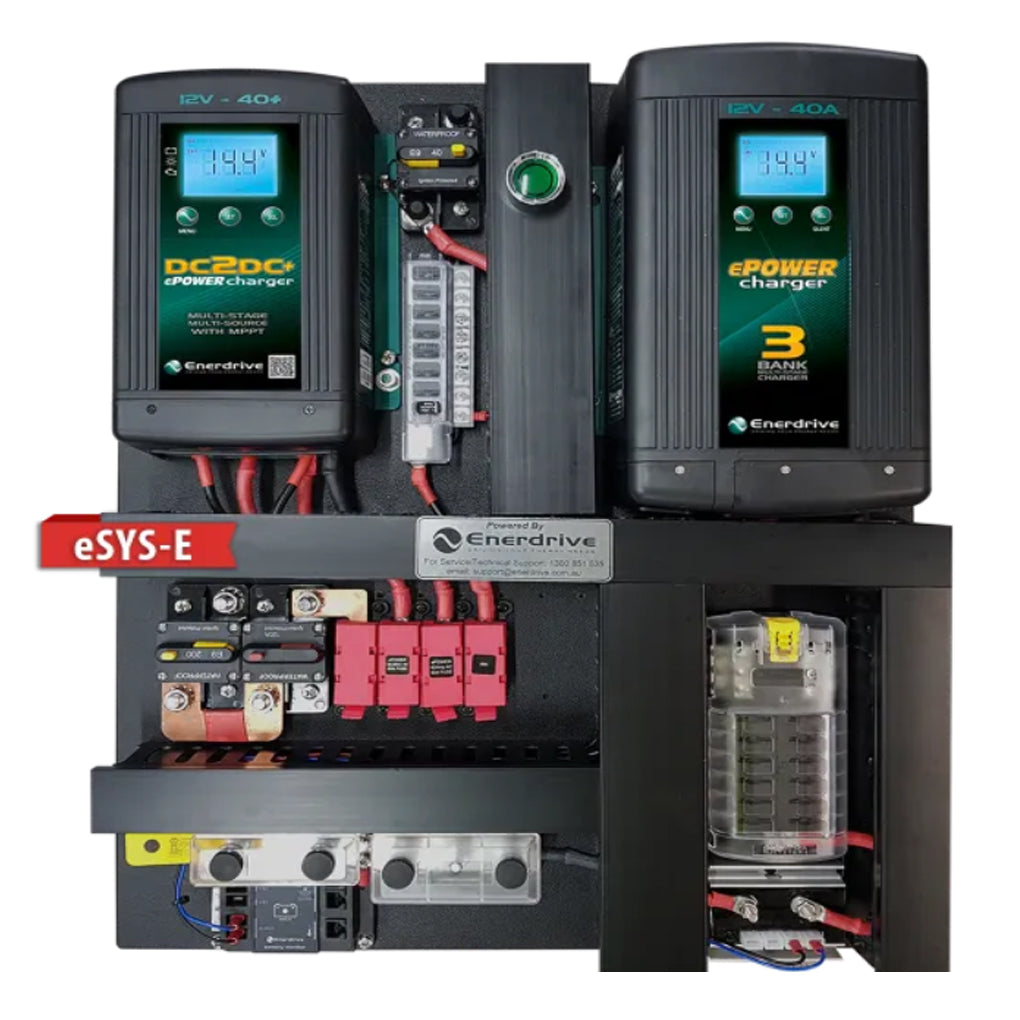

Enerdrive 40A AC and DC DIY Installation Kit With ePRO Plus Battery Monitor (ESYS-E)


Price:
Sale price$2,759.00

Description

FEATURES

Introducing Enerdrives eSYSTEM DIY Installation Kits for 4WD Canopies, Caravans, Camper Trailers, Commercial Work Vehicles and more. Enerdrive have created many different layouts and dimensional sizes to fit nearly every possible application. Designed for the DIY handyman with basic electrical knowledge through to the professional looking to save installation time. From small kits with AC & DC charging and battery monitoring up to kits with 2000w inverters and individual charge/load monitoring.

These kits are all pre-wired by Enerdrive where possible to keep the kits simple to install. All boards have a full wiring diagram showing each circuit and where to connect your loads, battery and inverter cabling. All items are mounted on a 12mm Black plastic (water & rot resistant) board for simple mounting into the application.

Includes:

  • Enerdrive ePOWER 12V 40A DC to DC Battery Charger EN3DC40+
  • Enerdrive ePOWER 12V 40A Battery Charger EN31240
  • Enerdrive ePRO PLUS Battery Monitor EN55050
  • 3 Stud Main Negative Bus Bar
  • 40A Low Battery Cutout
  • Main System Circuit Breaker 120A
  • Inverter Circuit Breaker 200A
  • Solar Input Positive Circuit Breaker 40A
  • ePOWER DC2DC 60A Output Fuse Connection
  • ePOWER AC Charger 50A Output Fuse Connection
  • 24hr Critical Load 8 Circuit "Wedge" Fuse Block
  • Main 12 Circuit "Wedge" Fuse Block with Negative Bus and Cover
  • Battery Restart Switch (Lithium Batteries)
  • 12mm Black Plastic Mounting Board. Water & Rot Resistance

EXPERT TIP: One or two AGM Board Cable Kits are common accessories suitable for the Enerdrive eSYS-E (K-AGM-Board-E). Thickness, length and quantity will depend on installation type. Please check cable description for details. All the accessories are available in the Accessory List above as optional extras.

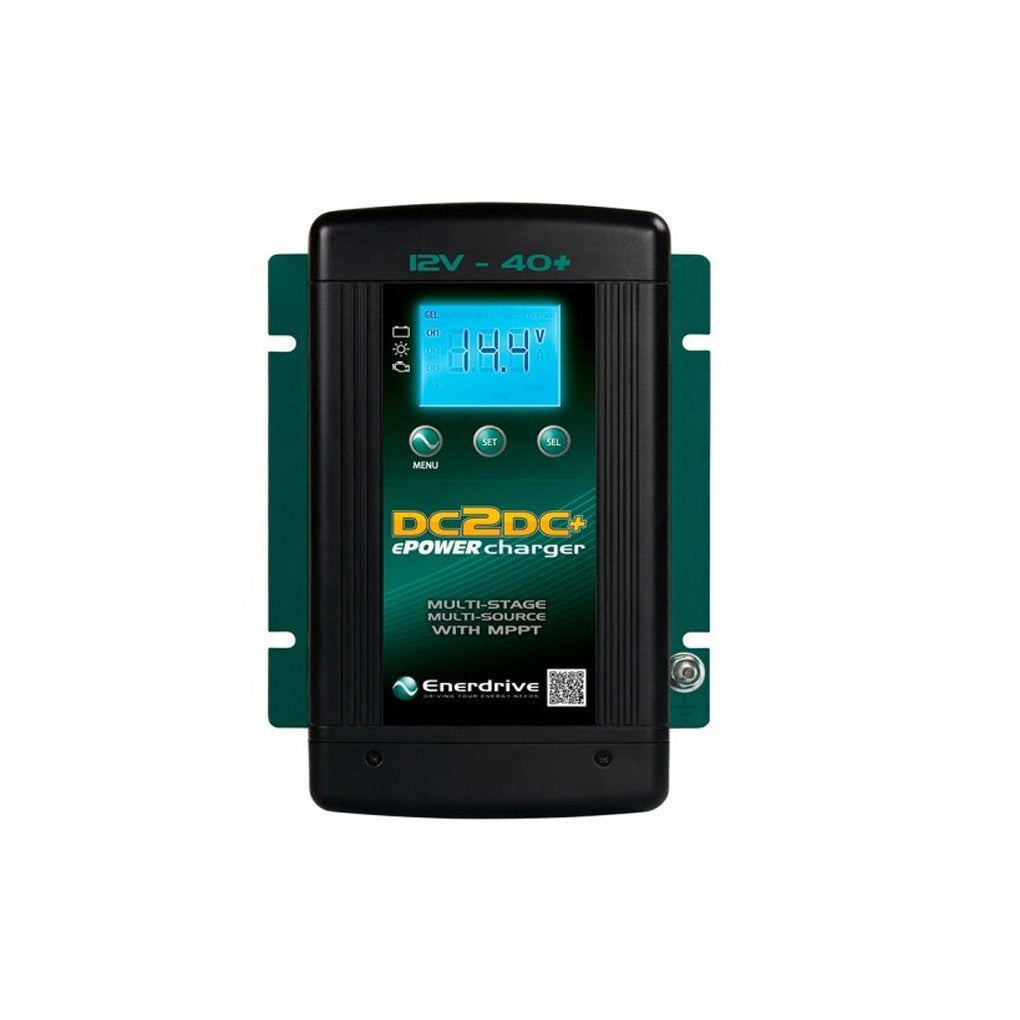

    Enerdrive ePOWER 12V 40A DC to DC Battery Charger

    The Enerdrive ePOWER DC2DC Battery Charger is a fully automatic multistage, multi input battery charger with the ability to charge from either an alternator linked to a battery; or via solar power with the in built Maximum Power Point Tracking (MPPT) Solar Controller.

    • Independent DC Inputs for both engine and solar regulation charging one house battery bank output
    • DC M6 screw terminals
    • A dedicated Maximum Power Point (MPPT) solar regulator
    • The same battery algorithms as included in our AC mains ePOWER battery charger including a specific lithium charging profile
    • 40A output up to 40+°C with thermo controlled fan cooling
    • Fully programmable LCD display
    • Temperature sensor

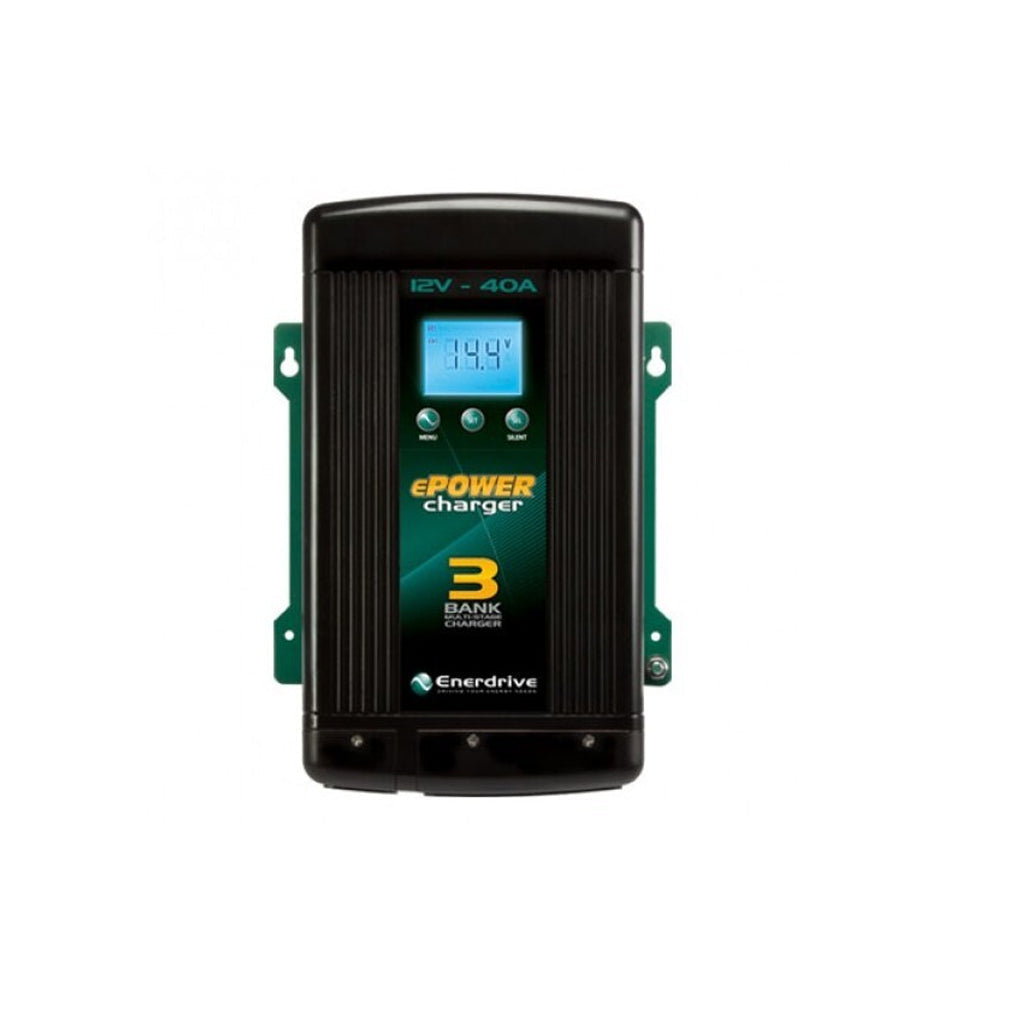

    Enerdrive ePOWER 12V 40A Battery Charger

    The Enerdrive ePOWER 40A Battery Charger is a fully automatic, “set and forget” charger. It is designed to quickly and accurately recharge your batteries using algorithms that help maximise service life. Multistage smart charging technology enables the charger to be connected to your battery banks permanently.

    • Fully automatic multistage battery charger with the ability to charge 3 separate battery banks
    • Isolated charging design where battery bank one is separate from battery bank two and three
    • Battery bank 1 can be programmed with a different charge algorithm over banks 2 and 3
    • Current Control
    • Smart Charging
    • Operates on both 110V / 60Hz and 240V / 50Hz
    • LED Display
    • Silent Mode
    • Battery temperature sensor included with 3 meter cable
    • 5 Year Warranty

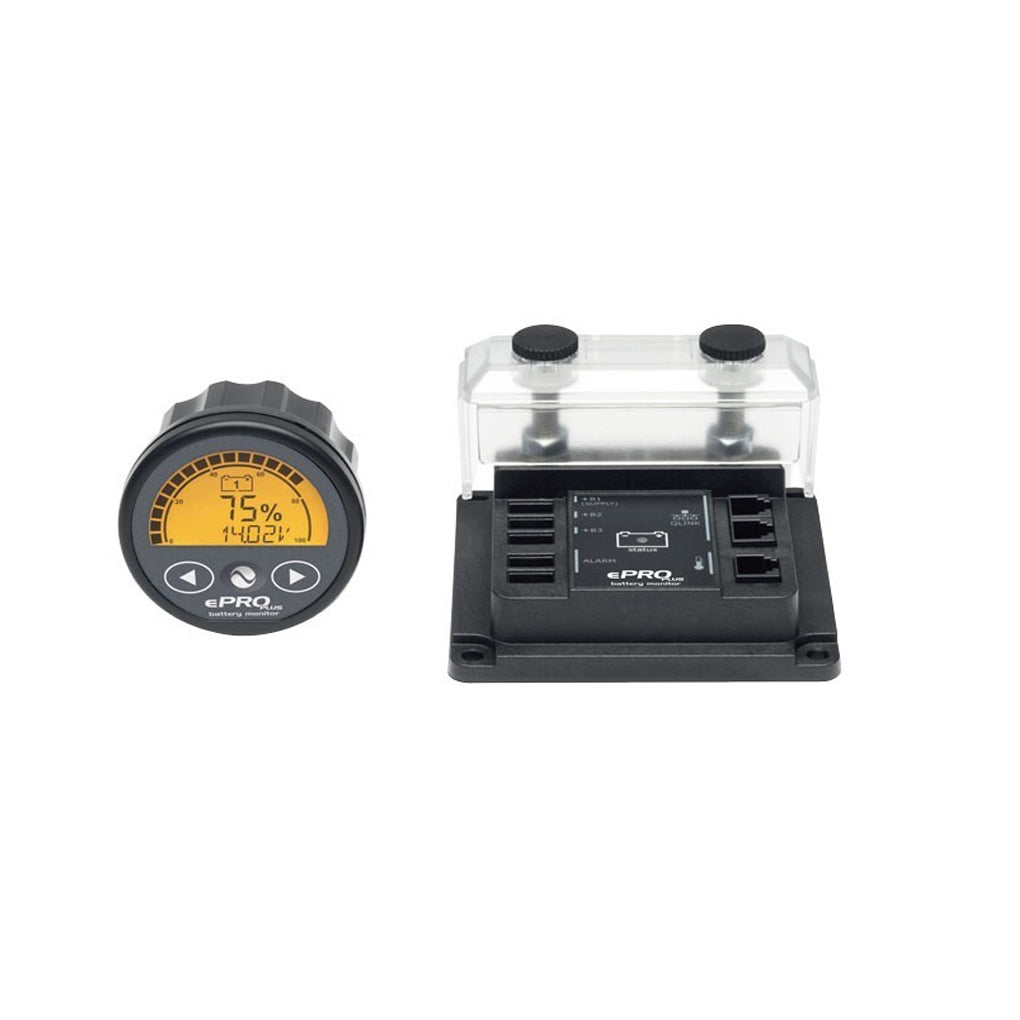

    Enerdrive ePRO PLUS Battery Monitor

    The ePRO PLUS is the latest generation, highly advanced battery monitor. It consists of an intelligent shunt and a remote control display unit. The shunt has a Grid Optimized footprint for perfect integration with our DC Modular products. The ePRO PLUS can monitor up to three battery banks. The inputs for battery bank 2 and 3 can also be configured for other purposes, like mid-point voltage measurement, keyswitch input, setup lock or backlight control.

    • Complete battery status information at a glance
    • Supports up to three battery banks (12V, 24V and 48V)
    • ‘Plug and Play’ installation
    • Perfect integration with Enerdrive DC Modular products



    SPECIFICATIONS

    Model ESYS-E
    Charger Mode Output Voltage
    13.8V - 15.5V (DC Battery Charger) | 14.2 – 15.5 V (AC Battery Charger)
    Float
    13.0V - 13.8V (DC Battery Charger) | 13.4 – 13.8 V (AC Battery Charger)
    Equalize 15.5V (DC Battery Charger) | 16.0 V (AC Battery Charger)
    Amps 40A (DC & AC Battery Charger)
    Charging Control
    Four stages (Bulk/Absorption/Float/Maintenance), Two stages (Bulk/Absorption)Constant Power Supply (Program setting), Priority Battery Bank Charging (AC Battery Charger)
    DC Output
    Single (DC Battery Charger) | Three (1 fully independent, 2 common with diode isolation) (AC Battery Charger)
    Selectable Battery Type
    Gel, AGM, Flooded, Lithium, Program (DC and AC Battery Charger)
    Standby Current < 2 mA (AC Battery Charger)
    AC Input Voltage 90 to 265 VAC (AC Battery Charger)
    AC Input Operating Range
    207-265 Vac (3.8 A Max) 90 – 125 Vac (7.7 A Max) (AC Battery Charger)
    AC Input Frequency Range 47 – 63 Hz (AC Battery Charger)
    Power consumption (DC 12V) 700W (Full Load) (AC Battery Charger)
    Power Factor Correction Yes (AC Battery Charger)
    Charger Efficiency 95% (DC Battery Charger) | > 82% (AC Battery Charger)
    Reverse Polarity Yes, (with user replaceable fuse/s) (AC Battery Charger)
    Over Charge Yes, unit shutdown (AC Battery Charger)
    Over Temperature Protection Yes, unit de-rated and shutdown (AC Battery Charger)
    Cooling
    Forced air ventilation (thermo controlled fan) (AC Battery Charger)
    Output Short Circuit Yes, (with user replaceable fuse/s) (AC Battery Charger)
    Temperature Setting
    Low/ Normal/ High (Battery Temperature Sensor Standard) (DC Battery Charger) | Hot, Normal, Cold (no sensor connected) (AC Battery Charger)
    Battery Temp Sensor Port
    RJ12 (standard battery temp. sensor supplied) (AC Battery Charger)
    LCD Display
    Charging status, Battery Voltage, Output Current & Fault Codes (AC Battery Charger)
    AC Input Connection IEC with Supplied 1.2M Power Lead (AC Battery Charger)
    DC Output Connection
    Heavy Duty Terminal (3 banks) – Pan Heads 6mm Thread (AC Battery Charger)
    DC Output Ground
    Single Heavy Duty Common Ground Stud (AC Battery Charger)
    Storage Range (temp) -40° to 70° C (AC Battery Charger)
    Operating Range (temp) -20° to 60° C (AC Battery Charger)
    Humidity
    5-95%, relative humidity non-condensing (AC Battery Charger)
    Ingress Protection
    IP32 (Basic drip proof in vertical orientation) (AC Battery Charger)
    Regulatory Compliance
    Complies with AS/NZS 60335.2.29 Including Australian deviations.
    Dimensions 600 x 490 x 100 mm (L x W x D)
    Weight 14 Kg

    WARRANTY

    5-year warranty - Enerdrive warrants that its Products will be free from defects in materials and workmanship (subject to limits, and in normal conditions) for up to 5 years from the date of purchase.
    NOTE:
    This bundle is made to order. Please give us at least 3 weeks to prepare.
