Description
FEATURES
Enerdrive ePOWER B-TEC 200Ah Lithium Battery (x2)
The New Enerdrive Generation 2 (G2) B-TEC 200Ah Lithium Battery now comes with a 5 Year full replacement warranty.
- BMS restart button for easy recovery.
- RS485 communications port for advanced system integration.
- Raised terminals for 360 degree cable connections.
- Re-designed battery case for easy serviceability.
- Battery box and straps INCLUDED - nothing more to buy!
- Product dimensions 505 x 173 x 265 mm

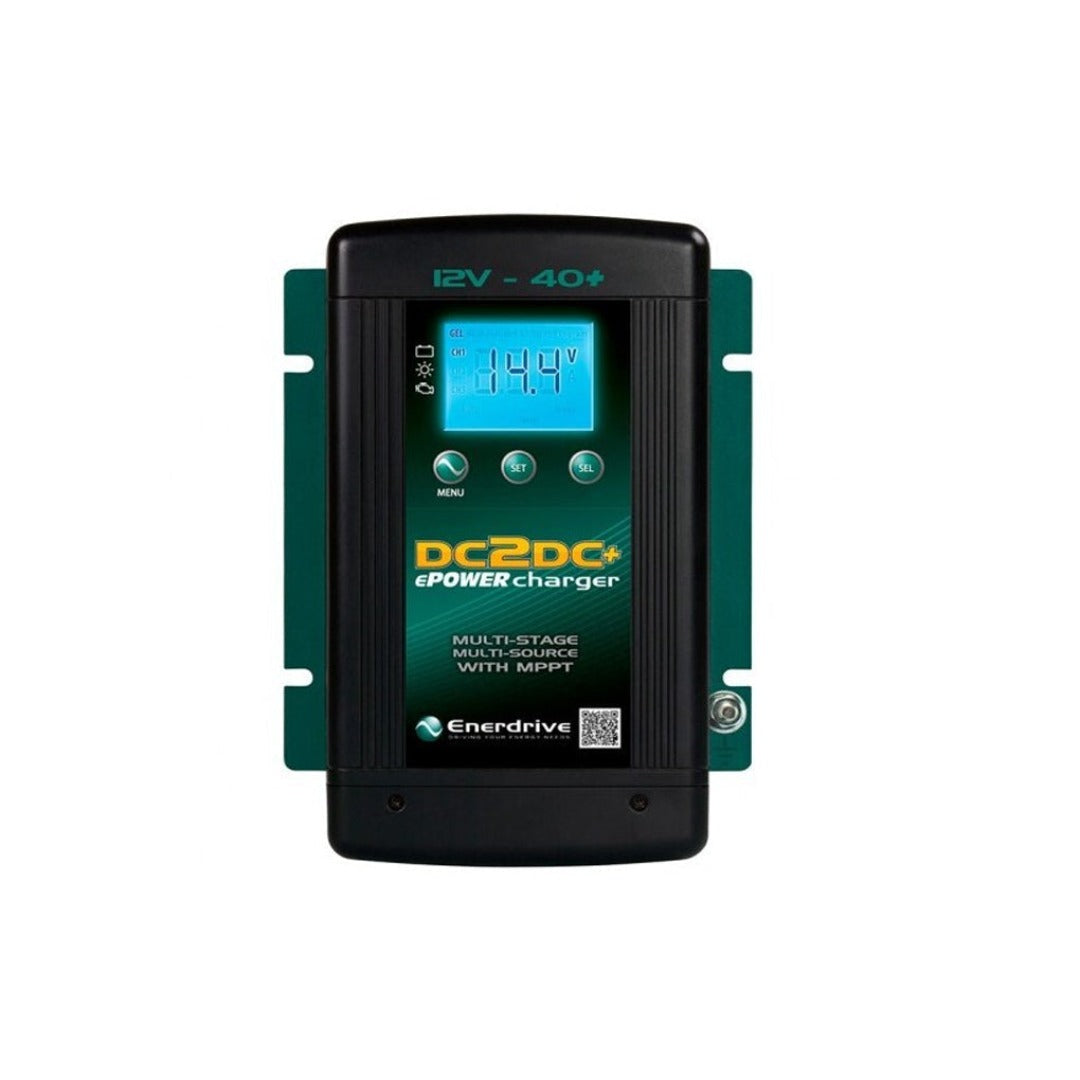

Enerdrive ePOWER 12V 40A DC to DC Battery Charger
The Enerdrive ePOWER DC2DC Battery Charger is a fully automatic multistage, multi input battery charger with the ability to charge from either an alternator linked to a battery; or via solar power with the in built Maximum Power Point Tracking (MPPT) Solar Controller.
- Independent DC Inputs for both engine and solar regulation charging one house battery bank output
- DC M6 screw terminals
- A dedicated Maximum Power Point (MPPT) solar regulator
- The same battery algorithms as included in our AC mains ePOWER battery charger including a specific lithium charging profile
- 40A output up to 40+°C with thermo controlled fan cooling
- Fully programmable LCD display
- Temperature sensor
Enerdrive ePOWER 12V 60A Battery Charger
The Enerdrive ePOWER 60A Battery Charger is a fully automatic, “set and forget” charger. It is designed to quickly and accurately recharge your batteries using algorithms that help maximize service life.
- Fully automatic multistage battery charger with the ability to charge 3 separate battery banks
- Isolated charging design where battery bank one is separate from battery bank two and three
- Battery bank 1 can be programmed with a different charge algorithm over banks 2 and 3
- Current Control
- Smart Charging
- Operates on both 110V / 60Hz and 240V / 50Hz
- LED Display
- Silent Mode
- Battery temperature sensor included with 3 meter cable
- 5 Year Warranty

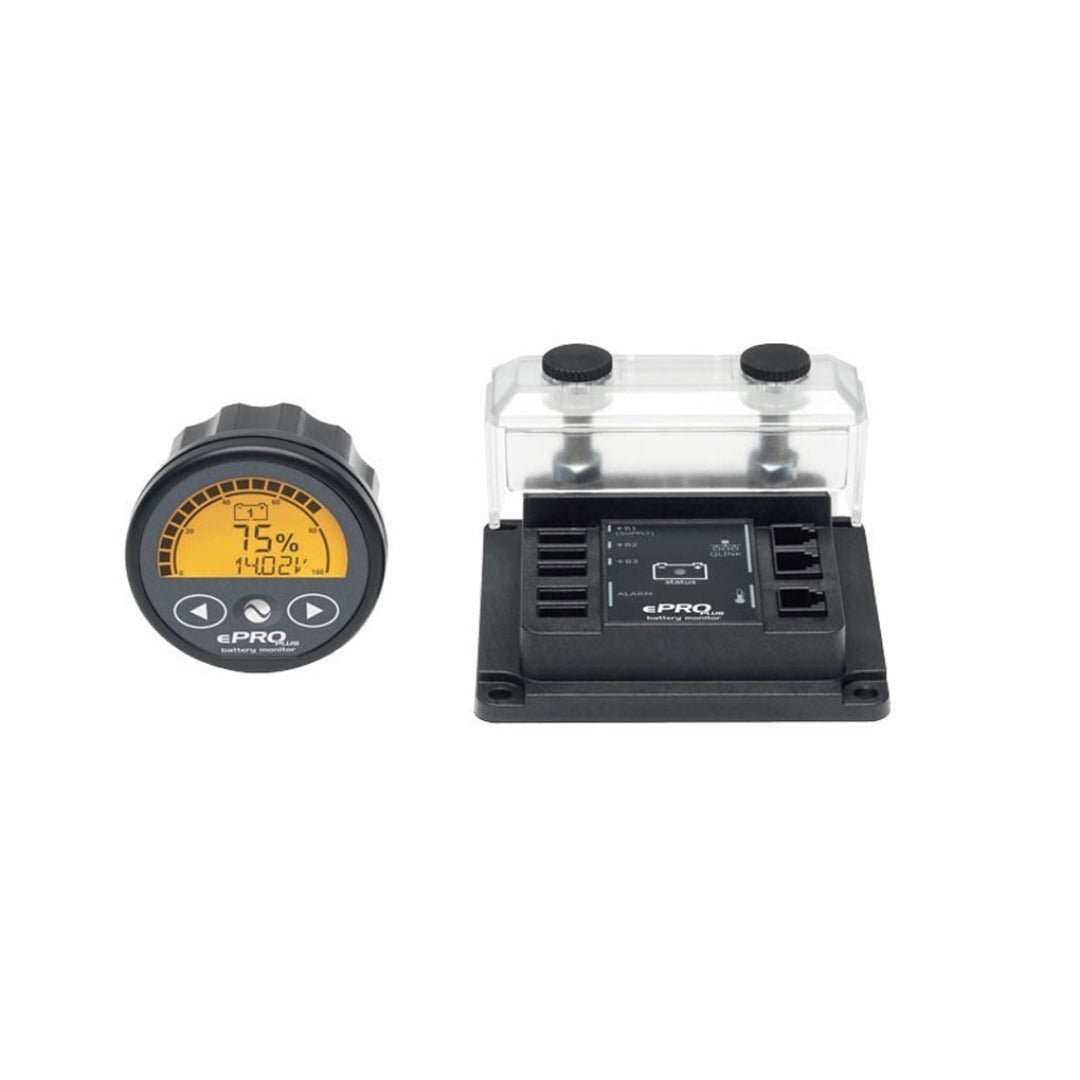

Enerdrive ePRO PLUS Battery Monitor
The ePRO PLUS is the latest generation, highly advanced battery monitor. It consists of an intelligent shunt and a remote control display unit. The shunt has a Grid Optimized footprint for perfect integration with our DC Modular products. The ePRO PLUS can monitor up to three battery banks.
- Complete battery status information at a glance
- Supports up to three battery banks (12V, 24V and 48V)
- ‘Plug and Play’ installation
- Perfect integration with Enerdrive DC Modular products

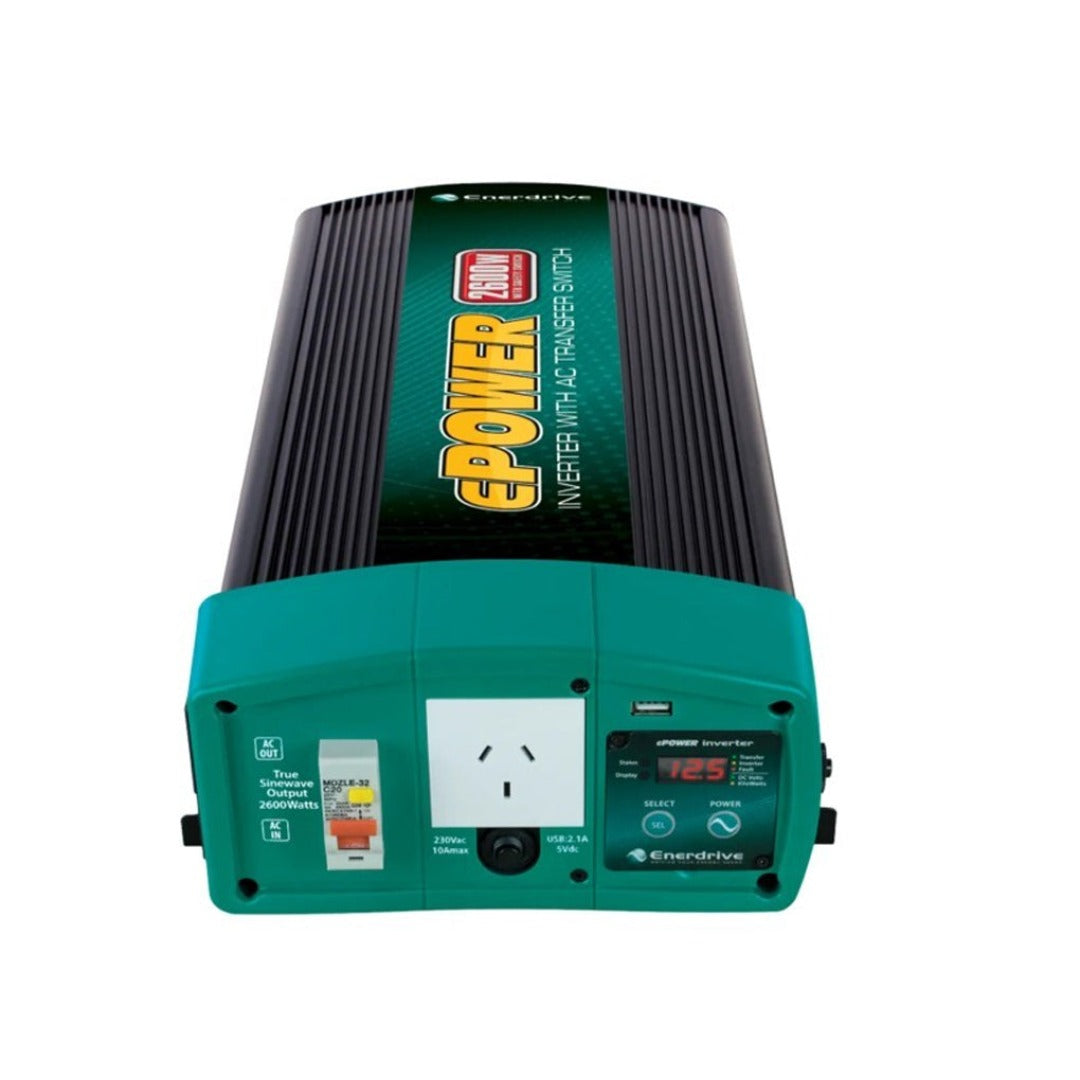

Enerdrive ePOWER 2600W 12V Pure Sine Wave Inverter with RCD & AC Transfer Switch
The Enerdrive ePOWER 2600W 12V Pure Sine Wave state of the art, easy to use inverter will offer you reliable service for providing AC power for your home, boat, 4WD, truck or Caravan. The Inverter incorporates a 16A AC Transfer Switch which allows for seamless AC power transfer between Mains/Generator and Inverter.
- Seamless 16A AC Internal Transfer Switch
- AC RCD/Safety Switch with test button
- Removable LED Remote Control Display Panel
- Regulated Pure Sine Wave Output
- Silent Operation
- Compact Size for Easy Installation
- USB Port for charging USB devices
- PS6 Mode
- AC Transfer Cable
- 5 Year warranty
Enerdrive 180W Mono Crystalline Fixed Solar Panel (x4)
- Suited to 12v installations (or 24v by series connections of panels)
- A fly lead cable is provided for easy connection of the 10 & 20w panels
- The larger panels have MC4 compatible solar cable connectors included
Package Included
- Enerdrive ePOWER B-TEC 200Ah Lithium Battery (x2) EPL-200BT-12V-G2
- Enerdrive ePOWER 12V 40A DC to DC Battery Charger EN3DC40+
- Enerdrive ePOWER 12V 40A Battery Charger EN31240
- Enerdrive ePRO PLUS Battery Monitor EN55050
- Enerdrive ePOWER 2600W 12V Pure Sine Wave Inverter with RCD & AC Transfer Switch EN1226S-X
- Enerdrive 180W Mono Crystalline Fixed Solar Panel (x4) SP-EN180W
SPECIFICATIONS
| Amp Hours | 200.0 Ah |
| Battery Voltage | 12V |
|
Charger Mode Output Voltage
|
13.8V - 15.5V (DC Battery Charger) |
| 14.2 – 15.5 V (AC Battery Charger) | |
|
Float
|
13.50 - 13.80V (Battery) |
| 13.0V - 13.8V (DC Battery Charger) | |
| 13.4 – 13.8 V (AC Battery Charger) | |
|
Equalize
|
15.5V (DC Battery Charger) |
| 16.0 V (AC Battery Charger) | |
|
Charging Control
|
Four stages (Bulk/Absorption/Float/Maintenance) |
| Two stages (Bulk/Absorption) | |
| Constant Power Supply (Program setting) | |
| Priority Battery Bank Charging (AC Battery Charger) | |
|
DC Output
|
Single (DC Battery Charger) |
|
Three (1 fully independent, 2 common with diode isolation) (AC Battery Charger)
|
|
| Selectable Battery Type |
Gel, AGM, Flooded, Lithium, Program (DC and AC Battery Charger)
|
| Standby Current | < 2 mA (AC Battery Charger) |
| Cell Type | Monocrystalline - 72 Cells each (Solar Panels) |
| AC Input Voltage | 90 to 265 VAC (AC Battery Charger) |
| AC Input Operating Range |
207-265 Vac (3.8 A Max)90 – 125 Vac (7.7 A Max) (AC Battery Charger)
|
| AC Input Frequency Range | 47 – 63 Hz (AC Battery Charger) |
| Power Consumption | 1050W (Full Load) (AC Battery Charger) |
| Power Factor Correction | Yes (AC Battery Charger) |
| Charger Efficiency | 95% (DC Battery Charger) | > 82% (AC Battery Charger) |
| Reverse Polarity | Yes, (with user replaceable fuse/s) (AC Battery Charger) |
| Over Charge | Yes, unit shutdown (AC Battery Charger) |
| Over Temperature Protection | Yes, unit de-rated and shutdown (AC Battery Charger) |
| Cooling |
Forced air ventilation (thermo controlled fan) (AC Battery Charger)
|
| Output Short Circuit | Yes, (with user replaceable fuse/s) (AC Battery Charger) |
|
Temperature Setting
|
Low/ Normal/ High (Battery Temperature Sensor Standard) (DC Battery Charger)
|
|
Hot, Normal, Cold (no sensor connected) (AC Battery Charger)
|
|
| Battery Temperature Sensor Port |
RJ12 (standard battery temp. sensor supplied) (AC Battery Charger)
|
| LCD Display |
Charging status, Battery Voltage, Output Current & Fault Codes (AC Battery Charger)
|
| AC Input Connection |
IEC with Supplied 1.2M Power Lead (AC Battery Charger)
|
| DC Output Connection |
Heavy Duty Terminal (3 banks) – Pan Heads 6mm Thread (AC Battery Charger)
|
| DC Output Ground |
Single Heavy Duty Common Ground Stud (AC Battery Charger)
|
| Storage Temperature Range | -40° to 70° C (AC Battery Charger) |
| Operating Temperature Range | -20° to 60° C (AC Battery Charger) |
| Humidity |
5-95%, relative humidity non-condensing (AC Battery Charger)
|
| Ingress Protection |
IP32 (Basic drip proof in vertical orientation) (AC Battery Charger)
|
| Nominal Voltage | 12.8V (Battery) |
| Nominal Capacity | 200Ah (Battery) |
| Total Charge Current | Max 150A @ 25°C for 30mins (Battery) |
| Regulatory Compliance |
Complies with AS/NZS 60335.2.29 Including Australian deviations
|
| Cycle Life |
(DOD - 80% under controlled conditions) ≥ 2000 Cycles (Battery)
|
| Battery Charge Temperature | 0 ̴ 45°C (Battery) |
| Normal Charge Voltage | CV/CC* 14.40 ̴ 14.60V (Battery) |
| Standby (Float) Voltage | 13.50 ̴ 13.80V (Battery) |
| Maximum Charge Current | 150A @ 25°C for 30mins (Battery) |
| Recommended Charge Current for Maximum Life | ≤ 60A (Battery) |
| Battery Discharge Temperature | -20 ̴ 60°C (Battery) |
| Battery Output Voltage Range | 11.00 ̴ 14.60V (Battery) |
| Maximum Discharge Current | 200A @ 25°C ± 5°C for 30mins (Battery) |
| Pulse Discharge Current | 450A for 1.0s (Battery) |
| Discharge Cut-off Voltage | ≤ 11.20V (Battery) |
| Input Voltage | 10.5 - 15.5 VDC (Inverter) |
| AC Output | 2600W, 11.3A (Inverter) |
| No Load Battery Draw | < 1.5 ADC (Inverter) |
| Under Voltage Alarm | 11.0/12.1 VDC (Inverter) |
| Under Voltage Alarm Recovery | 11.3/12.3 VDC |
| Under Voltage Shutdown | 10.5/11.8 VDC (Inverter) |
| Under Voltage Shutdown Recovery | 12.0/12.6 VDC (Inverter) |
| Over Voltage Shutdown | 15.5VDC (Inverter) |
| USB Socket Output | 5V, 730 mA (Inverter) |
| Operating Altitude | Up to 3000 meters above sea level (Inverter) |
| Wattage | 180W each (720W total) (Solar Panels) |
|
Dimensions (L x W x H)
|
Battery: 505 x 172.5 x 265 mm |
| DC to DC Charger: 242 x 172 x 74 mm | |
| AC Charger: 295 x 206 x 90 mm | |
| Solar Panels (1 Panel): 1482 x 680 x 35 mm | |
| Inverter: 560 x 230 x 115 mm | |
| Weight | 109.7 Kg |
NOTE:
* Availability Subject to Individual Items.
** This bundle is made to order. Please give us at least 3 weeks to prepare.
*** Where allowed by applicable law and regulations, batteries must be shipped via Ground shipments only.
