Enerdrive 200Ah 40A AC&DC Charging Bundle 2600W Inverter 720W Solar Panels K-200-19

Sale price$7,230.00



Enerdrive ePOWER B-TEC 200Ah Lithium Battery

The New Enerdrive Generation 2 (G2) B-TEC 200Ah Lithium Battery now comes with a 5 Year full replacement warranty.

  • BMS restart button for easy recovery.
  • RS485 communications port for advanced system integration.
  • Raised terminals for 360-degree cable connections.
  • Re-designed battery case for easy serviceability.
  • Battery box and straps INCLUDED - nothing more to buy!
  • Product dimensions 505 x 173 x 265 mm

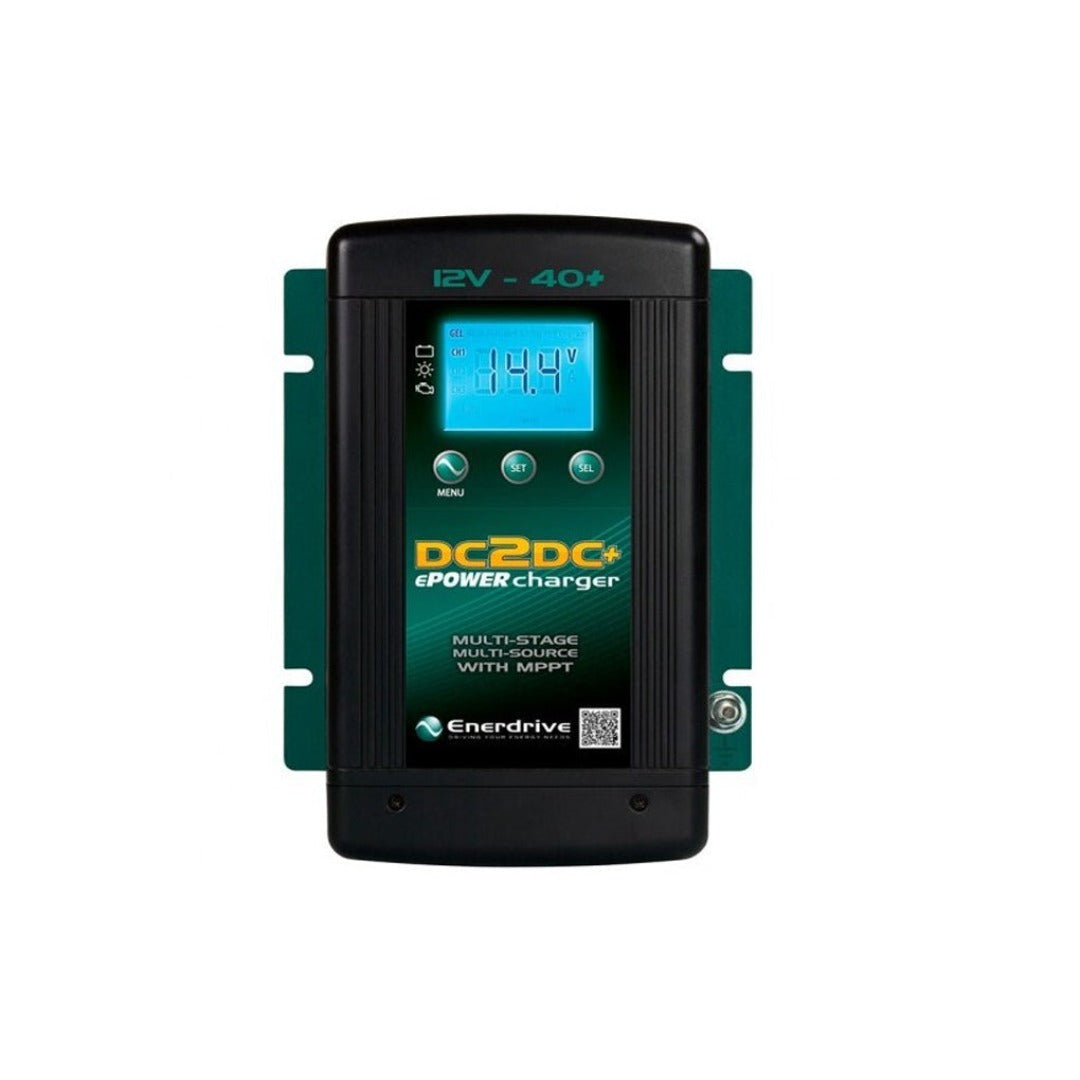

Enerdrive ePOWER 12V 40A DC to DC Battery Charger

  • Independent DC Inputs for both engine
  • DC M6 screw terminals
  • A dedicated (MPPT) solar regulator
  • The same battery algorithms as included in our AC mains ePOWER battery charger
  • 40A output up to 40+°C with thermo-controlled fan cooling
  • Fully programmable LCD display
  • Temperature sensor

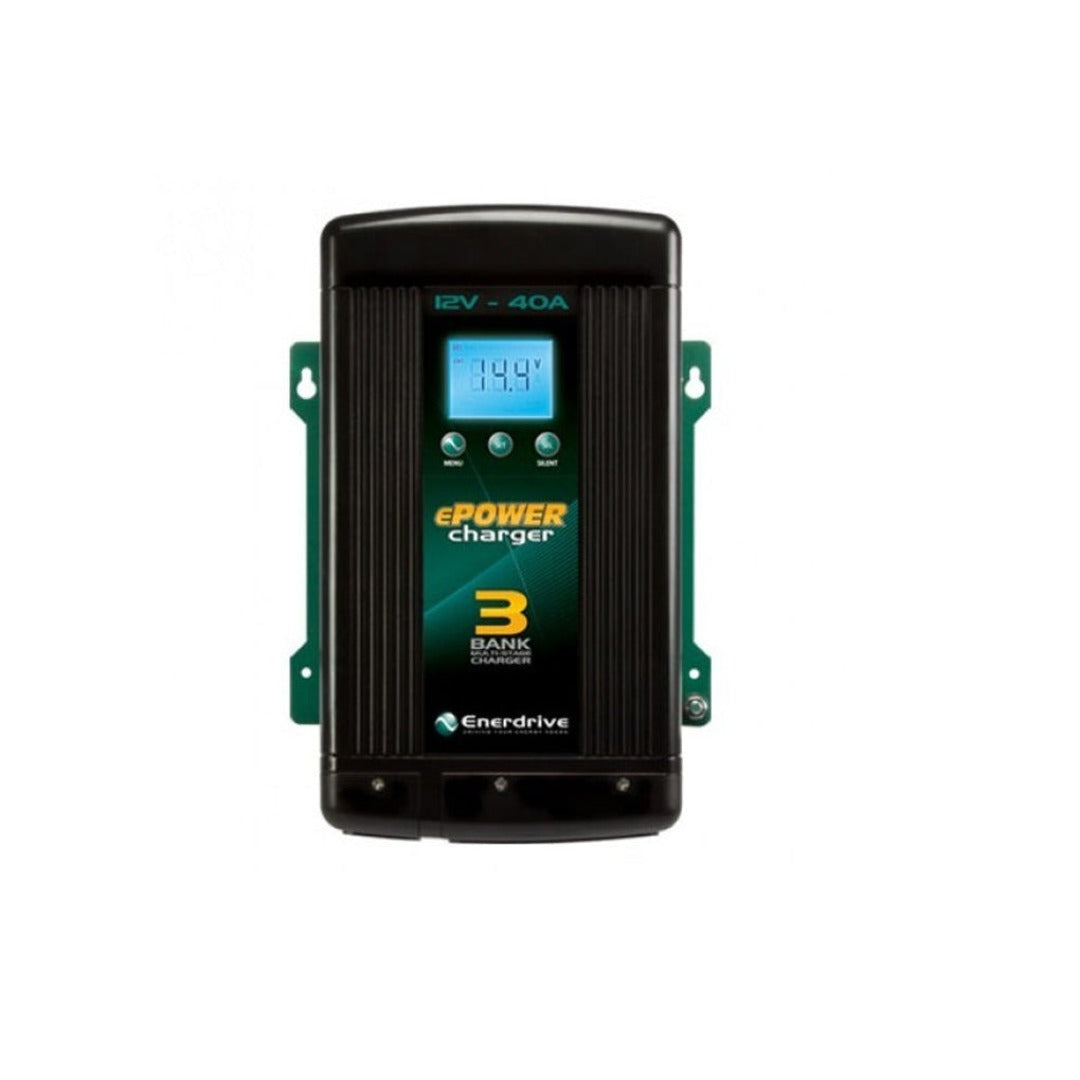

Enerdrive ePOWER 40A Battery Charger

The Enerdrive ePOWER 40A Battery Charger is a fully automatic, “set and forget” charger.

  • Fully automatic multistage battery charger with the ability to charge 3 separate battery banks
  • Isolated charging design where battery bank one is separate from battery bank two and three
  • Battery bank 1 can be programmed with a different charge algorithm over banks 2 and 3
  • Current Control
  • Smart Charging
  • Operates on both 110V / 60Hz and 240V / 50Hz
  • LED Display
  • Silent Mode
  • Battery temperature sensor included with 3 meter cable
  • 5 Year Warranty

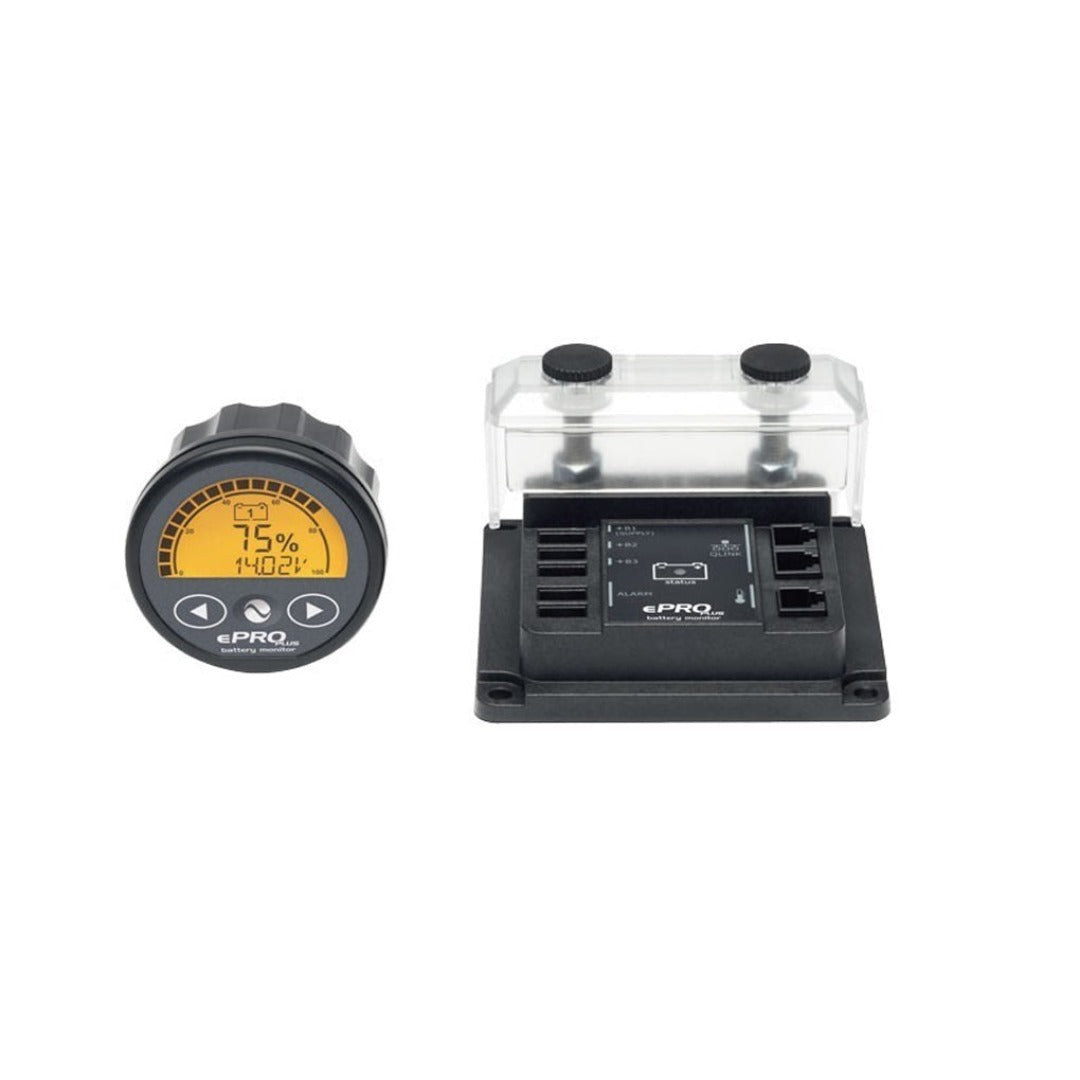

Enerdrive ePRO PLUS Battery Monitor

  • Complete battery status information at a glance
  • Supports up to three battery banks (12V, 24V and 48V)
  • ‘Plug and Play’ installation
  • Perfect integration with Enerdrive DC Modular products

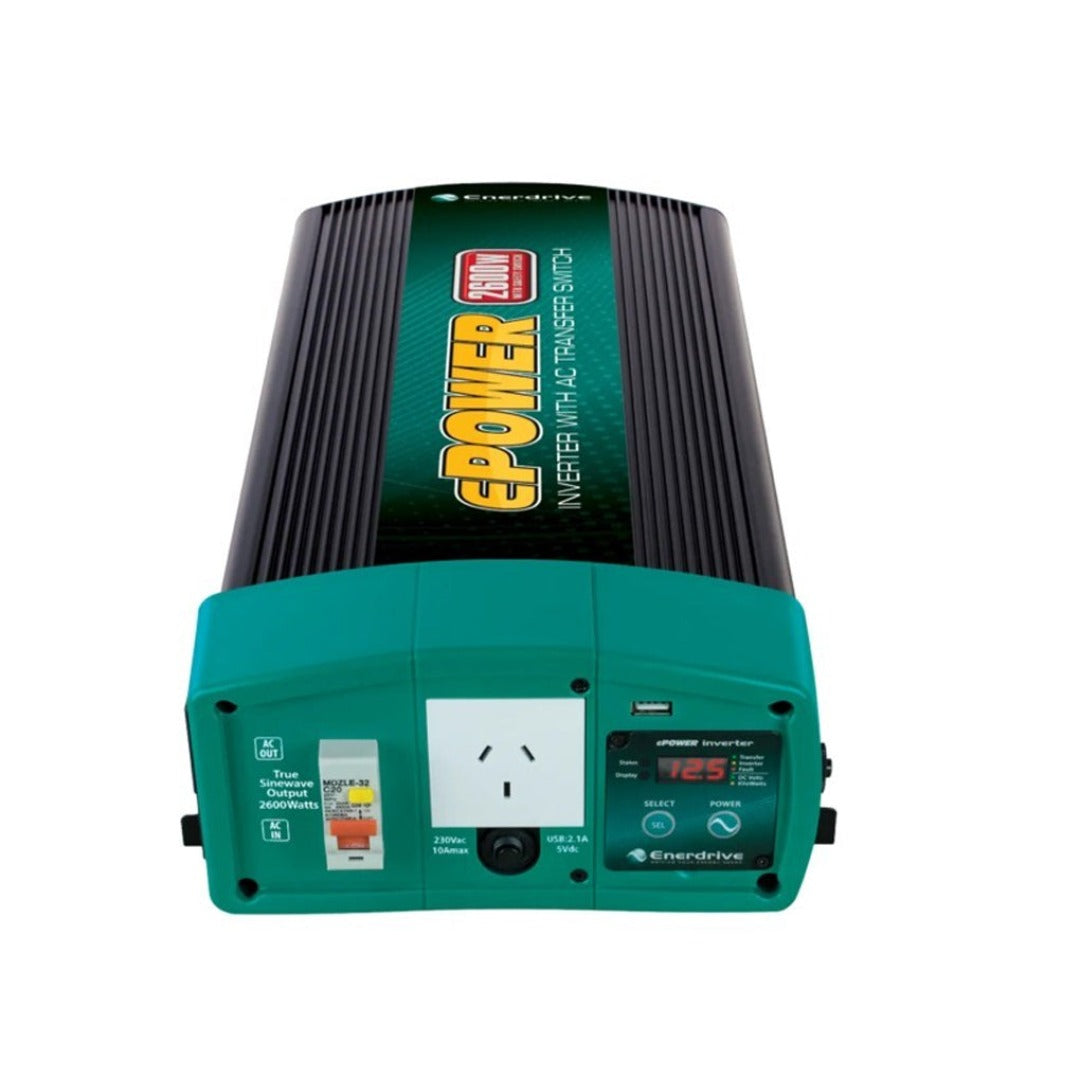

Enerdrive ePOWER 2600W 12V Pure Sine Wave Inverter with RCD & AC Transfer Switch

  • Seamless 16A AC Internal Transfer Switch
  • AC RCD/Safety Switch with test button
  • Removable LED Remote Control Display Panel
  • Regulated Pure Sine Wave Output
  • Silent Operation
  • Compact Size for Easy Installation
  • USB Port for charging USB devices
  • PS6 Mode
  • AC Transfer Cable
  • 5 Year warranty

Enerdrive 180W Mono Crystalline Fixed Solar Panel (x4)

  • Suited to 12v installations (or 24v by series connections of panels)
  • A fly lead cable is provided for easy connection of the 10 & 20w panels
  • The larger panels have MC4 compatible solar cable connectors included

Package Included

  • Enerdrive ePOWER B-TEC 200Ah Lithium Battery EPL-200BT-12V-G2
  • Enerdrive ePOWER 12V 40A DC to DC Battery Charger EN3DC40+
  • Enerdrive ePOWER 12V 40A Battery Charger EN31240
  • Enerdrive ePRO PLUS Battery Monitor EN55050
  • Enerdrive ePOWER 2600W 12V Pure Sine Wave Inverter with RCD & AC Transfer Switch EN1226S-X
  • Enerdrive 180W Mono Crystalline Fixed Solar Panel (x4) SP-EN180W


Amp Hours 200.0 Ah
Battery Voltage 12V
Charger Mode Output Voltage
13.8V - 15.5V (DC Battery Charger)
14.2 – 15.5 V (AC Battery Charger)
13.50 - 13.80V (Battery)
13.0V - 13.8V (DC Battery Charger)
13.4 – 13.8 V (AC Battery Charger)
15.5V (DC Battery Charger)
16.0 V (AC Battery Charger)
Charging Control
Four stages (Bulk/Absorption/Float/Maintenance)
Two stages (Bulk/Absorption)
Constant Power Supply (Program setting)
Priority Battery Bank Charging (AC Battery Charger)
DC Output
Single (DC Battery Charger)
Three (1 fully independent, 2 common with diode isolation) (AC Battery Charger)
Selectable Battery Type
Gel, AGM, Flooded, Lithium, Program (DC and AC Battery Charger)
Standby Current < 2 mA (AC Battery Charger)
Cell Type Monocrystalline - 72 Cells each (Solar Panels)
AC Input Voltage 90 to 265 VAC (AC Battery Charger)
AC Input Operating Range
207-265 Vac (3.8 A Max)90 – 125 Vac (7.7 A Max) (AC Battery Charger)
AC Input Frequency Range 47 – 63 Hz (AC Battery Charger)
Power Consumption 700W (Full Load) (AC Battery Charger)
Power Factor Correction Yes (AC Battery Charger)
Charger Efficiency 95% (DC Battery Charger) | > 82% (AC Battery Charger)
Reverse Polarity Yes, (with user replaceable fuse/s) (AC Battery Charger)
Over Charge Yes, unit shutdown (AC Battery Charger)
Over Temperature Protection Yes, unit de-rated and shutdown (AC Battery Charger)
Forced air ventilation (thermo controlled fan) (AC Battery Charger)
Output Short Circuit Yes, (with user replaceable fuse/s) (AC Battery Charger)
Temperature Setting
Low/ Normal/ High (Battery Temperature Sensor Standard) (DC Battery Charger)
Hot, Normal, Cold (no sensor connected) (AC Battery Charger)
Battery Temperature Sensor Port
RJ12 (standard battery temp. sensor supplied) (AC Battery Charger)
LCD Display
Charging status, Battery Voltage, Output Current & Fault Codes (AC Battery Charger)
AC Input Connection
IEC with Supplied 1.2M Power Lead (AC Battery Charger)
DC Output Connection
Heavy Duty Terminal (3 banks) – Pan Heads 6mm Thread (AC Battery Charger)
DC Output Ground
Single Heavy Duty Common Ground Stud (AC Battery Charger)
Storage Temperature Range -40° to 70° C (AC Battery Charger)
Operating Temperature Range -20° to 60° C (AC Battery Charger)
5-95%, relative humidity non-condensing (AC Battery Charger)
Ingress Protection
IP32 (Basic drip proof in vertical orientation) (AC Battery Charger)
Nominal Voltage 12.8V (Battery)
Nominal Capacity 200Ah (Battery)
Total Charge Current Max 150A @ 25°C for 30mins (Battery)
Regulatory Compliance
Complies with AS/NZS 60335.2.29 Including Australian deviations
Cycle Life
(DOD - 80% under controlled conditions) ≥ 2000 Cycles (Battery)
Battery Charge Temperature 0 ̴ 45°C (Battery)
Normal Charge Voltage CV/CC* 14.40 ̴ 14.60V (Battery)
Standby (Float) Voltage 13.50 ̴ 13.80V (Battery)
Maximum Charge Current 150A @ 25°C for 30mins (Battery)
Recommended Charge Current for Maximum Life ≤ 60A (Battery)
Battery Discharge Temperature -20 ̴ 60°C (Battery)
Battery Output Voltage Range 11.00 ̴ 14.60V (Battery)
Maximum Discharge Current 200A @ 25°C ± 5°C for 30mins (Battery)
Pulse Discharge Current 450A for 1.0s (Battery)
Discharge Cut-off Voltage ≤ 11.20V (Battery)
Input Voltage 10.5 - 15.5 VDC (Inverter)
AC Output 2600W, 11.3A (Inverter)
No Load Battery Draw < 1.5 ADC (Inverter)
Under Voltage Alarm 11.0/12.1 VDC (Inverter)
Under Voltage Alarm Recovery 11.3/12.3 VDC
Under Voltage Shutdown 10.5/11.8 VDC (Inverter)
Under Voltage Shutdown Recovery 12.0/12.6 VDC (Inverter)
Over Voltage Shutdown 15.5VDC (Inverter)
USB Socket Output 5V, 730 mA (Inverter)
Operating Altitude Up to 3000 meters above sea level (Inverter)
Wattage 180W each (720W total) (Solar Panels)
Dimensions (L x W x H)
Battery: 505 x 172.5 x 265 mm
DC to DC Charger: 242 x 172 x 74 mm
AC Charger: 295 x 206 x 90 mm
Solar Panels (1 Panel): 1482 x 680 x 35 mm
Inverter: 560 x 230 x 115 mm
Weight 83.3 Kg


* Availability Subject to Individual Items.

** This bundle is made to order. Please give us at least 3 weeks to prepare.

*** Where allowed by applicable law and regulations, batteries must be shipped via Ground shipments only.
