Description
FEATURES
Enerdrive ePOWER B-TEC 200Ah Lithium Battery
The New Enerdrive Generation 2 (G2) B-TEC 200Ah Lithium Battery now comes with a 5 Year full replacement warranty.
- BMS restart button for easy recovery.
- RS485 communications port for advanced system integration.
- Raised terminals for 360-degree cable connections.
- Re-designed battery case for easy serviceability.
- Battery box and straps INCLUDED - nothing more to buy!
- Product dimensions 505 x 173 x 265 mm

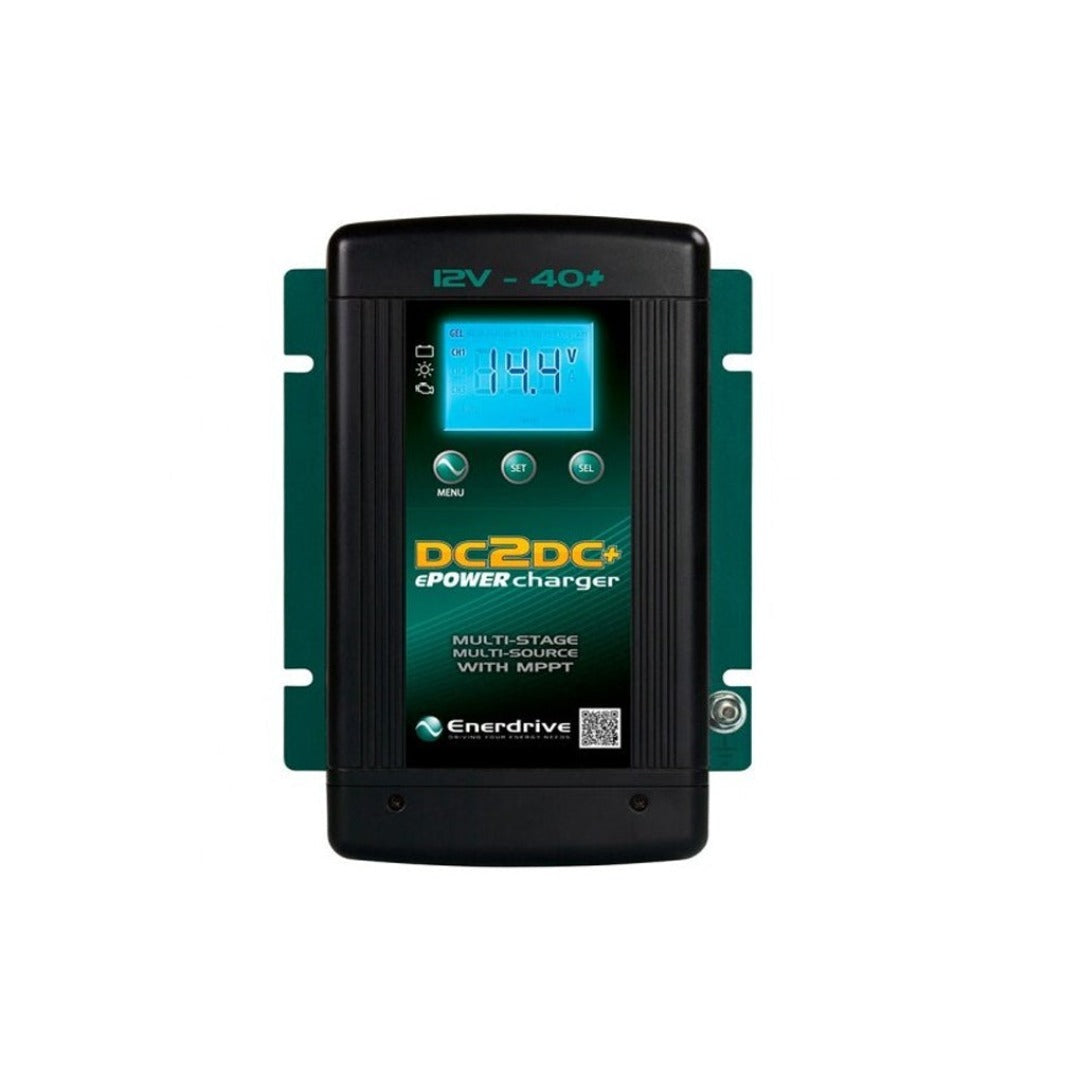

Enerdrive ePOWER 12V 40A DC to DC Battery Charger
The Enerdrive ePOWER DC2DC Battery Charger is a fully automatic multistage, multi input battery charger with the ability to charge from either an alternator linked to a battery; or via solar power with the in built Maximum Power Point Tracking (MPPT) Solar Controller.
- Independent DC Inputs
- DC M6 screw terminals
- A dedicated (MPPT) solar regulator
- The same battery algorithms as included in our AC mains ePOWER battery charger
- 40A output up to 40+°C with thermo-controlled fan cooling
- Fully programmable LCD display
- Temperature sensor

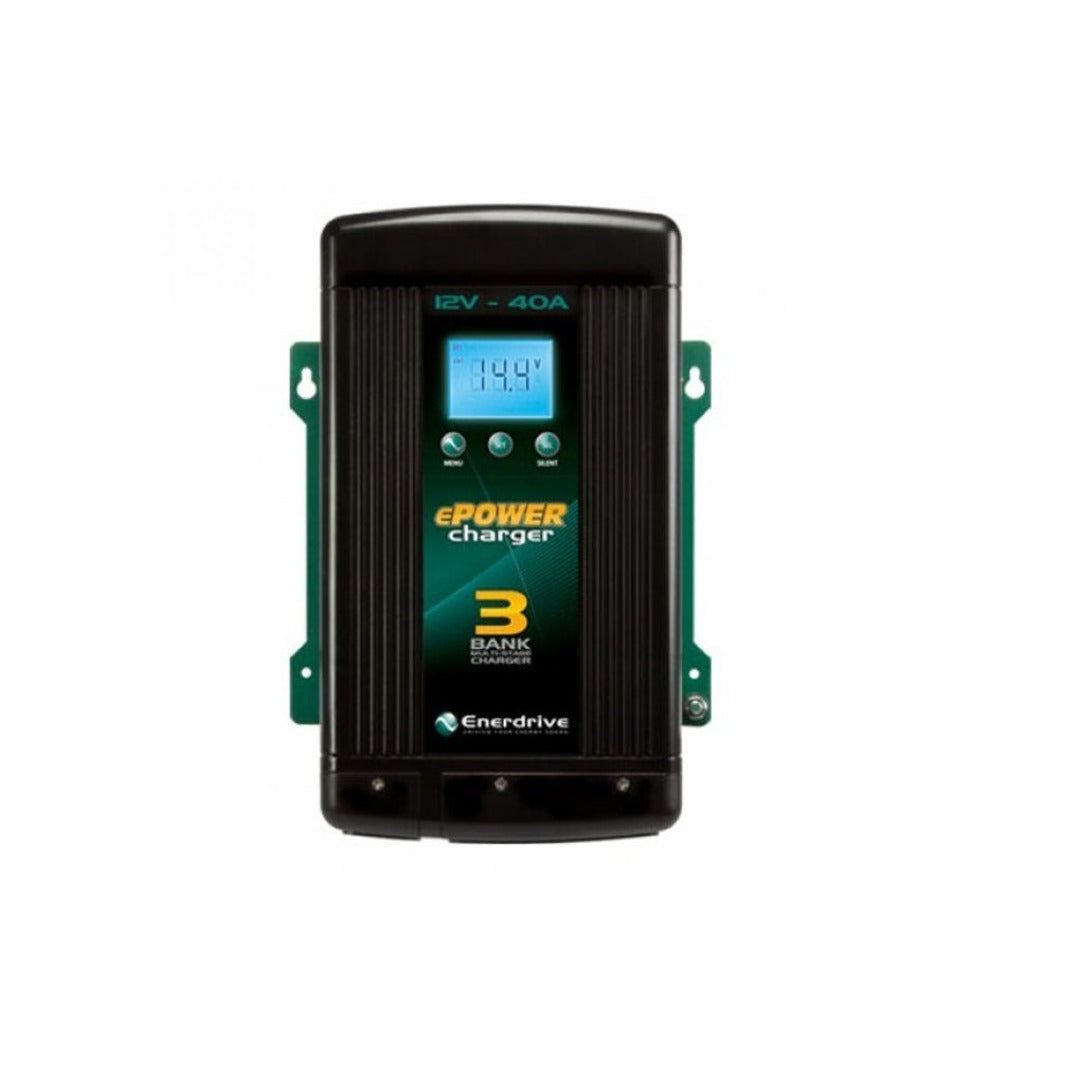

Enerdrive ePOWER 40A Battery Charger
The Enerdrive ePOWER 40A Battery Charger is a fully automatic, “set and forget” charger.
- Fully automatic multistage battery charger with the ability to charge 3 separate battery banks
- Isolated charging design where battery bank one is separate from battery bank two and three
- Battery bank 1 can be programmed with a different charge algorithm over banks 2 and 3
- Current Control
- Smart Charging
- Operates on both 110V / 60Hz and 240V / 50Hz
- LED Display
- Silent Mode
- Battery temperature sensor included with 3 meter cable
- 5 Year Warranty

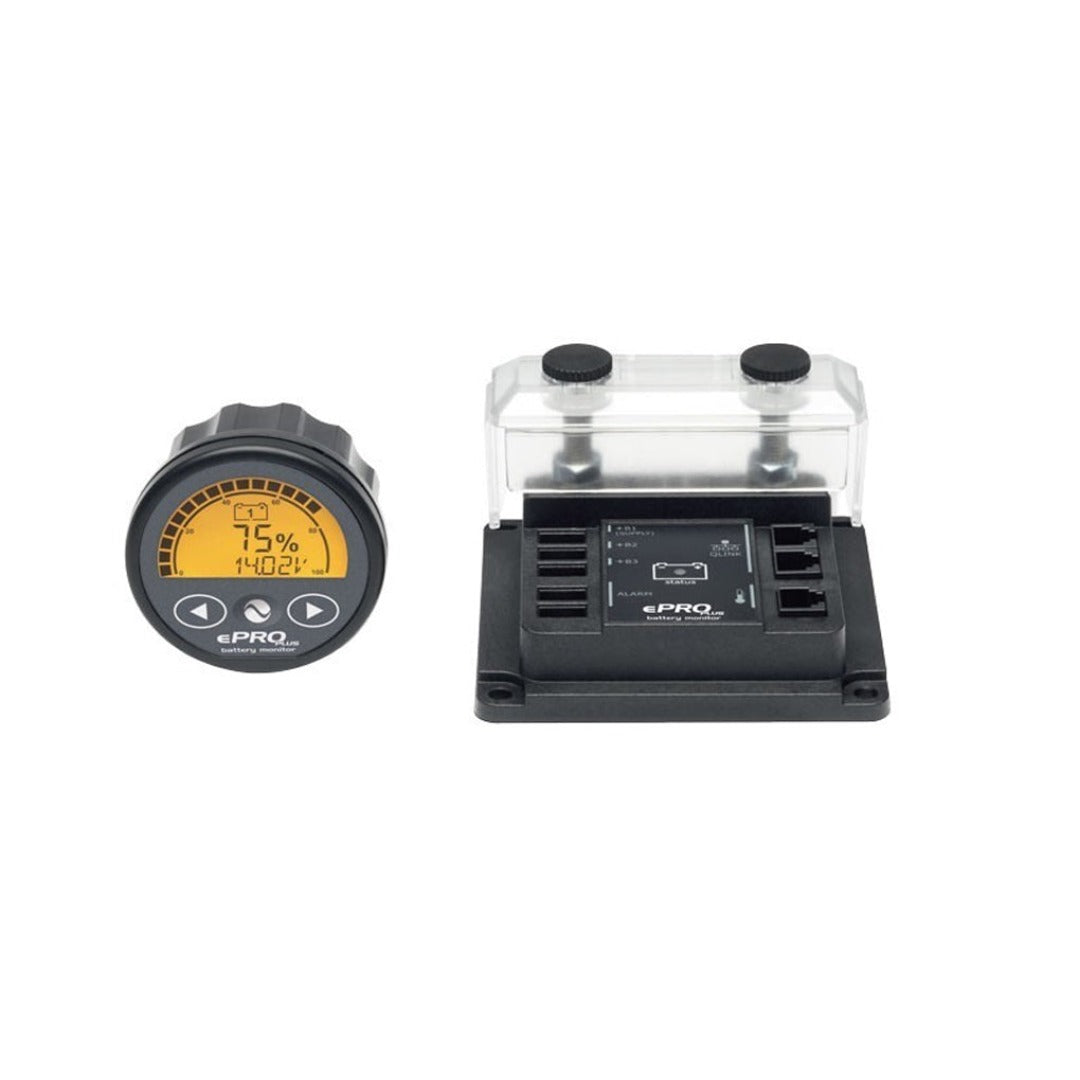

Enerdrive ePRO PLUS Battery Monitor
- Complete battery status information at a glance
- Supports up to three battery banks (12V, 24V and 48V)
- ‘Plug and Play’ installation
- Perfect integration with Enerdrive DC Modular products

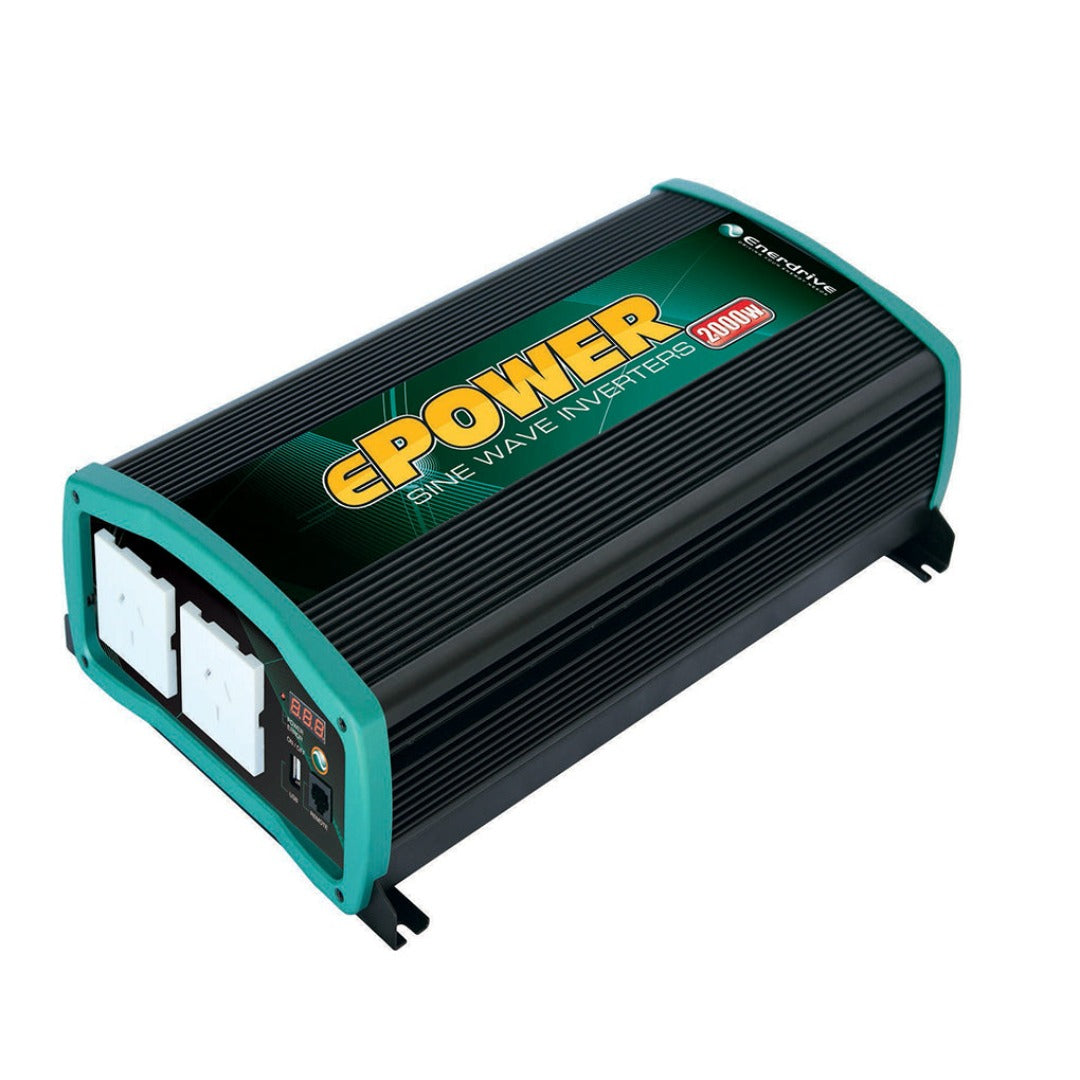

Enerdrive ePOWER 2000W 12V Pure Sine Wave Inverter with RCD & AC Transfer Switch
The ePOWER 2000W Inverter incorporates a 16A AC Transfer Switch which allows for seamless AC power transfer between Mains/Generator and Inverter.
- Seamless 16A AC Internal Transfer Switch
- AC RCD/Safety Switch with test button
- Removable LED Remote Control Display Panel
- Regulated Pure Sine Wave Output
- Silent Operation
- Compact Size for Easy Installation
- USB Port for charging USB devices
- PS6 Mode
- AC Transfer Cable
- 5 Year warranty
- ePOWER Enerdrive Inverters with AC Transfer Switch now include the new PS6 mode
Enerdrive 180W Mono Crystalline Fixed Solar Panel (x4)
- Suited to 12v installations (or 24v by series connections of panels)
- A fly lead cable is provided for easy connection of the 10 & 20w panels
- The larger panels have MC4 compatible solar cable connectors included
Package Included
- Enerdrive ePOWER B-TEC 200Ah Lithium Battery EPL-200BT-12V-G2
- Enerdrive ePOWER 12V 40A DC to DC Battery Charger EN3DC40+
- Enerdrive ePOWER 12V 40A Battery Charger EN31240
- Enerdrive ePRO PLUS Battery Monitor EN55050
- Enerdrive ePOWER 2000W 12V Pure Sine Wave Inverter with RCD & AC Transfer Switch EN1120S-X
- Enerdrive 180W Mono Crystalline Fixed Solar Panel (x4) SP-EN180W
SPECIFICATIONS
| Amp Hours | 200.0 Ah |
| Battery Voltage | 12V |
|
Charger Mode Output Voltage
|
13.8V - 15.5V (DC Battery Charger) |
| 14.2 – 15.5 V (AC Battery Charger) | |
|
Float
|
13.50 - 13.80V (Battery) |
| 13.0V - 13.8V (DC Battery Charger) | |
| 13.4 – 13.8 V (AC Battery Charger) | |
|
Equalize
|
15.5V (DC Battery Charger) |
| 16.0 V (AC Battery Charger) | |
|
Charging Control
|
Four stages (Bulk/Absorption/Float/Maintenance) |
| Two stages (Bulk/Absorption) | |
| Constant Power Supply (Program setting) | |
| Priority Battery Bank Charging (AC Battery Charger) | |
|
DC Output
|
Single (DC Battery Charger) |
|
Three (1 fully independent, 2 common with diode isolation) (AC Battery Charger)
|
|
| Selectable Battery Type |
Gel, AGM, Flooded, Lithium, Program (DC and AC Battery Charger)
|
| Standby Current | < 2 mA (AC Battery Charger) |
| Cell Type | Monocrystalline - 72 Cells each (Solar Panels) |
| AC Input Voltage | 90 to 265 VAC (AC Battery Charger) |
| AC Input Operating Range |
207-265 Vac (3.8 A Max)90 – 125 Vac (7.7 A Max) (AC Battery Charger)
|
| AC Input Frequency Range | 47 – 63 Hz (AC Battery Charger) |
| Power Consumption | 700W (Full Load) (AC Battery Charger) |
| Power Factor Correction | Yes (AC Battery Charger) |
| Charger Efficiency | 95% (DC Battery Charger) | > 82% (AC Battery Charger) |
| Reverse Polarity | Yes, (with user replaceable fuse/s) (AC Battery Charger) |
| Over Charge | Yes, unit shutdown (AC Battery Charger) |
| Over Temperature Protection | Yes, unit de-rated and shutdown (AC Battery Charger) |
| Cooling |
Forced air ventilation (thermo controlled fan) (AC Battery Charger)
|
| Output Short Circuit | Yes, (with user replaceable fuse/s) (AC Battery Charger) |
|
Temperature Setting
|
Low/ Normal/ High (Battery Temperature Sensor Standard) (DC Battery Charger)
|
|
Hot, Normal, Cold (no sensor connected) (AC Battery Charger)
|
|
| Battery Temperature Sensor Port |
RJ12 (standard battery temp. sensor supplied) (AC Battery Charger)
|
| LCD Display |
Charging status, Battery Voltage, Output Current & Fault Codes (AC Battery Charger)
|
| AC Input Connection |
IEC with Supplied 1.2M Power Lead (AC Battery Charger)
|
| DC Output Connection |
Heavy Duty Terminal (3 banks) – Pan Heads 6mm Thread (AC Battery Charger)
|
| DC Output Ground |
Single Heavy Duty Common Ground Stud (AC Battery Charger)
|
| Storage Temperature Range | -40° to 70° C (AC Battery Charger) |
| Operating Temperature Range | -20° to 60° C (AC Battery Charger) |
| Humidity |
5-95%, relative humidity non-condensing (AC Battery Charger)
|
| Ingress Protection |
IP32 (Basic drip proof in vertical orientation) (AC Battery Charger)
|
| Nominal Voltage | 12.8V (Battery) |
| Nominal Capacity | 200Ah (Battery) |
| Total Charge Current | Max 150A @ 25°C for 30mins (Battery) |
| Regulatory Compliance |
Complies with AS/NZS 60335.2.29 Including Australian deviations
|
| Cycle Life |
(DOD - 80% under controlled conditions) ≥ 2000 Cycles (Battery)
|
| Battery Charge Temperature | 0 ̴ 45°C (Battery) |
| Normal Charge Voltage | CV/CC* 14.40 ̴ 14.60V (Battery) |
| Standby (Float) Voltage | 13.50 ̴ 13.80V (Battery) |
| Maximum Charge Current | 150A @ 25°C for 30mins (Battery) |
| Recommended Charge Current for Maximum Life | ≤ 60A (Battery) |
| Battery Discharge Temperature | -20 ̴ 60°C (Battery) |
| Battery Output Voltage Range | 11.00 ̴ 14.60V (Battery) |
| Maximum Discharge Current | 200A @ 25°C ± 5°C for 30mins (Battery) |
| Pulse Discharge Current | 450A for 1.0s (Battery) |
| Discharge Cut-off Voltage | ≤ 11.20V (Battery) |
| Input Voltage | 12.5 VDC (Inverter) |
| AC Output | 2000W, 8.7A (Inverter) |
| No Load Battery Draw | < 1.2 ADC (Inverter) |
| Under Voltage Alarm | 11.0/12.1 VDC (Inverter) |
| Under Voltage Alarm Recovery | 11.3/12.3 VDC |
| Under Voltage Shutdown | 10.5/11.8 VDC (Inverter) |
| Under Voltage Shutdown Recovery | 12.0/12.6 VDC (Inverter) |
| Over Voltage Shutdown | 15.5VDC (Inverter) |
| USB Socket Output | 5V, 750 mA (Inverter) |
| Operating Altitude | Up to 3000 meters above sea level (Inverter) |
| Wattage | 180W each (720W total) (Solar Panels) |
|
Dimensions (L x W x H)
|
Battery: 505 x 172.5 x 265 mm |
| DC to DC Charger: 242 x 172 x 74 mm | |
| AC Charger: 295 x 206 x 90 mm | |
| Solar Panels (1 Panel): 1482 x 680 x 35 mm | |
| Inverter: 435 x 230 x 110 mm | |
| Weight | 82.2 Kg |
NOTE:
* Availability Subject to Individual Items.
** This bundle is made to order. Please give us at least 3 weeks to prepare.
*** Where allowed by applicable law and regulations, batteries must be shipped via Ground shipments only.
