Description
FEATURES
Our polyethylene (PE) dielectric cables such as 8058 and 8213 have recently (July 2006) been certified to be free of lead and other banned substances under the European RoHS regulations.

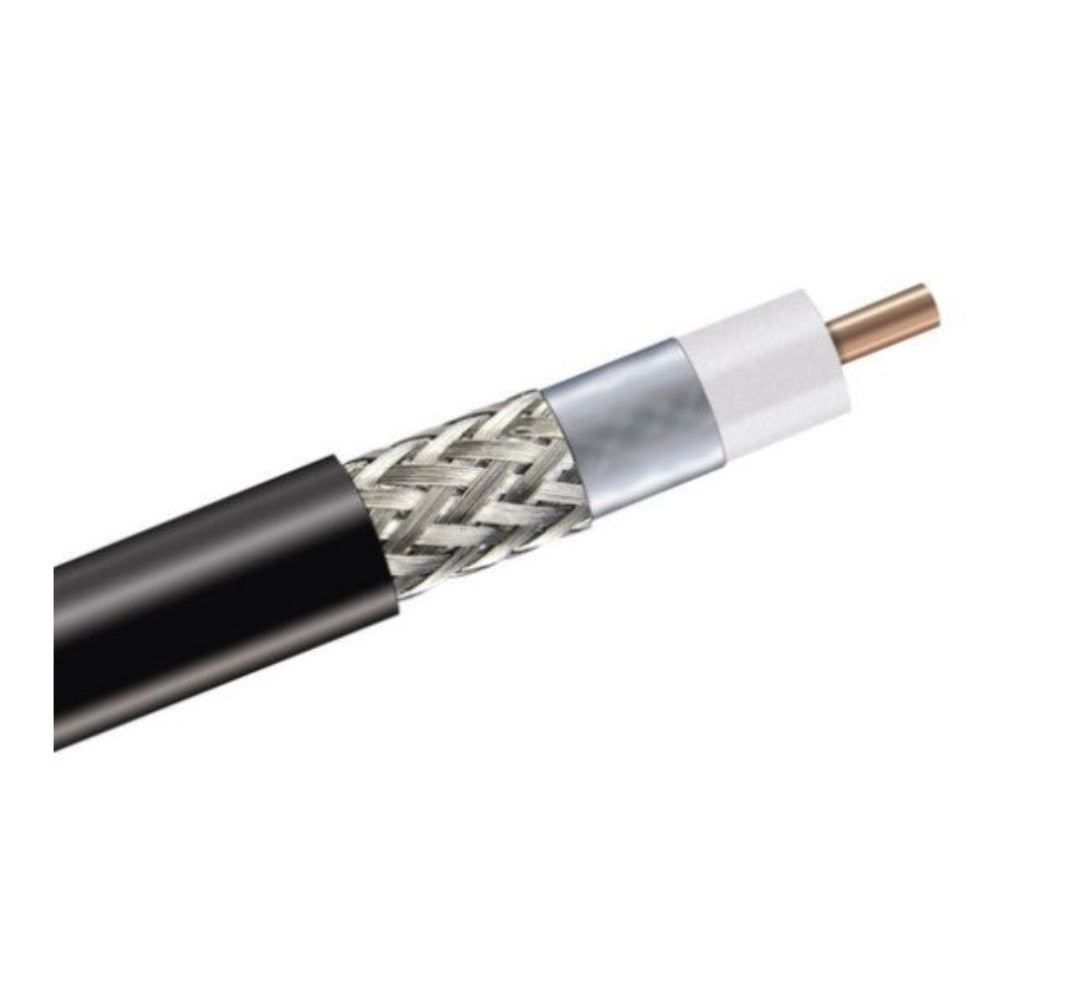

Product Series: CNT-400
Product Type: Braided coaxial cable
Construction Materials
Jacket Colour: Black
Jacket Material: Non-halogenated PE
Braid Material: Tinned copper
Shield Tape Material: Aluminum
Dielectric Material: Foam PE
Inner Conductor Material: Copper-clad aluminum wire
SPECIFICATIONS
| Cable Type | CNT-400 |
| Brand | Commscope |
| Component Type | Cable |
| Diameter Over Dielectric | 7.24 mm | 0.285 in |
| Diameter Over Jacket | 10.29 mm | 0.405 in |
| Diameter Over Tape | 7.391 mm | 0.291 in |
| Inner Conductor OD | 2.74 mm | 0.108 in |
| Outer Conductor OD | 8.08 mm | 0.318 in |
| Nominal Size | 0.400 in |
