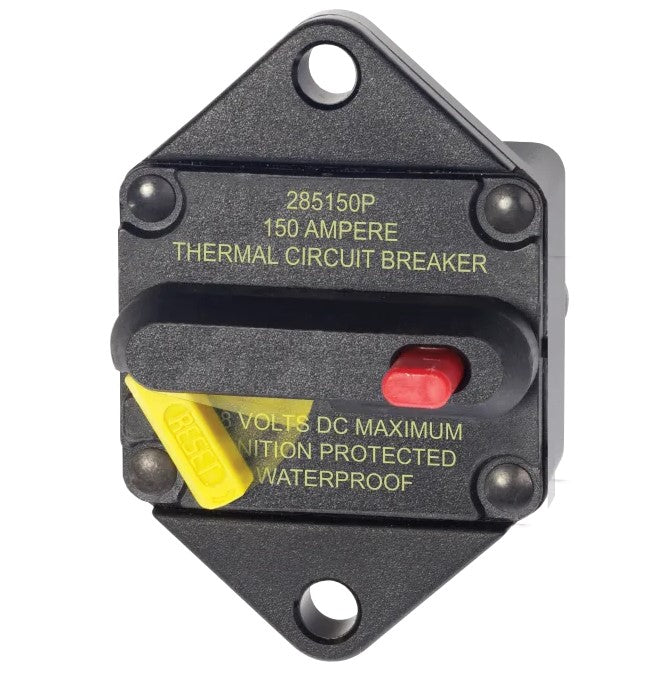

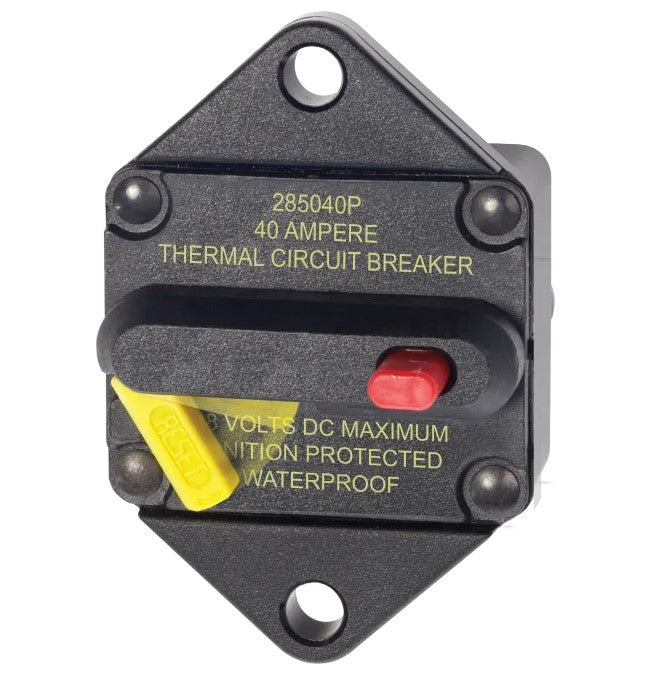

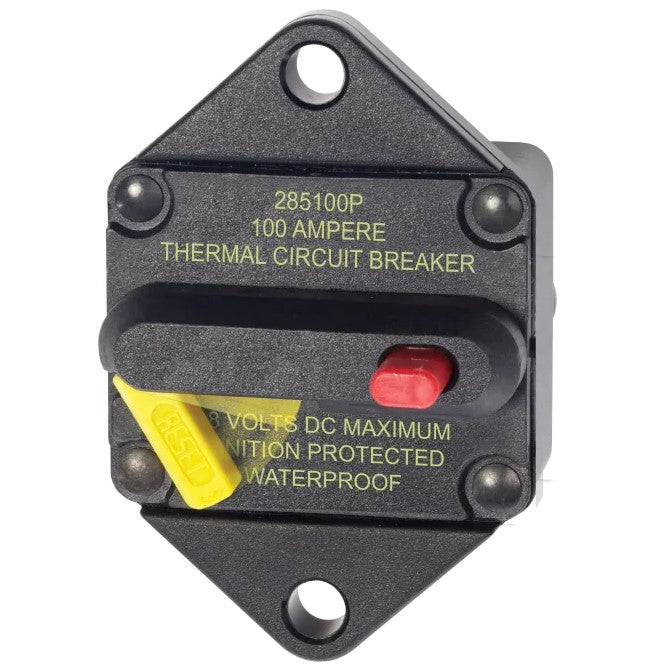

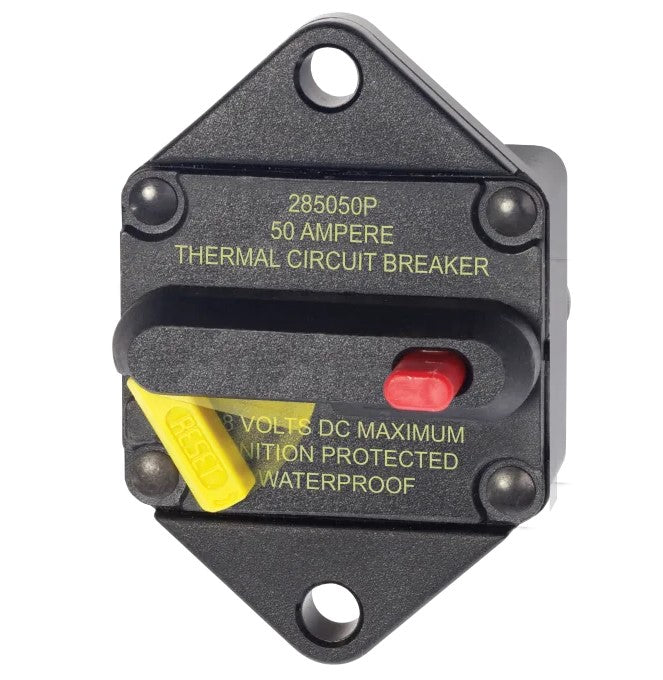

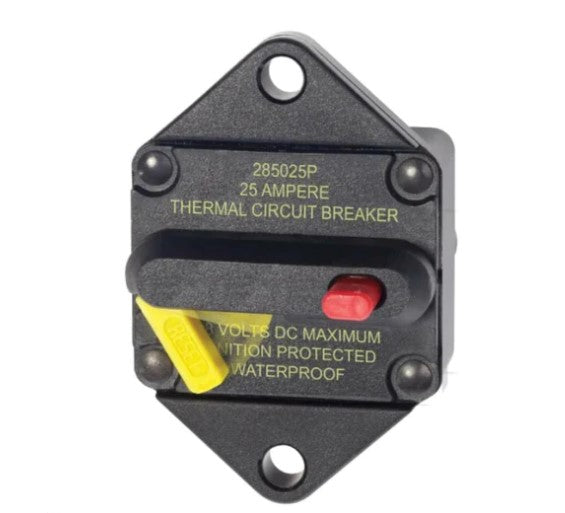

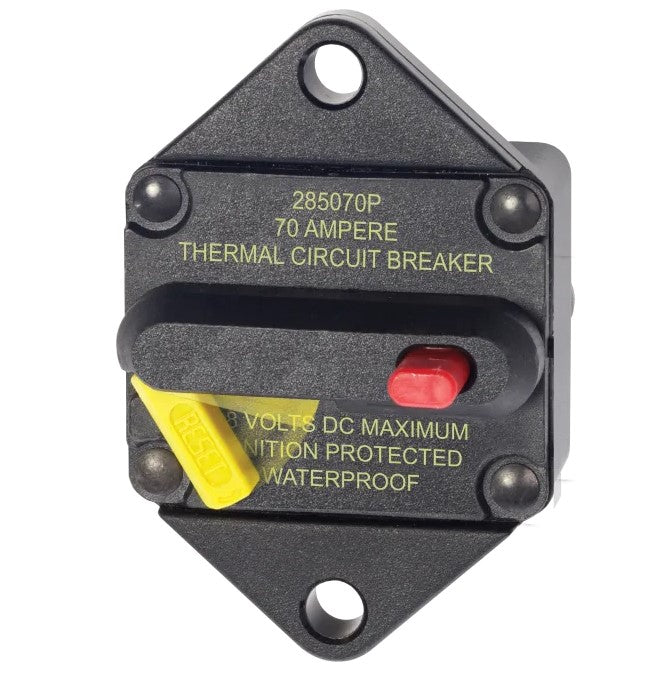

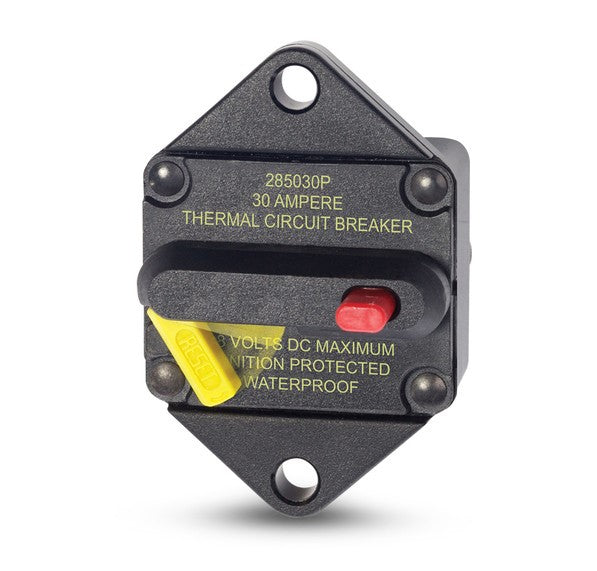

Blue Sea Systems Thermal Circuit Breakers 285 Series Panel Mount

Sale price$113.00


Blue Sea Thermal Circuit Breakers 285 Series Panel Mount


Provides circuit protection for 25 to 150 Amp loads when switching and circuit protection are both required

  • The visible yellow reset lever shows an open condition
  • Trip-free design cannot be held closed after trip
  • Drop in replacement for 185 Series Circuit Breakers
  • 3,000A AIC for medium battery banks
  • Meets SAE J1171 external ignition protection requirements, ‡AIC ratings achieved using SAE J1625
  • IP67 protected against immersion up to 1 meter for 30 minutes


Interrupting Capacity 3,000A @ 48V DC
Voltage Max. Operating 48V DC
Temperature Min. Operating -40°C
Temperature Max. Operating 85°C
Type Thermal
Class Thermal Reset – Trip Free
Terminal Stud M6 (accepts 1/4" Ring Terminal)
Terminal Stud Torque 50 in-lb (7.9 Nm)
Mounting Hole Accepts 1/4" screw (M6)
