Description
FEATURES

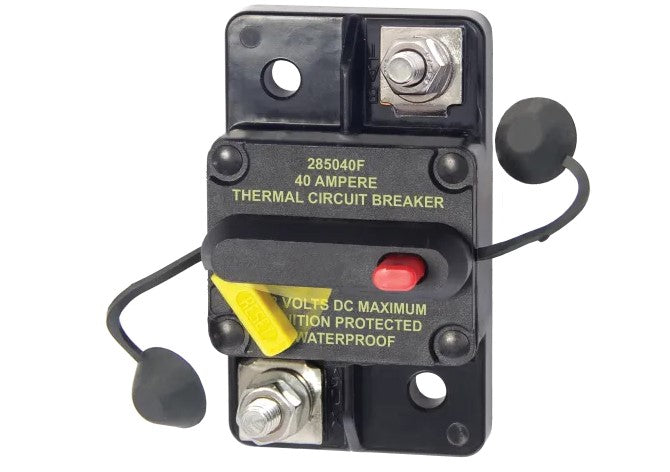

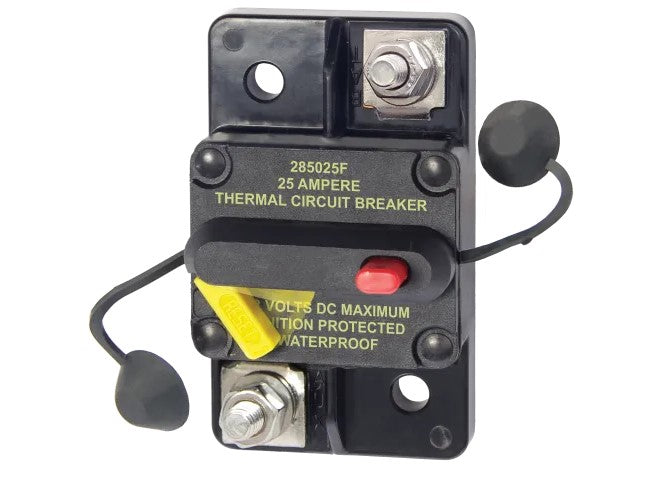

Blue Sea Surface Mount Circuit Breakers - 285 Series BS-7180B
Surface Mount Circuit Breakers - 285 Series
Provides circuit protection for 25 to 150 Amp loads when switching and circuit protection are both required
- The visible yellow reset lever shows an open condition
- Trip-free design cannot be held closed after trip
- Drop in replacement for 185 Series Circuit Breakers
- 3,000A AIC for medium battery banks
- Meets SAE J1171 external ignition protection requirements, †AIC ratings achieved using SAE J1625
- IP67 protected against immersion up to 1 meter for 30 minutes
SPECIFICATIONS
| INTERRUPTING CAPACITY | 3,000A @ 48V DC |
|---|---|
| VOLTAGE MAX. OPERATING | 48V DC |
| TEMPERATURE MIN. OPERATING | -40°C |
| TEMPERATURE MAX. OPERATING | 85°C |
| TYPE | Thermal |
| CLASS | Thermal Reset – Trip Free |
| TERMINAL STUD | M6 (accepts 1/4" Ring Terminal) |
| TERMINAL STUD TORQUE | 50 in-lb (7.9 Nm) |
| MOUNTING HOLE | Accepts 1/4" screw (M6) |
