Description

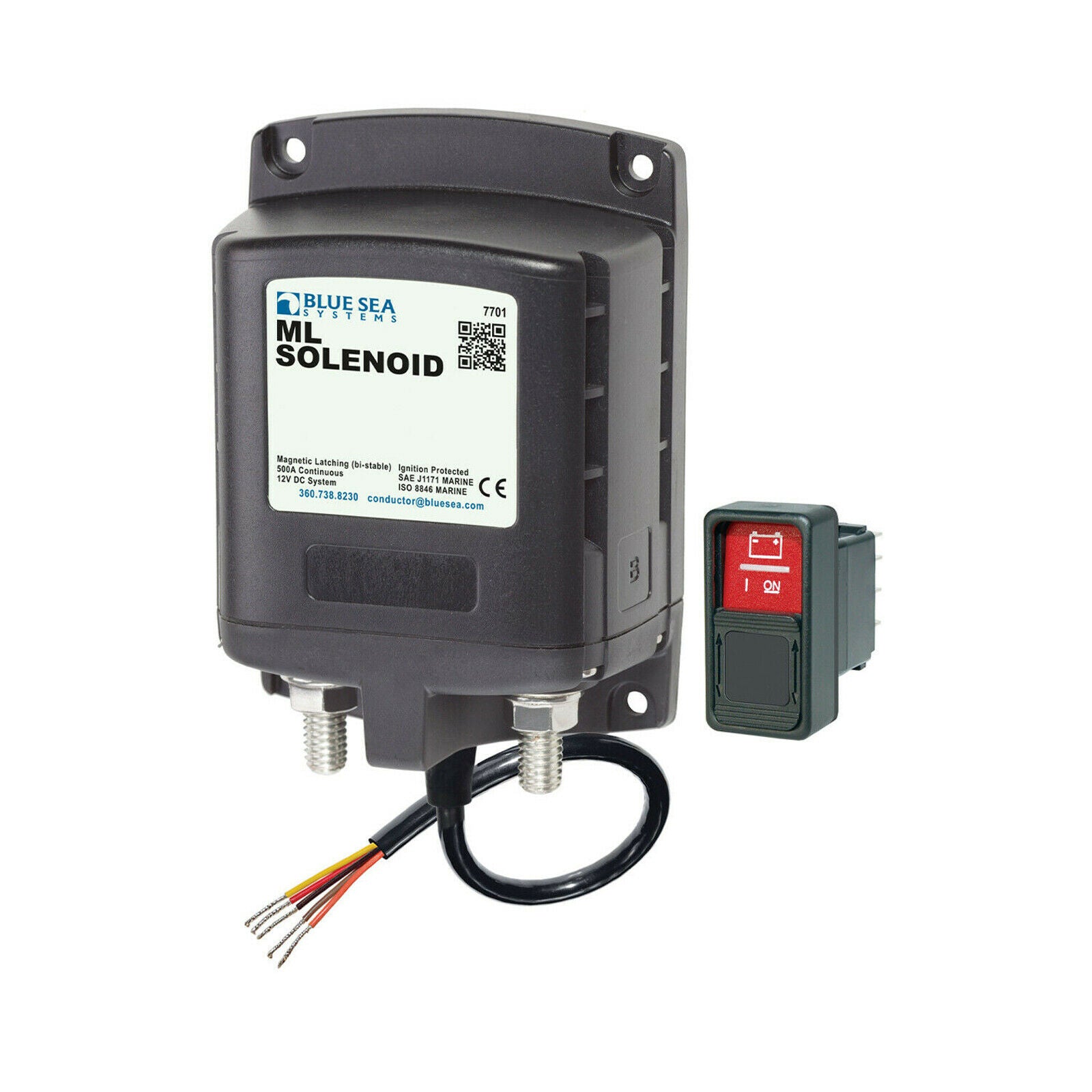

500 Amp magnetic latching (bi-stable) solenoid provides switching under load where manual control is not required.
FEATURES
- 500 Ampere continuous rating for engine, inverter, house loads, and emergency battery combine
- Magnetic latching draws no current in “ON” or “OFF” state, only draws current when changing state of switch
- Silver alloy contacts provides high reliability for switching live loads
- 3/8″ -16 tin-plated copper studs for maximum conductivity and corrosion resistance
- 7/8″ (22mm) stud length accepts multiple cable terminals
- Label recesses for circuit identification
- ML-Series Remote Control Contura Switch in not included. PN 2145 available as a separate item.
SPECIFICATIONS
| Control Circuit Connection | Tinned Wire |
| Nominal Voltage | 12V DC |
| Manual Control | No |
| Coil Function | Bi-Stable |
| Mounting | #10 |
| Amperage Operating Current continuous | 0A |
| Terminal Stud Torque | 140 in-lb (15.82 Nm) |
| Continuous Rating | 500A |
| Intermittent Rating | 700A (5 min) |
| Cranking Rating 30 sec | 1450A DC |
| Cable Size to Meet Ratings | 2x (4/0) |
| Terminal Ring Diameter Clearance | 1.18in (29.97 mm) |
| Terminal Stud Length | 0.875in (22.23 mm) |
| Terminal Stud Size | 3/8" - 16 (M10) |
| Weight | 2.03lb (0.92 kg) |
