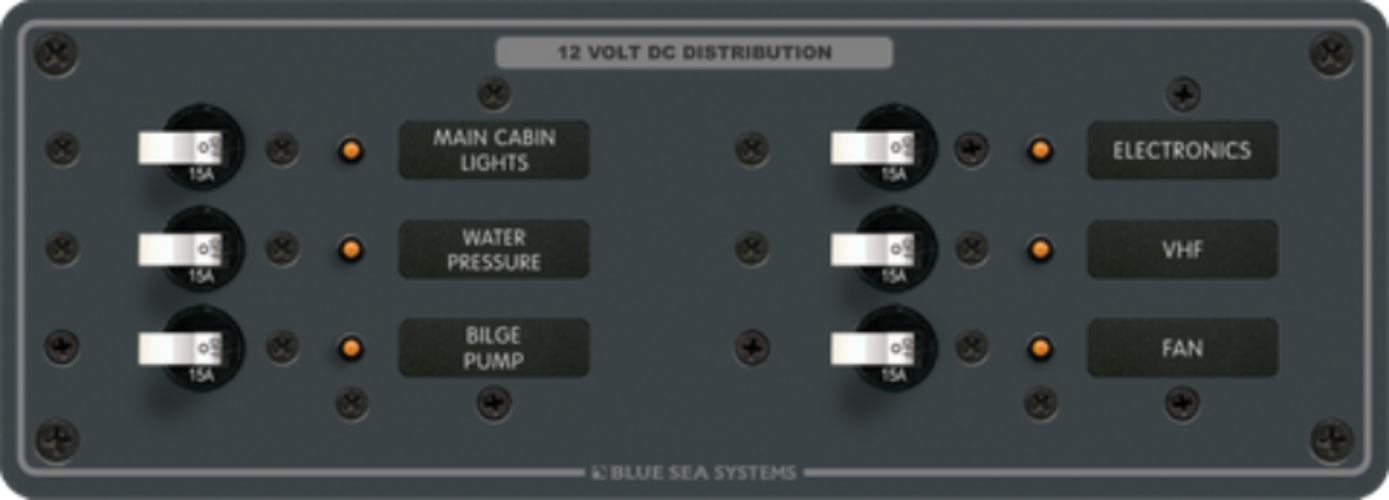

Description
FEATURES
- All positive, negative and grounding buses installed, fully pre-wired
- Panels with meters include toggle switch for mounting up to 3 battery banks
- All panels with analog meters are owner upgradable to 24 Volts with 8240 or 8243 (18-32V DC meters)
- All circuit label positions are backlit on standard panels - No kit required
- "ON" indicating LEDs installed in all circuit positions
SPECIFICATIONS
| Positions | 6 |
| Nominal Voltage | 12V DC 24V DC |
| Maximum Amperage | 100A per bus |
| Height | 3.75in (95.25 mm) |
| Width | 10.50in (266.7 mm) |
| Depth | 2.50in (63.5 mm) |
| Weight | 2.25lb (1.02 kg) |
