Blue Sea Systems C-Series Raised Rocker Circuit Breaker 30 to 100 Amps 2 to 3 Poles

Blue Sea Systems
AMP RATING: 30A
POLE: 2
Price:
$159.00

Description

FEATURES

C-Series Raised Rocker Circuit Breaker - Double Pole.

  • Used for 120/240 Volt AC circuit protection
  • A double pole can be used as an AC Main circuit breaker to switch hot and neutral or two hots in 120/240 Volt AC Branch applications
  • Double and triple pole circuit breakers will trip all poles if any one pole trips
  • AC Circuit breakers only - TUV certified, CSA certified, and UL 1077 recognized

SPECIFICATIONS

VOLTAGE NOMINAL OPERATING 120/240V AC
TEMPERATURE MIN. OPERATING -40°C
TEMPERATURE MAX. OPERATING 85°C
SWITCHING CYCLES 10,000 @ rated Amps & Volts
TYPE Magnetic Hydraulic – Trip free
TERMINAL STUD 1/4"-20 Tin-Plated Brass
TERMINAL STUD TORQUE 35 in-lb
MOUNTING SCREW #6-32 Stainless Steel (included)
MOUNTING SCREW TORQUE 6-8 in-lb



PART NUMBER AMPS POLE

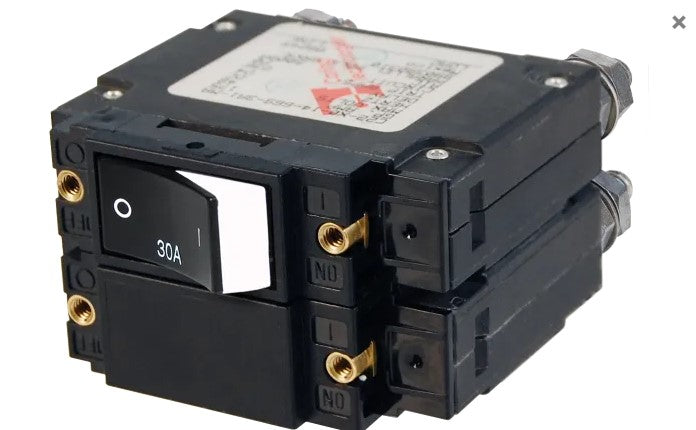

BS-7580B 30A 2

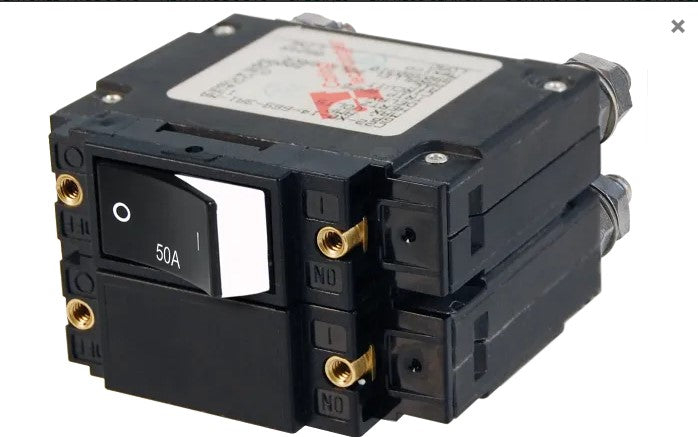

BS-7581B 50A 2

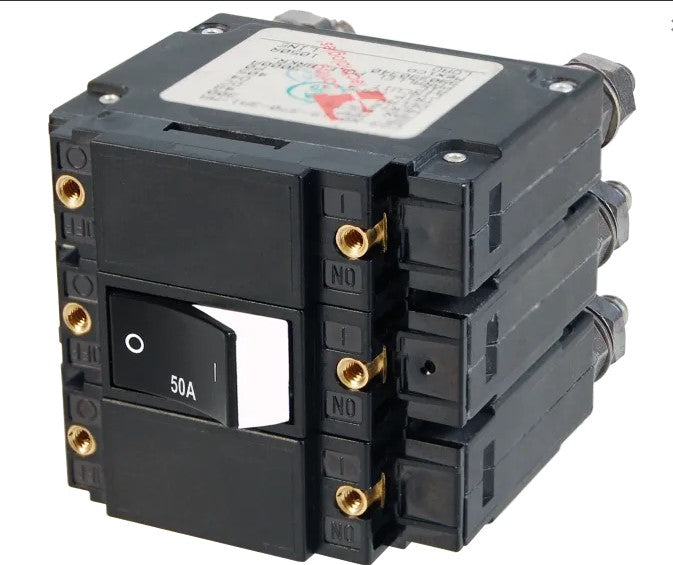

BS-7585B 50A 3

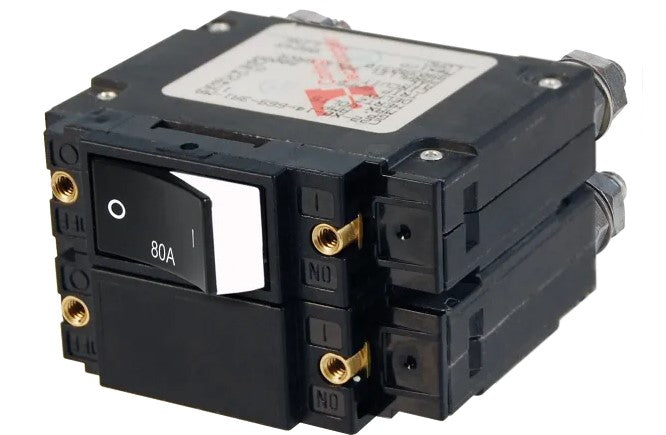

BS-7583B 80A 2

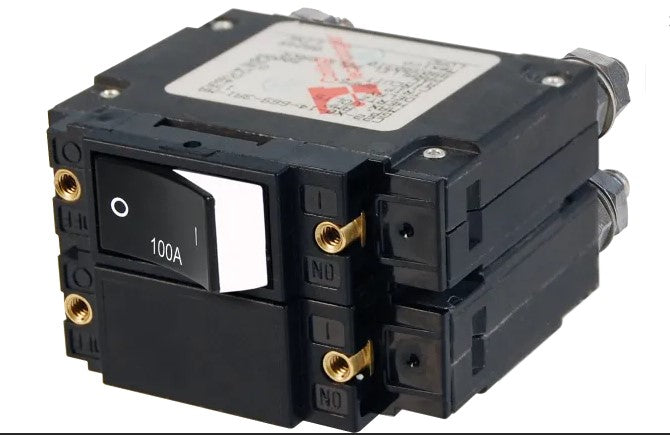

BS-7584B 100A 2

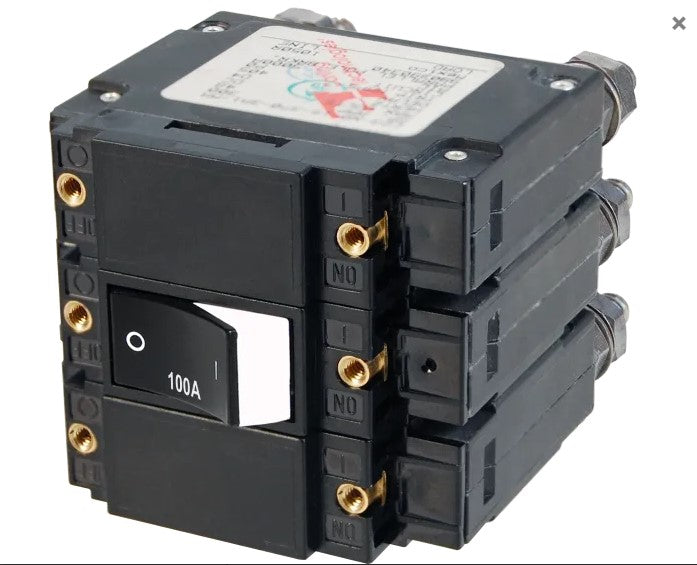

BS-7588B 100A 3
