Blue Sea Systems
AMP RATING: 5A
POLE: 1
Price:
$112.00

Description

FEATURES

C-Series Flat Rocker Actuator Circuit Breaker - Single Pole. Combines switching and circuit protection into a single device

  • White actuator indicates OFF position
  • The large frame provides stud termination for 5-300 Amp loads
  • The flat rocker actuator is flush in the ON position, reducing the risk of accidental switching
  • Provides overcurrent protection for inverters, bow thrusters, and windlasses
  • Trip Free - cannot be held closed after trip
  • Single-pole circuit breakers only - CE marked, meet SAE J1171, UL 1500 and ISO 8846 external ignition protection requirements, CSA certified, and UL 1077 recognized

SPECIFICATIONS

VOLTAGE NOMINAL OPERATING 120/240V AC
TEMPERATURE MIN. OPERATING -40°C
TEMPERATURE MAX. OPERATING 85°C
SWITCHING CYCLES 10,000 @ rated Amps & Volts
TYPE Magnetic Hydraulic – Trip free
TERMINAL STUD 1/4"-20 Tin-Plated Brass
TERMINAL STUD TORQUE 35 in-lb
MOUNTING SCREW #6-32 Stainless Steel (included)
MOUNTING SCREW TORQUE 6-8 in-lb



PART NUMBER AMPS POLE

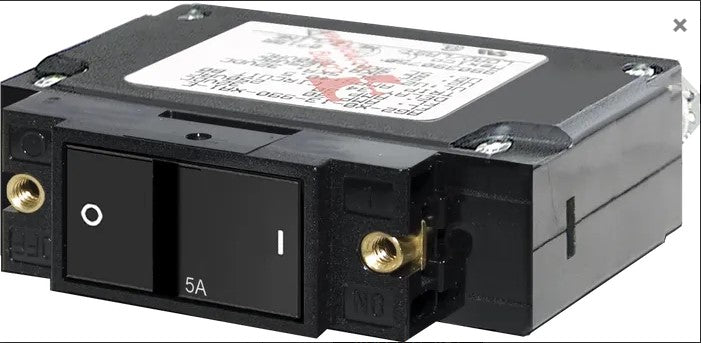

BS-7540B 5A 1

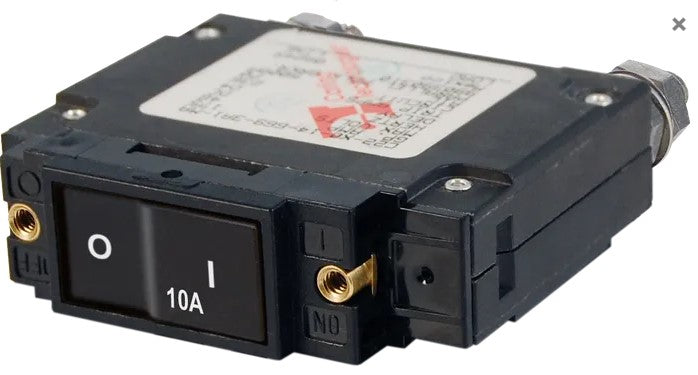

BS-7541B 10A 1

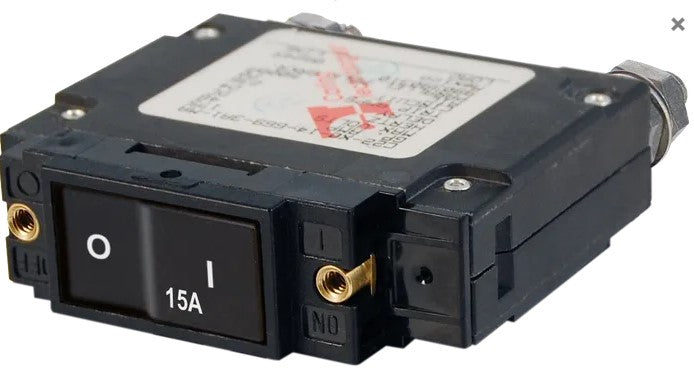

BS-7542B 15A 1
BS-7543B 20A 1
BS-7545B 30A 1
BS-7560B 30A 2

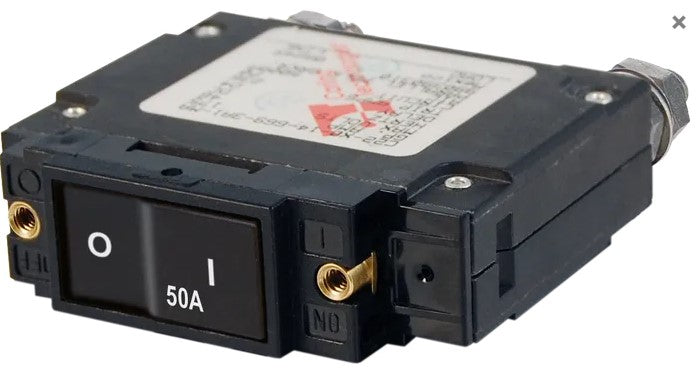

BS-7546B 50A 1

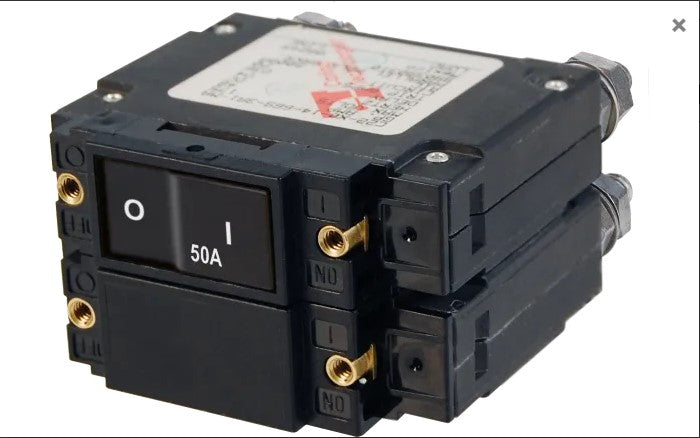

BS-7561B 50A 2

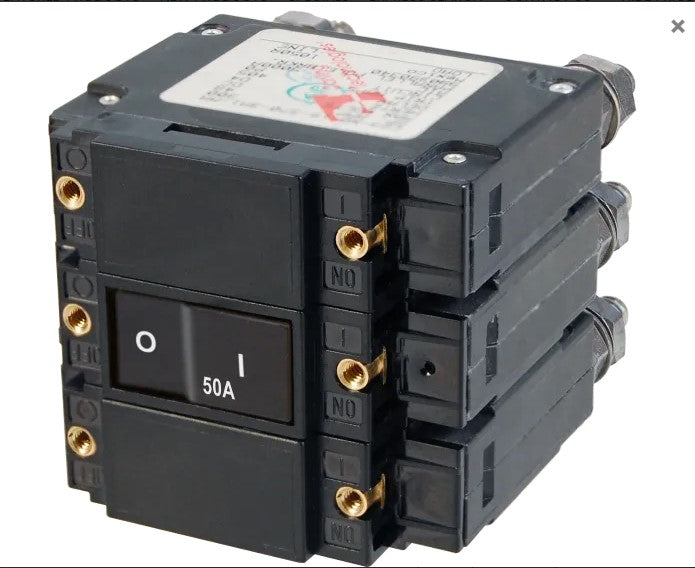

BS-7565B 50A 3

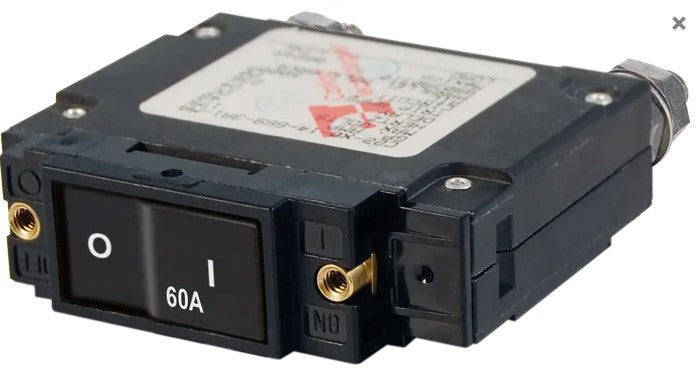

BS-7547B 60A 1

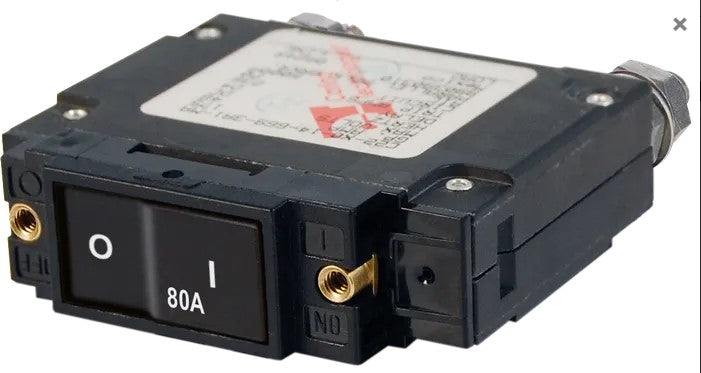

BS-7548B 80A 1
BS-7563B 80A 2
BS-7549B 100A 1

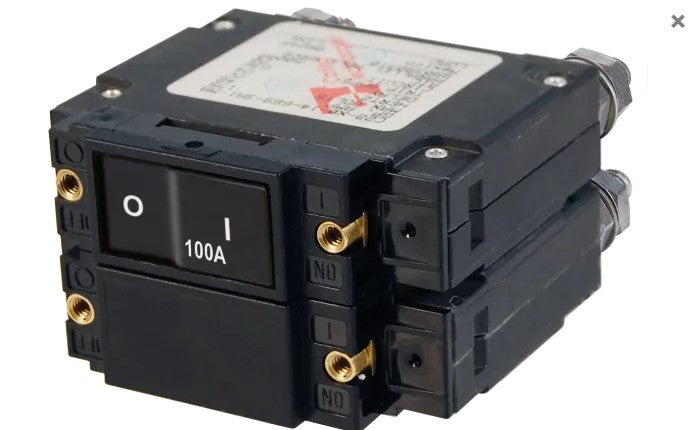

BS-7564B 100A 2
BS-7568B 100A 3

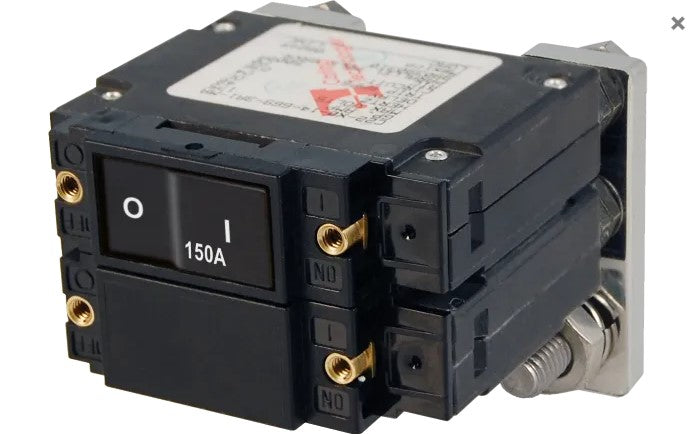

BS-7475B 150A 2

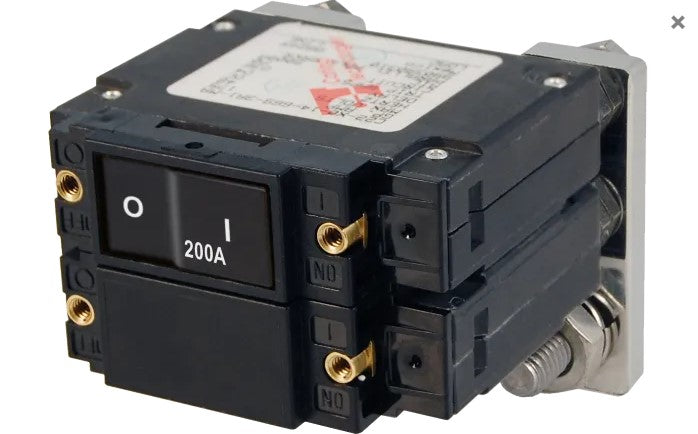

BS-7476B 200A 2

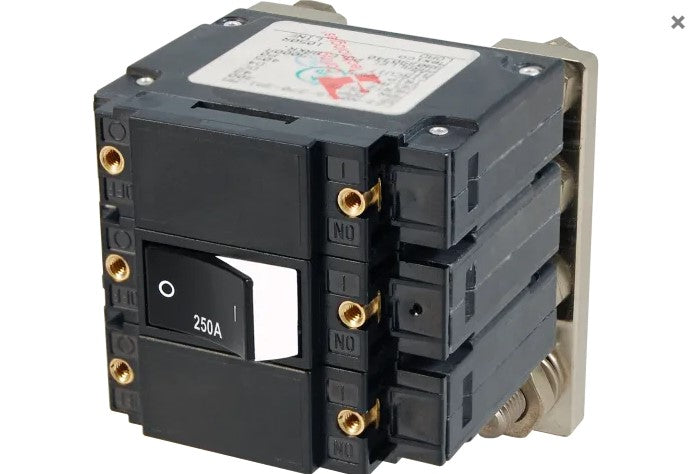

BS-7477B 250A 3

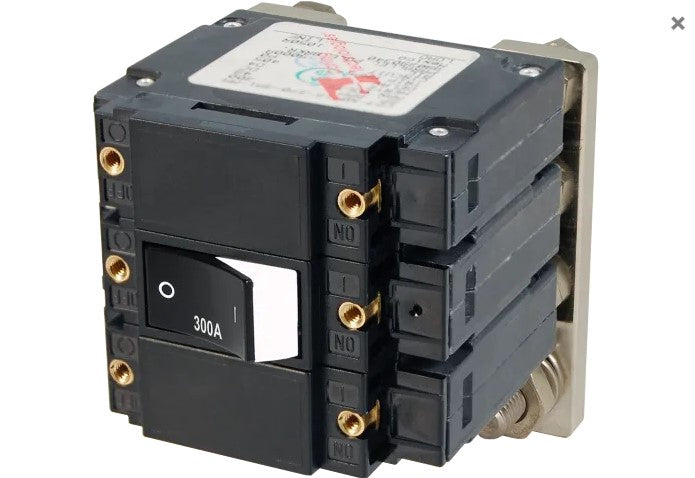

BS-7554B 300A 3
