Description
FEATURES
AC Features
- Frequently used for 120/240 Volt AC circuit protection
- A double pole can be used as an AC Main circuit breaker to switch hot and neutral or two hots in 120/240 Volt AC Branch applications
- Double and triple pole circuit breakers will trip all poles if any one pole trips
SPECIFICATIONS
| VOLTAGE NOMINAL OPERATING | 120/240V AC |
|---|---|
| TEMPERATURE MIN. OPERATING | -40°C |
| TEMPERATURE MAX. OPERATING | 85°C |
| SWITCHING CYCLES | 10,000 @ rated Amps & Volts |
| TYPE | Magnetic Hydraulic – Trip free |
| TERMINAL STUD | 1/4"-20 Tin-Plated Brass |
| TERMINAL STUD TORQUE | 35 in-lb max. |
| MOUNTING SCREW | #6-32 Stainless Steel (included) |
| MOUNTING NUT TORQUE | 6-8 in-lb |
| PART NUMBER | AMPS | POLE | COLOR |
| BS-7350B | 5A | 1 | WHITE |
| BS-7351B | 10A | 1 | WHITE |
| BS-7352B | 15A | 1 | WHITE |
| BS-7353B | 20A | 1 | WHITE |
| BS-7354B | 25A | 1 | WHITE |
| BS-7355B | 30A | 1 | WHITE |

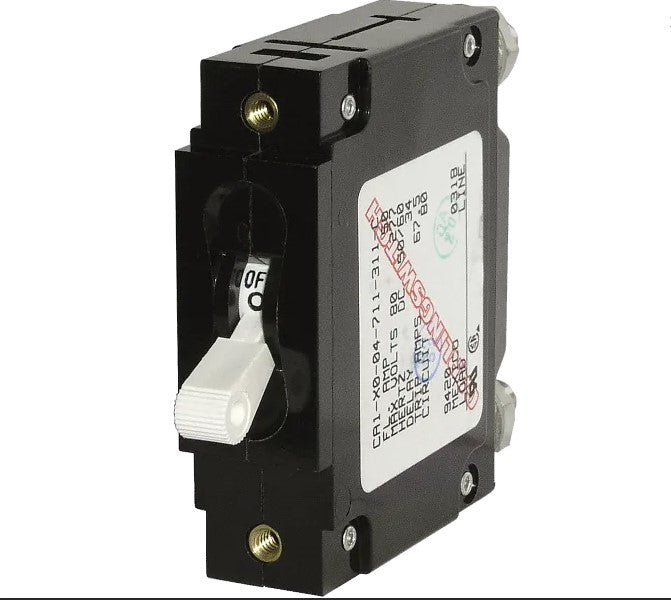

| BS-7244B | 50A | 1 | WHITE |

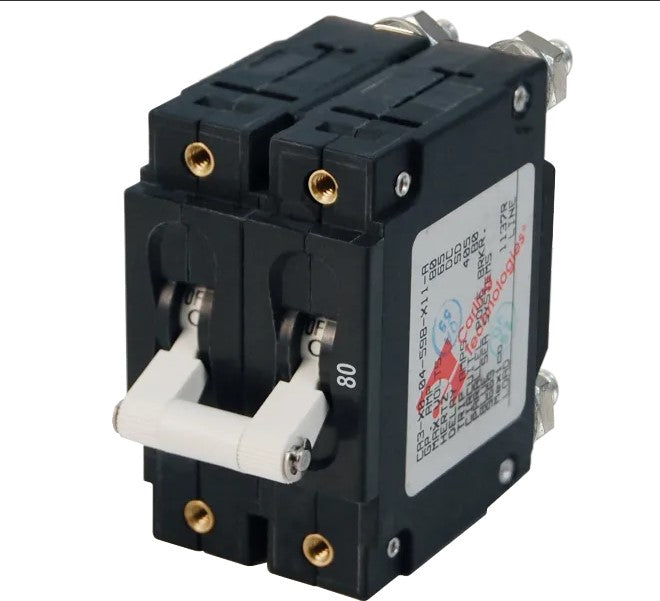

| BS-7251B | 50A | 2 | WHITE |

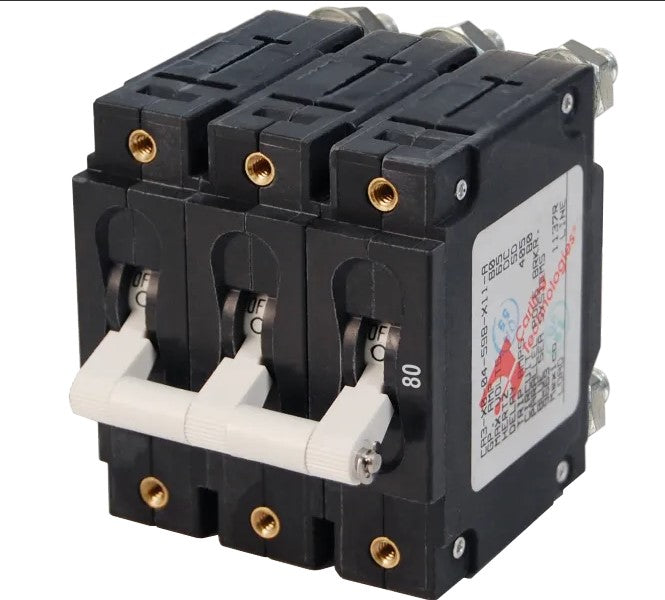

| BS-7287B | 50A | 3 | WHITE |
| BS-7246B | 60A | 1 | WHITE |
| BS-7254B | 60A | 2 | WHITE |
| BS-7288B | 60A | 3 | WHITE |
| BS-7248B | 80A | 1 | WHITE |
| BS-7256B | 80A | 2 | WHITE |
| BS-7289B | 80A | 3 | WHITE |
| BS-7250B | 100A | 1 | WHITE |
| BS-7258B | 100A | 2 | WHITE |
| BS-7290B | 100A | 3 | WHITE |
| BS-7267B | 150A | 2 | WHITE |
| BS-7268B | 175A | 2 | WHITE |
| BS-7269B | 200A | 2 | WHITE |
| BS-7270B | 250A | 3 | WHITE |
| BS-7271B | 300A | 3 | WHITE |
