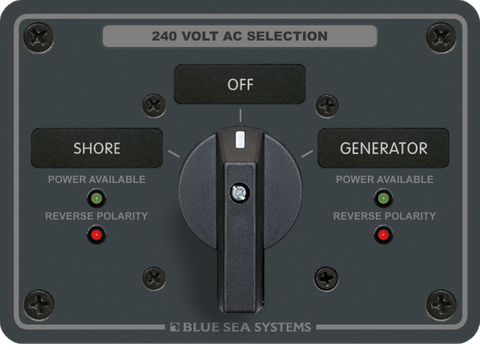

Blue Sea Systems AC Rotary Panel 230VAC 65A OFF+ 2 (BS-8363B)
Blue Sea Systems AC Rotary Panel 230VAC 65A OFF+ 2 (BS-8363B)
Blue Sea Systems AC Rotary Panel 230VAC 65A OFF+ 2 (BS-8363B)
Blue Sea Systems AC Rotary Panel 230VAC 65A OFF+ 2 (BS-8363B)
Blue Sea Systems AC Rotary Panel 230VAC 65A OFF+ 2 (BS-8363B)
Roll over image to zoom in Click on image to zoom
Blue Sea Systems AC Rotary Panel 230VAC 65A OFF+ 2 (BS-8363B)Blue Sea Systems AC Rotary Panel 230VAC 65A OFF+ 2 (BS-8363B)Blue Sea Systems AC Rotary Panel 230VAC 65A OFF+ 2 (BS-8363B)Blue Sea Systems AC Rotary Panel 230VAC 65A OFF+ 2 (BS-8363B)Blue Sea Systems AC Rotary Panel 230VAC 65A OFF+ 2 (BS-8363B)

Blue Sea Systems AC Rotary Panel 230VAC 65A OFF+ 2 (BS-8363B)

Blue Sea Systems
Price:
$895.00

Description

FEATURES

  • Switches 2 - 120/240 Volt AC sources
  • Two-part polyurethane slate grey finish
  • Heavy 1/8" aluminum 5052 alloy
  • Red reverse polarity LED indicators
  • Green power available LED indicators
  • Compact solution when circuit protection is provided elsewhere
  • Allows connecting one of two or three different AC sources to one circuit

SPECIFICATIONS

Part # Positions Maximum Amperage Nominal Voltage Wire Size Range Width x Height Depth
BS-8359 2 + Off 30A 230V AC 14 – 10 AWG 133.3.5mm x 95.25mm 48.51mm
BS-8357 2 + Off 65A 230V AC 12 – 6 AWG 133.3.5mm x 95.25mm 61.21mm
BS-8358 3 + Off 30A 230V AC 14 – 10 AWG 133.3.5mm x 95.25mm 61.21mm
BS-8363 2 + Off 65A 240V AC 12 – 6 AWG 133.3.5mm x 95.25mm 92.71mm
BS-8386 2 + Off 30A 240V AC 14 – 10 AWG 133.3.5mm x 95.25mm 75.69mm
BS-8369 2 + Off 65A 240V AC 12 – 6 AWG 133.3.5mm x 95.25mm 114.30mm
BS-8361 3 + Off 65A 240V AC 12 – 6 AWG 133.3.5mm x 95.25mm

139.70mm
