Description
FEATURES

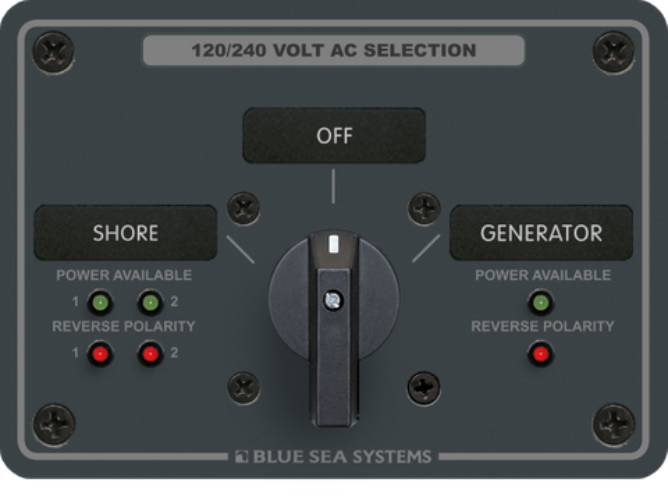

- Switches between 2 - 120 Volt AC shore power sources and 1 - 120/240 Volt AC source to 2 - 120V AC load groups
- Includes 9011 heavy duty industrial rated switch
- Two-part polyurethane slate grey finish Heavy 1/8" aluminum 5052 alloy
- Red reverse polarity LED indicators
- Green power available LED indicators
- Switches AC sources
- Compact solution when circuit protection is provided elsewhere
- Allows connecting one of two or three different AC sources to one circuit
- Includes heavy duty industrial-rated switch
- Red reverse polarity LED indicators
- Green power-available LED indicators
SPECIFICATIONS
| Part # | Positions | Maximum Amperage | Nominal Voltage | Wire Size Range | Width x Height | Depth |
|---|---|---|---|---|---|---|
| BS-8359 | 2 + Off | 30A | 230V AC | 14 – 10 AWG | 133.3.5mm x 95.25mm | 48.51mm |
| BS-8357 | 2 + Off | 65A | 230V AC | 12 – 6 AWG | 133.3.5mm x 95.25mm | 61.21mm |
| BS-8358 | 3 + Off | 30A | 230V AC | 14 – 10 AWG | 133.3.5mm x 95.25mm | 61.21mm |
| BS-8363 | 2 + Off | 65A | 240V AC | 12 – 6 AWG | 133.3.5mm x 95.25mm | 92.71mm |
| BS-8386 | 2 + Off | 30A | 240V AC | 14 – 10 AWG | 133.3.5mm x 95.25mm | 75.69mm |
| BS-8369 | 2 + Off | 65A | 240V AC | 12 – 6 AWG | 133.3.5mm x 95.25mm | 114.30mm |
| BS-8361 | 3 + Off | 65A | 240V AC | 12 – 6 AWG | 133.3.5mm x 95.25mm | 139.70mm |
