FEATURES
Panel Mount Circuit Breakers - 187 Series
Provides circuit protection for 25 to 200 Amp loads when switching and circuit protection are both required
- Self-trimming case eliminates the need for mounting panels or trimming bezels
- The visible yellow reset lever shows an open condition
- Trip-free design cannot be held closed after trip
- Large clearance around terminal studs accepts up to 1/0 AWG lugs
- Recessed mounting holes for a clean appearance
- Robust 5/16"-18 terminals provide high torque connections
- 5,000A AIC for large battery banks
- CE marked Meets SAE J1171 external ignition protection requirements
- IP66 protected against powerful water jets
SPECIFICATIONS
| INTERRUPTING CAPACITY | 5,000A @ 14V DC 3,000A @ 28V DC 1,500A @ 48V DC |
|---|---|
| VOLTAGE MAX. OPERATING | 48V DC |
| TEMPERATURE MIN. OPERATING | -40°C |
| TEMPERATURE MAX. OPERATING | 85°C |
| TYPE | Thermal |
| CLASS | Type III – Switchable/Manual Reset – Trip Free |
| TERMINAL STUD | 5/16"-18 |
| TERMINAL STUD TORQUE | 75 in-lb max. |
| MOUNTING HOLE | Accepts #10 (M5) Screw |
| PART NUMBER | AMPS |
|---|---|
| BS-7035B | 25A |

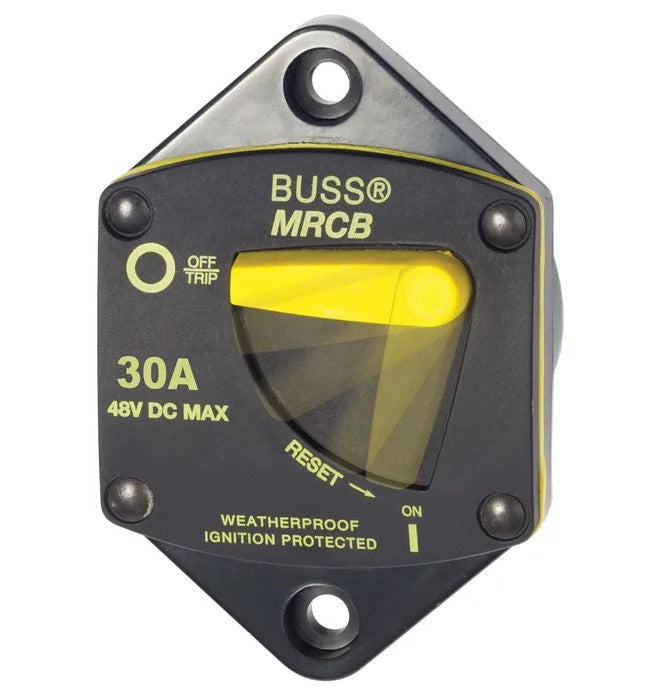

| BS-7036B | 30A |
| BS-7038B | 40A |
| BS-7039B | 50A |

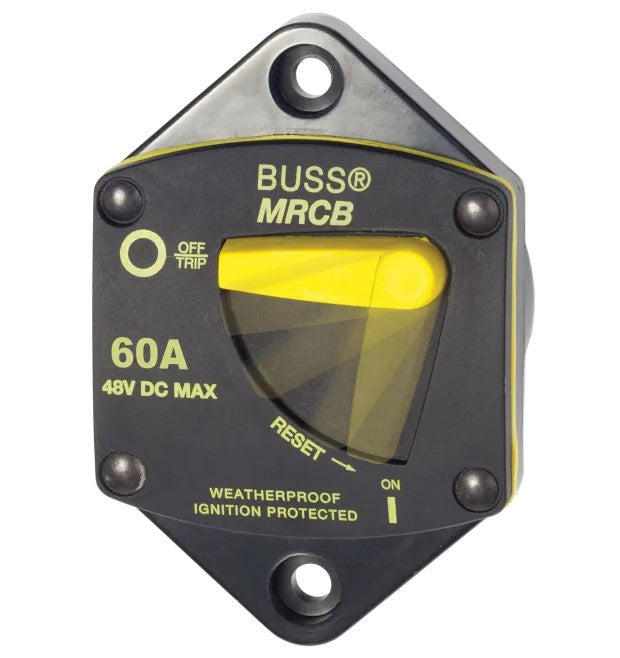

| BS-7040B | 60A |

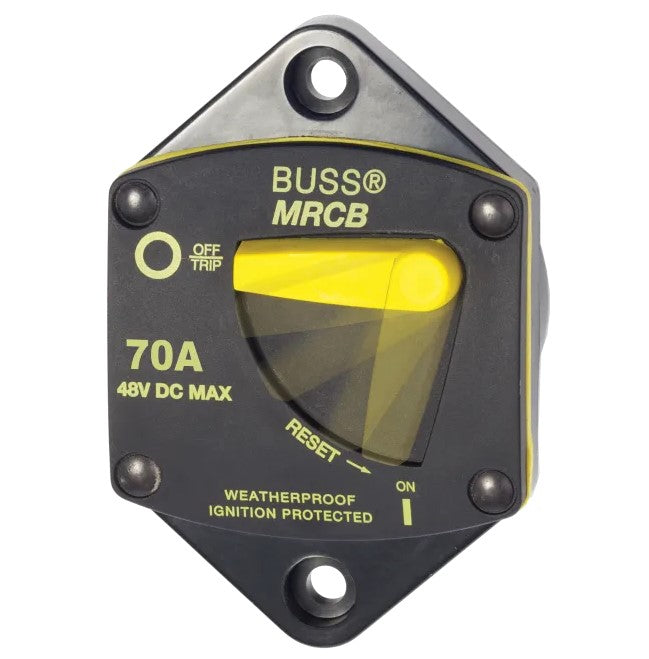

| BS-7041B | 70A |
| BS-7042B | 80A |
| BS-7043B | 90A |

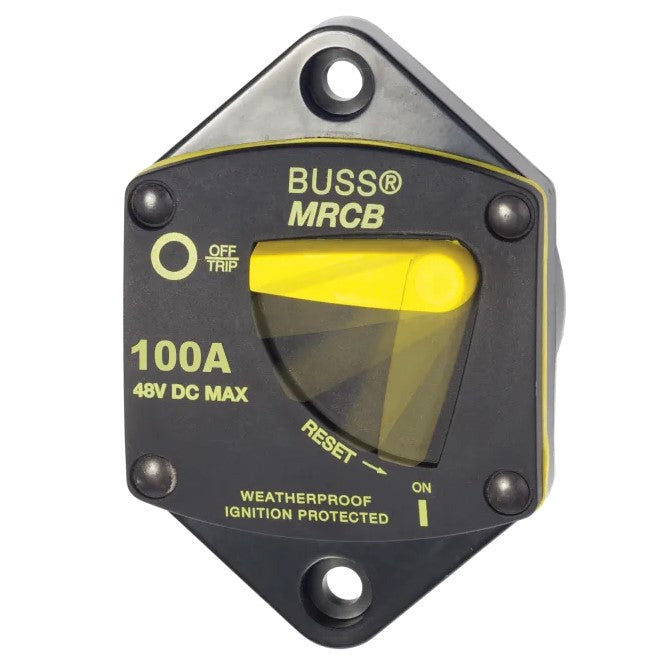

| BS-7044B | 100A |

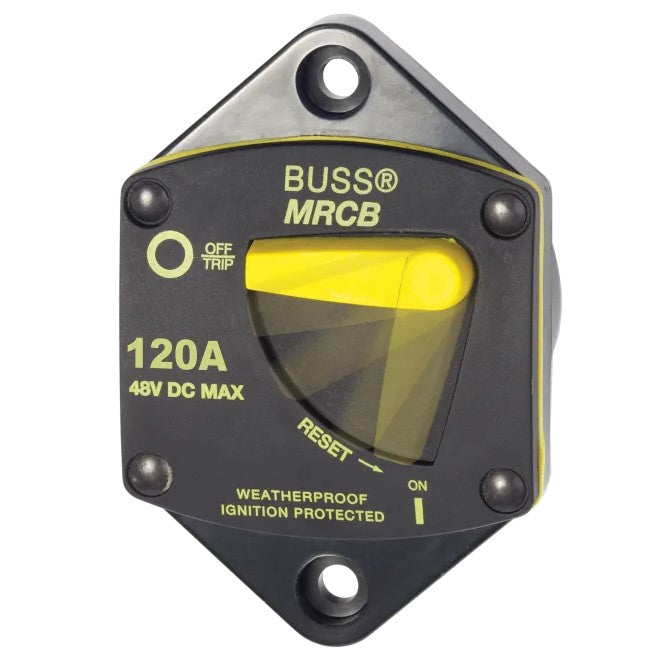

| BS-7046B | 120A |

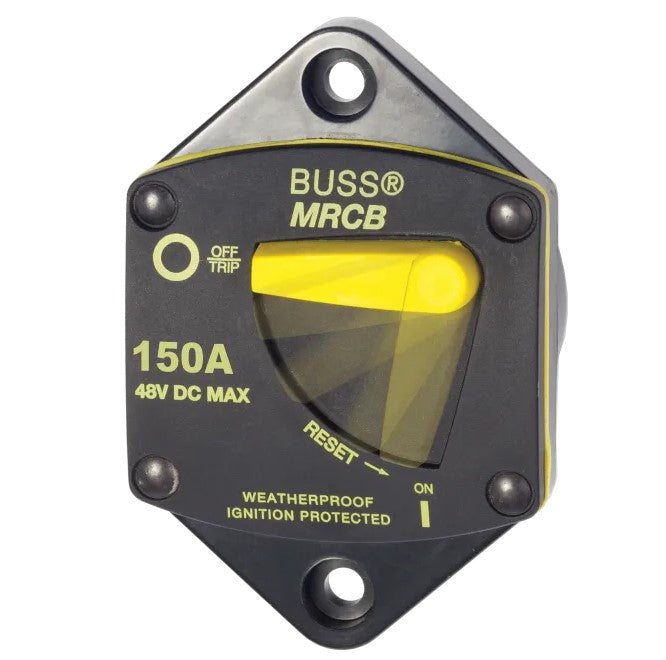

| BS-7048B | 150A |

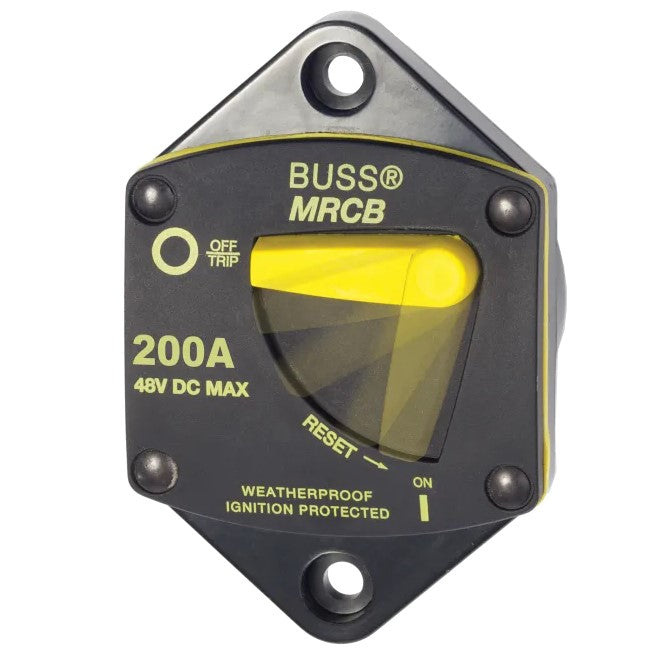

| BS-7049B | 200A |
