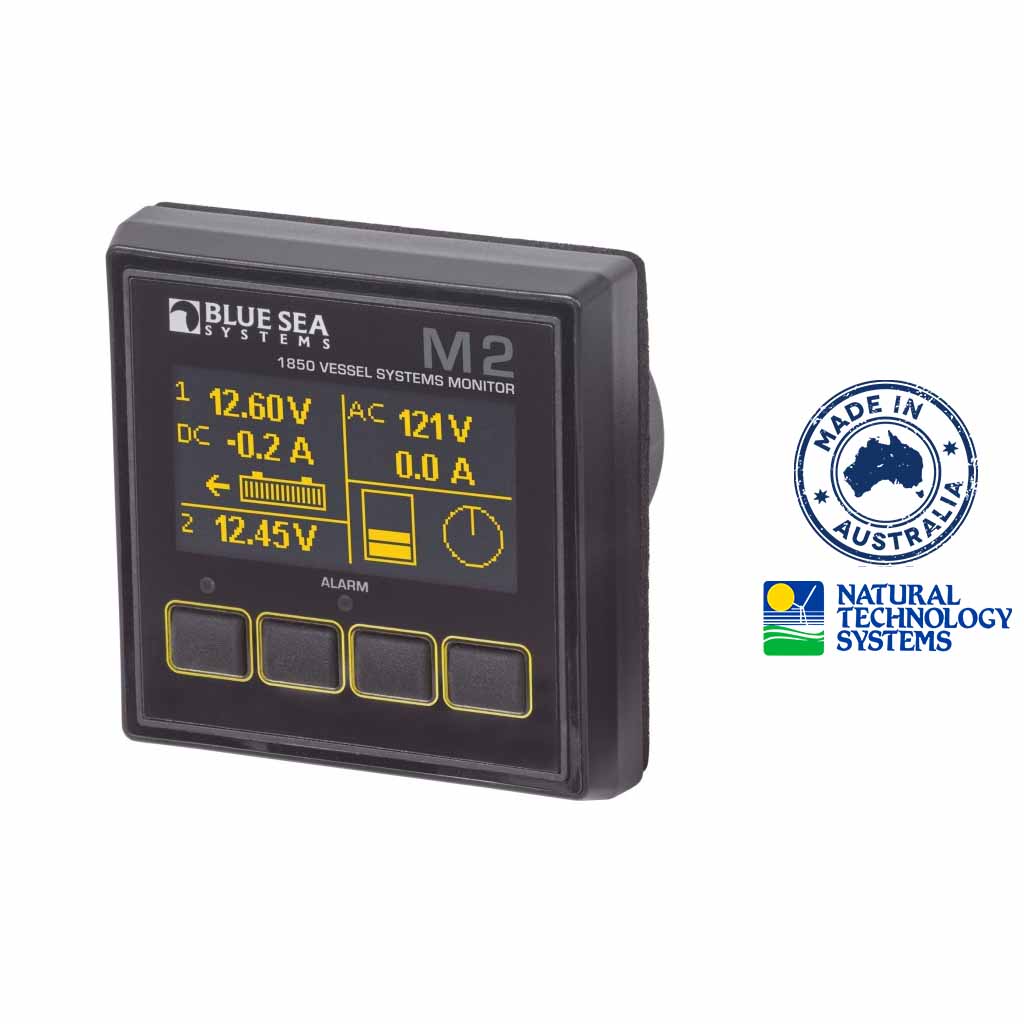

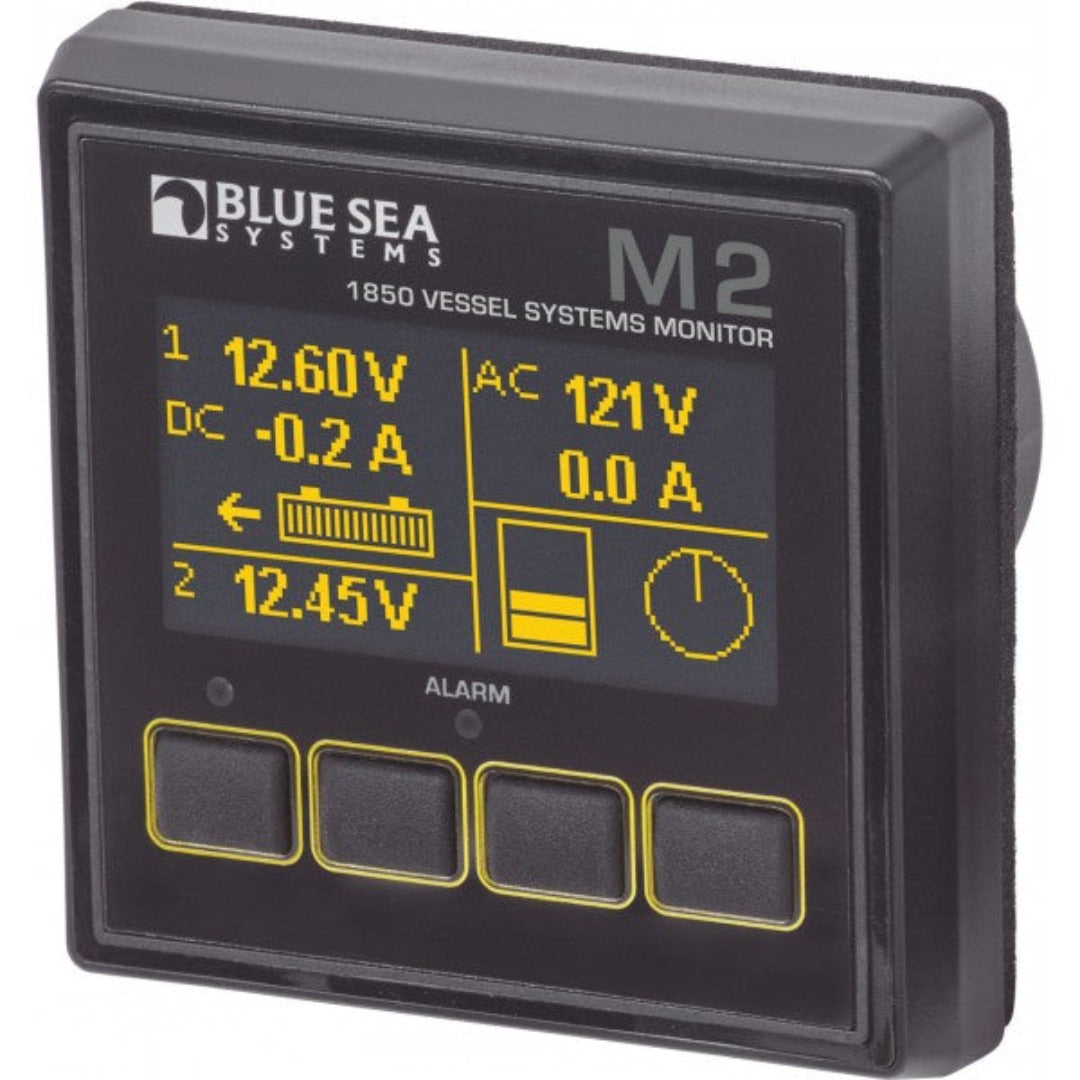

Blue Sea M2 OLED Meter AC/DC Vessel Systems Monitor VSM BS-1850B


Price:
Sale price$720.00

Description

FEATURES

Performs comprehensive monitoring of four critical systems in one compact organic LED digital monitor.

NMEA 2000 certified and uses standard connectors. This allows a single network backbone to be installed for multiple NMEA 2000 devices. The M2 VSM can share certain monitoring functions with other NMEA 2000 compliant screens, such as CZone Displays Touch 5 & Touch 10.
DC System Monitoring (up to two batteries)
One input monitors the DC voltage, state-of-charge, current for one battery bank and another input monitors the voltage of an additional battery bank. Alarms include high and low voltage, high current, and low battery.

AC System Monitoring
The VSM monitors a single AC voltage, current, and frequency. Alarms include high and low voltage, high current, and high and low frequency.

Bilge & Tank Monitoring
The VSM has two inputs that can be configured as a bilge or tank monitor. When configured as a bilge input, monitoring functions include pump active, cycle count in the last 24-hours, average cycles in a typical 24-hour period, and total cycles. High alarms can be set for both the minutes of run time in the last hour as well as the number or cycle counts in the last 24-hours. When configured as a tank input, tank status can be represented in both capacity (gallons or liters) or as a percentage of capacity. Custom tank shapes can be auto-calibrated or programmed. Both high and low level alarms can be set for all tanks.

SPECIFICATIONS

Product Name Blue Sea M2 OLED Meter AC/DC Vessel Systems Monitor VSM BS-1850B
SKU BS-1850B
Brands Blue Sea
Product Category Electrical Accessories
Operating Voltage 40-300V AC, 7-70V DC
Current Draw 18.8mA @ 12V, backlight off, 35mA @ 12V, backlight off (Minimum)
Manufacturers Warranty 5 Years
