Description
Ruggedized for dangerous environments, these panels carry ISO 9001 certification as well as IEC 61215 and 61730. They are certified use in Class 1, Division 2 Hazardous locations and conform with European Directive 2006/95/EC.
SPECIFICATIONS

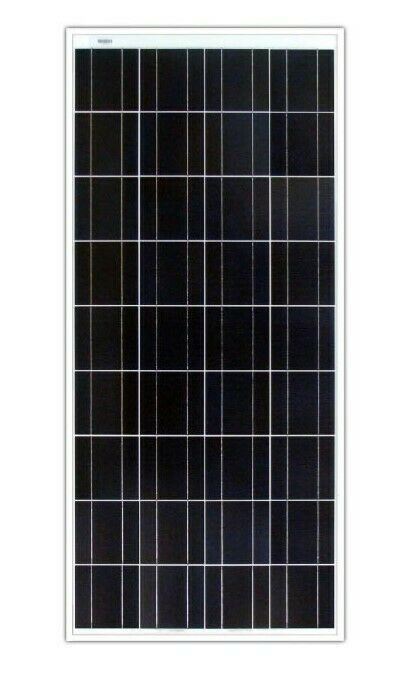

Model 150J
Series J Series
Manufacturer Ameresco
Mechanical
Type Poly
Dimensions 59.4" x 26.5" x 2.0"
Weight 26.5 lbs
Frame Silver
Connector Junction Box
Electrical
Watts (STC) 150 W
Watts (PTC) 108 W
Max Power Voltage (VMPP) 18.1 V
Max Power Current (IMPP) 8.3 A
Open Circuit Voltage (VOC) 22.2 V
Short Circuit Current (ISC) 8.5 A
Max System Voltage (UL) DC 600 V
