Description

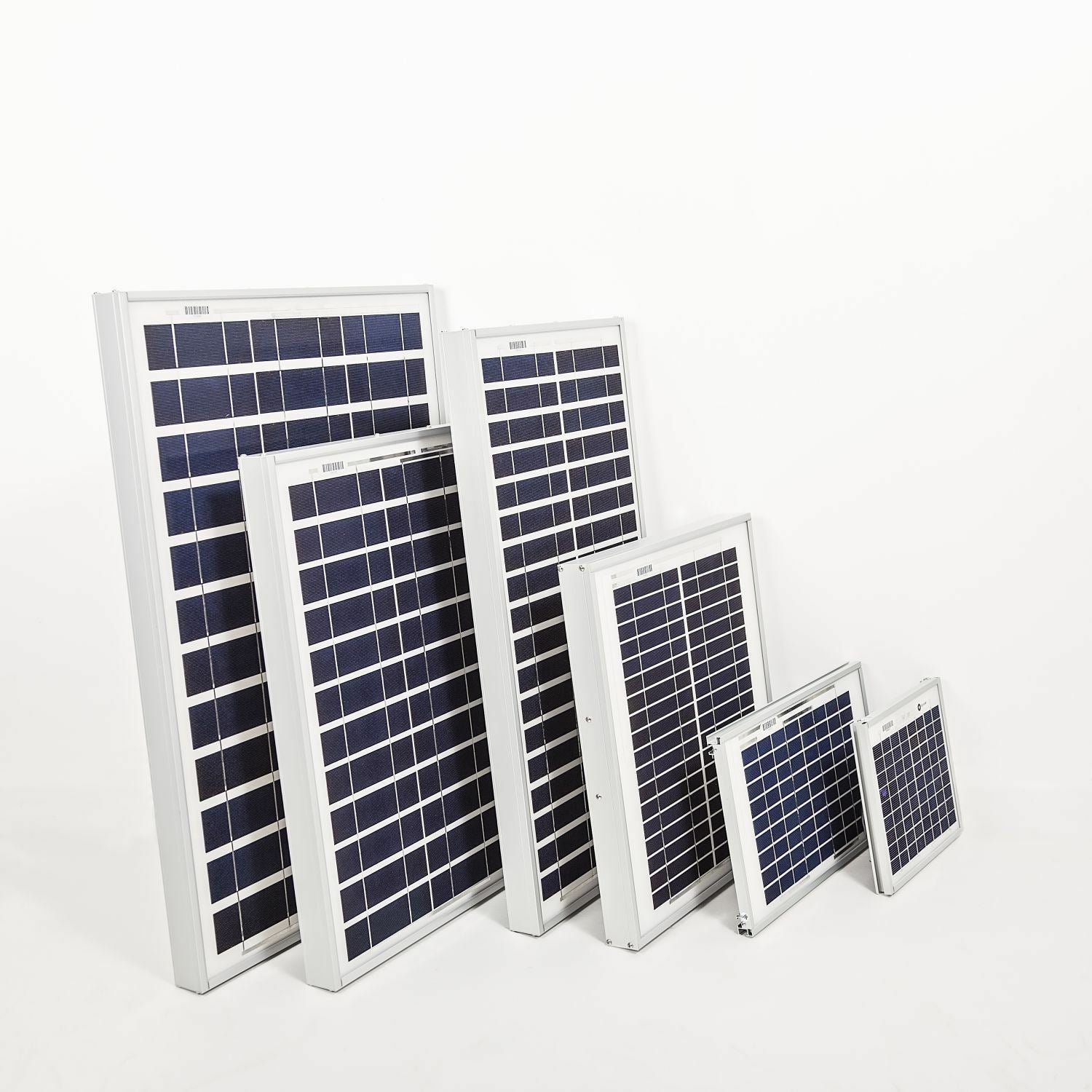

The Ameresco Photovoltaic Solar Panels are a direct replacement for the BP Solar Series 3 and 4 solar panels. These panels are advanced photovoltaic module that incorporates polycrystalline cells using SiN coating to give superior efficiency compared with same rated modules from other manufacturers. All the solar panels have ARC glass, an anti-reflective coating with self-cleaning properties so that under normal conditions panels do not require cleaning. The modules are robustly constructed using a clear anodized Universal frame and are offered with a warranty that will give you confidence in your system for many years ahead. Solar panels can be connected in parallel to increase power and are modular allowing the user the flexibility to build up a system over a period of time in line with budgets and power requirements.

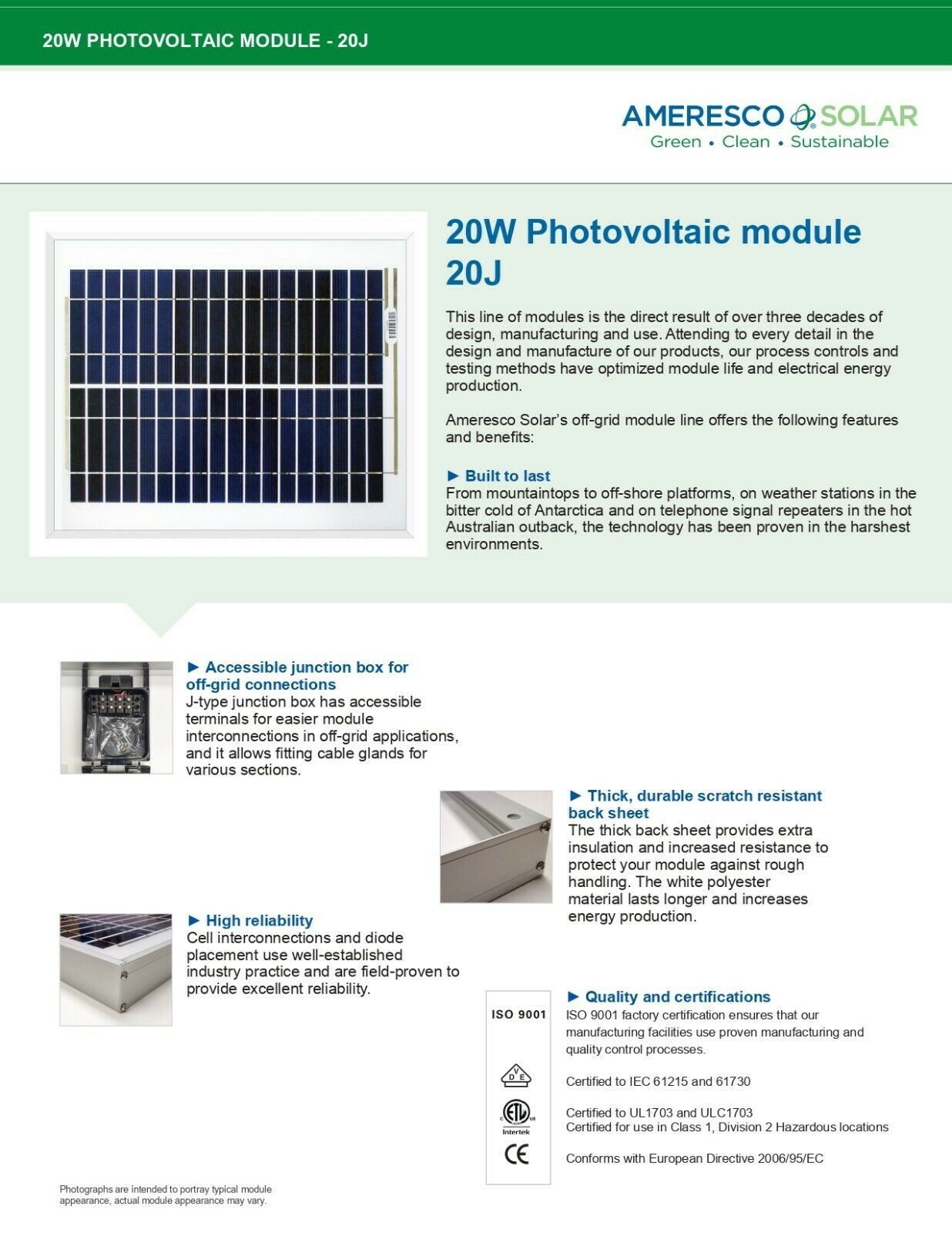

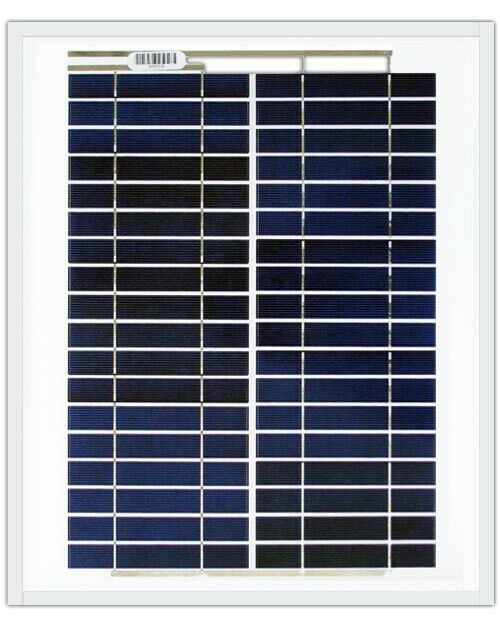

Ameresco 20J Mechanical Characteristics
Solar cells: 36 crystalline silicon cut cells connected in series
Front cover: High transmission 3.2mm (1/8th in) glass
Encapsulant: EVA
Back cover: White polyester
Frame: Silver anodized aluminum universal frame
Junction box: IP65 with 4 terminal screw connection block; accepts PG 13.5, M20 13mm (½”) conduit, or cable fittings accepting 6-12mm diameter cable. Terminals accept 2.5-10mm² (8-14 AWG) wire
Dimensions: 43x51x5cm
