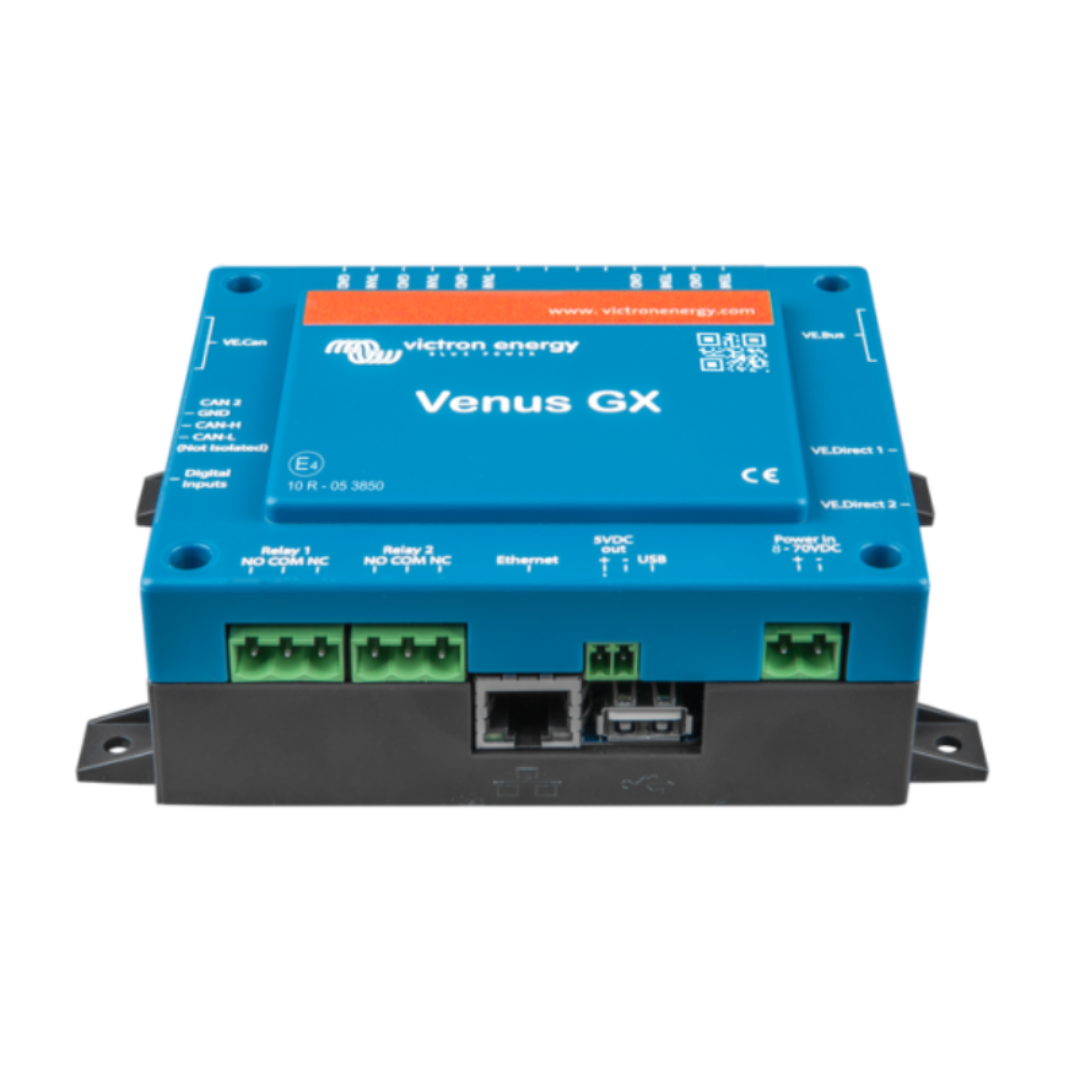

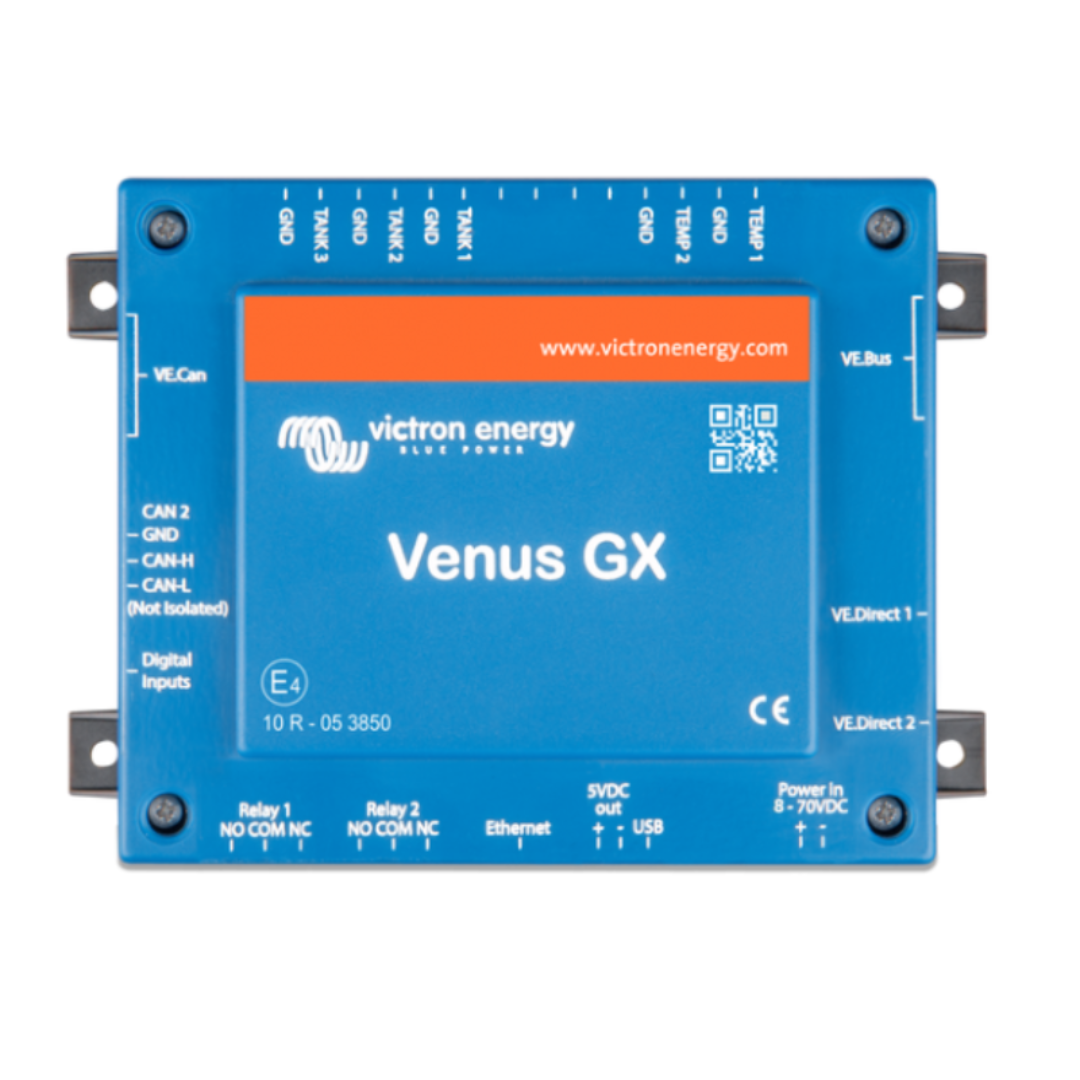

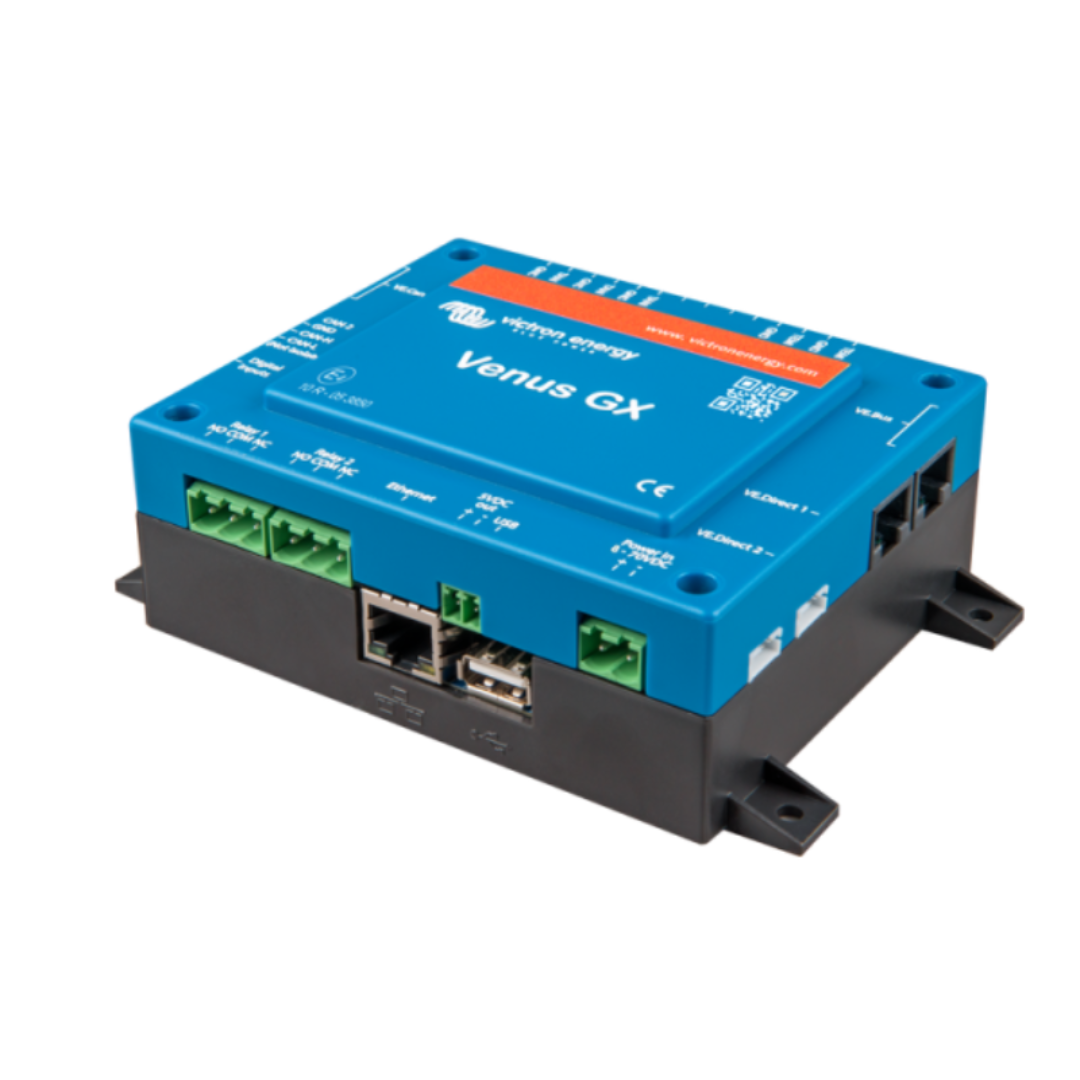

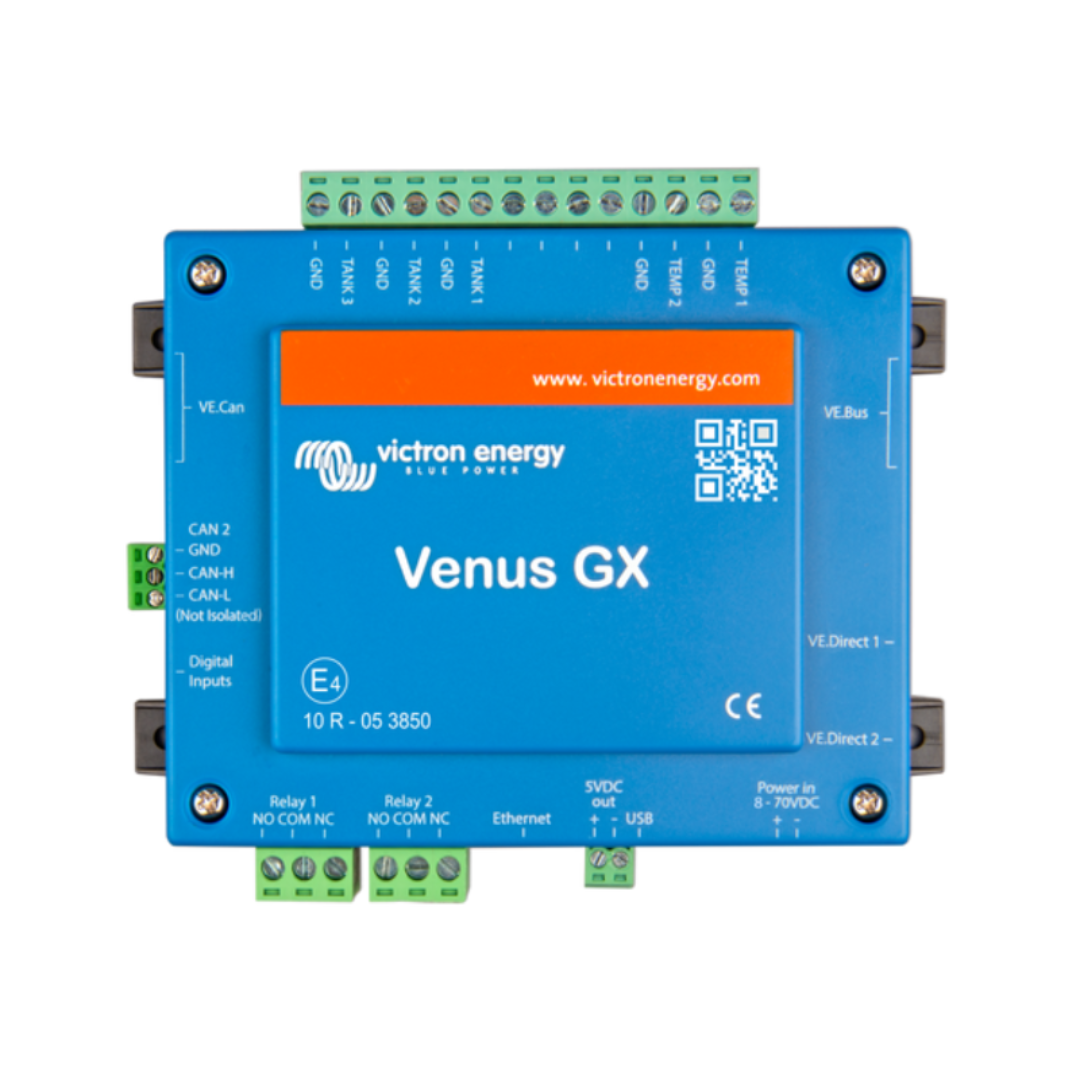

Victron Venus GX BPP900400100


Warranty Option: Standard 5 Years Warranty
Price:
Sale price$519.00

Description

Victron Venus GX, 5 year warranty. The Venus GX is the communication-centre of your installation. Venus allows you to talk to all components in your system and ensure they are working in harmony. Monitoring of live data, and changing settings is performed by using your smartphone (or other device) via our free-to-use Victron Remote Management Portal (VRM).

FEATURES

Venus GX:

The Venus GX provides intuitive control and monitoring for all Victron power systems. The list of Victron products that can be connected is endless: Inverters, Multis, Quattros, MPPT solar chargers, BMV battery monitors, Lynx Ion + Shunt and more.

VRM Online Portal:

All readings are forwarded to our free remote monitoring website: the VRM Online Portal.

Remote Console on VRM:

The way to access the device for setting up, as well as monitoring, is via Remote Console. Either via VRM, via the built-in WiFi Access Point, or on the local LAN/WiFi network.

Automatic genset start/stop:

A highly customizable start/stop system. Use state of charge, voltage, load and other parameters.
Define a special set of rules for quiet times, and optionally a monthly test run.

The heart of ESS – Energy Storage System:

The Venus GX is the Energy Manager in an ESS system.

Data logging:

When connected to the internet, all data is sent to the VRM Portal. When there is no internet connection available, the Venus GX will store the data internally, up to 48 hours. By inserting a micro SD-card or USB stick, more data can be stored. These files can then be uploaded to the VRM Portal, or offline converted with the VictronConnect app, for analysis.

Supported products
  • Multis and Quattros, including split-phase and three-phase systems. Monitoring and control (on/off and current limiter). Changing configuration is possible (only remotely via the internet, not without an internet connection).
  • EasySolar 1600VA
  • BlueSolar MPPT Solar Chargers with a VE.Direct port.
  • BlueSolar MPPT 150/70 and the MPPT 150/85 with VE.Can port. When multiple BlueSolar MPPTs with VE.Can are used in parallel, the all information is combined as one.
  • BMV-700 family can be connected directly to the VE.Direct ports on the Venus GX. Use the VE.Direct Cable for this.
  • BMV-600 family can be connected to the VE.Direct ports on the Venus GX. Requires an accessory cable.
  • Lynx Ion + Shunt
  • Lynx Ion BMS
  • Lynx Shunt VE.Can
  • Skylla-i battery chargers
  • NMEA2000 tank sensors
  • A USB GPS can be connected to the USB port. The data is sent to the VRM Portal for tracking purposes. The map on VRM will show the latest position.
  • Fronius PV Inverters
When more than two VE.Direct products must be connected, USB can be used.

Internet connection:

The Venus GX can be connected to internet with an Ethernet cable and via Wi-Fi. The Venus GX has no internal cellular modem: there is no slot for a sim-card. Use an off-the-shelf GPRS or 3G router instead. See the blog post about 3G routers.

Tank level inputs:

The tank level inputs are resistive: connect them to a resistive tank sender. Such tank senders are not supplied by Victron. The tank level ports can each be configured to work with either European tank senders (0 - 180 Ohm), or US (240 - 30 Ohm).

SPECIFICATIONS

Product Name Victron Venus GX BPP900400100
SKU BPP900400100
GTIN (Global Trade Item Number) 8719076037897
Brands Victron
Product Category Batteries Other
Supply Voltage Range 8 – 70V DC
Current Draw 210 mA @ 12V | 110 mA @ 24V | 60 mA @ 48V
Operating Range (temp) -20 to +50°C
Dimensions 45 x 143 x 96 mm (H x W x D)
Safety EN 60950-1:2005+A1:2009+A2:2013
Manufacturers Warranty 5 Years

WARRANTY

Victron Energy warrants its products to be free from defects in workmanship and materials for a period of: Batteries: 2 year limited warranty Li-ion batteries: 3 year limited warranty All other products: 5 -year limited warranty.

NOTE:

The option of a 10-year limited warranty can only be applied during the actual purchase of the product.
