Description
FEATURES

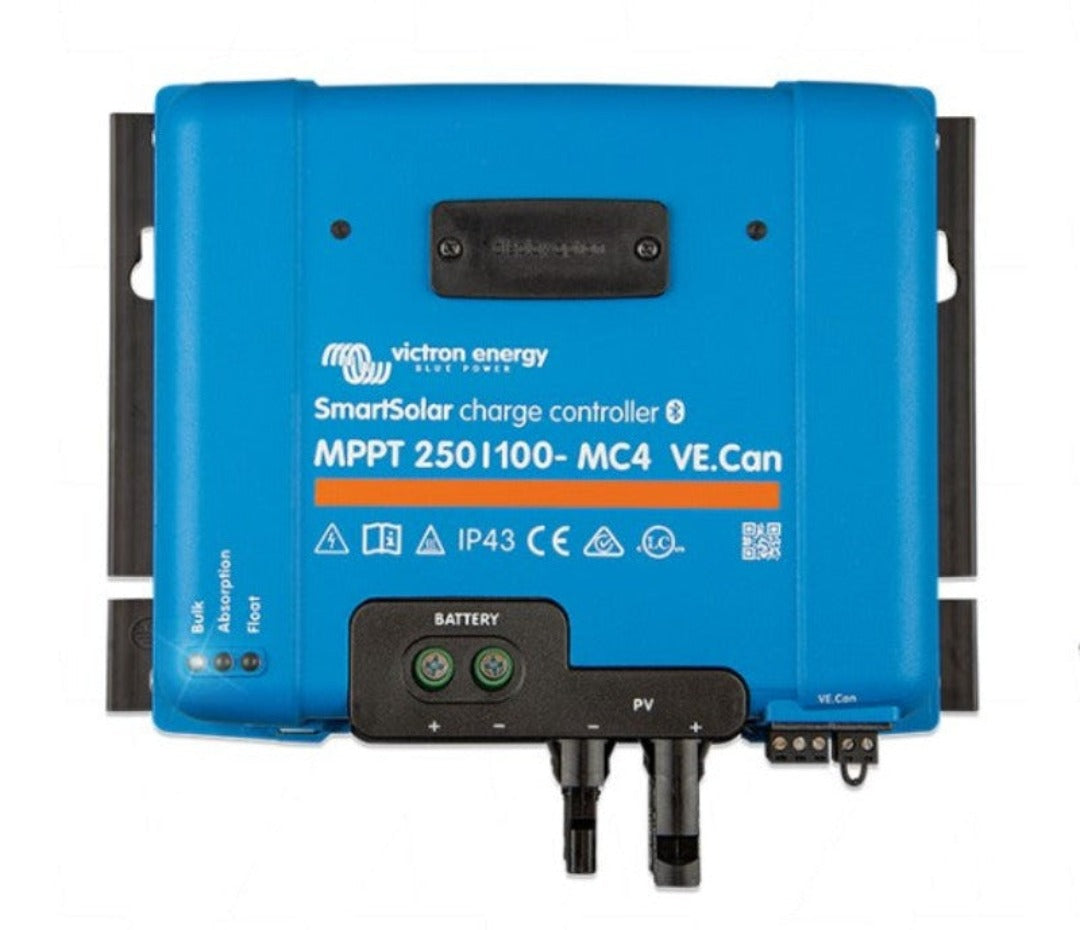

Victron Smart Solar MPPT 250/100 VE.Can Charge Controller, 5 year warranty.
Solar charge controller:
The MPPT VE.Can SmartSolar charger uses the latest and fastest technology to convert energy from a solar array into energy that optimally charges a battery banks.
The SmartSolar charge controller will even recharge a severely depleted battery. It can operate with a battery voltage as low as 0 Volts, provided the cells are not permanently sulphated or otherwise damage.
MPPT: Ultra Fast Maximum Power Point Tracking:
The MPPT VE.Can SmartSolar charger connects to a PV array of 150 or 250 Volt Voc and will automatically detect and charge your 12, 24, or 48V battery bank with current ranging from 70 to 100A depending on the model.
The charge settings are fully programmable and can even be set up for different battery chemistries, like lead-acid, lithium and others.
Control Your Charger Remotely:
The MPPT VE.Can SmartSolar charger can be remotely controlled and configured over Bluetooth via the VictronConnect App. This allows device set-up, management, and at-a-glance information, such as battery voltage and current, PV voltage and current, and historical data.
Daisy Chain Additional Units:

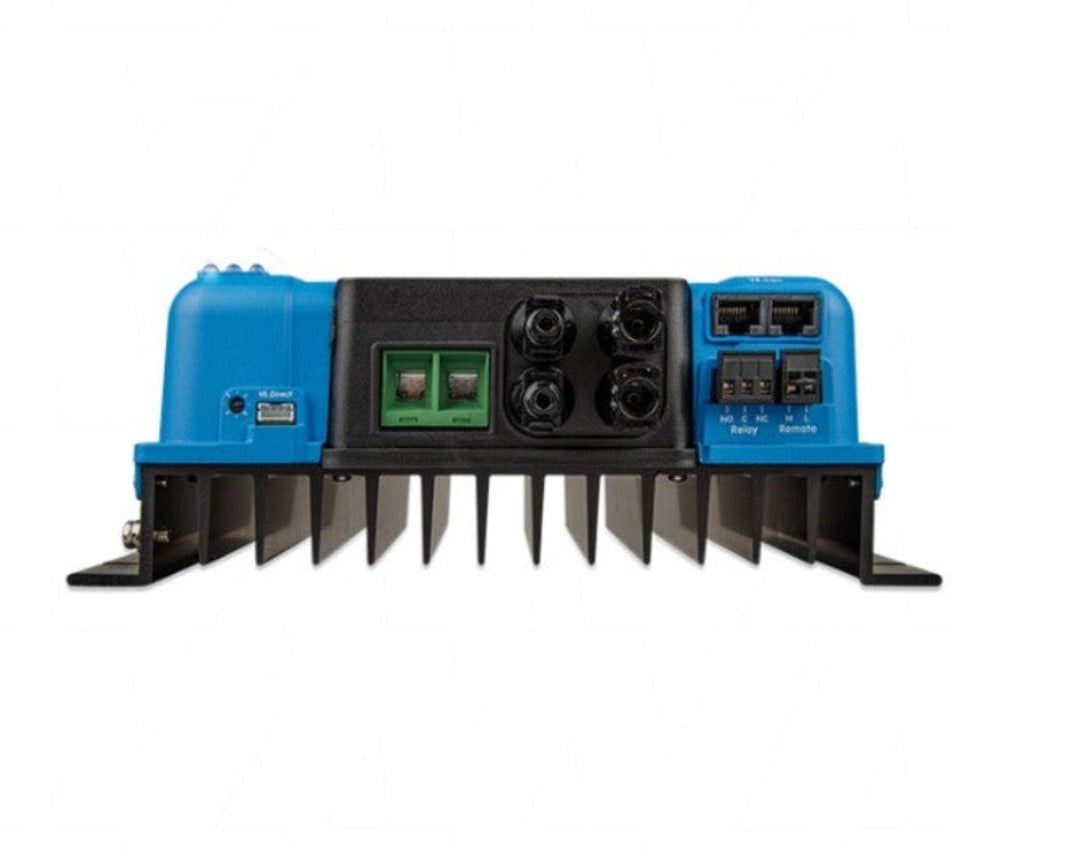

The VE.Can SmartSolar charger is equipped with CAN bus ports. This allows for communication with additional VE.Can SmartSolar chargers. The additional units are simply “daisy chained” to each other with a single RJ45 cable between the individual units.
When connected to each other, all individual VE.Can SmartSolar chargers, will synchronise their charge stages. They can also send their data, via a single cable, to a GX monitoring device.
Remote Monitoring and Control:
If the GX device is connected to the internet, the Victron Remote Management Portal (VRM) provides access to the full power of your solar charger(s).
SmartSolar Control Display:
The VE.Can SmartSolar charger is also equipped with a VE.Direct port like our other MPPT solar chargers. This port can be for single unit monitoring or for streetlight control. The remote on/off connector can be externally controlled by a third-party device like a lithium battery. An optional plug-in LCD display/control provides live-data, set-up and management, straight from the face of the device.
SPECIFICATIONS
| Product Name |
Victron SmartSolar MPPT Charge Controller 250/100-MC4 VE.Can SCC125110512 |
| SKU | SCC125110512 |
| GTIN (Global Trade Item Number) |
8719076055679 |
| Brands | Victron |
| Product Category | Solar Charge Controllers |
| Amps | 100.0 Amps |
| Model | SmartSolar MPPT 250/100 |
| Voltage | 12/24/48V Auto Select (36V: manual) |
| Nominal PV Power | 12V - 1450W | 24V - 2900W |
| Efficiency | 99% Max. |
| Operating Temperature Range | -30 to +60°C (full rated output up to 40°C) |
| Humidity | 95%, non-condensing |
| Dimensions (LxWxH mm) | 103 x 295x 216 (D x W x H) |
| Charge voltage 'absorption' | Default Setting: 14.4 / 28.8 / 43.2 / 57.6V (adjustable with: rotary switch, display, VE.Direct or Bluetooth) |
| Protection | PV reverse polarity / Output short circuit / Over temperature |
| Weight (kg) | 4.5 |
| Manufacturers Warranty | 5 Years |
WARRANTY
Victron Energy warrants its products to be free from defects in workmanship and materials for a period of: Batteries: 2 year limited warranty Li-ion batteries: 3 year limited warranty All other products: 5 -year limited warranty.
NOTE:
The option of a 10-year limited warranty can only be applied during the actual purchase of the product.
