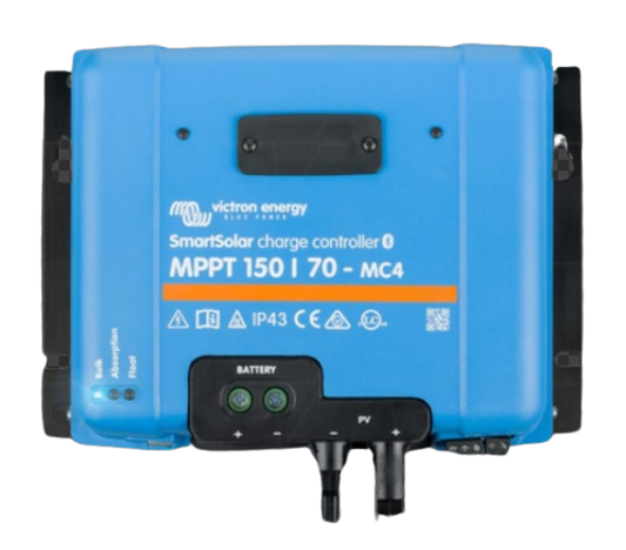

Victron SmartSolar MPPT 150/70 Available in 3 Model Types


Model Type: MPPT 150/70-Tr SCC115070211
Warranty Option: Standard 5 Years Warranty
Price:
Sale price$1,069.00

Description

MODEL Victron SmartSolar MPPT 150/70-Tr SCC115070211 Victron Smartsolar MPPT 150/70-TR VE.CAN SCC115070411 Victron Smartsolar MPPT 150/70-MC4 VE.CAN SCC115070511
FEATURES > MPPT: Ultra Fast Maximum Power Point Tracking > MPPT: Ultra Fast Maximum Power Point Tracking > MPPT: Ultra Fast Maximum Power Point Tracking
> Control Your Charger Remotely > Control Your Charger Remotely > Control Your Charger Remotely
> Daisy Chain Additional Units > Daisy Chain Additional Units > Daisy Chain Additional Units
> Remote Monitoring and Control > Remote Monitoring and Control > Remote Monitoring and Control
> SmartSolar Control Display > SmartSolar Control Display > SmartSolar Control Display



SPECIFICATIONS

MODEL Victron SmartSolar MPPT 150/70-TR SCC115070211 Victron Smartsolar MPPT 150/70-TR VE.CAN SCC115070411 Victron Smartsolar MPPT 150/70-MC4 VE.CAN SCC115070511
SKU SCC115070211 SCC115070411 SCC115070511
Brands Victron Victron Victron
Product Category Solar Charge Controllers Solar Charge Controllers Solar Charge Controllers
Amps 70.0 Amps 70.0 Amps 70.0 Amps
Model SmartSolar MPPT 150/70 TR SmartSolar MPPT 150/70-Tr VE.Can SmartSolar MPPT 150/70-MC4 VE.CAN
Float Default setting: 13,8 / 27,6 / 41,4 / 55,2V (adjustable: rotary switch, display, VE.Direct or Bluetooth) Default setting: 13,8 / 27,6 / 41,4 / 55,2V (adjustable: rotary switch, display, VE.Direct or Bluetooth) Default setting: 13,8 / 27,6 / 41,4 / 55,2V (adjustable: rotary switch, display, VE.Direct or Bluetooth)
Equalize Default setting: 16,2V / 32,4V / 48,6V / 64,8V (adjustable) Default setting: 16,2V / 32,4V / 48,6V / 64,8V (adjustable) Default setting: 16,2V / 32,4V / 48,6V / 64,8V (adjustable)
Voltage 12 / 24 / 48V Auto Select 12 / 24 / 48V Auto Select 12 / 24 / 48V Auto Select
Nominal PV Power 12V: 1000W | 24V: 2000W | 36V: 3000W | 48V: 4000W 12V: 1000W | 24V: 2000W | 36V: 3000W | 48V: 4000W 12V: 1000W | 24V: 2000W | 36V: 3000W | 48V: 4000W
Efficiency 98% Max. 98% Max. 98% Max.
Operating Temperature Range -30 to +60°C (full rated output up to 40°C) -30 to +60°C (full rated output up to 40°C) -30 to +60°C (full rated output up to 40°C)
PV Short Circuit Current 50A (max 30A per MC4 conn.) 50A (max 30A per MC4 conn.) 50A (max 30A per MC4 conn.)
Humidity 95%, non-condensing 95%, non-condensing 95%, non-condensing
Dimensions (LxWxH mm) Tr Model: 95 x 250 x 185 mm | MC4: 95 x 250 x 215 Tr Model: 95 x 250 x 185 mm | MC4: 95 x 250 x 215 Tr Model: 95 x 250 x 185 mm | MC4: 95 x 250 x 215
Charge voltage 'absorption' Default setting: 14,4 / 28,8 / 43,2 / 57,6V (adjustable with: rotary switch, display, VE.Direct or Bluetooth) Default setting: 14,4 / 28,8 / 43,2 / 57,6V (adjustable with: rotary switch, display, VE.Direct or Bluetooth) Default setting: 14,4 / 28,8 / 43,2 / 57,6V (adjustable with: rotary switch, display, VE.Direct or Bluetooth)
Temperature Compensation -16 mV / -32 mV / -64 mV / °C -16 mV / -32 mV / -64 mV / °C -16 mV / -32 mV / -64 mV / °C
Protection Battery reverse polarity (fuse, not user accessible), PV reverse polarity, Output short circuit and Over temperature Battery reverse polarity (fuse, not user accessible), PV reverse polarity, Output short circuit and Over temperature Battery reverse polarity (fuse, not user accessible), PV reverse polarity, Output short circuit and Over temperature
Weight (kg) 3 3 3
Manufacturers Warranty 5 Years 5 Years 5 Years

WARRANTY

Victron Energy warrants its products to be free from defects in workmanship and materials for a period of Batteries: 2-year limited warranty Li-ion batteries: 3-year limited warranty All other products: 5-year limited warranty.

NOTE:

The option of a 10-year limited warranty can only be applied during the actual purchase of the product.
