Description

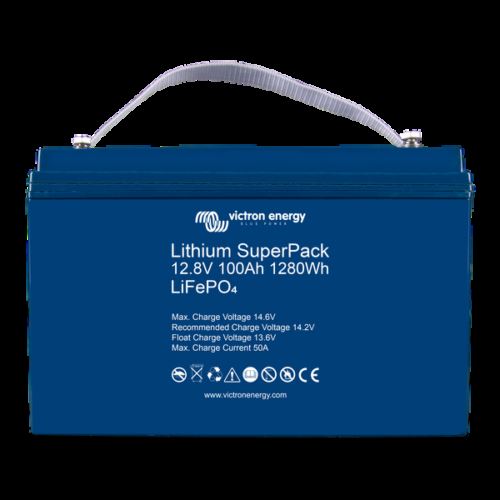

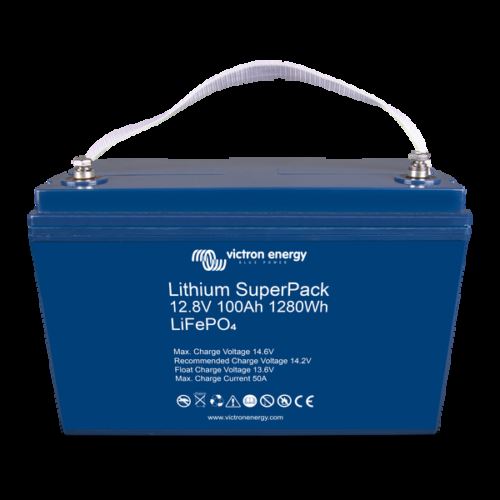

High Current 12.8V 100Ah LiFePO4
FEATURES
Integrated BMS and safety switch
The SuperPack batteries are extremely easy to install, needing no additional components.
The internal switch will disconnect the battery in case of over discharge, over charge or high temperature.
Abuse proof
A lead-acid battery will fail prematurely due to sulfation:
• If it operates in deficit mode during long periods of time (i.e. if the battery is rarely, or never at all, fully charged).
• If it is left partially charged or worse, fully discharged.
A Lithium-Ion battery does not need to be fully charged. Service life even slightly improves in case of partial charge instead of a full charge. This
is a major advantage of Li-ion compared to lead-acid.
The SuperPack batteries will cut-off the charge or discharge current when the maximum ratings are exceeded.
Efficient
In several applications (especially off-grid solar), energy efficiency can be of crucial importance.
The round-trip energy efficiency (discharge from 100% to 0% and back to 100% charged) of the average lead-acid battery is 80%.
The round-trip energy efficiency of a Li-ion battery is 92%.
The charge process of lead-acid batteries becomes particularly inefficient when the 80% state of charge has been reached, resulting in
efficiencies of 50% or even less in solar systems where several days of reserve energy are required (battery operating in 70% to 100% charged
state).
In contrast, a Li-ion battery will still achieve 90% efficiency even under shallow discharge conditions.
Can be connected in parallel
The batteries can be connected in parallel. Series connection is not allowed.
Use in upright position only.
Cycle life: 2500 cycles (80% DoD) @ 25Deg Celcius
Max. continuous discharge current: 100A
End of discharge voltage: 10.0V
Charge voltage: 14.2V - 14.4V (14.2V recommended)
Float voltage: 13.5V
Max. cont. charge current: 100A
Operating Discharge temperature: -10°C to +50ºC
Operating Charge temperature: +5°C to +45ºC
Storage temperature: -40°C to +65ºC
Humidity (non-condensing): max. 95%
Protection class: IP43
Consider implementing Victron Energy's range of Lithium Iron Phosphate modules in high energy demand applications:
More RUGGED compared to lead acid batteries.
LiFePO4 batteries do not need to be fully charged all the time. A partial charge may even slightly improve service life. In addition, LiFePO4 batteries have a wider operating temperature range, excellent cycling performance, lower internal resistance and higher rate of efficiency than lead acid batteries.
Lead acid batteries will fail prematurely due to sulfation if the battery is rarely, or never at all, fully charged or if the battery is stored for long periods partially or fully discharged.
Higher ENERGY EFFICIENCY than lead acid batteries.
Round trip energy efficiency (discharge from 100% to 0% and back to 100% charged) of LiFePO4 batteries is 92% compared to lead acid batteries at around 80%. In off-grid applications like solar and/or wind, better energy efficiency means less energy loss.
SMALLER and LIGHTER than lead acid batteries.
LiFePO4 batteries are up to 70% smaller and 70% lighter than equivalent lead acid batteries.
SPECIFICATIONS
SKU BAT512110710
Brand Victron Energy
Shipping Weight 14.0000kg
Shipping Width 0.171m
Shipping Height 0.220m
Shipping Length 0.330m
WARRANTY
Victron Energy warrants its products to be free from defects in workmanship and materials for a period of: Batteries: 2 year limited warranty Li-ion batteries: 3 year limited warranty All other products: 5 -year limited warranty.
NOTE:
* Where allowed by applicable law and regulations, batteries must be shipped via Ground shipments only.
