Description

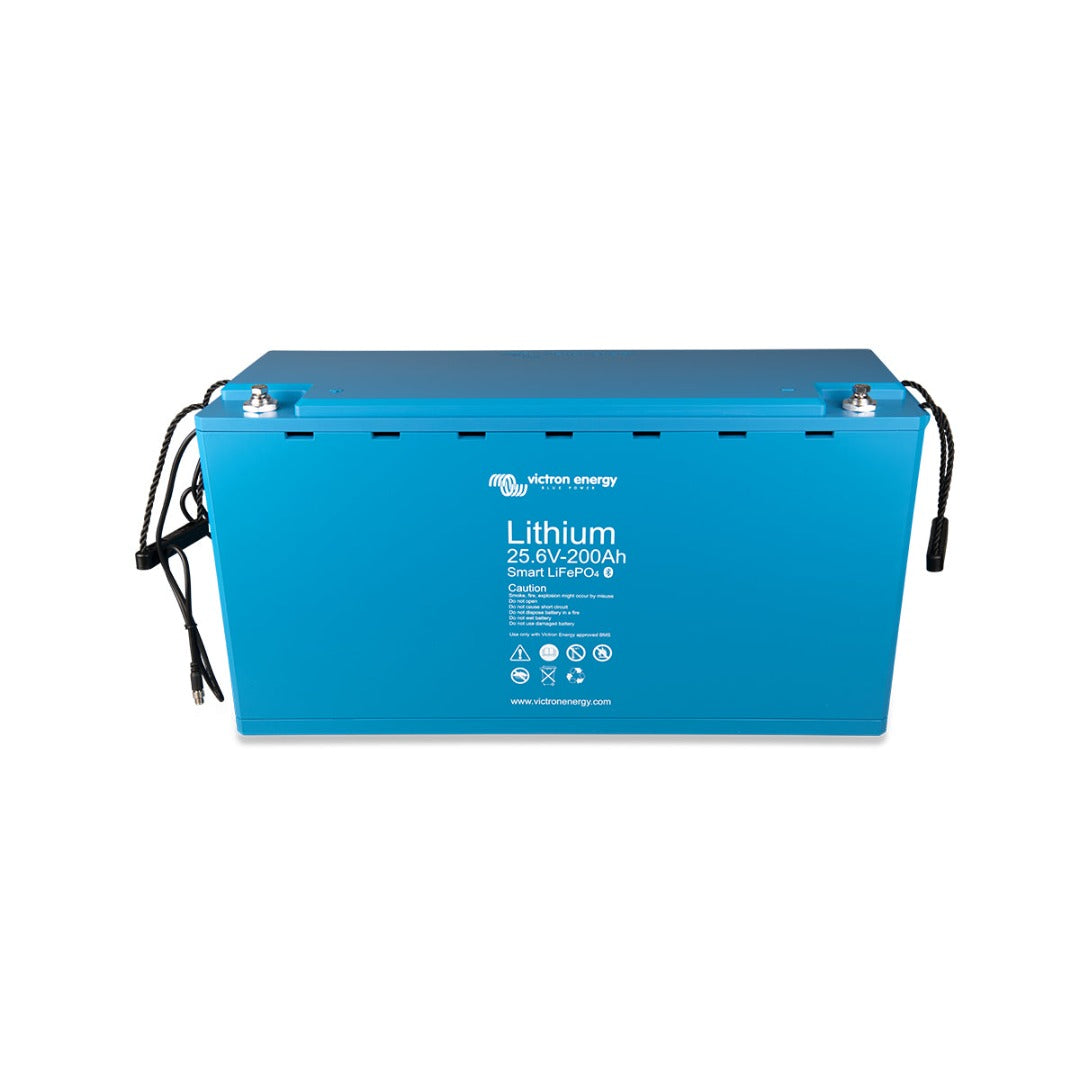

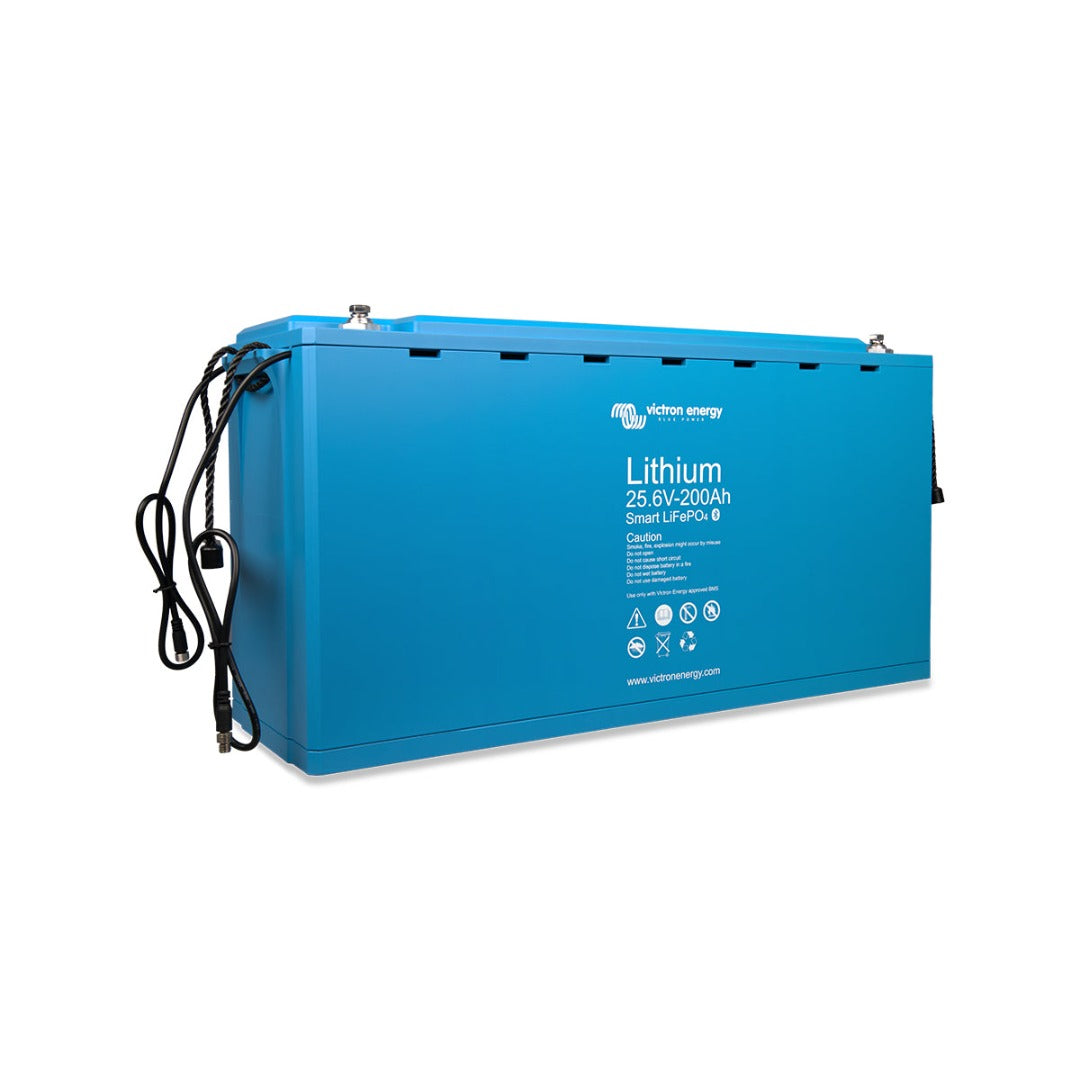

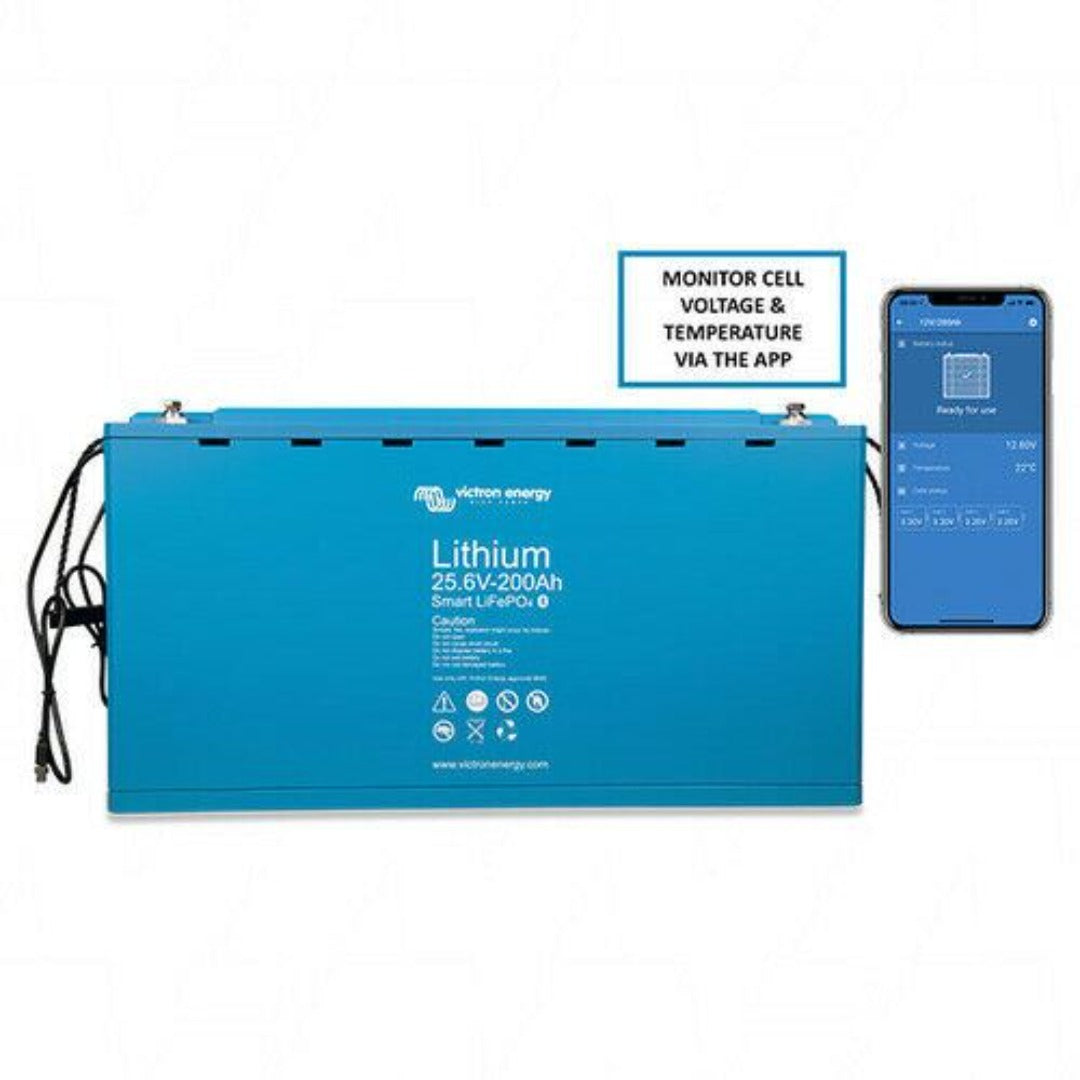

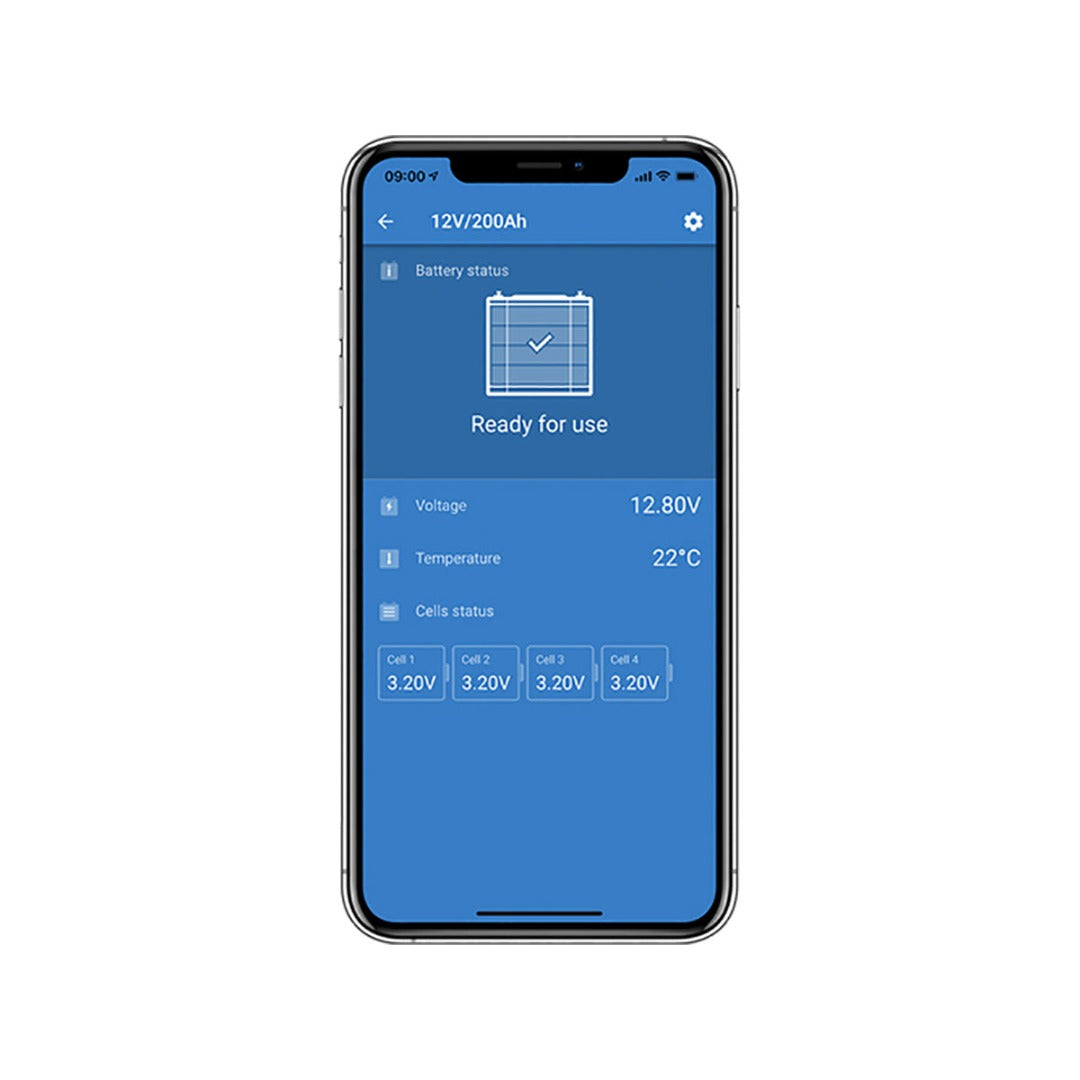

High capacity 24V (25.6V) 200Ah Lithium Iron Phosphate (LiFePO4) battery module with built-in Bluetooth
Lithium-iron-phosphate (LiFePO4 or LFP) is the safest of the mainstream li-ion battery types. The nominal voltage of a LFP cell is 3,2V (lead-acid: 2V/cell). A 12,8V LFP battery therefore consists of 4 cells connected in series; and a 25,6V battery consists of 8 cells connected in series.
FEATURES
- Cycle life: 2500 cycles (80% DoD); 5000 cycles (50% DoD)
- Charge:
- Cut-off voltage: 28.8V
- Max. charge current (2C): 400A
- Discharge:
- Cut-off voltage: 22.4V
- Max. continuous discharge current: 400A
- Recommended charge current: 100A (0.5C)
- Recommended discharge current: Max. charge current (2C) (1.0C)
- Configuration:
- Series: up to 2
- Parallel: up to 5
- Temperature:
- Charge: 5°C to + 50ºC
- Discharge: -20°C to + 50ºC
- Storage: -45°C to + 70ºC
Consider implementing Victron Energy's range of Lithium Iron Phosphate modules in high energy demand applications:
More RUGGED compared to lead acid batteries.
LiFePO4 batteries do not need to be fully charged all the time. A partial charge may even slightly improve service life. In addition, LiFePO4 batteries have a wider operating temperature range, excellent cycling performance, lower internal resistance and higher rate of efficiency than lead acid batteries.
Lead acid batteries will fail prematurely due to sulfation if the battery is rarely, or never at all, fully charged or if the battery is stored for long periods partially or fully discharged.
Higher ENERGY EFFICIENCY than lead acid batteries.
Round trip energy efficiency (discharge from 100% to 0% and back to 100% charged) of LiFePO4 batteries is 92% compared to lead acid batteries at around 80%. In off-grid applications like solar and/or wind, better energy efficiency means less energy loss.
SMALLER and LIGHTER than lead acid batteries.
LiFePO4 batteries are up to 70% smaller and 70% lighter than equivalent lead acid batteries.
This lithium based product is classified as Class 9 DG (UN3480) where it contains more than 20Wh/cell or 100Wh/pack (Lithium Ion) and therefore cannot be sent by airfreight.
Transport via ROAD or SEA FREIGHT ONLY for this product.
SPECIFICATIONS
- SKU BAT524120610
- Brand Victron Energy
- Shipping Weight 39.0000kg
- Shipping Width 0.650m
- Shipping Height 0.237m
- Shipping Length 0.163m
WARRANTY
Victron Energy warrants its products to be free from defects in workmanship and materials for a period of: Batteries: 2 year limited warranty Li-ion batteries: 3 year limited warranty All other products: 5 -year limited warranty.
NOTE:
* Where allowed by applicable law and regulations, batteries must be shipped via Ground shipments only.
