Victron Galvanic Isolator VDI-32 GDI000032000


Warranty Option: Standard 5 Years Warranty
Price:
Sale price$485.00

Description

FEATURES

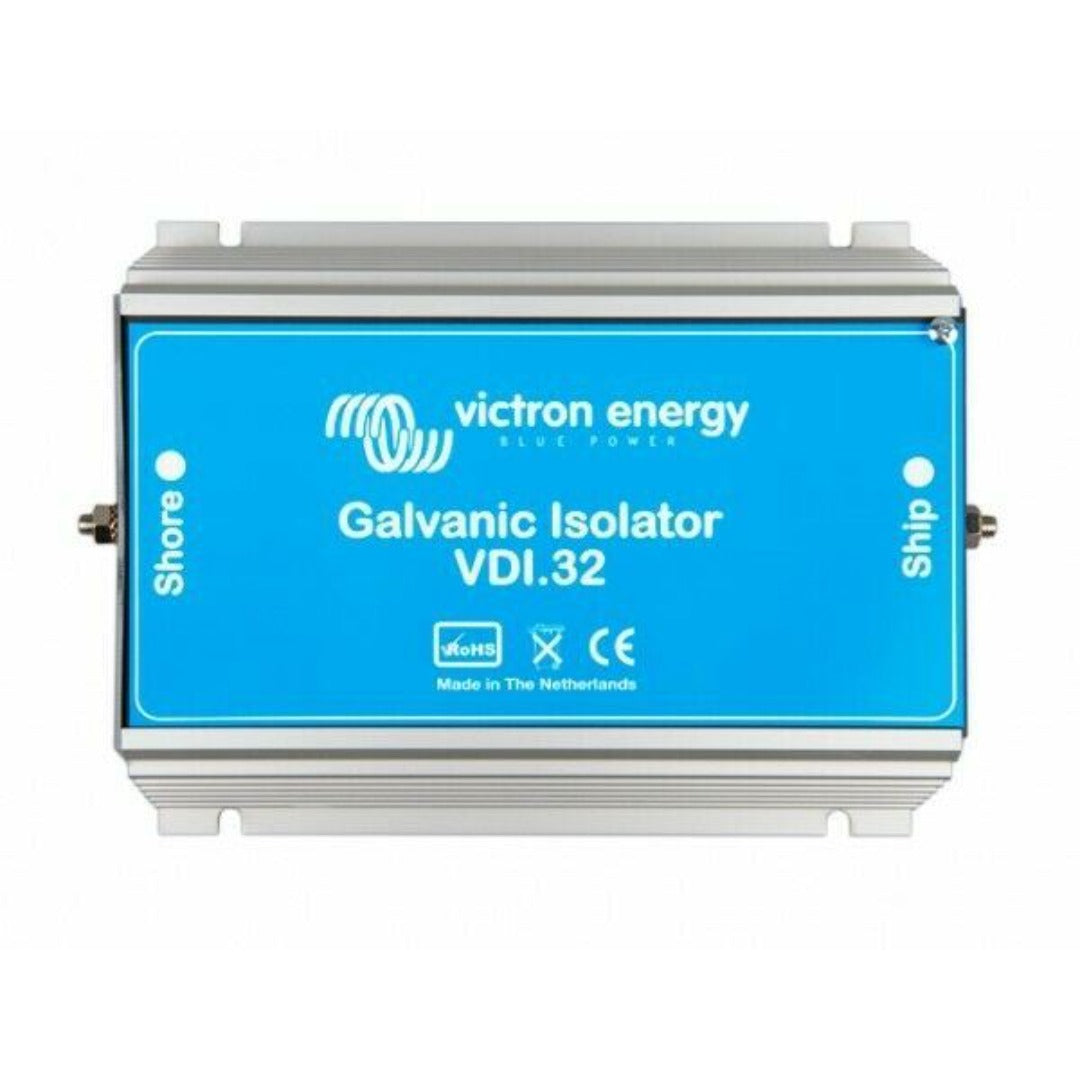

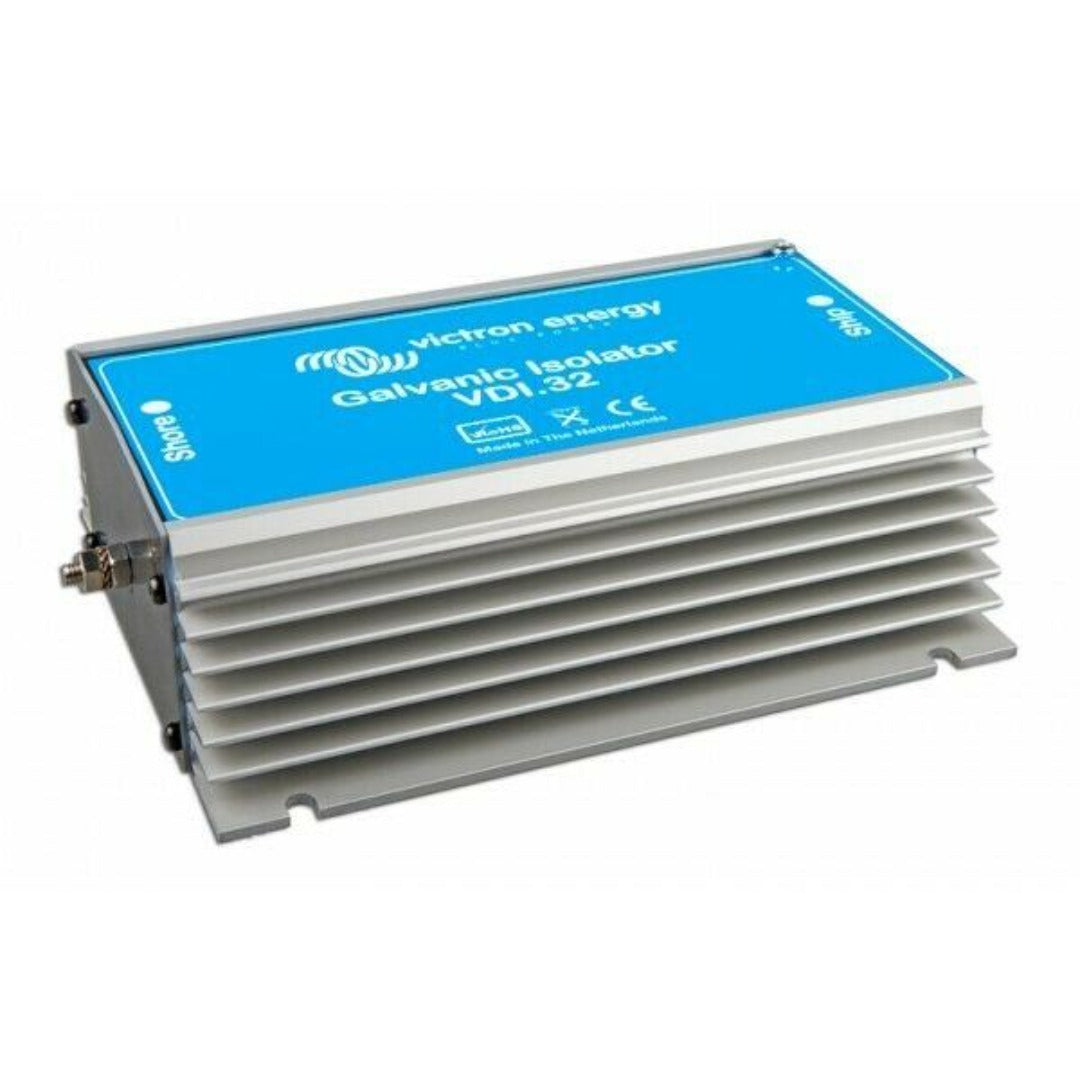

Victron Galvanic Isolator VDI-32, 5 Year Warranty. The galvanic isolator prevents electrolytic corrosion. It blocks low voltage DC currents that enter your boat via the shore power earth wire. These currents can cause corrosion to the boat’s underwater metals, like the hull, propeller, shaft and so on.  The galvanic isolator consists internally of two diodes which are connected in anti-parallel fashion. When they are connected in this way, the diodes allow current in both directions but only above a certain threshold voltage. The voltage at which diodes conduct is about 1.4 Vdc.

The isolator is installed directly behind your boat's 230V connection. The forward voltage from the galvanic isolator is higher than the potential difference between metals. As a result, this voltage will not allow conduction and as such, the galvanic isolator will prevent any electrolytic current. However, if there is a (higher) error voltage in the AC circuit, the diodes will allow current through and the residual-current device will break the circuit.

SPECIFICATIONS

Product Name: Victron Galvanic Isolator VDI-32, 5 Year Warranty

SKU: GDI000032000

GTIN

(Global Trade Item Number): 8719076022381

Brands: Victron

Product Category: Batteries Other

Dimensions: 200 mm x 164mm x 63 mm

Net Weight (kg): 2.0 Kg

Maximum Charge Current: 32A

Manufacturers Warranty: 5 Years

WARRANTY

Victron Energy warrants its products to be free from defects in workmanship and materials for a period of: Batteries: 2 year limited warranty Li-ion batteries: 3 year limited warranty All other products: 5 -year limited warranty.

NOTE:

The option of a 10-year limited warranty can only be applied during the actual purchase of the product.
