Description
FEATURES
The all-in-one solar power solution:

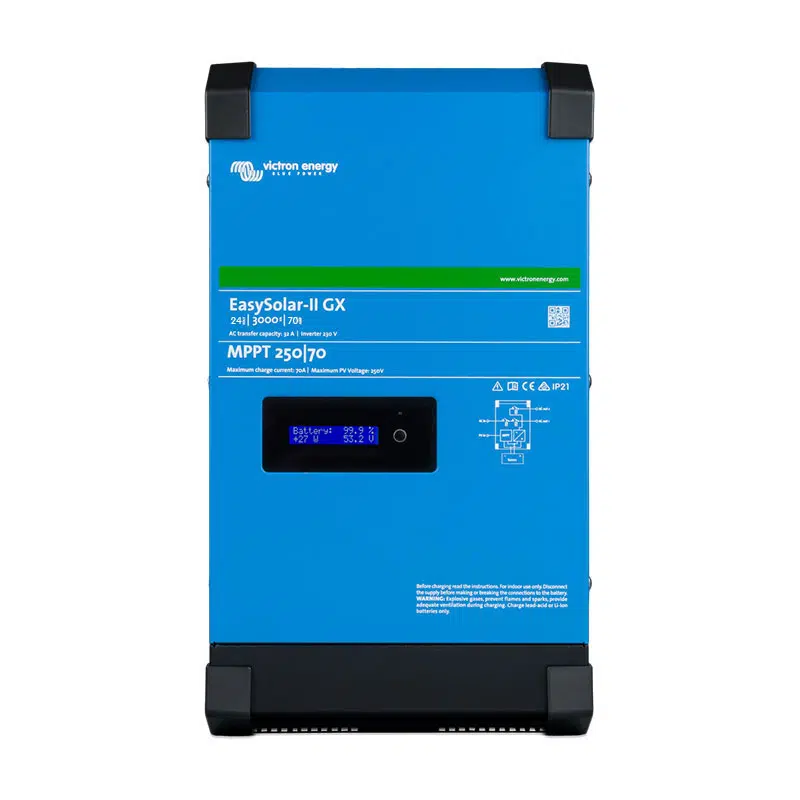

The Victron EasySolar-II GX integrates the following elements:
• A MultiPlus-II inverter/charger
• A SmartSolar MPPT -Tr solar charge controller
• A GX device with a 2 x 16 character display.
These elements come prewired together inside a single unit. This greatly simplifies most installations, saving time and money.
Display and wifi:
The display reads battery, inverter and solar charge controller parameters. The same parameters can be accessed with a smartphone, or other wifi enabled device. In addition, wifi can be used to set up the system and to change settings.
Solar charge controller:
The DC output of the SmartSolar MPPT is parallel wired with the DC connection of the MultiPlus-II inverter/charger. The on/off mechanism of the MultiPlus-II also controls the SmartSolar MPPT.
GX device:
The integrated GX device includes:
• A VE.Can interface. This can be used to connect to Victron VE. Can devices (e.g. VE.Can MPPTs) or the port can be reconfigured via the Remote Console for use with a compatible CAN-bus Li-ion Battery
• A USB port
• A Ethernet port
• A VE.Direct port
The GX device controls the MultiPlus-II and the SmartSolar MPPT with respectively a VE. Bus and a VE.Direct connection.
SPECIFICATIONS
| EasySolar-II GX | EasySolar-II 24/3000/35-32 MPPT 250/70 GX |
| INVERTER/CHARGER | |
| PowerControl & PowerAssist | Yes |
| Transfer switch | 32A |
| Maximum AC input current | 32A |
| Auxiliary output | Yes (32A) |
| INVERTER | |
| Input voltage range | 19 – 33V |
| Output | Output voltage: 230 VAC ± 2% |
| Frequency: 50 Hz ± 0,1% (1) | |
| Cont. output power at 25°C (3) | 3000VA / 2400W |
| Cont. output power at 40°C / 65°C | 2200W / 1700W |
| Maximum apparent feed-in power | 2500VA |
| Peak power | 5500W |
| Maximum efficiency | 95% |
| Zero load power | 9W |
| CHARGER | |
| Battery temperature sensor | Yes |
| Programmable relay (5) | Yes |
| Protection (2) | a - g |
| VE.Bus communication port | For parallel and three-phase operation, remote monitoring and system integration |
| General-purpose com. port | Yes, 2x |
WARRANTY
Victron Energy warrants its products to be free from defects in workmanship and materials for a period of: Batteries: 2 year limited warranty Li-ion batteries: 3 year limited warranty All other products: 5 -year limited warranty.
NOTE:
The option of a 10-year limited warranty can only be applied during the actual purchase of the product.
