Description

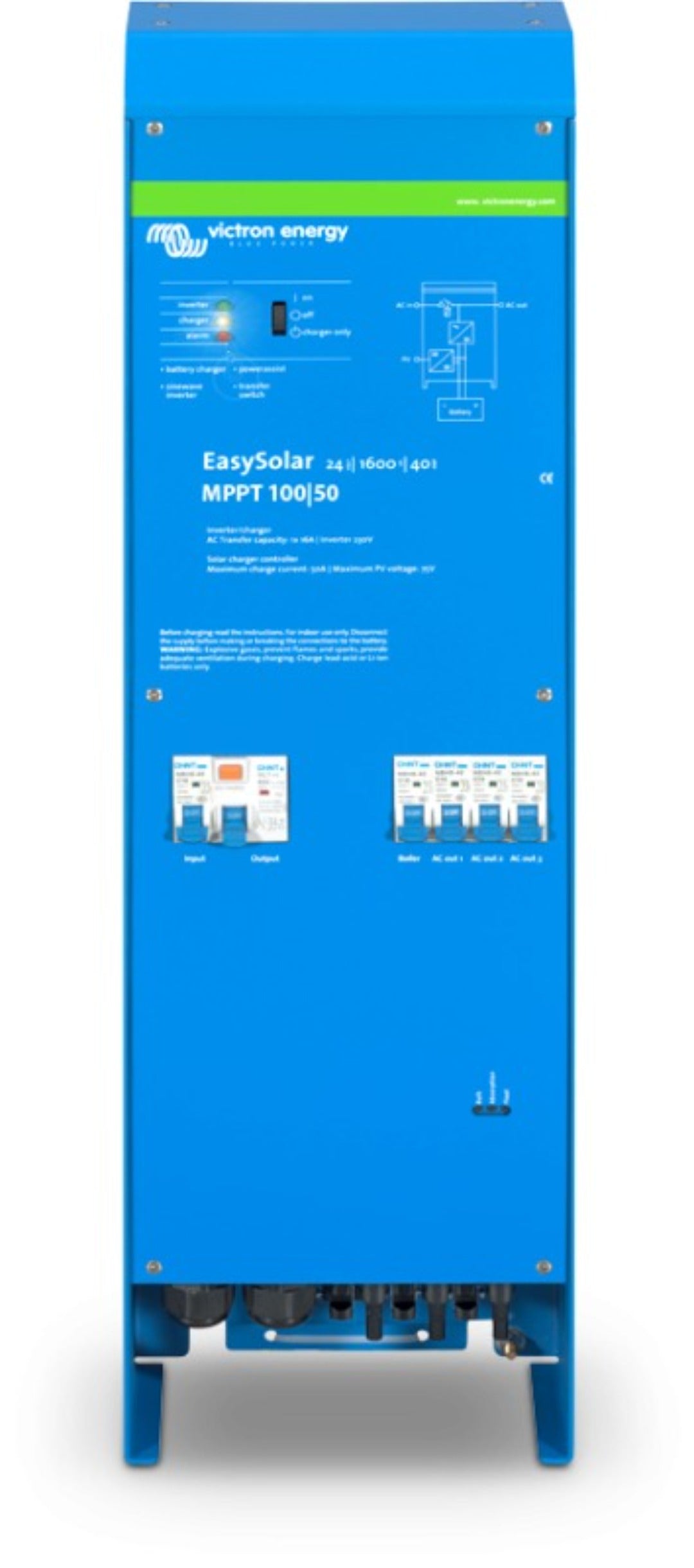

Victron Easysolar 12V 1600VA 70amp Inverter Charger, 5 Year Warranty. The EasySolar combines a MPPT Solar Charge Controller, an inverter/charger and AC distribution in one enclosure. The product is easy to install, with a minimum of wiring.
The EasySolar combines a MPPT solar charge controller, an inverter/charger and AC distribution in one enclosure. The product is easy to install, with a minimum of wiring.
The solar charge controller: Blue Solar MPPT 100/50

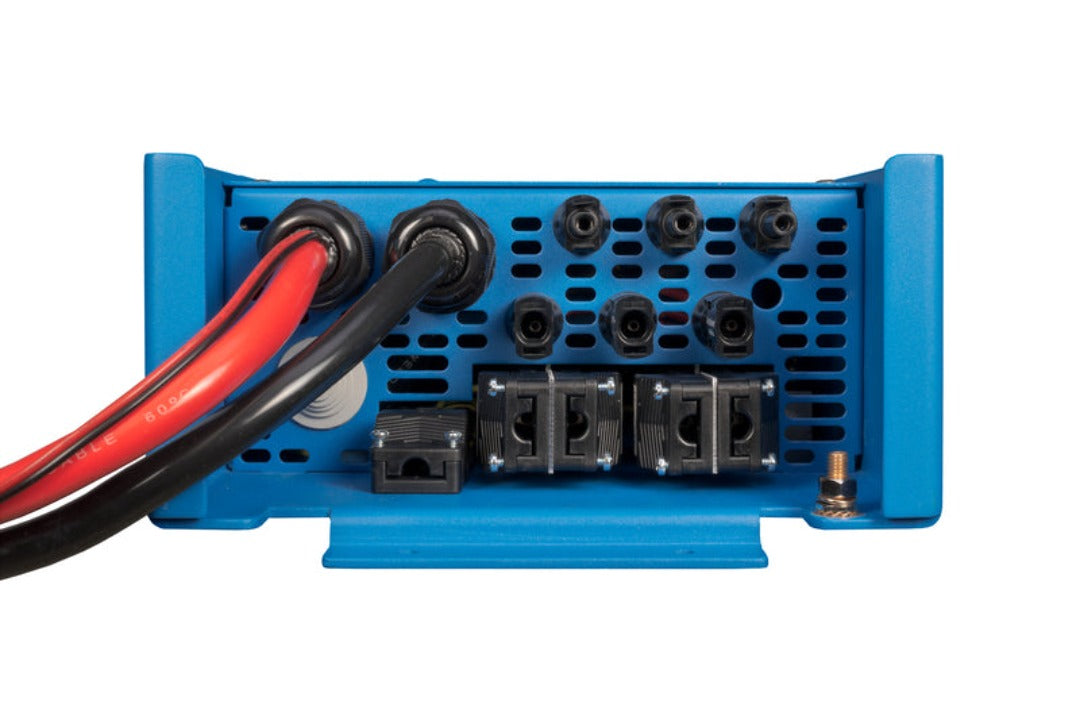

Up to three strings of PV panels can be connected to three sets of MC4 (PV-ST01) PV connectors.
The inverter/charger: MultiPlus Compact 12/1600/70 or 24/1600/40
The MPPT charge controller and the MultiPlus Compact inverter/charger share the DC battery cables (included). The batteries can be charged with solar power (BlueSolar MPPT) and/or with AC power (inverter/charger) from the utility grid or a genset.
AC distribution:
The AC distribution consists of a RCD (30 mA/16 A) and four AC outputs protected by two 10A and two 16A circuit breakers. One 16A output is controlled by the AC input: it will switch on only when AC is available.
PowerAssist:
Unique PowerAssist technology protects the utility or generator supply from being overloaded by adding extra inverter power when needed.
Unique solar application software:
Several software programs (Assistants) are available to configure the system for various grid interactive or stand-alone applications.
SPECIFICATIONS
WARRANTY
FEATURES
All-in-one solar power solution:
The EasySolar combines a MPPT solar charge controller, an inverter/charger and AC distribution in one enclosure. The product is easy to install, with a minimum of wiring.
The solar charge controller: Blue Solar MPPT 100/50
Up to three strings of PV panels can be connected to three sets of MC4 (PV-ST01) PV connectors.
The inverter/charger: MultiPlus Compact 12/1600/70 or 24/1600/40
The MPPT charge controller and the MultiPlus Compact inverter/charger share the DC battery cables (included). The batteries can be charged with solar power (BlueSolar MPPT) and/or with AC power (inverter/charger) from the utility grid or a genset.
AC distribution:
The AC distribution consists of a RCD (30 mA/16 A) and four AC outputs protected by two 10A and two 16A circuit breakers. One 16A output is controlled by the AC input: it will switch on only when AC is available.
PowerAssist:
Unique PowerAssist technology protects the utility or generator supply from being overloaded by adding extra inverter power when needed.
Unique solar application software:
Several software programs (Assistants) are available to configure the system for various grid interactive or stand-alone applications.
| Product Name |
Victron EasySolar Inverter/Charger/MPPT 12V/1600VA 70Amp cep121621000 |
| SKU | CEP121621000 |
| GTIN (Global Trade Item Number) | 8719076021599 |
| Brands | Victron |
| Product Category | Power Inverters |
| Model | CEP121621000 |
| Wattage | 1300W |
| Peak Power | 3000W |
| Output Voltage and Frequency | 230 VAC ± 2% | 50 Hz ± 0,1% |
| Protection | a) output short circuit b) overload c) battery voltage too high d) battery voltage too low e) temperature too high f) DC ripple too high |
| Input Voltage | 9,5 - 17V |
| Operating Temperature Range | -20 to +50°C (fan assisted cooling) |
| Humidity | Max 95% |
| AC Output | 16A |
| Charge voltage 'absorption' | 14,4V |
| Charge Voltage Float - Wet (25 degrees)** | 13,8V |
| Charge voltage 'storage' | 13,2V |
| No load power consumption | 8W | 2W (in search mode) |
| Dimensions | 745 x 214 x 110 |
| Battery-connection | Screw terminals |
WARRANTY
Victron Energy warrants its products to be free from defects in workmanship and materials for a period of Batteries: 2-year limited warranty Li-ion batteries: 3-year limited warranty All other products: 5-year limited warranty.
NOTE:
The option of a 10-year limited warranty can only be applied during the actual purchase of the product.
