Description

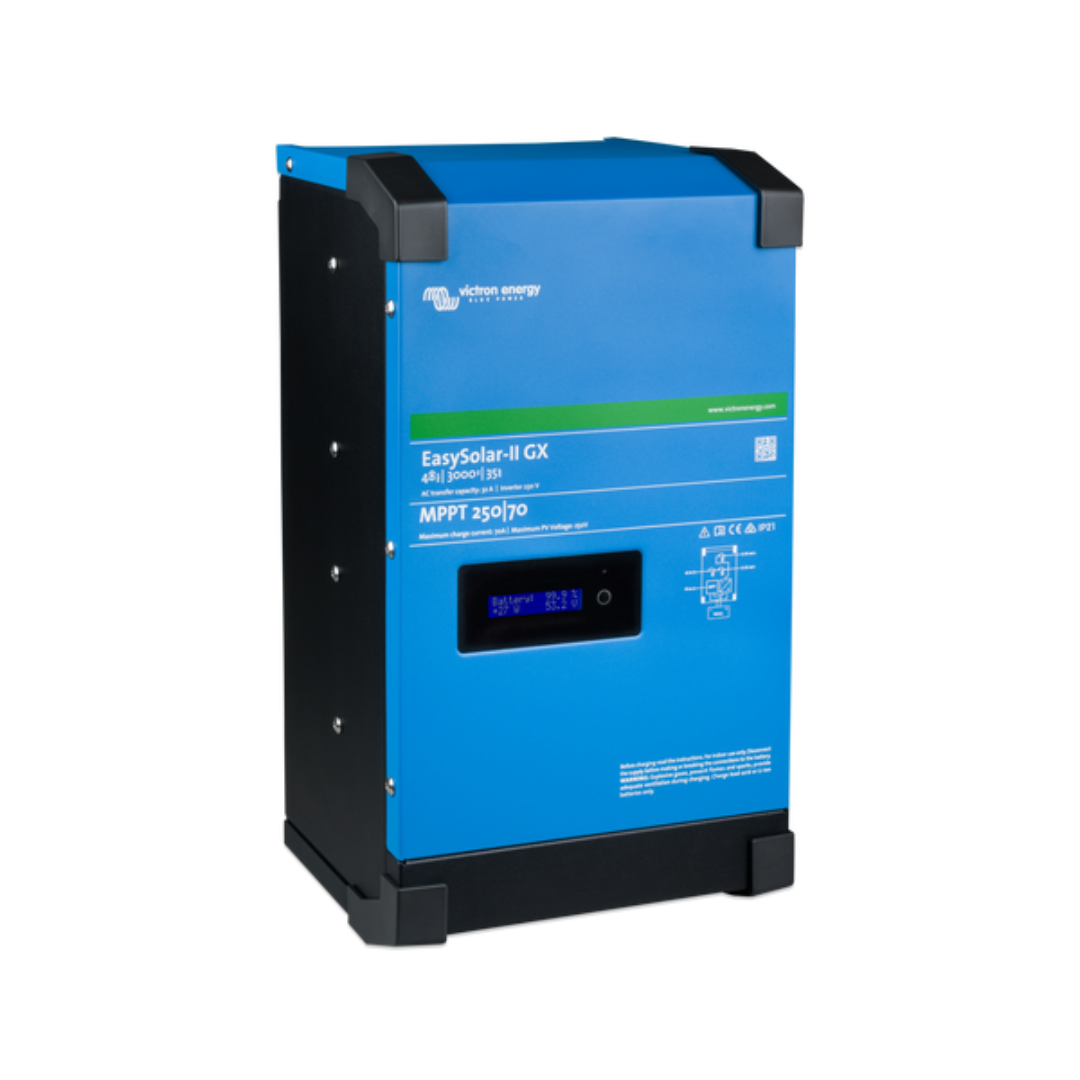

Victron EasySolar-II 48V / 3000VA / 35A Battery Charger with 32A AC Transfer Switch + MPPT 250/70 GX, 5 Year Warranty. The EasySolar combines a MPPT Solar Charge Controller, an inverter/charger and AC distribution in one enclosure. The product is easy to install, with a minimum of wiring.
WARRANTY
FEATURES
The all-in-one solar power solution:
The EasySolar combines a MPPT solar charge controller, an inverter/charger and AC distribution in one enclosure.
The product is easy to install, with a minimum of wiring.
Color Control panel:
Two outstanding functions:
Prioritizes battery charging by the MPPT charge controller
Connects to the internet, enabling remote monitoring (VRM website) and remote control.
AC distribution:
The AC distribution consists of a RCD (30mA / 63A) and four AC outputs protected by two 10A and two 16A circuit breakers.
An additional 16A output is controlled by the AC input: it will switch on only when AC is available.
PowerAssist:
Unique PowerAssist technology protects the utility or generator supply from being overloaded by adding extra inverter power when needed.
SPECIFICATIONS
| Product Name |
Victron EasySolar-II 48/3000/35-32 MPPT 250/70 GX PMP482307010 |
| SKU | PMP482307010 |
| GTIN (Global Trade Item Number) | 8719076045786 |
| Brands | Victron |
| Product Category | Solar Charge Controllers |
| Amps | 35.0 Amps |
| Model | EasySolar 24/3000/35-50 |
| AC Input Voltage | 187-265VAC |
| AC Input Frequency Range | 45-65Hz |
| Peak Power | 6000W |
| Operating Temperature Range | -40 to +65°C |
| Humidity | Max. 95% |
| Output Power | 2400W (continuous output power at 25°C) | 2200W (continuous output power at 40°C) | 1700W (continuous output power at 65°C) |
| Net Weight (kg) | 28.0 Kg |
| Charge voltage 'absorption' | 57.6V |
| Charge Voltage Float - Wet (25 degrees)** | 55.2V |
| Charge voltage 'storage' | 52.8V |
| No load power consumption | 25W | 12W in search mode |
| Input Voltage | 38-66V |
| Product Dimensions (mm) LxWxH | 218 x 258 x 810 |
WARRANTY
Victron Energy warrants its products to be free from defects in workmanship and materials for a period of: Batteries: 2 year limited warranty Li-ion batteries: 3 year limited warranty All other products: 5 -year limited warranty.
NOTE:
The option of a 10-year limited warranty can only be applied during the actual purchase of the product.
