Description

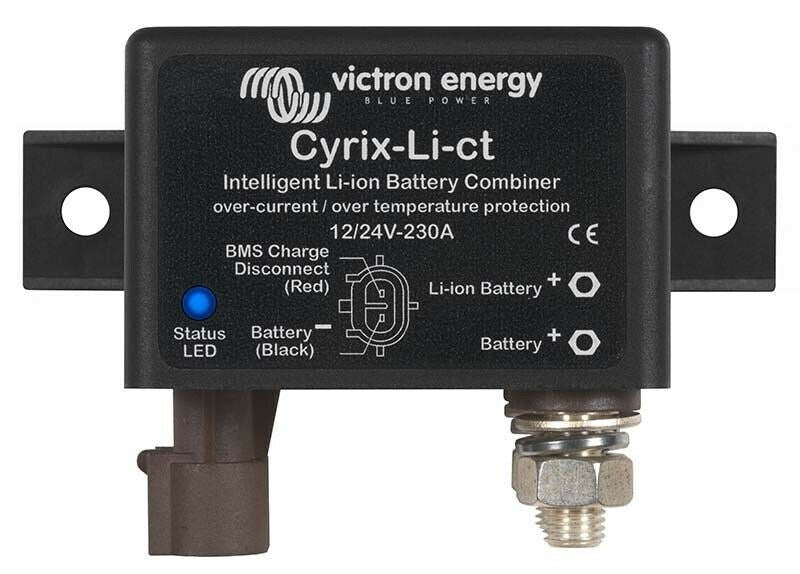

Victron Cyrix-Li-ct 12/24V-230A intelligent Li-ion battery combiner for charging lithium batteries from engine start batteries.
The functionality of the Cyrix-Li-ct is analogous to the Cyrix-ct.
The Cyrix-Li-ct will parallel connect a lead acid starter battery and a LiFePO4 battery:
- if the charge disconnect output of the VE.Bus BMS is high, and
- if it senses 13,4 V (resp. 26,8 V) or more on one of its power terminals
The Cyrix will disengage immediately:
- when its control output becomes free floating, signalling cell over voltage or cell over temperature, and/or
- when battery voltage drops below 13,2 V
Start assist function: a short positive pulse will close the relay during 30 seconds.
A built-in transient voltage suppressor will limit the voltage spike that may occur when the Cyrix suddenly disengages due to cell overvoltage or over temperature.
SPECIFICATIONS
| Brand |
Victron Energy |
|---|---|
| Manufacturer Part Number |
CYR010230412 |
| Voltage |
12/24 |
| Continuous current & Breaking capacity at 12V or 24V |
230A |
| Current Consumption When Open |
4 mA |
| Control Cable Included (Length 1 m) |
Yes |
| LED Status Indication |
Yes |
| Protection Category |
IP54 |
| Dimensions |
H65 x W100 x D50mm |
| Weight (kg) |
0.27 |
| Warranty |
5 Years |
WARRANTY
Victron Energy warrants its products to be free from defects in workmanship and materials for a period of: Batteries: 2 year limited warranty Li-ion batteries: 3 year limited warranty All other products: 5 -year limited warranty.
NOTE:
The option of a 10-year limited warranty can only be applied during the actual purchase of the product.
