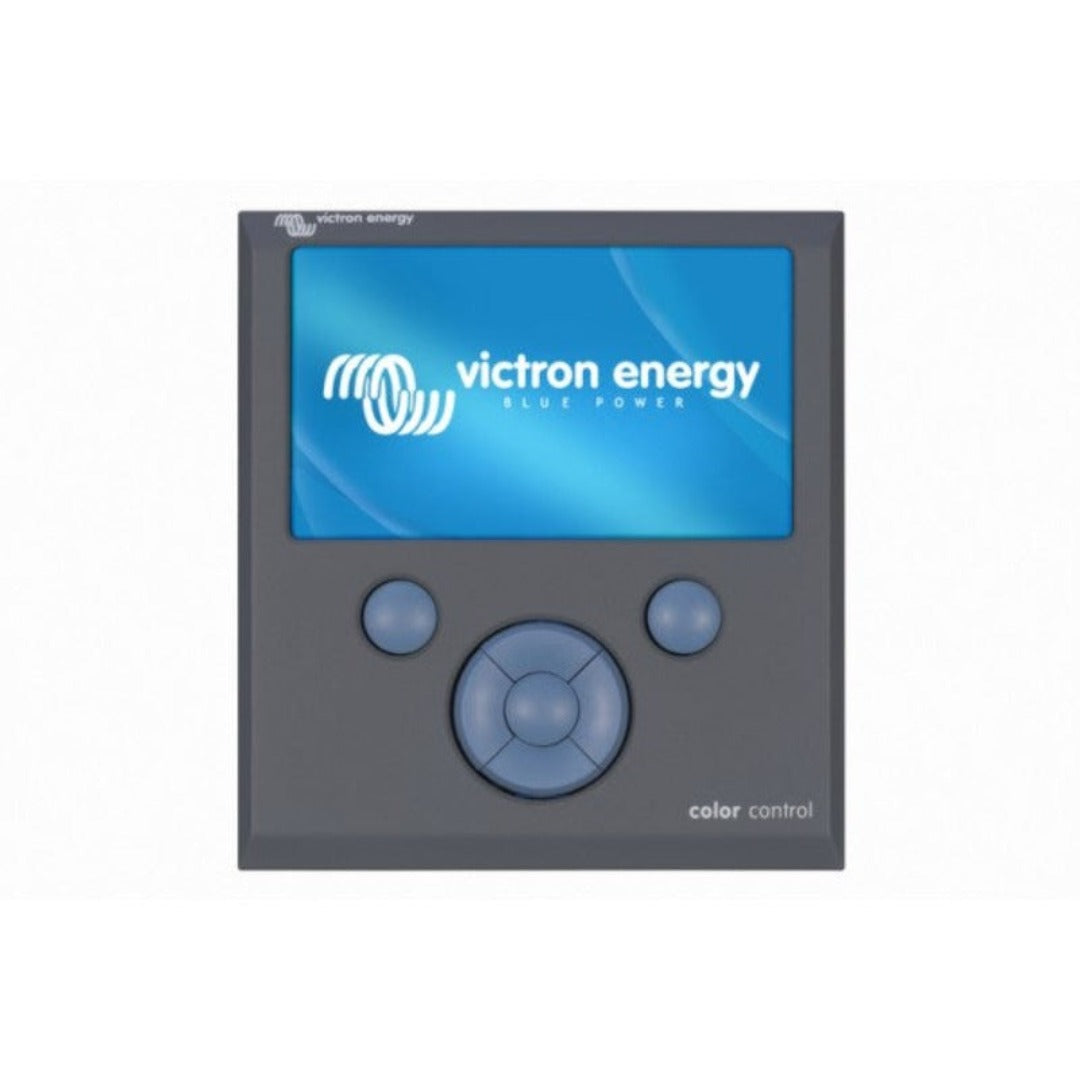

Victron Color Control GX BPP010300100R


Warranty Option: Standard 5 Years Warranty
Price:
Sale price$825.00

Description

Victron Color Control GX, 5 year warranty. Panels and system monitoring - The Color Control GX is the communication-centre of your installation. It offers at-a-glance live information, and lets you control all products connected to it. Full system control is gained - almost anywhere in the world - by accessing your Color Control GX using our free-to-use Victron Remote Management Portal (VRM).

FEATURES

Intuitive system overview - all you need to know:

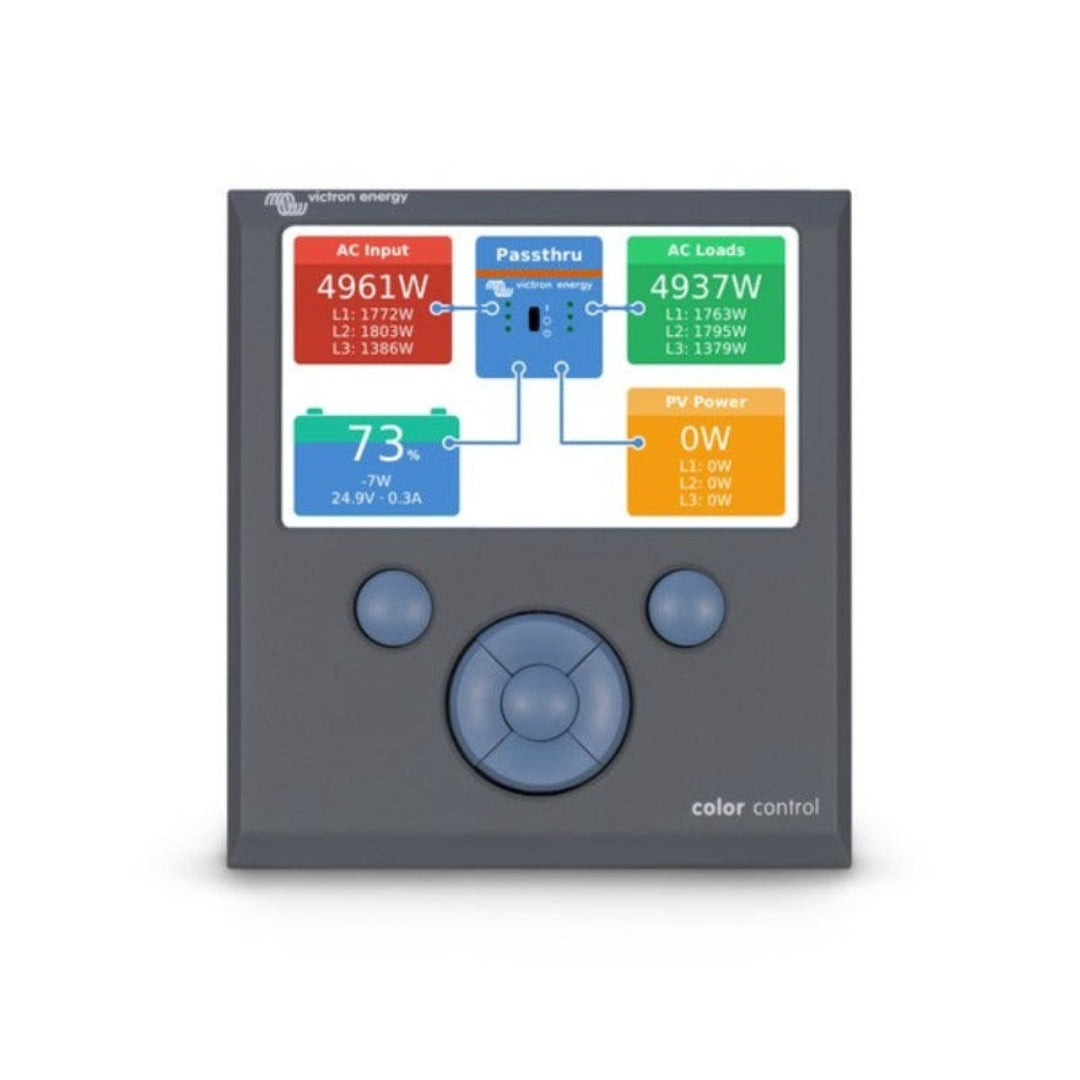

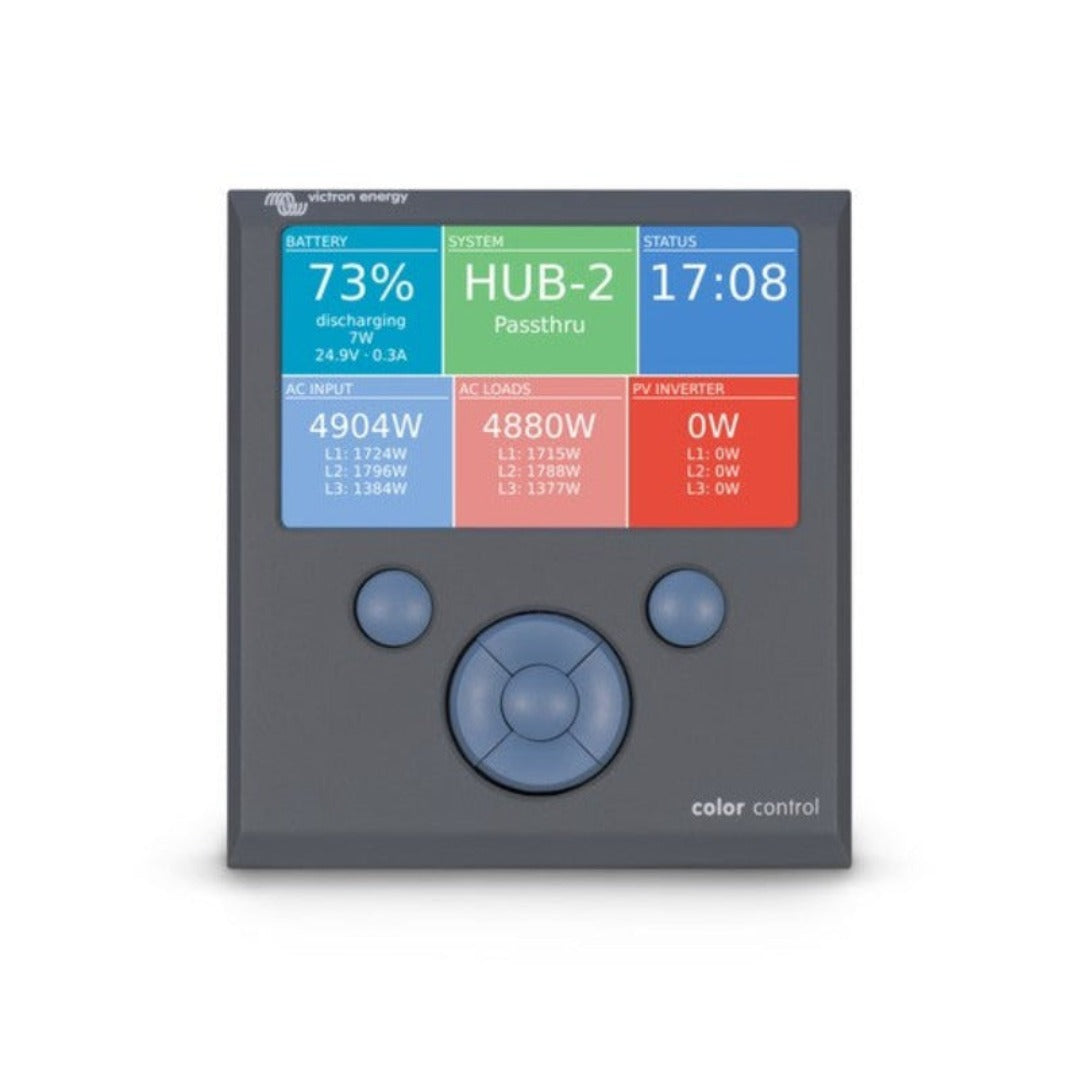

At a single touch, Color Control GX provides an instant overview of your system: battery state of charge; present power consumption; power harvest from PV; power provision from mains/generator.

The full power of Victron Remote Management:

Victron Remote Management (VRM) provides you with full access to the very extensive controls and settings of all system-components which are connected to either your CCGX or Venus GX. It allows remote user and installer login - from anywhere, at anytime. This powerful application also provides for hassle-free diagnostic checks and analysis of archived information.

Color Control GX:

The Color Control (CCGX) provides intuitive control and monitoring for all Victron power systems. The list of Victron products that can be connected is endless: Inverters, Multis, Quattros, MPPT solar chargers, BMV battery monitors, Lynx Ion + Shunt and more.

Remote Console on VRM:

Monitor, control and configure the CCGX remotely, over the internet. Just like standing in front of the device, everything can also be done remotely. The same functionality is also available on the local network, Remote Console on LAN.

Automatic genset start/stop:

A highly customizable start/stop system. Use state of charge, voltage, load and other parameters. Define a special set of rules for quiet times, and optionally a monthly test run.

The heart of ESS – Energy Storage System:

The CCGX is the Energy Manager in an ESS system.

Data logging:

When connected to the internet, all data is sent to the VRM Portal. When there is no internet connection available, the CCGX will store the data internally, up to 48 hours. By inserting a micro SDcard or USB stick, more data can be stored. These files can then be uploaded to the VRM Portal, or offline converted with the VictronConnect app, for analysis.

Supported products:
  • Multis and Quattros, including split-phase and three-phase systems. Monitoring and control (on/off and current limiter). Changing configuration is possible (only remotely via the internet, not without an internet connection).
  • BlueSolar MPPT Solar Chargers with a VE.Direct port.
  • BlueSolar MPPT 150/70 and the MPPT 150/85 with VE.Can port. When multiple BlueSolar MPPTs with VE.Can are used in parallel, the all information is combined as one.
  • BMV-700 family can be connected directly to the VE.Direct ports on the CCGX. Use the VE.Direct Cable for this.
  • BMV-600 family can be connected to the VE.Direct ports on the CCGX. Requires an accessory cable.
  • Lynx Ion + Shunt
  • Lynx Shunt VE.Can
  • Skylla-i battery chargers
  • NMEA2000 tank sensors

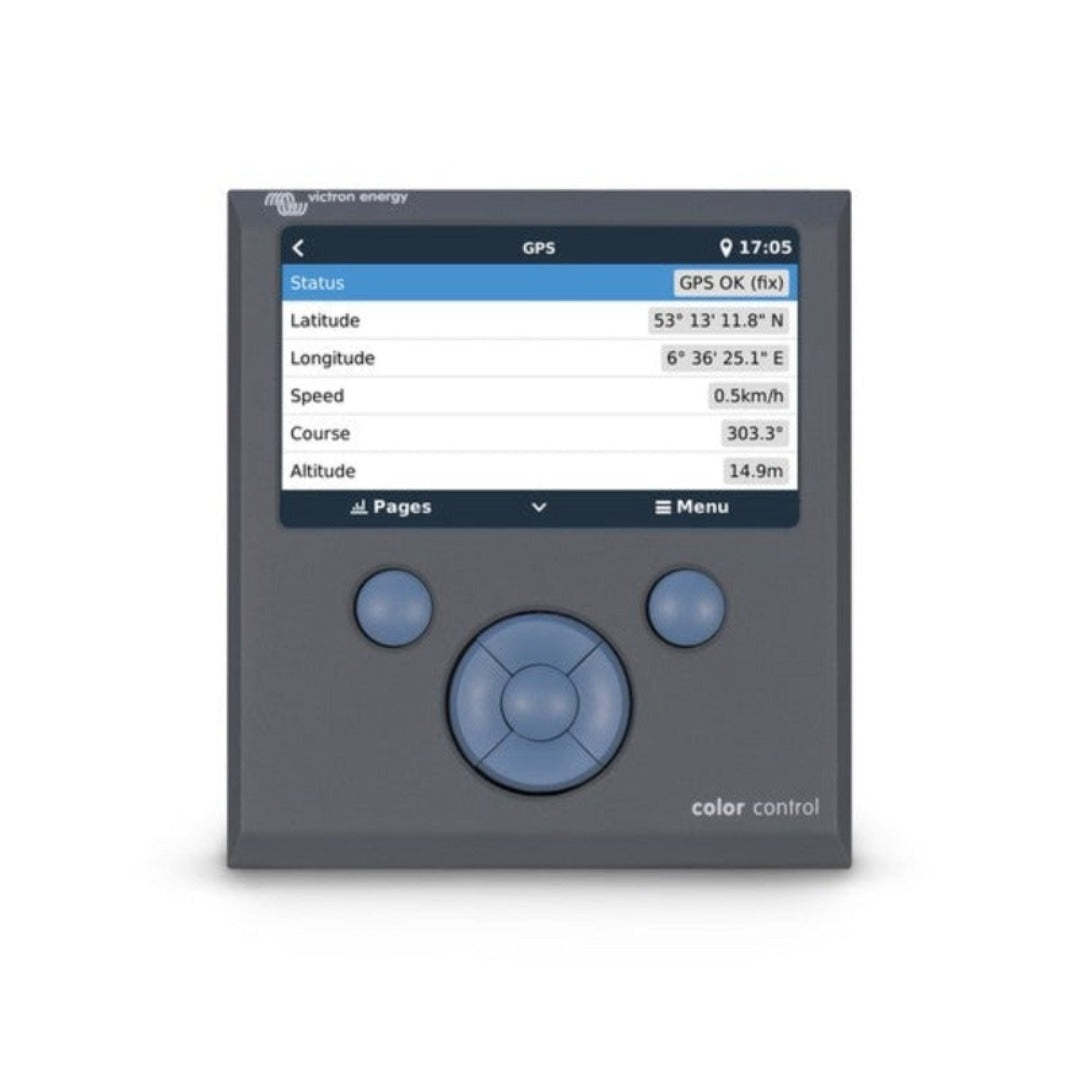

  • A USB GPS can be connected to the USB port. Location and speed will be visible on the display, and the data is sent to the VRM Portal for tracking purposes. The map on VRM will show the latest position.
  • Fronius PV Inverters
When more than two VE.Direct products must be connected, USB can be used.

Internet connection:

The CCGX can be connected to internet with an Ethernet cable and via Wi-Fi. To connect via Wi-Fi, a Wi-Fi USB accessory is required. The CCGX has no internal cellular modem: there is no slot for a simcard. Use an off-the-shelf GPRS or 3G router instead. See the blog post about 3G routers.

Other highlights:

The CCGX can automatically update itself from the internet, when there is a new software version available.
Multiple languages: English, Czech, German, Spanish, French, Italian, Dutch, Russian, Swedish, Turkish, Chinese, Arabic.
Use the CCGX as a Modbus-TCP gateway to all connected Victron products. See our ModbusTCP FAQ for more information.
Powered by the Venus OS – embedded linux.

SPECIFICATIONS

Product Name Victron Color Control GX BPP010300100R
SKU BPP010300100R
GTIN (Global Trade Item Number) 8719076038344
Brands Victron
Product Category Batteries Other
Supply Voltage Range 8 – 70V DC
Current Draw 12V DC
Operating Range (temp) -20 to +50°C
Dimensions 130 x 120 x 28 (H x W x D)
Safety EN 60950-1:2005+A1:2009+A2:2013
Emission / Immunity EN 55014-1 / EN 55014-2
Battery Automotive E4-10R-053535
NOTE iPhone is not included.
Manufacturers Warranty 5 Years

WARRANTY

Victron Energy warrants its products to be free from defects in workmanship and materials for a period of: Batteries: 2 year limited warranty Li-ion batteries: 3 year limited warranty All other products: 5 -year limited warranty.

NOTE:

The option of a 10-year limited warranty can only be applied during the actual purchase of the product.
