Description

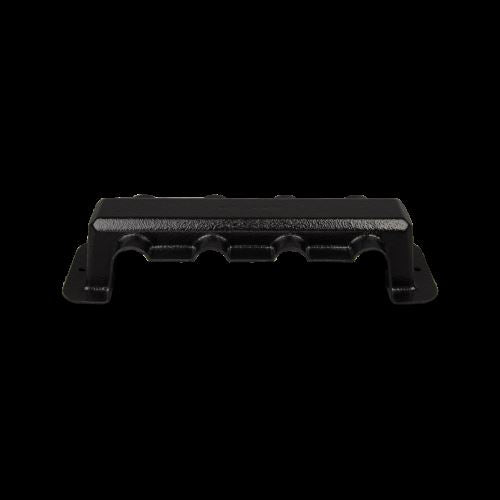

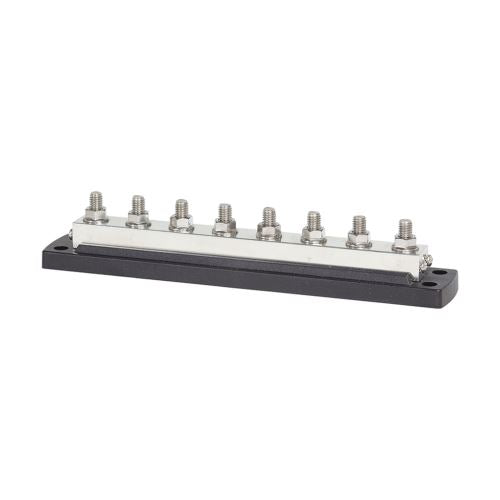

Victron busbars are used for high current distribution and at the same time they provide connections for batteries and/or DC equipment. We offer a number of busbars with different current ratings, and a different number of connection terminals. Each busbar is fitted out with a removable protection cover.
Busbars are used to consolidate multiple wires or feed multiple circuits. Inserted molded stainless steel studs eliminate the need for securing nut and allow high torquing for excellent electrical contact. Raised bus provides easy access to multiple wires on a single base. Mounting holes eliminate accidental shorts to aluminum and steel mounting surfaces. They are also a neat and tidy, yet professional way of cleaning up your battery compartment so that don't have as many cables on your battery terminals.
SPECIFICATIONS
Max current: 600A
Max voltage: 70VDC
Terminal & flange nut material: Stainless steel
Terminal diameter: 3/8 inch / 9.53mm
Base material: ABS, black, UL 94 V-0
Cover material: ABS black, UL 94 V-2
Weight (kg): 1.3
Dimensions with cover (mm) HxWxD: 65x327x86
WARRANTY
Victron Energy warrants its products to be free from defects in workmanship and materials for a period of: Batteries: 2 year limited warranty Li-ion batteries: 3 year limited warranty All other products: 5 -year limited warranty.
NOTE:
The option of a 10-year limited warranty can only be applied during the actual purchase of the product.
