Description

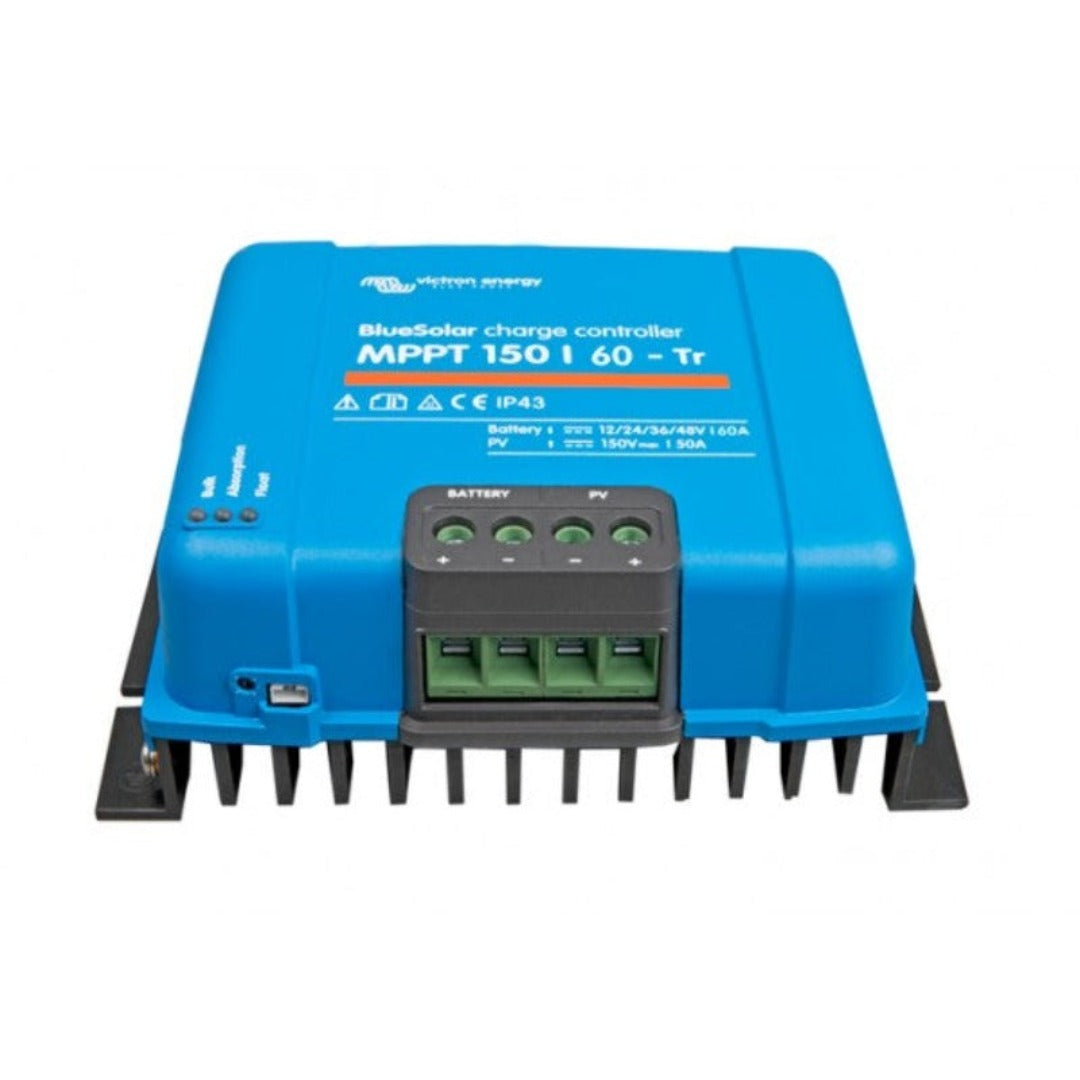

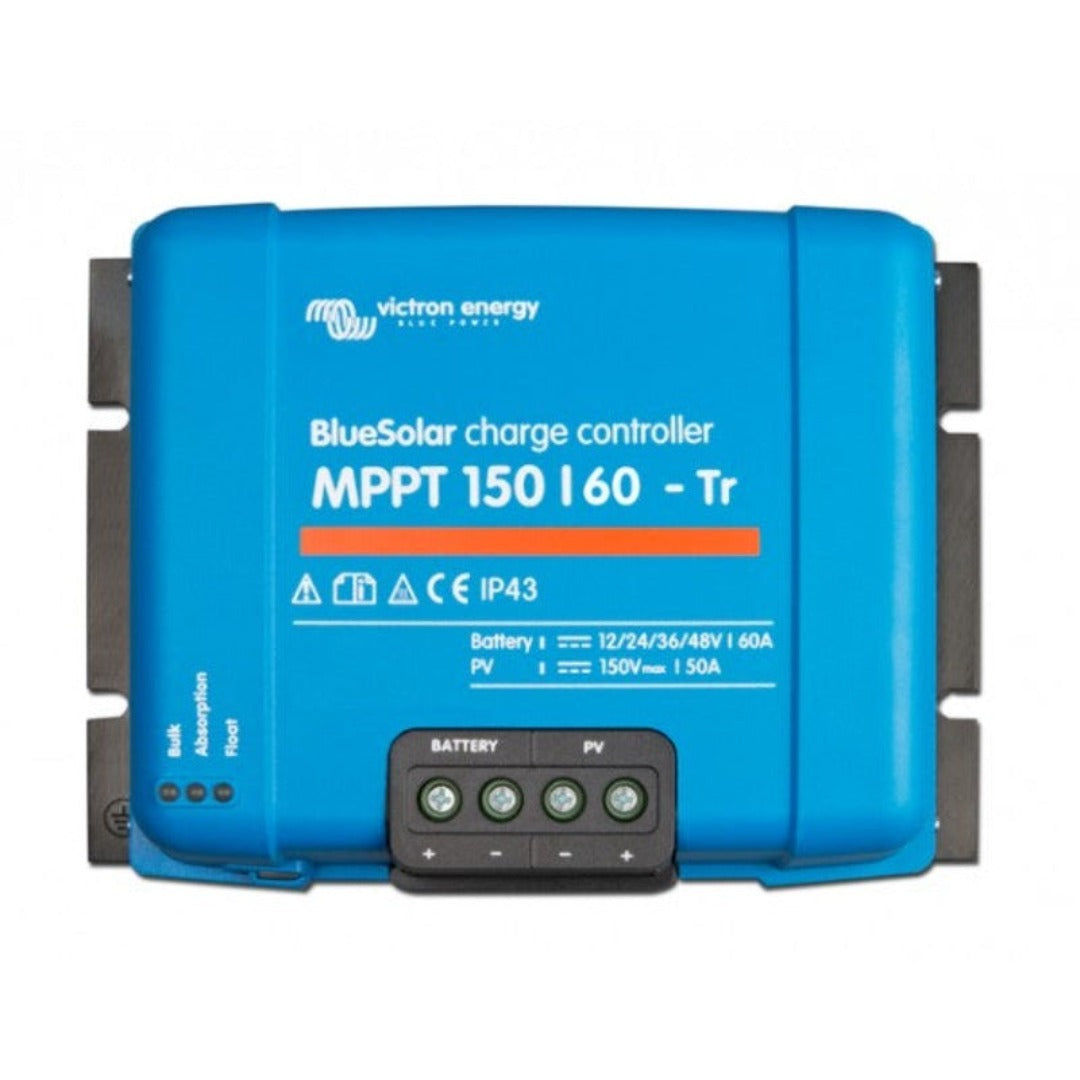

Victron BlueSolar MPPT 150 VOC / 60A Charge Controller, 5 year warranty. A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, BlueSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. BlueSolar maintains battery health, extending its life.
FEATURES
MPPT: Ultra Fast Maximum Power Point Tracking:
By constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels, and harvested for storage. The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing.
Remote Monitoring and Control:
Remotely control and monitor the extensive features of your BlueSolar MPPT charger by attaching a bluetooth dongle and pairing it with your smartphone or other device via VictronConnect. If your installation is connected to the internet Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; both services are free to use. For remote installations - even when there is no internet connection or phone signal nearby - you may be able to monitor your MPPT by bluetooth-pairing with a LoRaWAN(long-range wide area network) device, available optionally.
Ultra-fast Maximum Power Point Tracking (MPPT):
Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.
Advanced Maximum Power Point Detection in case of partial shading conditions:
If partial shading occurs, two or more maximum power points may be present on the power-voltage curve. Conventional MPPTs tend to lock to a local MPP, which may not be the optimum MPP. The innovative BlueSolar algorithm will always maximize energy harvest by locking to the optimum MPP.
Outstanding conversion efficiency:
No cooling fan. Maximum efficiency exceeds 98%.
Flexible charge algorithm:
Fully programmable charge algorithm, and eight pre-programmed algorithms, selectable with a rotary switch (see manual for details).
Extensive electronic protection:
Over-temperature protection and power derating when temperature is high. PV short circuit and PV reverse polarity protection. PV reverse current protection.
Internal temperature sensor:
Compensates absorption and float charge voltage for temperature.
Real-time data display options:
Color Control GX or other GX devices
A smartphone or other Bluetooth-enabled device: VE.Direct Bluetooth Smart dongle needed.
SPECIFICATIONS
| Product Name |
Victron BlueSolar MPPT Charge Controller 150/60-Tr SCC010060200 |
| SKU | SCC010060200 |
| Brands | Victron |
| Product Category | Solar Charge Controllers |
| Amps | 60.0 Amps |
| Model | BlueSolar MPPT 150/60 |
| Float | Default setting: 13,8 / 27,6 / 41,4 / 55,2V (adjustable) |
| Voltage | 12 / 24 / 48V Auto Select (software tool needed to select 36V) |
| Nominal PV Power | 12V: 860W | 24V: 1720W | 48V: 3440W |
| Efficiency | 98% Max. |
| Operating Temperature Range | -30 to +60°C (full rated output up to 40°C) |
| PV Short Circuit Current | 50A |
| Humidity | 95%, non-condensing |
| Dimensions (LxWxH mm) | Tr Model: 95 x 250 x 185 | MC4 Model: 95 x 250 x 215 |
| Charge voltage 'absorption' | Default setting: 14,4 / 28,8 / 43,2 / 57,6V (adjustable) |
| Temperature Compensation | -16 mV / -32 mV / -64 mV / °C |
| Protection | Battery reverse polarity (fuse, not user accessible): PV reverse polarity / Output short circuit / Over temperature |
| Weight (kg) | 3 |
| Manufacturers Warranty | 5 Years |
WARRANTY
Victron Energy warrants its products to be free from defects in workmanship and materials for a period of: Batteries: 2 year limited warranty Li-ion batteries: 3 year limited warranty All other products: 5 -year limited warranty.
NOTE:
The option of a 10-year limited warranty can only be applied during the actual purchase of the product.
