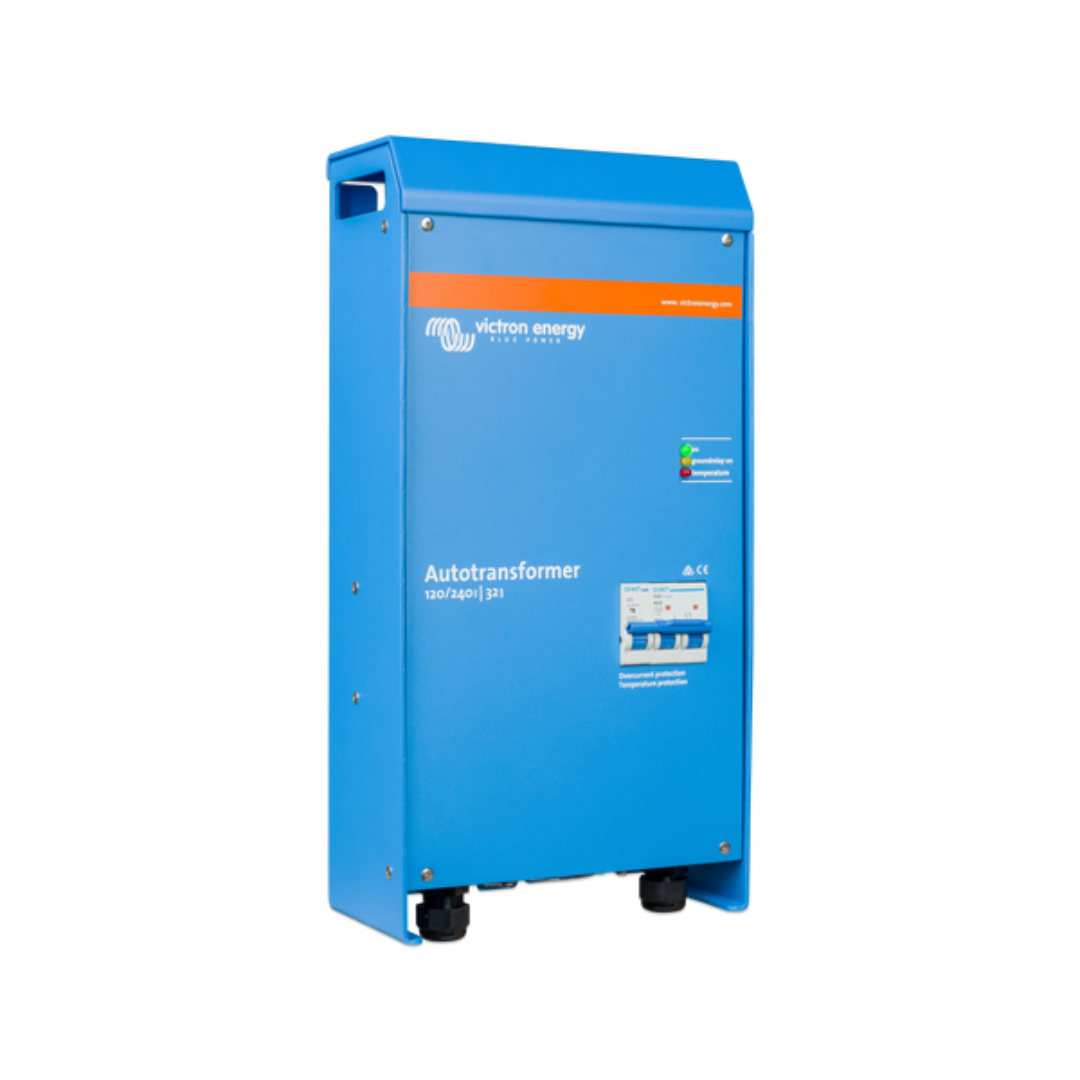

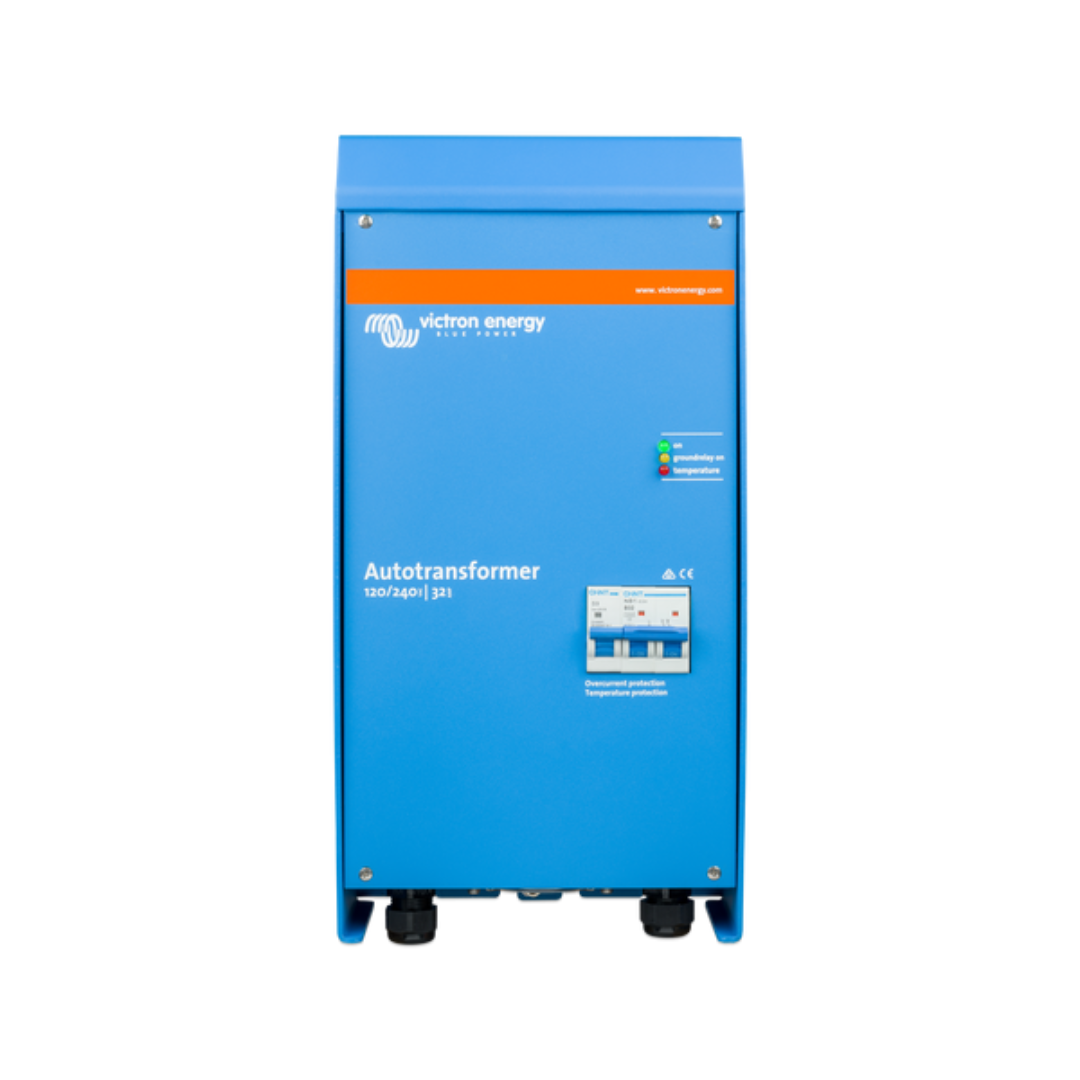

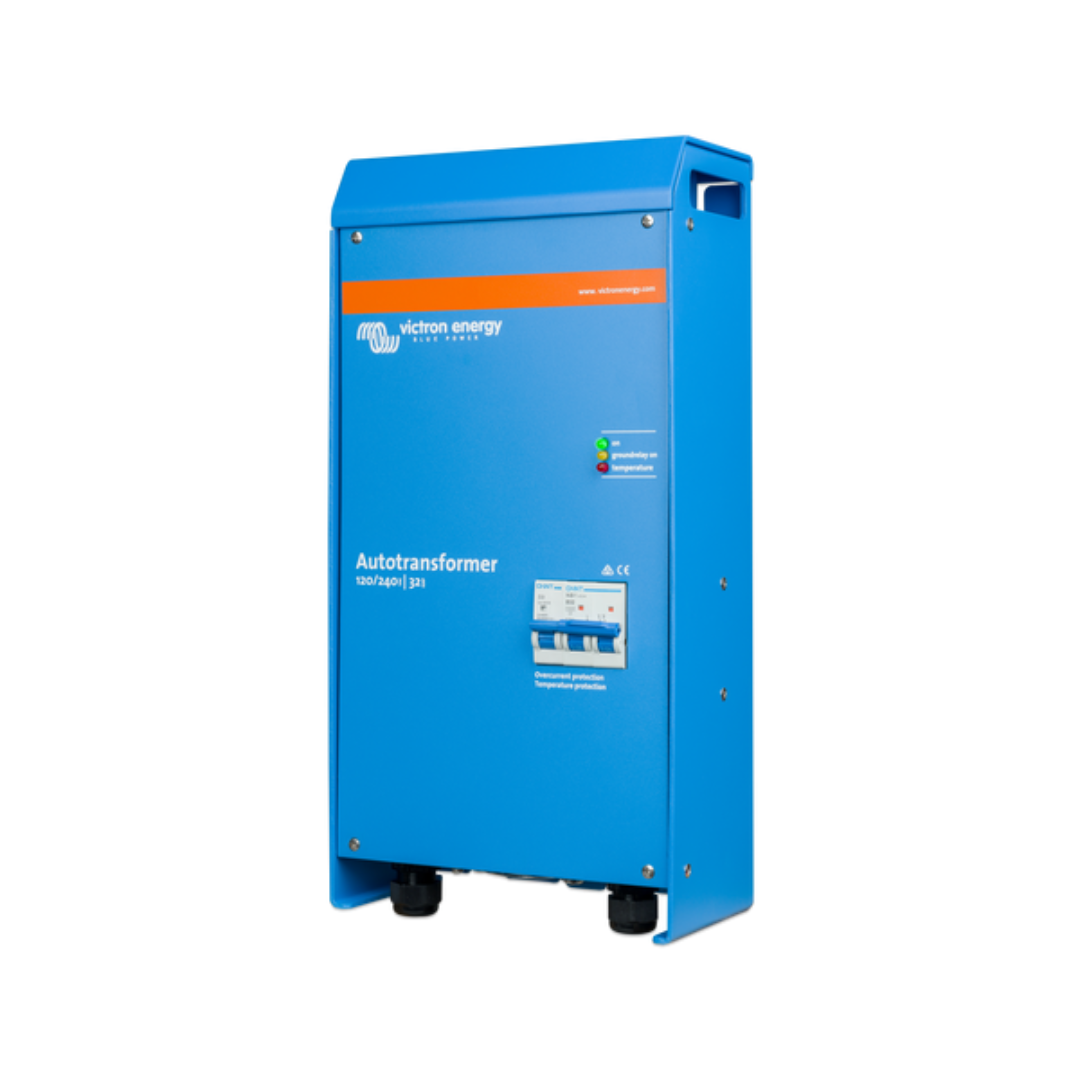

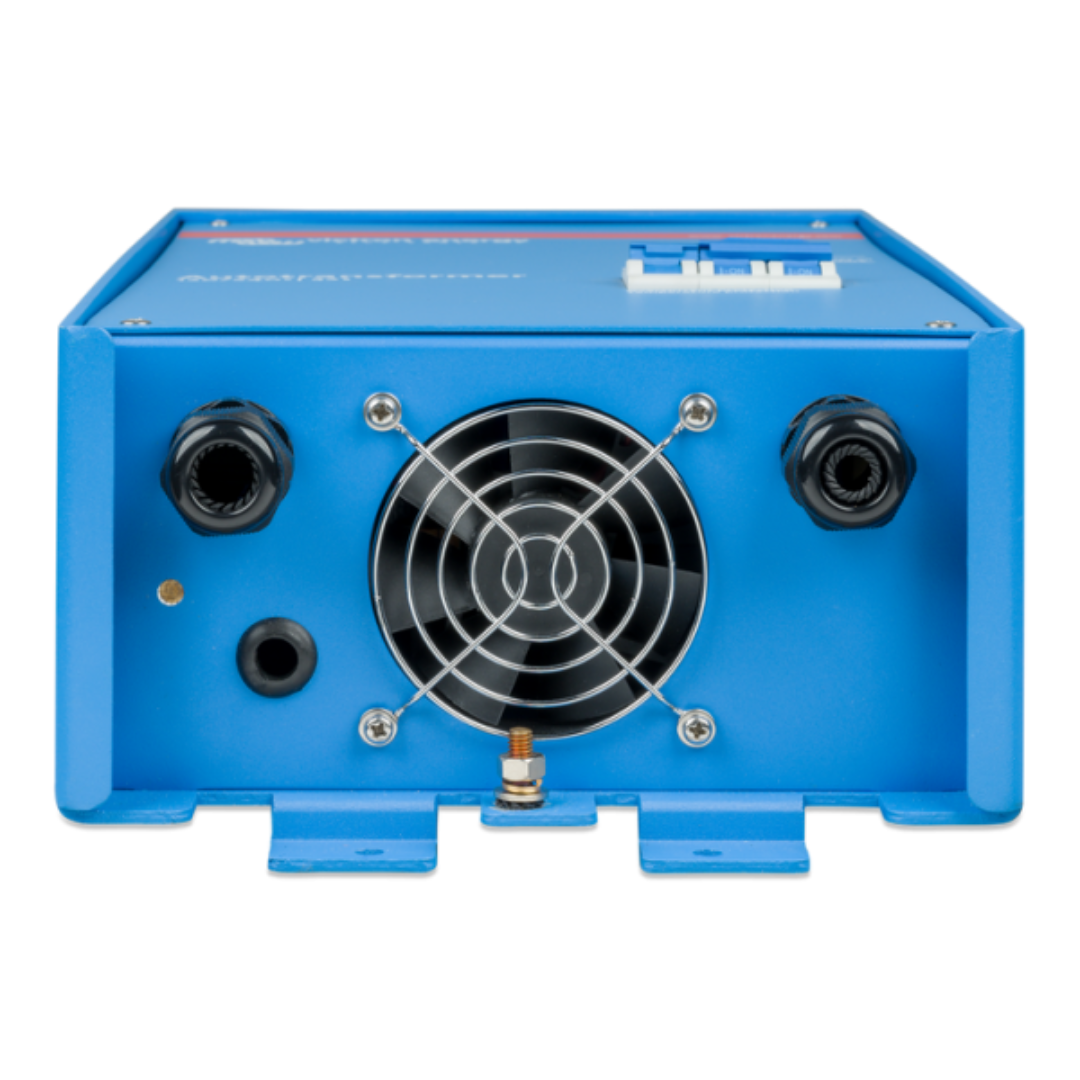

Victron Autotransformer 120/240VAC 32A ITR000100001


Warranty Option: Standard 5 Years Warranty
Price:
Sale price$1,139.00

Description

Victron Autotransformer 120/240VAC-32A, 5 Year Warranty. An Autotransformer can be used for step up, step down and split phase output balancing purposes. While the step up and step down functions are fairly straightforward, split phase output balancing may require some more attention.

FEATURES

The Autotransformer: for a step up, step down and split phase balancing:

An autotransformer can be used for step up, step down, and split phase output balancing purposes. While the step up and step down functions are fairly straightforward, split phase output balancing may require some more attention.

Ground relay for use with Multi or Quattro Inverter/Chargers included:

When operating in inverter mode, the neutral output of the inverter/charger must be connected to the ground to guarantee the proper functioning of a GFCI. In case of a split-phase supply the neutral must be grounded.

Temperature protected:

In case, of overheating, the Autotransformer is disconnected from the supply. The reset is manual.

An alternative to stacked inverters:

The alternative to stacking two 120V inverters to provide a 120/240V split phase supply is a 240V inverter with an additional Autotransformer.

SPECIFICATIONS

Product Name Victron Autotransformer 120/240VAC 32A ITR000100001
SKU ITR000100001
GTIN (Global Trade Item Number) 8719076022404
Brands Victron
Product Category Batteries Other
Dimensions 110 mm x 214 mm x 375 mm
Enclosure Class Aluminium
Net Weight (kg) 12.5 Kg
Maximum Charge Current 32A
Input Voltage 120 / 240V
Manufacturers Warranty 5 Years

WARRANTY

Victron Energy warrants its products to be free from defects in workmanship and materials for a period of: Batteries: 2 year limited warranty Li-ion batteries: 3 year limited warranty All other products: 5 -year limited warranty.
NOTE:
The option of a 10-year limited warranty can only be applied during the actual purchase of the product.
