Description

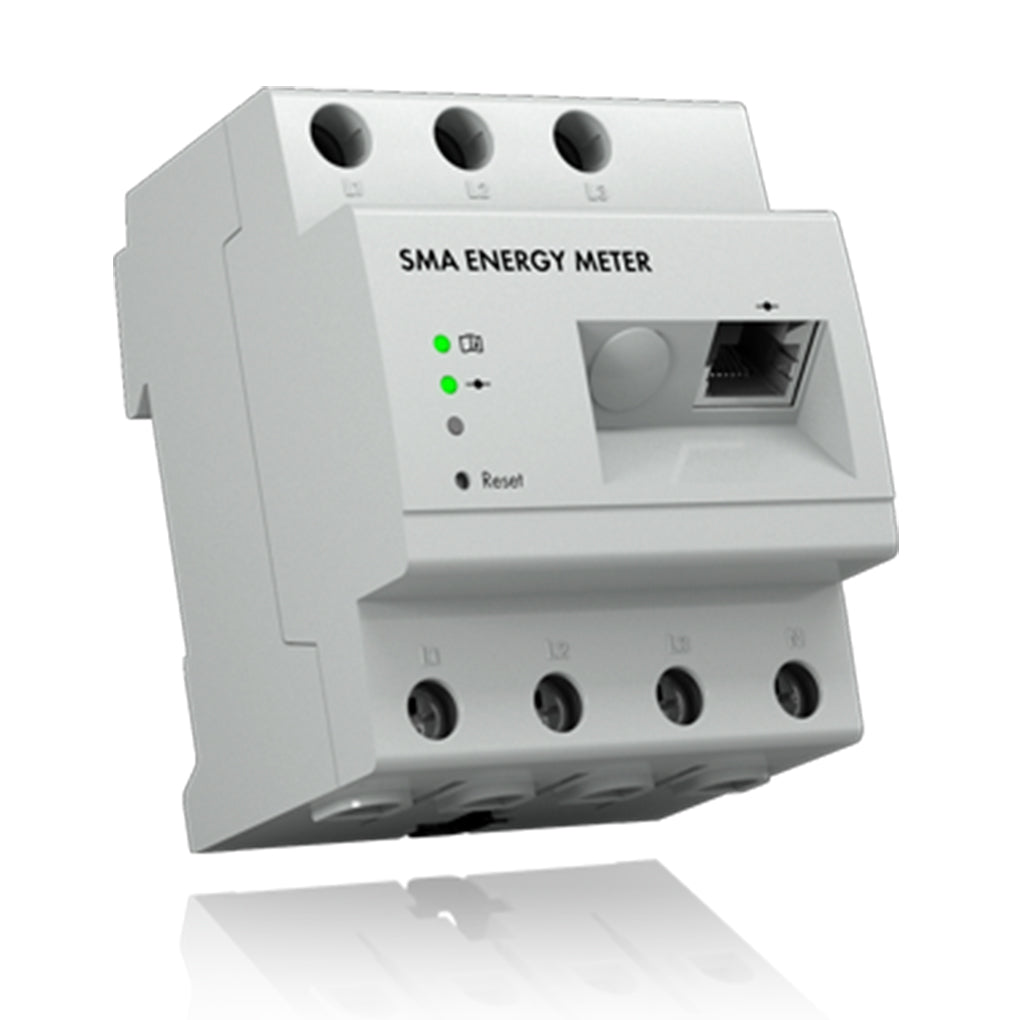

A high-performance measurement solution for intelligent energy management in PV systems with SMA devices. The SMA Energy Meter calculates phase-exact and balanced electrical measured values and communicates these via Ethernet in the local network. In this way, all data on grid feed-in and purchased electricity as well as PV generation by other PV inverters can be communicated to SMA systems frequently and with a high level of precision.
Integrating the SMA Energy Meter establishes, in all systems, an ideally coordinated system configuration that guarantees the highest performance and stability with the best cost savings and increased self-consumption.
FEATURES
Easy to Use
- Quick plug and play installation
- Local WebUI
- Graphic visualization of current measured values in connection with the Sunny Boy inverter in Sunny Portal
Flexible
- Space-saving, top-hat rail mounting in household distribution thanks to compact enclosure
- Flexible use in applications > 63 A thanks to external current transformers
- Suitable for universal use regardless of existing energy meter
High Performance
- Fast three-phase, bidirectional reading for effective energy management*
- Ideal coordination with SMA devices to ensure control tasks are carried out stably
* Can also be used in single-phase systems.
SPECIFICATION
| Technical Data | SMA Energy Meter |
| Communication | |
| Connection to the local router | via Ethernet cable (10/100 Mbit/s, RJ45 plug) |
| Inputs (voltage and current) | |
| Nominal voltage | 230 V/400 V |
| Frequency | 50 Hz/±5% |
| Nominal current / limiting current per line conductor |
5 A/63 A (>63 A can be connected via external current transformers)
|
| Start-up current | < 25 mA |
| Connection cross-section | 10 mm² to 16 mm² 1) (for 63 A fusing) |
| Torque for screw terminals | 2.0 Nm |
| Ambient Conditions in Operation | |
| Ambient temperature | –25°C to +40°C |
| Storage temperature range | –25°C to +70°C |
| Protection class (according to IEC 62103) | II |
| Degree of protection (according to IEC 60529) | IP2X |
| Max. permissible value for relative humidity (non-condensing) | 5% to 90% 2) |
| Elevation above MSL | 0 m to 2000 m |
| General Data | |
| Dimensions (W/H/D) | 70 mm/88 mm/65 mm |
| Top hat-rail width units | 4 |
| Weight | 0.3 kg |
| Mounting location | Switch or meter cabinet |
| Mounting type | Top-hat rail mounting |
| Status display | 2 LEDs |
| Self-consumption | < 3 W |
| Measurement accuracy, measuring cycle | 1%, 1000 ms |
| Type designation | EMETER-20 |
| Warranty | 2 years |
