Description
FEATURES
Quick and easy
- Easy integration of devices
- Centralized commissioning of all integrated components
Future-proof and flexible
- Flexibly expandable anytime
- Access to the energy market of the future based on ennexOS
Functional
- Complies with international grid integration requirements
- Combine storage systems, energy generators and e-mobility
Reliable and convenient
- Remote monitoring and parameterization possible
- Detailed analytics, error messages and reporting through Sunny Portal
SPECIFICATION

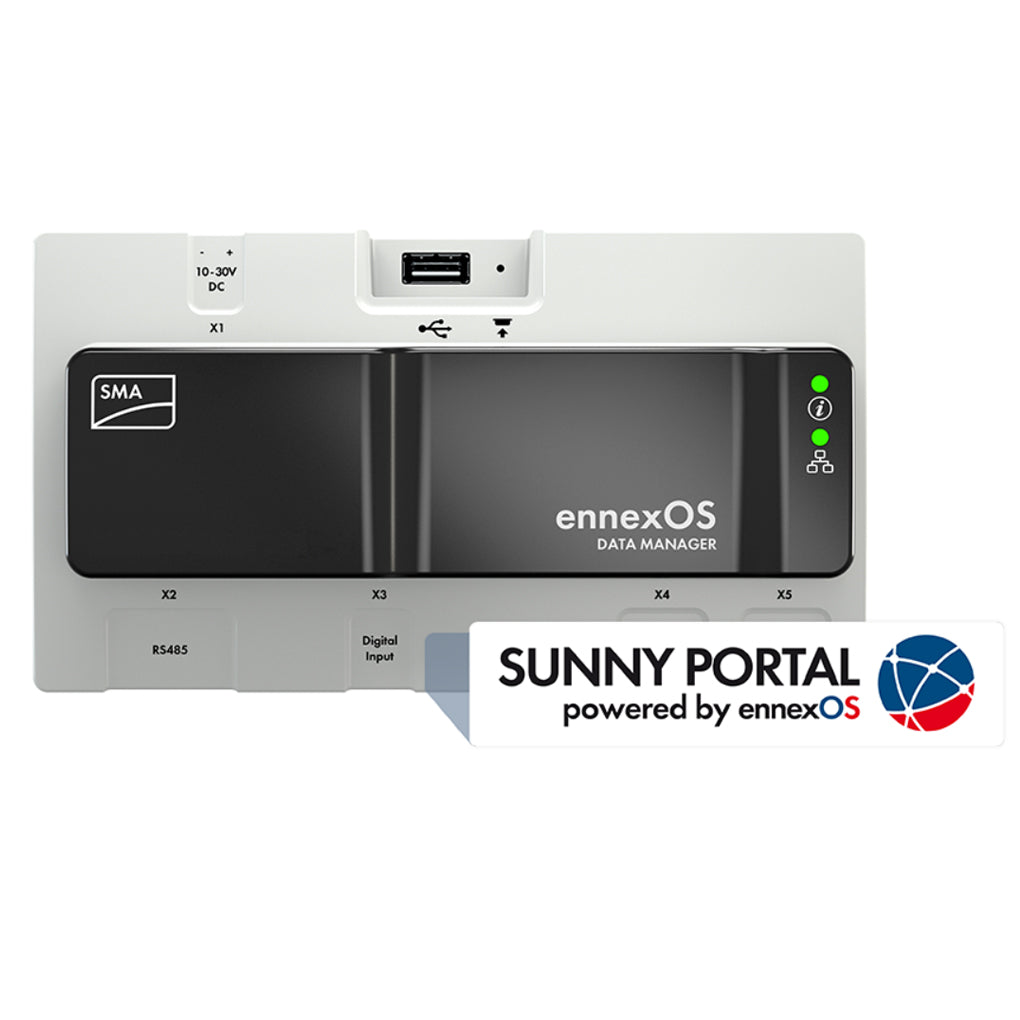

| Technical data | SMA DATA MANAGER M |
| Master data | |
| Total number of supported devices - of which: | 50 |
| Maximum number of supported PV inverters | 50 |
| Maximum number of supported PV inverters via Modbus Sunspec (e.g., SMA CORE2) | 20 |
| Maximum number of supported battery inverters | 50 |
| Maximum number of supported energy meters (electric current and gas), generators from energy meters, I/O systems, sensors |
50 |
| Maximum system power PV inverters (nominal AC power) | 2.5 MVA (Closed-loop control) 7.5 MVA (Open-loop control or only monitoring) |
|
Maximum system power battery inverters (nominal AC power)
|
2.5 MVA (Closed-loop control) 7.5 MVA (Open-loop control or only monitoring) |
| Automatic data recording for virtual generators from energy meters (PV inverter, combined heat and power plant, gas meter, diesel generator, hydroelectric power plant) |
● |
| Connections | |
| Voltage supply | 2-pin connection, MINI COMBICON |
| RS485 | 6-pin connection, MINI COMBICON |
| Network (LAN) | 2 x RJ45, switched, 10 BaseT/100 BaseT |
| USB (for product updates) | 1 x USB 2.0, type A |
| WLAN access point for commissioning and access to the user interface | ▲ |
| Voltage supply | |
| Voltage supply |
External power supply unit (available as an accessory)
|
| Input voltage | 10 V to 30 V DC |
| Power consumption | Typically 4 W |
| Ambient conditions during operation | |
| Environment | Restricted class 3K7 reg. IEC60721-3-3 |
| Ambient temperature | –20 °C to +60 °C |
| Permissible range for relative humidity (non-condensing) | 5% to 95% |
| Maximum operating altitude above MSL | 0 m to 3,000 m (≥70 kPa) |
| Degree of protection according to IEC 60529 | IP20 (NEMA 1) |
| General data | |
| Dimensions (W/H/D) | 161.1 mm / 89.7 mm / 67.2 mm |
| Weight | 220 g |
| Mounting location | Indoors |
| Mounting type | Top-hat rail mounting / wall mounting |
| Status display | LEDs for system and communication status |
| Features | |
| Warranty | 2 years |
| Accessories (optional) | |
| Top-hat rail power supply unit |
Input: 100 V to 240 V AC / 45 Hz to 65 Hz / Output: 24 V
|
| Plug-in power supply | ● |
| Communication / protocols | |
| FTP push (daily / hourly) | ● / ● |
| WLAN access to the customer network | - |
| SMA Data2+ / SMA Data | ● / ● |
| EtherLynx for Danfoss for TLX & FLX | ● |
| Client: Modbus/RTU, Modbus/TCP (also Sunspec) | ● |
| Server: Modbus/TCP | ● |
| Commissioning | |
| Assistant for local commissioning of connected devices | ● |
| Assistant for parameterization of SMA products connected via Speedwire | ● |
| Remote parameterization of SMA devices with Sunny Portal | ● |
| Updates | |
| Self-update and connected Speedwire devices via USB | ● |
| Self-update and connected Speedwire devices via SMA Update Portal | ● |
| Grid management services | |
| Closed-loop control and open-loop control of other SMA Data Managers (master/slave) | ● |
| Free configuration of a grid-connection meter (measurement at the point of interconnection) | ● |
| Direct selling via SMA SPOT (Germany) | ● |
| Various options for open-loop and closed-loop control of active and reactive power | ● |
| Manual inputs or inputs transferred via Modbus | ● |
| Specifications via analog and digital inputs | via external I/O systems |
| Open-loop and closed-loop active power control (digital inputs) | ● |
| Closed-loop active power control (P(f)) | in the SMA inverter |
| Open-loop and closed-loop reactive power control (Q(V)) | ● |
| Fast shutdown via the digital input | ● |
| ● Standard features ○ Optional features — Not available ▲ Depending on availability | |
