Description
Pulse Hybrid Couplers covers all cellular bands from 698-2700MHz with a low Passive Inter-Modulation, and both 2x2 and 4x4 options available. Typically used to combine either in-band carriers or carriers across multiple bands to be fed into antenna feeders or In-Building leaky feeder or in-building Distributed Antenna Systems.
Pulse Hybrid Couplers offer a low cost solution for hybrid's covering cellular bands from 694 to 2700MHz, with low loss Passive Inter-Modulation performance and high isolation. Typically used to combine either in-band carriers or carriers across multiple bands to be fed into antenna feeders or in-building Distributed Antenna Systems.
FEATURES
-covering all cellular bands.

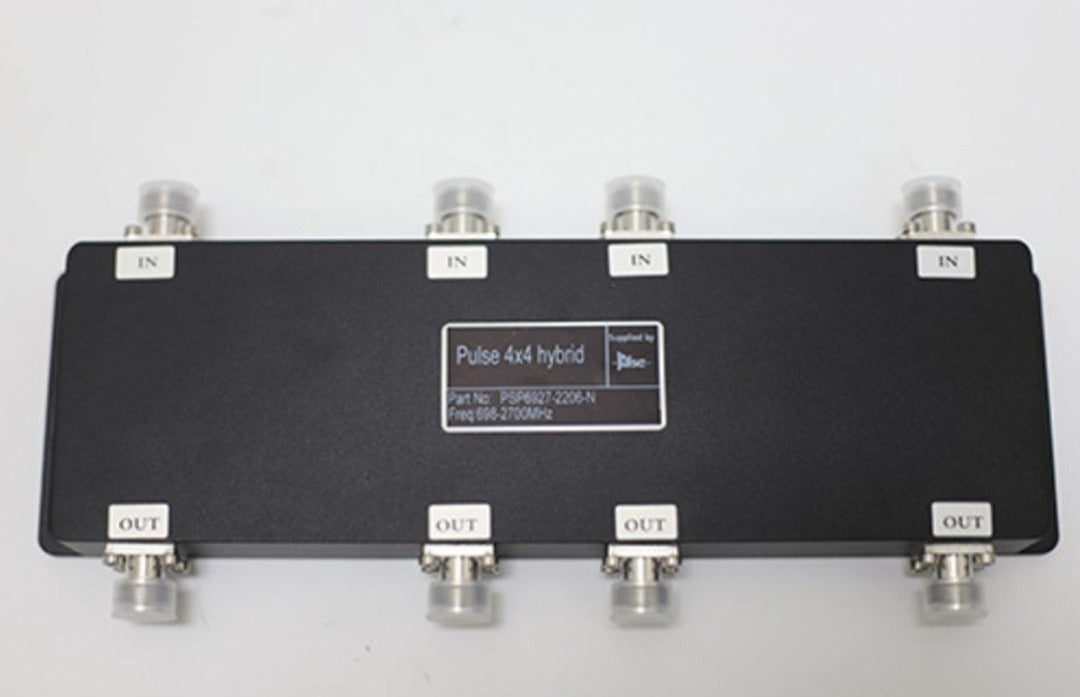

-8 port, 4x4 hybrid coupler -Low Insertion Loss -Good isolation (Ports 1 & 2) across full bandwidth >23dB -Suitable for use in high power multi-carrier transmission systems -Manufactured to a low PIM -150dBc (3rd Order 2x43dBm carriers) rating -100W per port power rating -2x2 option available.
SPECIFICATIONS
| Finish | Black - Painted |
| Connector Types All Termination Ports | N (F) |
| Power Rating Watts | 100W per port |
| Operational Temperature Range | -25A‚A°C to +65A‚A°C |
| Connector | N(F) |
| Frequency Range | 698 - 2700 |
| Weight [kg] | 0.75 |
| Component Type | Hybrid Coupler |
