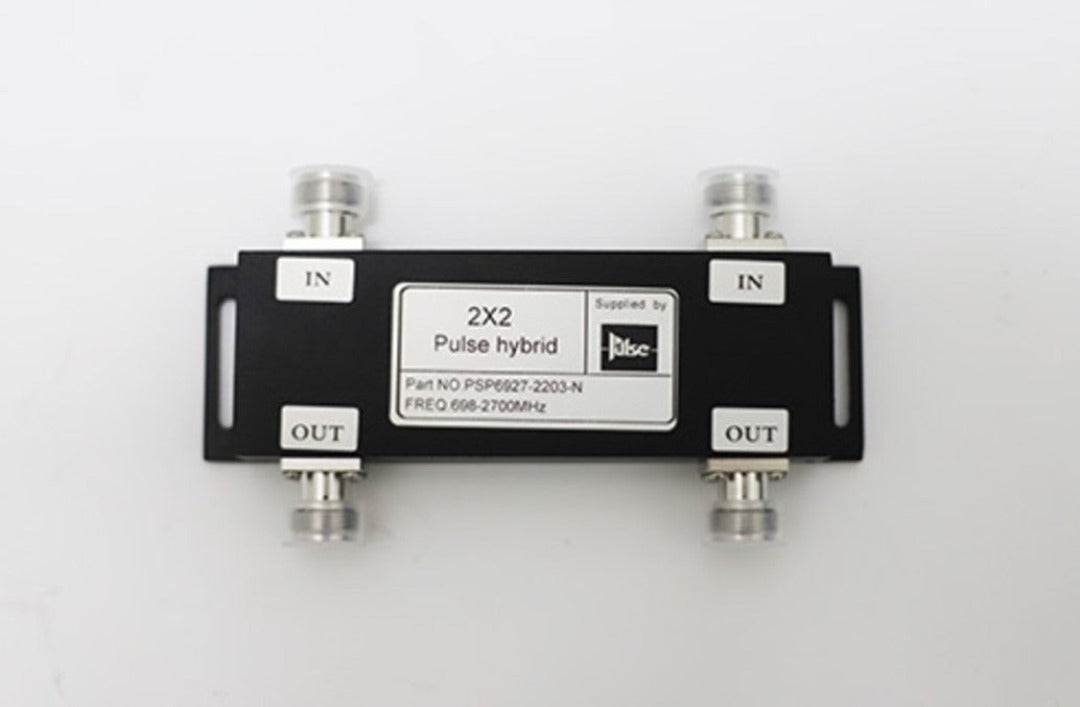

RFI Pulse Hybrid Coupler 2x2 698-2700MHz Low Passive Inter-Modulation N-Type PSP6927-2203-N


Price:
Sale price$367.00

Description

Pulse Hybrid Couplers covers all cellular bands from 698-2700MHz with a low Passive Inter-Modulation, and both 2x2 and 4x4 options available. Typically used to combine either in-band carriers or carriers across multiple bands to be fed into antenna feeders or In-Building leaky feeder or in-building Distributed Antenna Systems.

Pulse Hybrid Couplers offer a low cost solution for hybrid's covering cellular bands from 694 to 2700MHz, with low loss Passive Inter-Modulation performance and high isolation. Typically used to combine either in-band carriers or carriers across multiple bands to be fed into antenna feeders or in-building Distributed Antenna Systems.

FEATURES

-covering all cellular bands.

-4 port, 2x2 hybrid coupler -Low Insertion Loss -Good isolation (Ports 1 & 2) across full bandwidth >23dB -Suitable for use in high power multi-carrier transmission systems -Manufactured to a low PIM -150dBc (3rd Order 2x43dBm carriers) rating -100W per port power rating -4x4 option available

SPECIFICATIONS

Finish Black - Painted
Connector Types All Termiantion Ports N (F)
Power Rating Watts 100W per port
Operational Temperature Range -40A‚A° C to +60A‚A° C / -40A‚A° F to 140A‚A°F
Connector N(F)
Frequency Range 698 - 2700
Weight [kg] 0.75
Component Type Hybrid Coupler
