Description

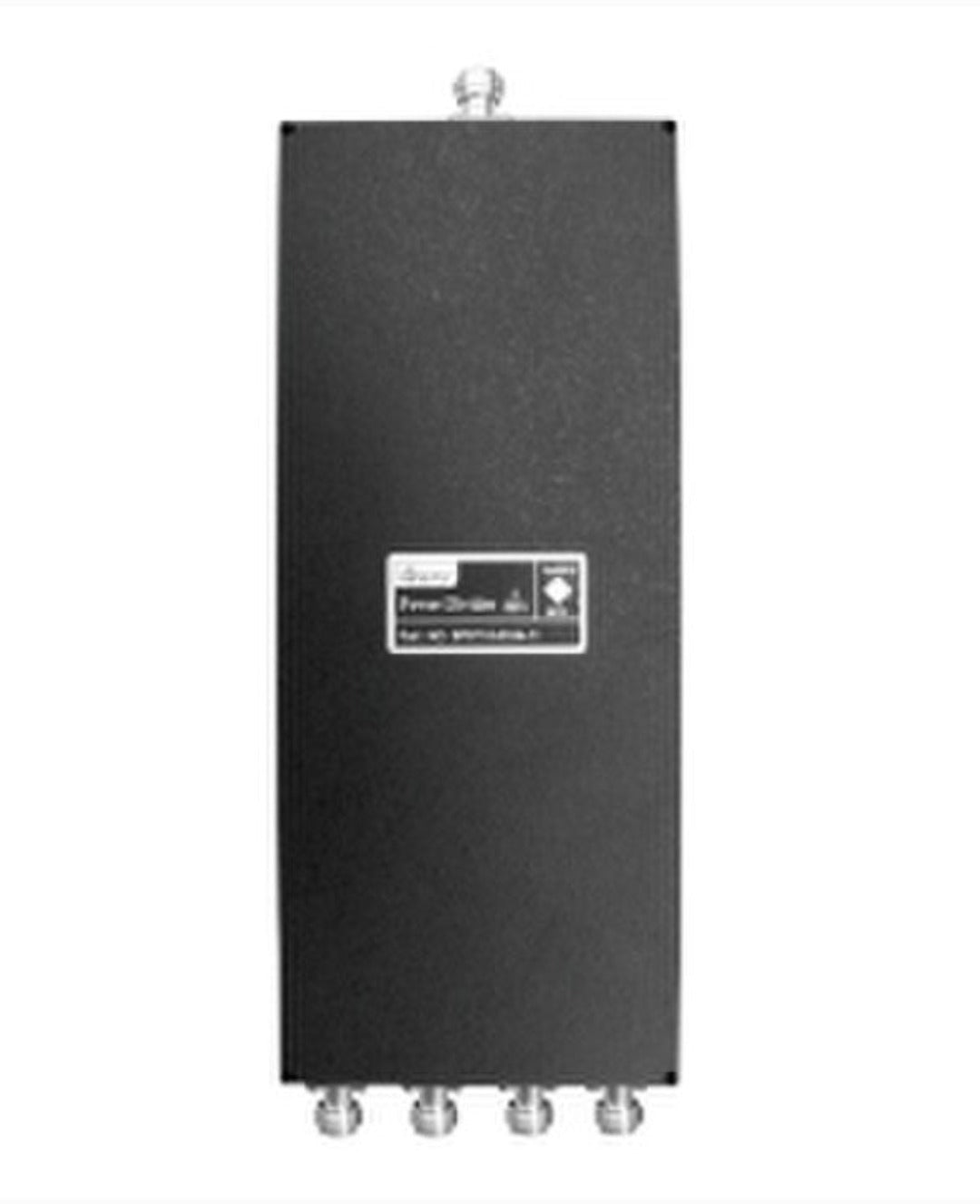

RFI Power Dividers / Combiners are used in a variety of RF power dividing and combining applications. Designed using Wilkinson or N-way styled cascaded broadband binary power splitting or combining techniques offering broadband capability with good splitter output/combiner input, port-to-port isolation. Manufactured using a robust profiled solid-milled aluminium housing these products are ideal for use in coaxial cable networks and multicoupling applications.
FEATURES
- Broadband covering 70MHz to 1000MHz.
- Suitable for use with analog or digital RF communications.
- Compact robust and modular design for indoor use.
- 100W continuous input power rating when used as a power divider.
- 10W continuous input power rating per port when used as a combiner.
- Two, three, and four-way divide/combine options.
SPECIFICATIONS
| Brand | RFI |
| Frequency Range [MHz] | 70 - 1000 |
| Operational Temperature Range | -30°C to +70°C / -22°F to +158°F |
| Insertion Loss dB | 6.5dB (max) |
| Connector Types All Termination Ports | N (F) |
| Finish | Black - Painted |
| Port To Port Isolation | 15dB (min) |
| Splits | 4 |
| Component Type | Splitter/Combiner |
