Description

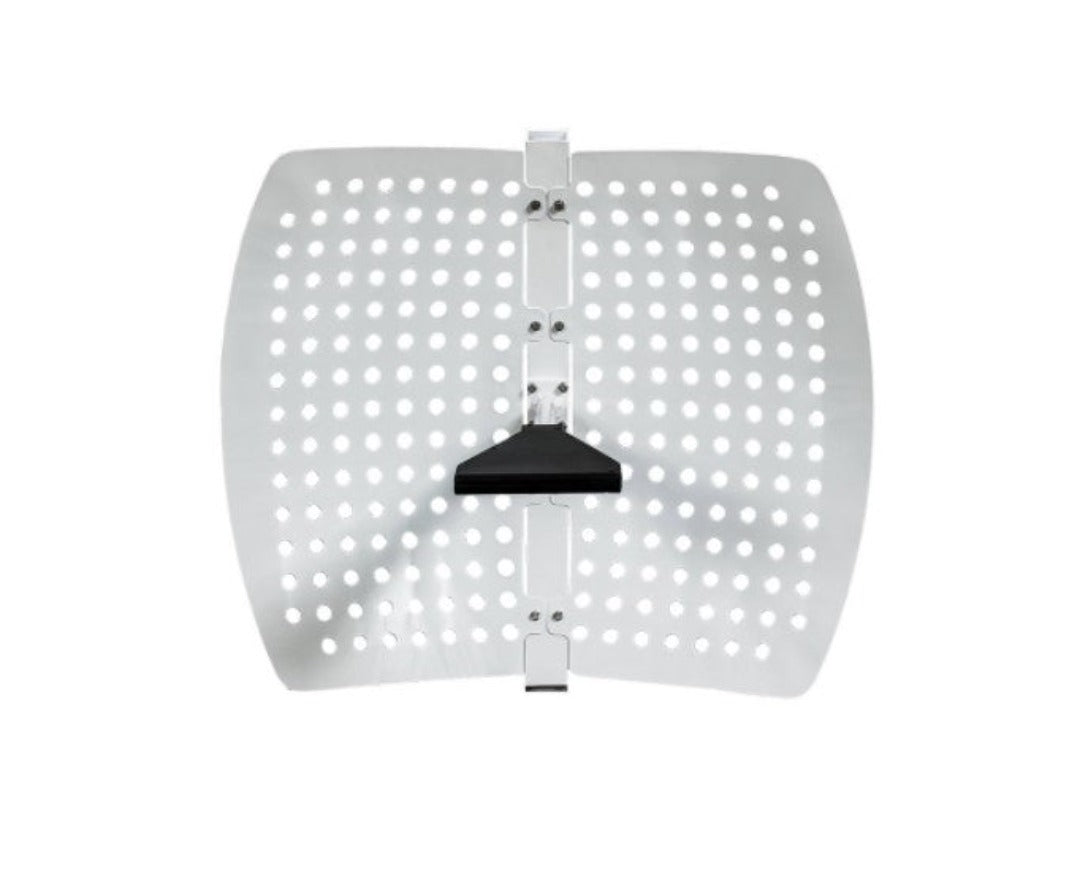

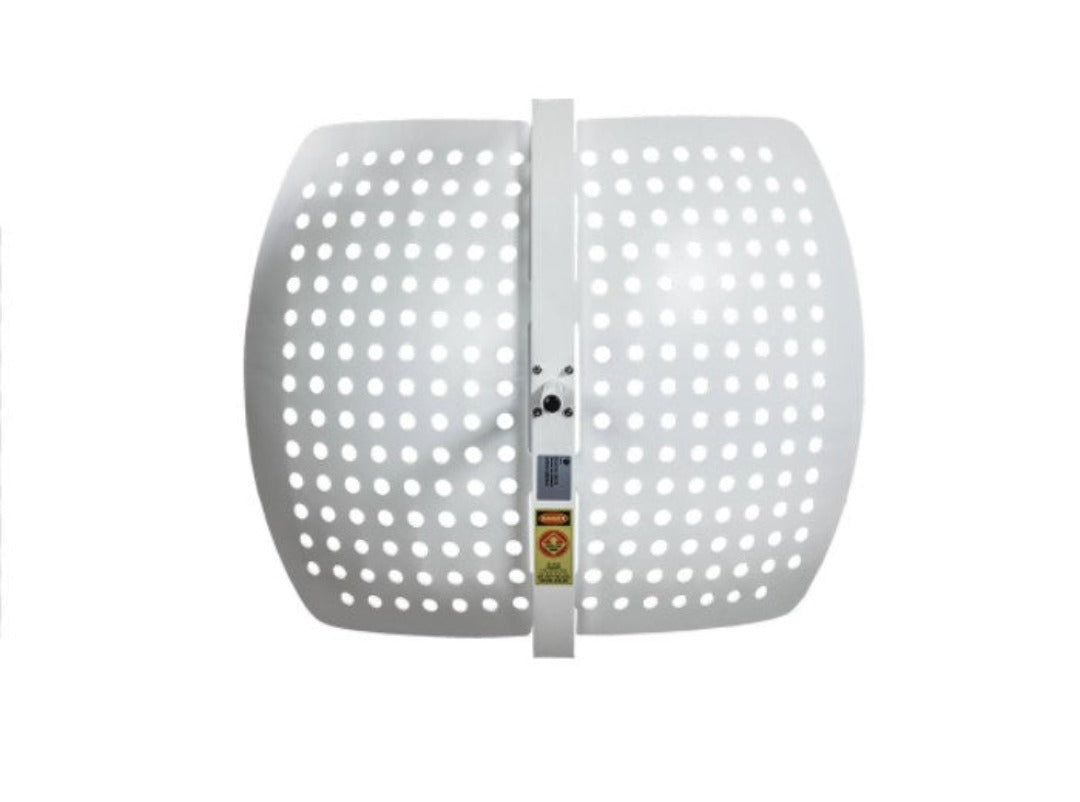

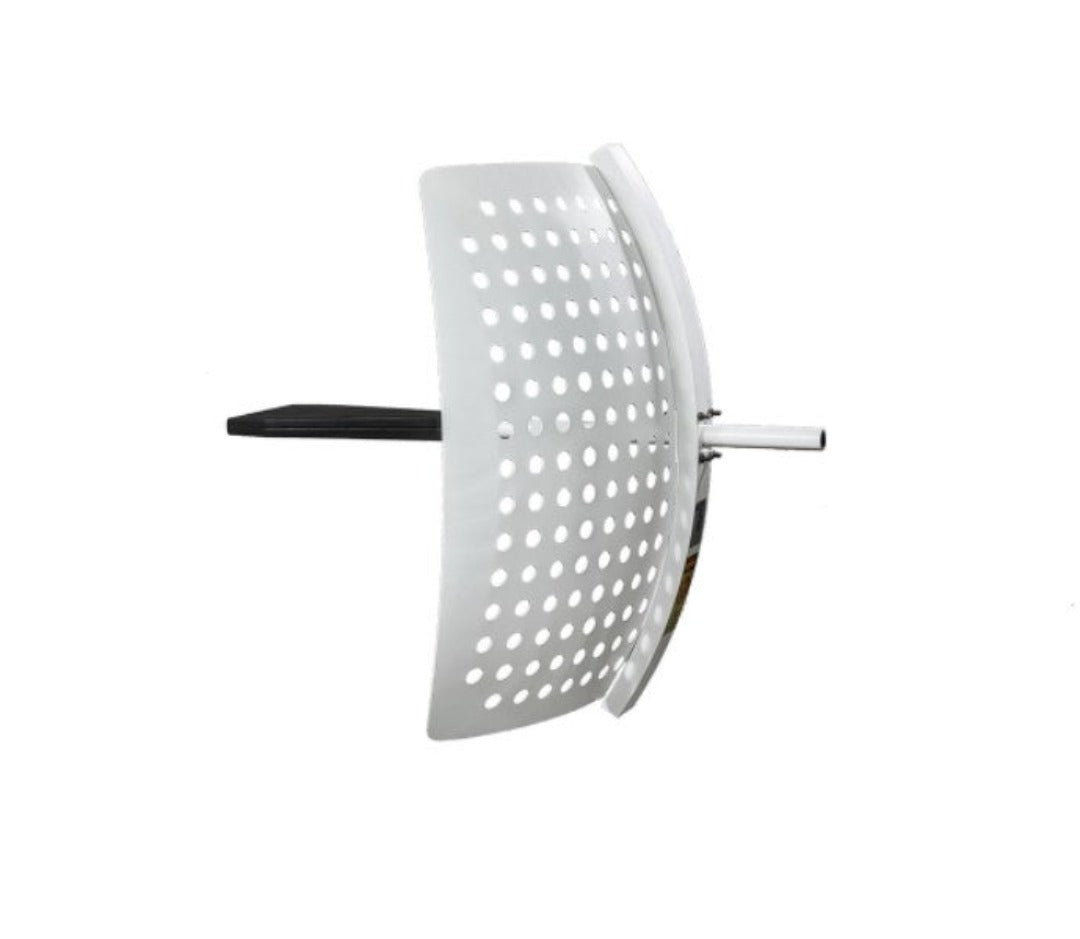

The GM06 is a lightweight yet ruggedized mesh parabolic antenna providing highly reliable point to point communication. Utilizing PCB manufacturing techniques, this grid offers best in class reliability and performance, with Low PIM performance, high reliability as well as pattern stability and more importantly, repeatability. Although highly durable in design, wind loading and weight have been reduced, through respective design elements, including tubular aluminum, and lightweight, UV stabilized ABS radome and PCB element. Clamp options include the GA Clamp which allows full articulation and polarization adjustment; offering more assistance and reduction in time during installation.
FEATURES
- Full band solution, 698-3800MHz coverage
- Vertical or Horizontal polarization
- Easy installation
- Clamp options available
- Lightweight yet durable design
- Low PIM performance
SPECIFICATIONS
| Power Rating Watts | 50 |
| Connector | 4.3-10(F) |
| Frequency Range | 694 - 3800 |
| Wind Load (Thrust) @ 160km/h N | 240 |
| Power w | 100W |
| Nominal Gain Dbi | 10/21/24 |
| Dimensions | 670 x 670 x 400 |
| Polarisation | Linear |
| VSWR | 2.0:1 |
| Termination | 0.5 meters RG142 cable terminated with 4.3-10 female |
| Construction | Aluminum |
| Passive IM 3rd Order (2x20W) dBc | -140 |
| Horizontal Beam width | 27/13/9 |
| Front Back ratio dB | 15/30/30 |
Ā
**NOTE 4.3-10 CONNECTOR YOU MAY
WISH TO USE A 4.3-10 TO N ADAPTER
WITH THIS ANTENNA DEPENDING ON
APPLICATION AND CABLE USED**
**CLAMP NOT INCLUDED REF BELOW**
