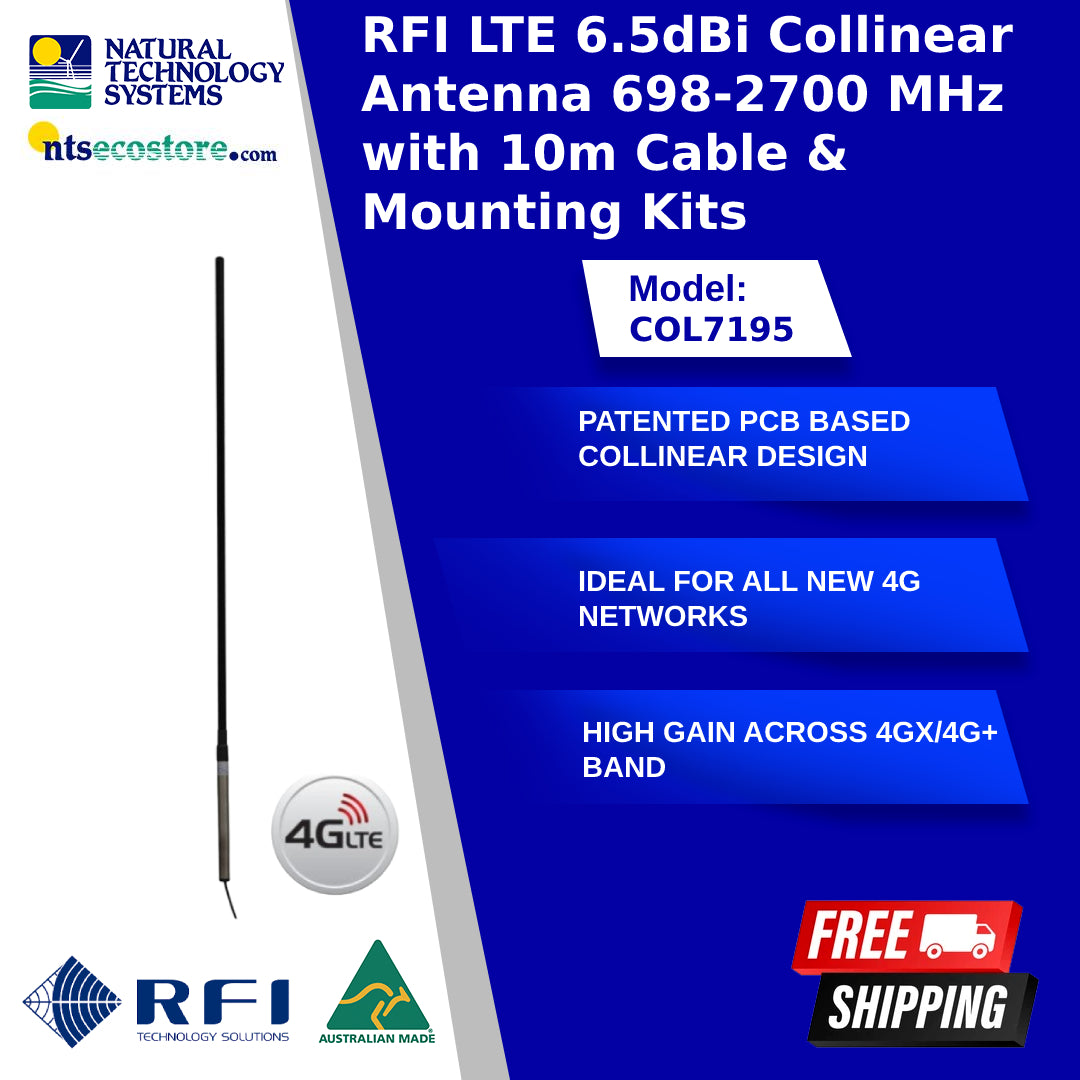

Description

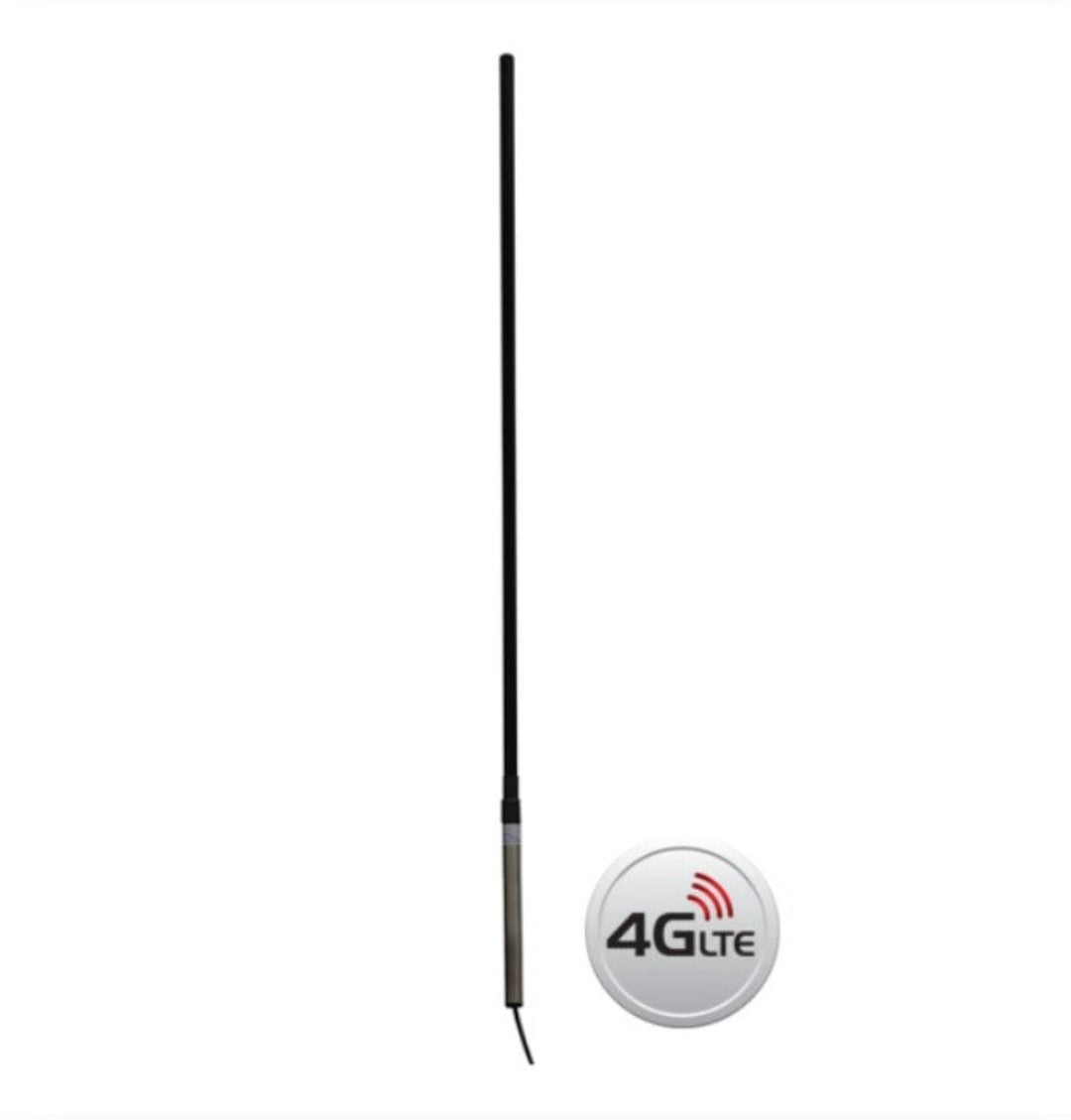

With a 200mm (x 19mm) stainless steel mounting tube, the COL7100 Series is designed to be mounted to a vertical support structure using the two supplied stainless steel hose clamps, which have an adjustment of 27-51mm.
FEATURES
- Patented PCB based collinear design offering the ultimate in pattern and gain stability
- Ideal for all new 4G networks with true multi-band coverage
- High gain across 4Gx/4G+ band suiting fringe and rural applications.
SPECIFICATIONS
| Cable Type | RG58 |
| Cable And Connector | 10m of 9006 low loss cable terminated with FME female connector and supplied with FME male to SMA male adaptor. |
| Connector | SMA(M) |
| Frequency Range | 698 - 2700 |
| Wind Load (Thrust) @ 160km/h N | 240 |
| Power w | 10 |
| Nominal Gain Dbi | 6.5 / 4.5 / 5.5 |
| Polarisation | Vertical |
| VSWR | <2.5:1 |
| Radome Diameter Mm | 15.6 |
| Mounting area | 200 x 19 S/S, 2 x S/S hose clamps (supplied) |
| Construction | Black radome, 200mm S/S mounting tube |
| Tuned bandwidth | Full |
| Frequency MHz | 698-960 / 1710-2170 / 2300-2700 |
| Length [mm] | 965 |
| Brand | RFI |
| Weight [kg] | 0.572 |
