Description

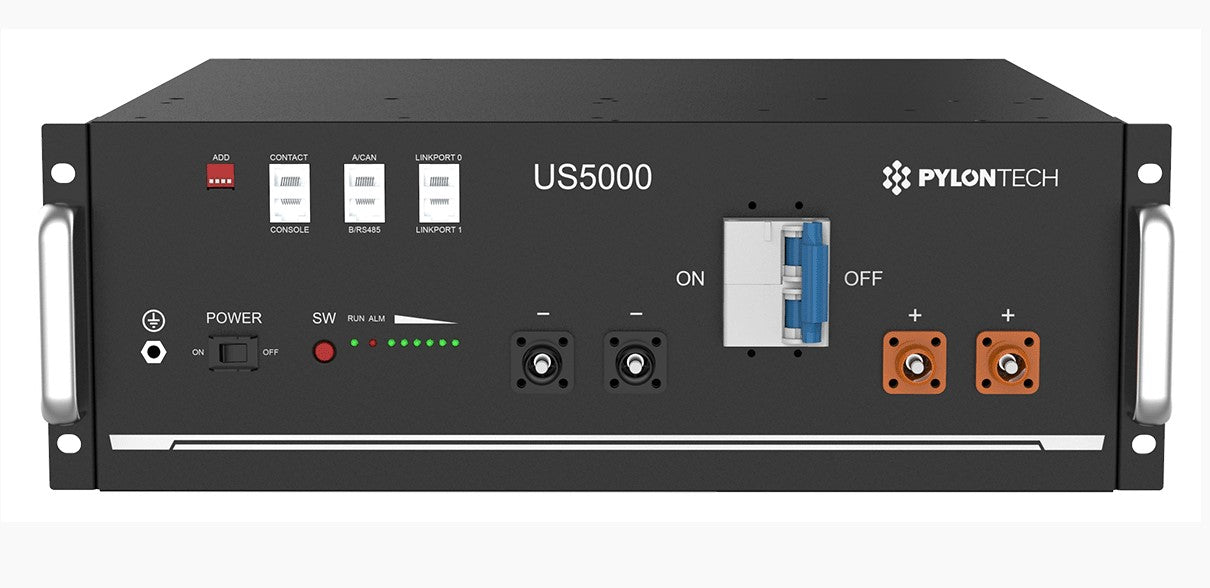

US5000-B is the latest and highest capacity version HESS battery system designed by Pylontech. It’s long life characteristics, highest energy and power density in the industry, fashionable design, easiness of installation and expansion, all reflect the real requirements of end users and the strong technical capability of Pylontech.
This compact and modular battery promises more than 6000 cycles with 90% DoD
The design fits in a battery rack or can be upgraded with custom “feet”
Deliver up to 9.5KW with single module (for 15 seconds)
Modular design gives the end customers the power of choice of capacity (up to 16 modules)
Safest Lithium battery chemistry (Iron Phosphate)
Compatible with most of the available Hybrid inverters
Simple buckle fixing minimize the installation time and cost
Does not require a separate Battery Management Unit
FEATURES
- 4RU size (161mm tall)
- Cycle life: >6000 cycles @ 25°C with 95% DoD for daily cyclic applications
- Usable capacity of 4.56kWh @ 48 vDC
- Working Temperature Range -10°C to 55°C, (Charging 0~55°C: Discharging -10~55°C)
- Compact and fashionable 19″ rack design to suit bracket, rack or cabinet installations
- Modular design gives the you the power to design systems from 4.8kWh to a commercial sized 1.704MWh
- Compatible with many available Hybrid inverters
- Backwards Compatible with existing US series products
- Pre-charge function to protect ESS from surge currents
- Safety Cert. CE, UL1973, UKCA, UN38.3, IEC62619, IEC63056
- Communication Protocols: CAN, RS485
- 15+ Year Design Life
- 10 year Warranty
SPECIFICATIONS
| Model No | US5000-B | |
| Description | 48V 100Ah 4.8kWh 4RU 15S1P LiFePO4 Battery Rack Mount Metal Enclosure + Cables | |
| Chemistry | Lithium Iron Phosphate (LiFePO4) | |
| Voltage | 48V | |
| Nominal Capacity | 100Ah | |
| Watt Hour | 4800.0Wh | |
| Maximum Continuous | 100A | |
| Discharge Current | ||
| Size | 4RU | |
| Width | 442mm | |
| Height | 161mm | |
| Length/Breadth/Depth | 420mm | |
| Weight | 39kg | |
